• Model NO.：DZ-3300
• Precision：High Precision
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Iron Grey
• After-sales Service：Seccionadora Horizontal
• Transport Package：Strong Stretch Film
• Specification：6200kg
• Trademark：sosn
• Origin：China
• HS Code：84659100
• Production Capacity：50 Sets,Month

Basic Info.

Model NO. DZ-3300 Precision High Precision Certification CE, ISO Customized Customized Condition New Color Iron Grey After-sales Service Seccionadora Horizontal Transport Package Strong Stretch Film Specification 6200kg Trademark sosn Origin China HS Code 84659100 Production Capacity 50 Sets/Month

Product Description

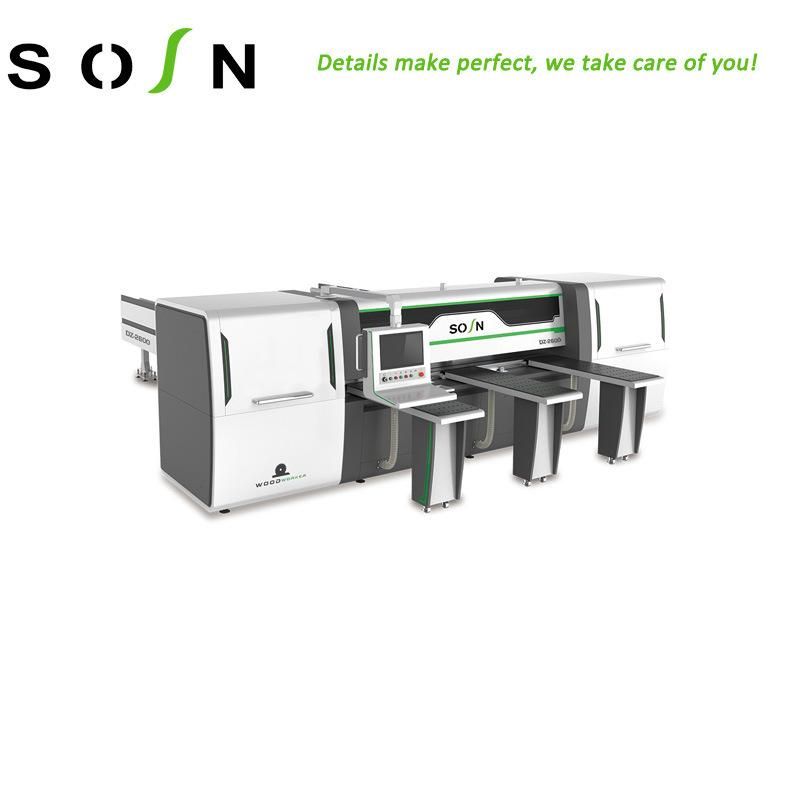

Woodworking Machine Automatic Beam Saw CNC Computer Cutting Machine Seccionadora horizontal
1). CNC computer beam saw machine


2).Main Parameter

Max.cutting length	2700mm	3300mm
Max.cutting width	2700mm	3300mm
Max.cutting height	120mm	120mm
Max.saw blade height	125mm	125mm
Min. cutting size	50*50mm	50*50mm
Main saw blade motor power	15kw	15kw
Main saw blade diameter	450mm	450mm
Main spindle diameter	75mm	75mm
Main saw blade speed	4000r/min	4000 r/min
scoring motor power	2.2kw	2.2kw
scoring saw blade diameter	¢200mm	¢200mm
main spindle dia.	¢50	¢50
scoring saw blade speed	6000r/min	6000r/min
Pusher system drive motor	1.8kw	1.8kw
Pusher system push speed	5-100m/min	5-100m/min
Pusher system pull speed	5-100m/min	5-100m/min
High pressure blower motor	5HP/3.0kw	5HP/3.0kw
Side aligner motor	90w	90w
working air pressure	6-7kg/cm2	6-7kg/cm2
saw carriage drive motor	3.4kw	3.4kw
Forward speed	0-120m/min	0-120m/min
Return speed	120m/min	120m/min
Table height form floor	970mm	970mm
Grippers	8 groups	8 groups
Voltage	380V,50HZ, 3 phase	380V,50HZ, 3 phase
Machine size	6200*6300*2000mm	6450*6900*2000mm
weight	5.2T	5.5

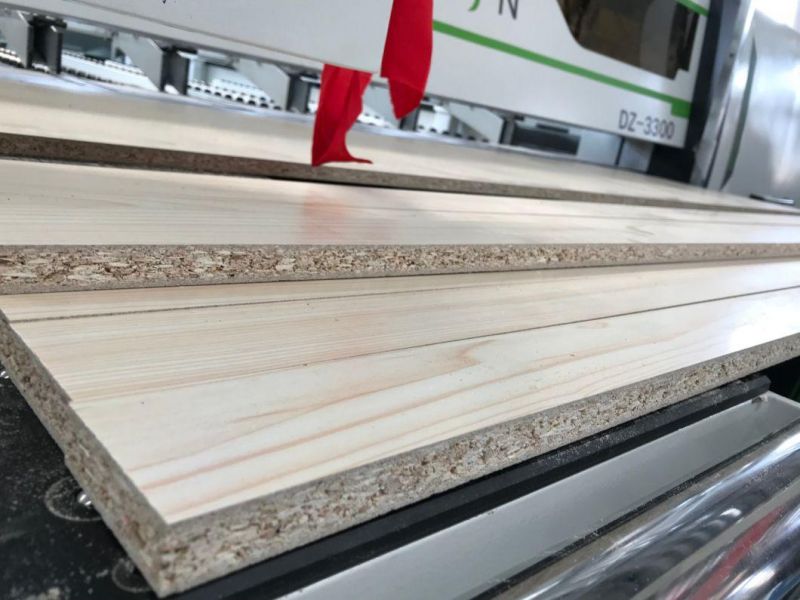

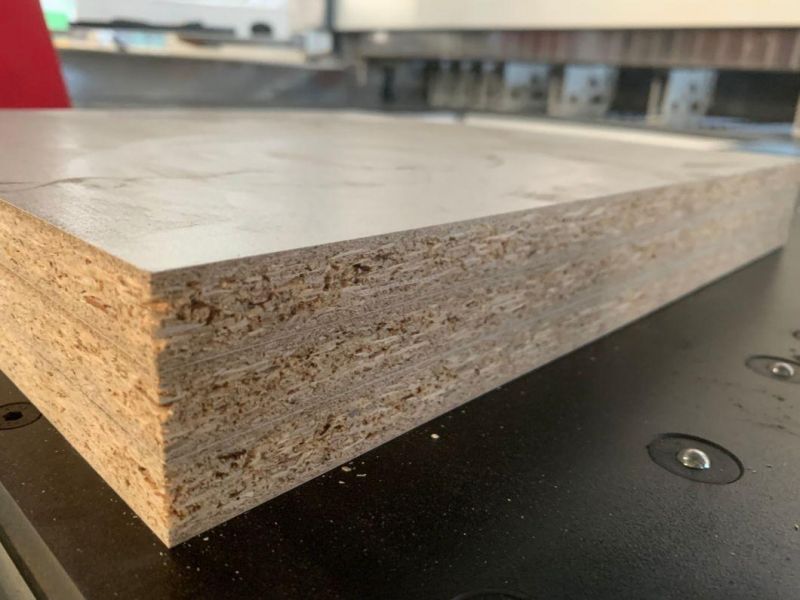

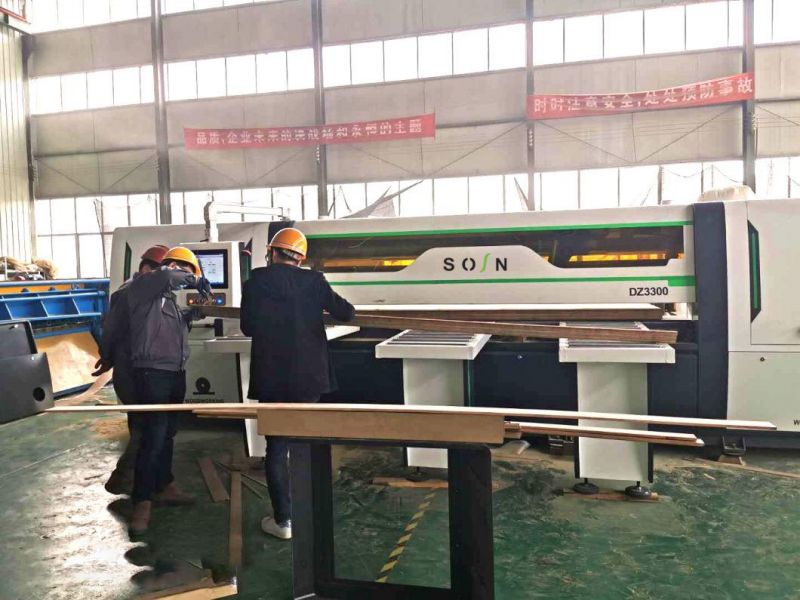

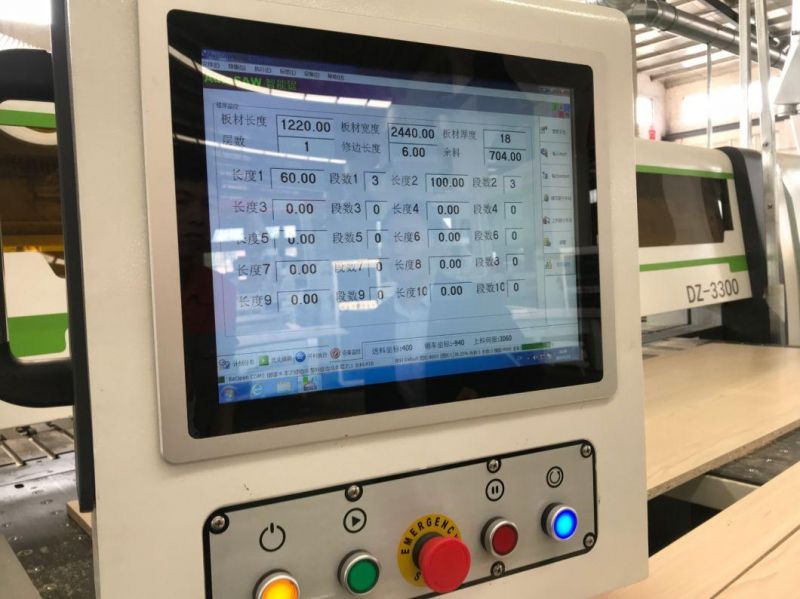

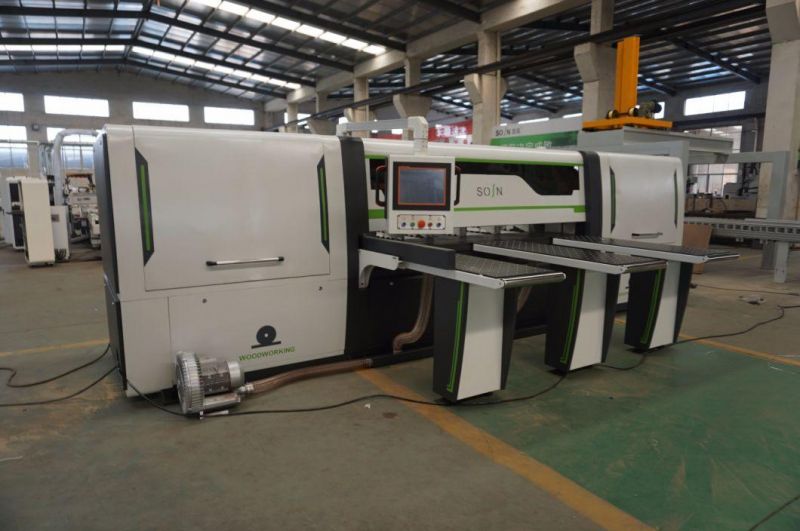

3).Details pictures.





4). Loading and delivery.


--Delivery:
We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we can't deliver on time, we will give the product a corresponding discount.
--Package:
After testing the cnc computer beam saw machine well, our workers will do cleaning work before package.
 stretchy film for the whole machine and some spare parts which will also be seperatly packed well by strong stretch film.
--Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
--Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
--After sales services:
Our machine is installed and tested well before delivery to you, when you get the machine, you just need to install it and then can operated, of course ,all of these steps our technician will give you professional help.

No worry for any installation or operation of this computer beam saw, we are here to help you.

Heavy duty frame, Unique internal structure, optimization software, top-brand spare parts, professional installation workers, intime- after sale service, This machine surely can highly improve your working efficiency and precision.

Please contact me now to start your working upgrading!
