Precision Woodworking Sliding Table Panel Saw for Cutting Wood

Qingdao Yingzhuo Automation Equipment Co., Ltd.
  • Warranty：2years
  • Type：Table Panel Saw
  • Power Type：Electric
  • Layout：Horizontal
  • Controlling Mode：Artificial
  • Automatic Grade：Semiautomatic

Base Info

  • Model NO.：MJ6312-YZ
  • Precision：High Precision
  • Certification：CE, ISO, FDA
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • After-sales Service：2years
  • The Size of Sliding Table：3200*400mm
  • Main Saw Motor：5.5kw
  • Saw Blade Titling Angle：0-45°
  • Scoring Saw Motor：1.1kw
  • Spindle Diameter of Main Saw：30mm
  • Spindle Diameter of Scoring Saw：20mm
  • Weight：800kg
  • Transport Package：Wooden Case Package
  • Specification：3200*1100*1000mm
  • Trademark：YZ
  • Origin：China
  • HS Code：8465910000
  • Production Capacity：10000pieces,Year

Description

Bulldozer size3200*375mmLubrication modeOil cup oilingMaximum cutting length3100mmDedusting methodBottom Vacuum and Top VacuumInstalltion diameter of large saw blade300mmLifting modeElectric liftingSpeed of large saw blade4500/6500rpmTilting modeElectric tiltInstalltion diameter of small saw blade120mmAngle0-45°Speed of small saw blade8000rpmVoltage configurationCustomizedMain motor power5.5kwOutline size3200*1100*1000mmAuxiliary motor power1.1kwWeight800kgSpindle diameter30mmCertificationCE,ISOAuxiliary shaft diametet20mmColorCustomizedDETAILS SHOW

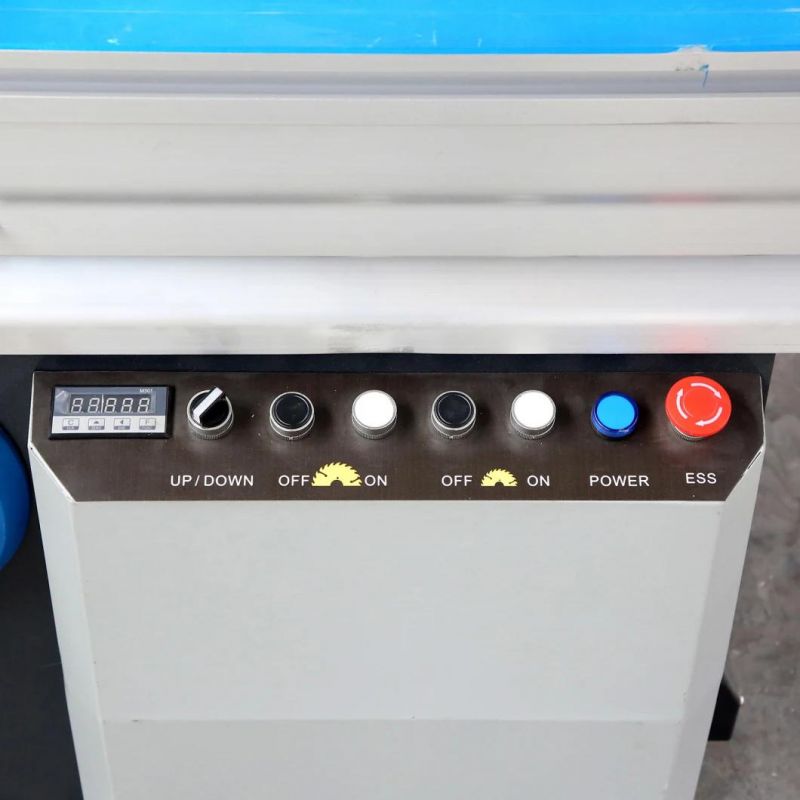

Control panel
Humanized design and easy to operate control panel. Auto lifting of the main and scoring blades Digital indicator for angles
Precision Woodworking Sliding Table Panel Saw for Cutting WoodAltendour-structure Dust Cover
European style dust hood,The saw blade protection allows the operator to visualize the panel while cutting and increases the dust extraction capacity

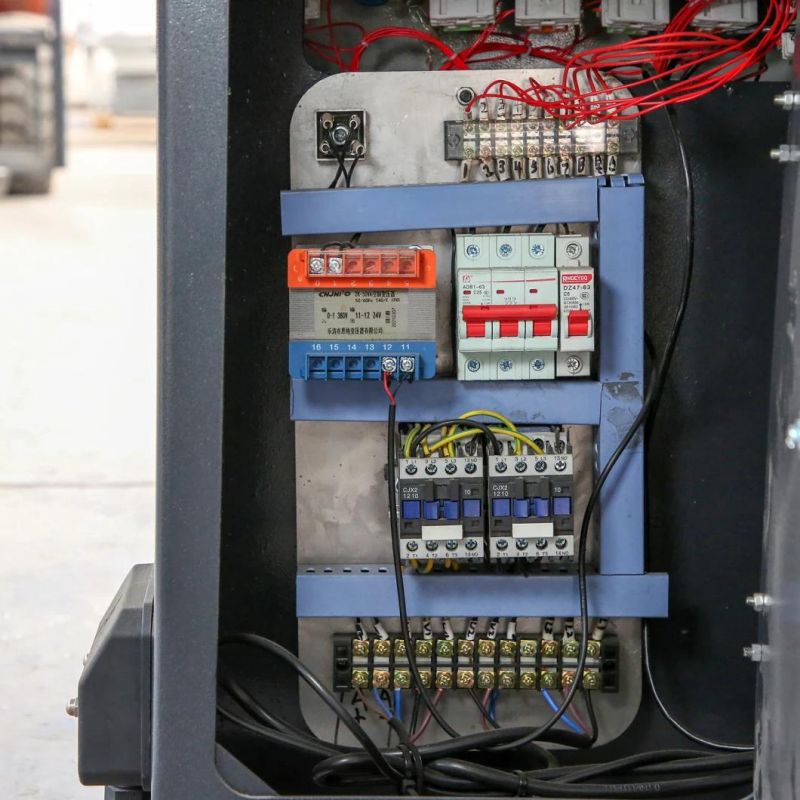

Precision Woodworking Sliding Table Panel Saw for Cutting WoodElectric system
Independent electric box is dustproof, which can low rate of power failure. Top quality electric parts,more sensitive and longer lifitime

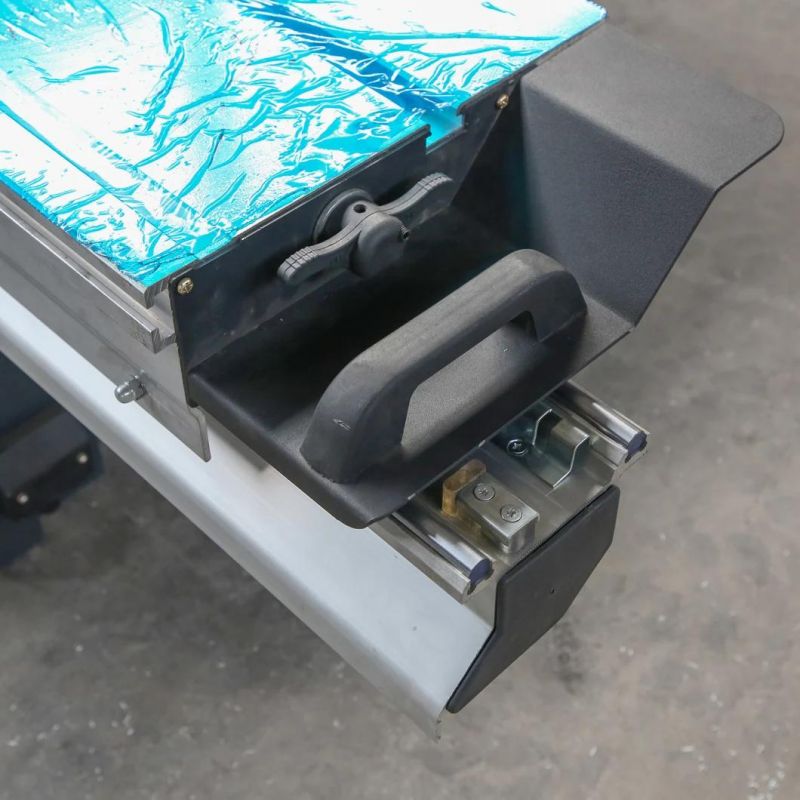

Precision Woodworking Sliding Table Panel Saw for Cutting WoodSliding Table Structure and Feature
European style double layers high strength Aluminum profile sliding table can support the larger panels,with high precision
Precision Woodworking Sliding Table Panel Saw for Cutting WoodInner Structure
This is new inside structure, same with Altendorf, much much better in using, lower noise, easy to operate, and with electric lifting of main blade

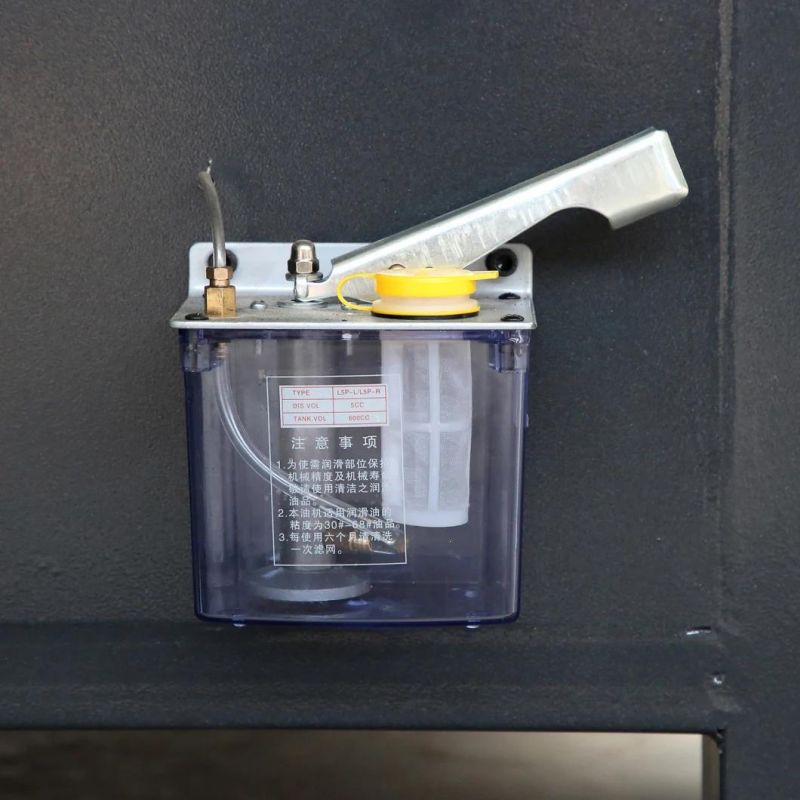

Precision Woodworking Sliding Table Panel Saw for Cutting WoodLubricator

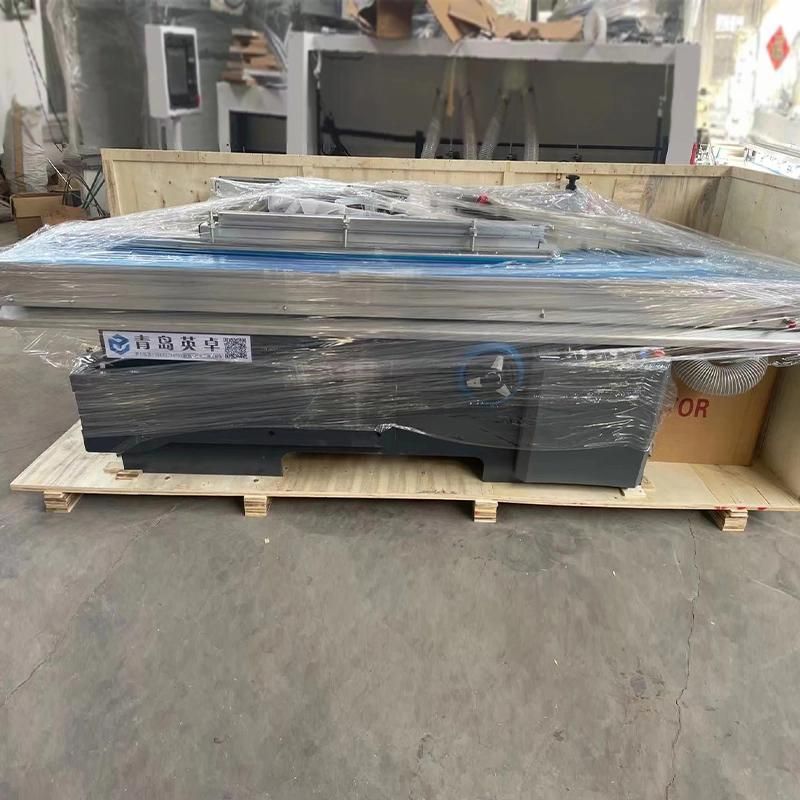

The method of oil filling is automatic oil cupPrecision Woodworking Sliding Table Panel Saw for Cutting WoodPackaging & ShippingPrecision Woodworking Sliding Table Panel Saw for Cutting WoodPrecision Woodworking Sliding Table Panel Saw for Cutting WoodPrecision Woodworking Sliding Table Panel Saw for Cutting WoodPrecision Woodworking Sliding Table Panel Saw for Cutting WoodFAQ
1.Package:
Both stretch film and export standard wooden box package and for the machine and spare part.

2.Delivery:
As we have machines in the warehouse,lead-time can be assured.
For customized machines,delivery time is strictly followed by the contract.

3.Warranty:
18-month guarantee from the delivery date,with spare part free of charge if damaged within the warranty period.

4.Technical support:
24-hour technical support by Phone,Email,etc.

5.After-sales services:
Machines are installed and tested well before delivery.
One-stop service to meet different customer's needs.
