• Model NO.：1300mm
• Condition：New
• Color：Customized
• After-sales Service：Free Service on Internet
• Working Width：1300mm
• Min Working Length：580mm
• Wroking Thickness：3-110mm
• Feeding Speed：5-30m,Min
• Total Power：62.92kw
• Motor for First Unit：37kw
• Motor for Second Unit：22kw
• Feeding Motor：3kw
• Lifting Motor：0.55kw
• Motor for Brush Roller：0.37kw
• Transport Package：PE Film
• Specification：1000mm
• Trademark：CHANCSMAC
• Origin：China
• Production Capacity：10 Sets, Month

Basic Info.

Model NO. 1300mm Condition New Color Customized After-sales Service Free Service on Internet Working Width 1300mm Min Working Length 580mm Wroking Thickness 3-110mm Feeding Speed 5-30m/Min Total Power 62.92kw Motor for First Unit 37kw Motor for Second Unit 22kw Feeding Motor 3kw Lifting Motor 0.55kw Motor for Brush Roller 0.37kw Transport Package PE Film Specification 1000mm Trademark CHANCSMAC Origin China Production Capacity 10 Sets/ Month

Product Description

Wide Belt Planer Sander

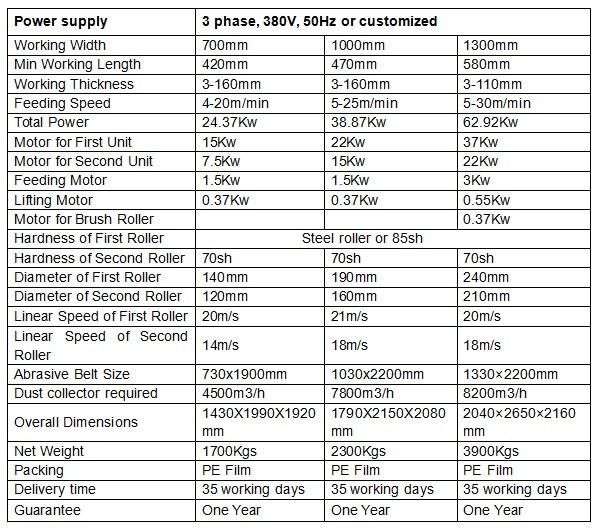

1.Parameter:


2.Detailed Images:

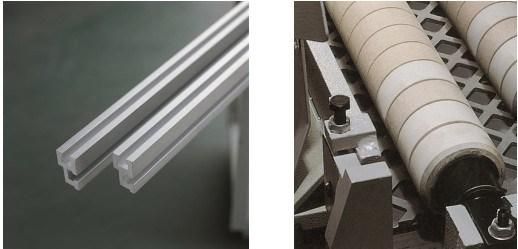

1.Double pressing roller structure design ensures stable feeding of work piece.


2. First sanding shaft adopts ¢140 eccentric spiral steel roller. Easy to adjust
Second sanding shaft is combined sanding unit with sanding pad,
adopts ¢120 rubber coating roller + peaceful rigid press pillow


3. Imported high precision Numeral control panel to adjust thickness.
Keyboard control type, easy operate and maintenance.
Adjust the thickness in electrical way.
Emergency button is obviously and separately, easy to cut off the power and keep safety.

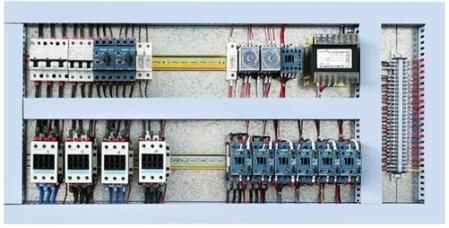

4. Components are SIEMENS brand. Durable and stable.

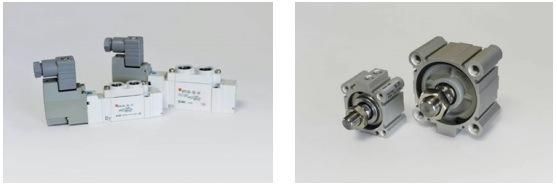

5. Japan SMC magnetic valve and swing cylinder


6.Anti dust motor IP54




7.Advanced international sanding belt adjust method.
Convenient to operate and easy to learn.


8. German PEPPERL+FUCHS limit switch for sanding belt


3.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact with us
1.  Q:What's the MOQ?
      R:  One set will be ok.
2.  Q: Provide customized machine Yes or NO?
     R: Yes. We have professional designers and engineers to supply customized machines.
3.  Q: What is payment terms?
     R: 30%T/T in advance, the balance paid before shipment after inspection.
4.  Q: What is the warranty time?
     R: One year.
