• Model NO.：UG-1525
• Guide Rail：Linear Square Guide Rail ( Hiwin, Taiwan)
• Transmission：Helical Rack &Pinion for X Y -Axis, Lead Ball Scre
• Driving Mode：Stepper Motor (86bygh450b) and Driver or Xyz-Axis
• Spindle Motor：5.5kw Water Cooling, Er25, Hqd, China
• Spindle Speed：0-24000rpm
• Control System：DSP A11e Offline, Richauto
• Lubrication System：Semi-Auto
• Dust Collector：3.0kw
• Water Cooling System：Stainless Steel Water Slot Cooling
• Tools Calibration：Auto
• Lubrication：Semi-Auto
• Transport Package：Plywood Case
• Specification：3200*2280*1960mm, 1400KGS
• Trademark：UPGOAL
• Origin：Jinan City, Shandong Province, China
• HS Code：84659900
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. UG-1525 Guide Rail Linear Square Guide Rail ( Hiwin, Taiwan) Transmission Helical Rack &Pinion for X Y -Axis, Lead Ball Scre Driving Mode Stepper Motor (86bygh450b) and Driver or Xyz-Axis Spindle Motor 5.5kw Water Cooling, Er25, Hqd, China Spindle Speed 0-24000rpm Control System DSP A11e Offline, Richauto Lubrication System Semi-Auto Dust Collector 3.0kw Water Cooling System Stainless Steel Water Slot Cooling Tools Calibration Auto Lubrication Semi-Auto Transport Package Plywood Case Specification 3200*2280*1960mm, 1400KGS Trademark UPGOAL Origin Jinan City, Shandong Province, China HS Code 84659900 Production Capacity 200 Sets/Month

Product Description

MDF Acrylic Aluminum CNC Engraving Cutting Machine 1500*2500mm





Features

1.Welded stonger square steel tube structure as a whole with vibration temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.




2. Large power China famousHQD brand 5.5kw air cooling spindle which is with stable performance, powerful and high torque, matched with high-performance frequency inverter.

3.  Thickness aluminum alloy T slot working table.

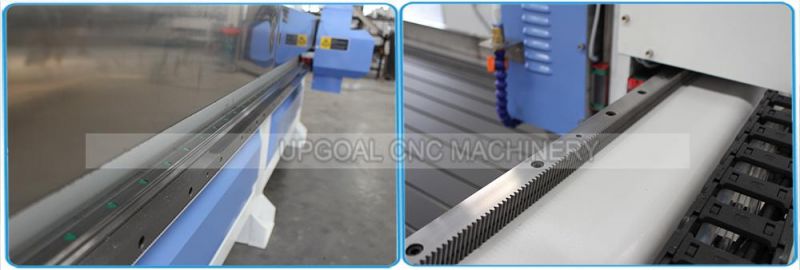

4. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.

5. Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.

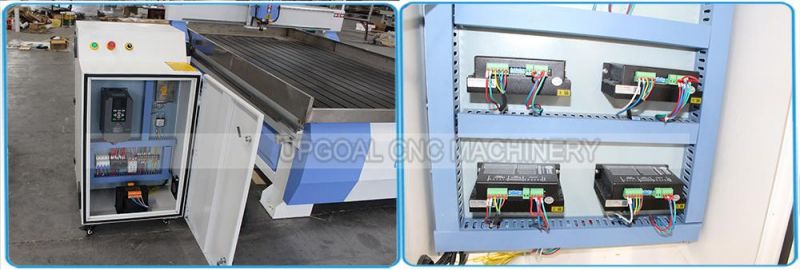

6. China famous Chuangwei 86BYGH450B stepper motor and Leadshine stepper driver 860 for XYZ-axis,  high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

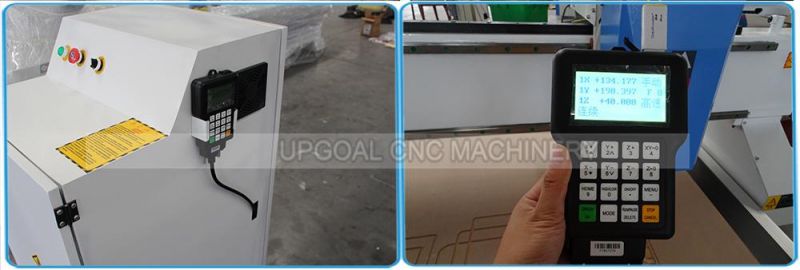

7. RichAuto DSP A11E offline control system with USB interface which is completely off from Computer. More Humanizeddesign with Simple and Convenient Handle type operation.With per-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle start up and stop automatically.

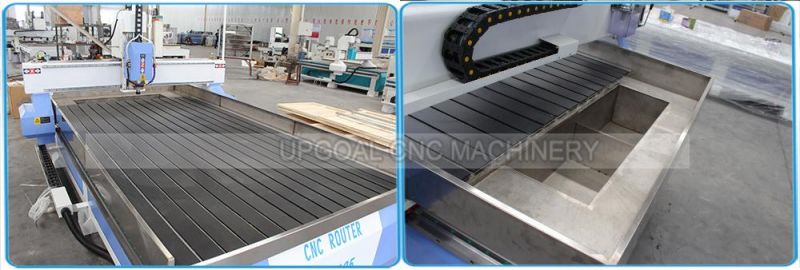

8. Stainless steel water slot cooling system with water mist cooling, ensuring the cooling for the metal & hard materials.

9. With 3.0kw dust collector, suck dust, milling dust, keeping the machine cleaning.

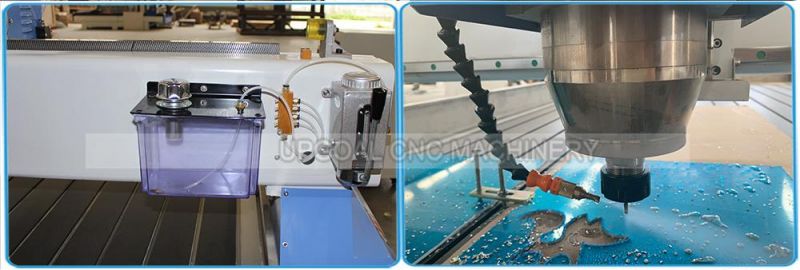

10.Semi-auto lubrication system more convenient for maintenance.

11 .Auto tool calibration, more convenient for each time Z-axis 0 point setting.



12. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

13. With the function of Break-point memory ,power failure resuming and automatic home/orgin correction function, effectively ensure long time working precision.

Technical Parameters

Effective working area	1500(X)mm*2500(Y)mm*200(Z)mm
Materials	Strong welded square steel pipe structure for whole machine
Working table	Aluminum alloy T slot working table
Moving type	Gantry moving
Guide rail	Linear square guide rail ( Hiwin, Taiwan)
Transmission	Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis
Driving mode	Stepper motor (86BYGH450B) and driver(DMA860H, Leadshine) for XYZ-axis
Spindle motor	5.5kw, water cooling, HQD, China
Spindle speed	0-24000rpm
Collets type	ER25
Inverter	Sunfar
Voltage	AC 220V± 10%, 50/60Hz, single phase or AC 380V±10%, 50/60Hz, three phases
Traveling speed	>25000mm/min
Engraving speed	>12000mm/min
Machine accuracy	0.03mm
Control system	DSP offline, A11, 3 axis, RichAuto
Suitable software	Artcam, Type3, Ucancam V9,etc
Carving Instructions	G code *Uoo *mmg *plt HPGL
Running environment temperature	0-45 ºC
Relative humidity	30%-75%
Water cooling system	Stainless steel water slot cooling with water mist cooling
Lubrication system	Semi-auto
Tool calibration	Auto
Dust collector	3.0kw
Certificate	CE

Application

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc

Reference Sample Photos





Reference Working Videos

https://youtu.be/eG82cj5n854



                               For more information, just feel free to contact us!

     Jinan Upgoal Mechanical Equipment Co.,Ltd

     CNC Router/Laser Engraving Cutting Marking Machine/Plasma Cutting Machine
