Wood Door Pressing Compound Production Line
Foshan City Vario Machinery Co., Ltd.- Warranty:One Year
- Work Forms:Hydraulic Pressure
- Processing Technics:Hot Press
- Structure:Frame Type
- Pressing Shape:Flat Press
- Platen Surface Pressure:Medium Pressure
Base Info
- Model NO.:MT5-01
- Pressing Layer:Multi Layer
- Work Mode:Continuous
- Controlling Mode:CNC
- Automatic Grade:Automatic
- Certification:CE
- After-sales Service:Mainframe One Year,Electrical 6 Months
- Working Layers:5 Layers
- Transport Package:Plastic Film
- Trademark:variopress
- Origin:China
- HS Code:8465990000
- Production Capacity:30sets,Month
Description
Basic Info.
Model NO. MT5-01 Pressing Layer Multi Layer Work Mode Continuous Controlling Mode CNC Automatic Grade Automatic Certification CE After-sales Service Mainframe One Year,Electrical 6 Months Working Layers 5 Layers Transport Package Plastic Film Trademark variopress Origin China HS Code 8465990000 Production Capacity 30sets/MonthProduct Description
The use of wood door laminating production line is mainly to press wooden doors and similar products, close specifications, close pressed parts.1. This line is designed and developed by our company for specific products. It is specialized used for pressing the surface boards, the core plates and the backboards of the three layers of composite wooden doors, and produces the slabs of three layers of composite wooden doors. 2. Conveying and pressurize process: five layers automatic loading and unloading conveyor rise and fall respectively and stepped from the up bottom →lift till to the appropriate height of five layers automatic conveying hot press→at the same time automatic delivery the board to the appropriate location→five layers hot press increase pressure→five layers hot press keep the pressure→five layers hot press opens→five layers air cylinder rectify film and blow film→five layers hot press and loading and unloading conveyor starts at the same time→Conveying the finished blank board to the corresponding position of the automatic loading and unloading plate conveyor→The five layer automatic conveyor can be lowered to the working height of the belt conveyor→Five layer automatic conveying and loading machine lift and unload the finished products respectively and stepped from top to bottom, and then go onto the belt conveyor.3. Five layers automatic transport hot press and five layers automatic loading and unloading conveyor at two ends have the function of loading and unloading the products at the same time, effectively shorten the accessory time, greatly improve the productivity and pressure quality.
TM144X8/16(5)short cycle laminating production line equipment list
No. | Name | Model | QTY. |
1 | Veneer feeding belt conveyor | 1 | |
2 | five layer loading belt conveyor | MZX164X8/5 | 1 |
3 | five layer hot press machine | MY144X8/16(5) | 1 |
4 | five layer unloading belt conveyor | MZX164X8/5 | 1 |
5 | belt conveyor | BZY1113/25/850 | 1 |
6 | PLC control table | 1 | |
Total | 6 |

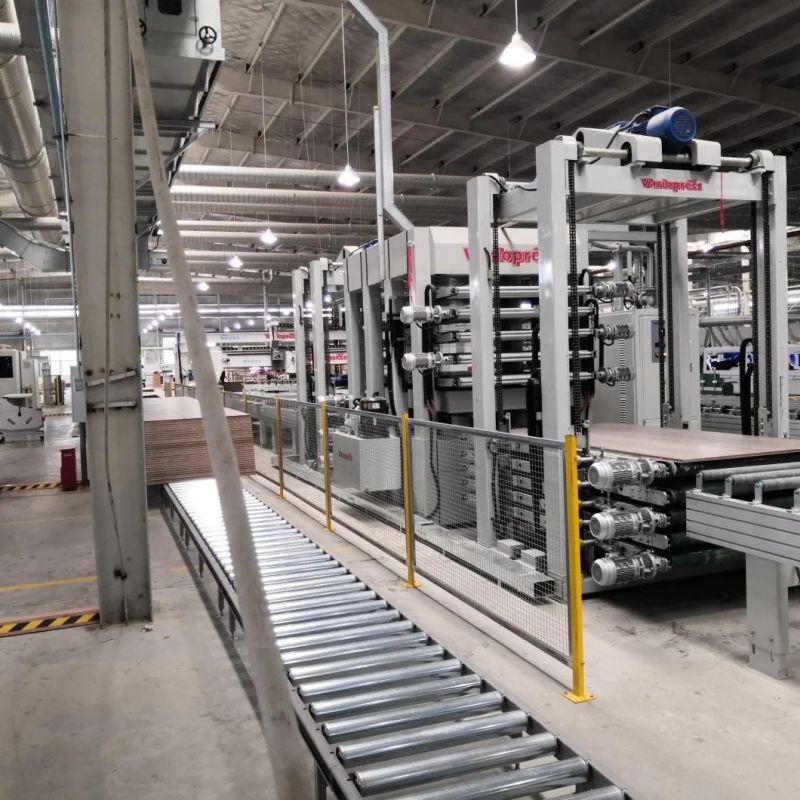

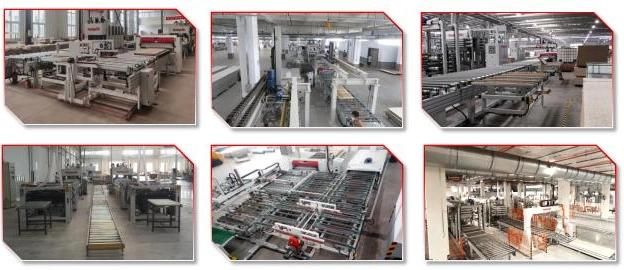

Customer's site:
