Wood Sawdust Block Hot Press Machine with Ce Certification
Yancheng Foreign Trade Corp. Ltd.- Type:Heat Press
- Voltage:380V
- Automatic Grade:Automatic
- Controlling Mode:Electric
- Energy Saving:Energy Saving
- Certification:CE
Base Info
- Model NO.:double heads
- Warranty:3 Years
- Customized:Customized
- Condition:New
- Color:Customized Available
- Power:400V 50Hz 3-Phase
- Transport Package:Plywood Case
- Specification:2 heads, 4 heads or 6 heads
- Trademark:SGM
- Origin:China
- HS Code:84793000
- Production Capacity:3000PCS,Year
Description
Specifications Model Double Heads Four Heads Six Heads Size 4900*660*1800 4900*800*1800 4900*940*1800 Capacity 2-3m3/24h 4-5m3/24h 6-8m3/24h Glue water amount 100-120kg/m3 100-120kg/m3 100-120kg/m3 Density 550-600kg/m3 550-600kg/m3 550-600kg/m3 Weight 1000kg 1500kg 2200kg Power 12kw 16-18kw 24kw
2.Pallets can be used in export package, free fumigation, and free quarantine.
3.Insects prevention, and protection against termites and do not easy to burn.
4.This compressed sawdust logs heat pressure machine uses hydraulic transmission, horizontal continuous out bags, speed high yield.
5.The compressed sawdust logs heat pressure machine is mainly applicable for sawdust, cotton seeds, shell husk compression moulding material, facilitate their storage, transportation cost.

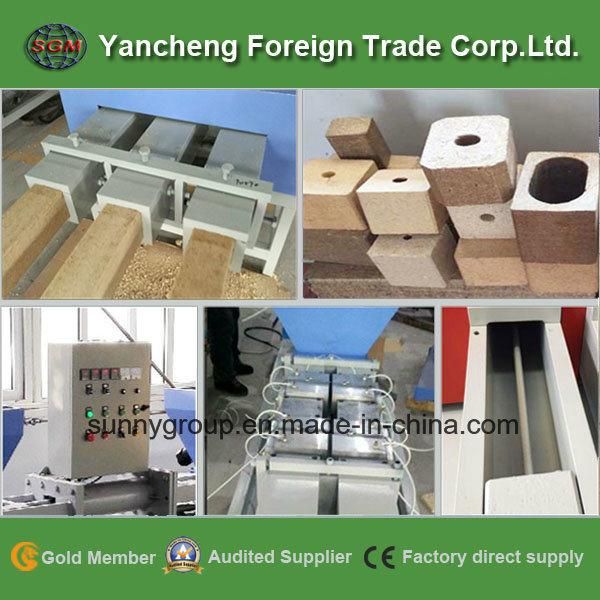

Machine Detials:
1, Operation Panel: Full automatic operation.Easy to control the machine working process,International general operation method.Oil pressure meter and temperature display designed to set together,for convenient to check.
2, Hydraulic cylinder: This kind of hydraulic cylinders is used to increase wood laths output, and is characterized by easy operation and reliable running.
3, Heating Panel : More bigger size than other supplier,200 mm.8 pieces of panel,heating more quickly,improve working efficiency.
4, Sawdust Block: Smooth surface,Water proof,free fumigation and free quarantine.
The wood block size can be customized according to your needs.90*90 mm,100*100 mm are the common styles.
The produced block is in intensity of 1.07 mpa, with vertical force of 1590 N and horizontal force of 1660 N.
5, CE approved
6, 220V, 380V or according to your requirements.

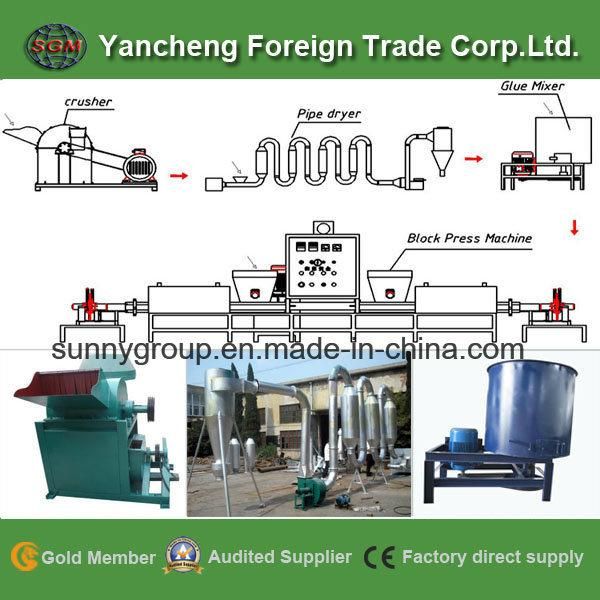

wood pallet block production line:
Main Features:
1.Strong bearing capacity, no deformation and can be reused.2.Pallets can be used in export package, free fumigation, and free quarantine.
3.Insects prevention, and protection against termites and do not easy to burn.
4.This compressed sawdust logs heat pressure machine uses hydraulic transmission, horizontal continuous out bags, speed high yield.
5.The compressed sawdust logs heat pressure machine is mainly applicable for sawdust, cotton seeds, shell husk compression moulding material, facilitate their storage, transportation cost.
Machine Detials:
1, Operation Panel: Full automatic operation.Easy to control the machine working process,International general operation method.Oil pressure meter and temperature display designed to set together,for convenient to check.
2, Hydraulic cylinder: This kind of hydraulic cylinders is used to increase wood laths output, and is characterized by easy operation and reliable running.
3, Heating Panel : More bigger size than other supplier,200 mm.8 pieces of panel,heating more quickly,improve working efficiency.
4, Sawdust Block: Smooth surface,Water proof,free fumigation and free quarantine.
The wood block size can be customized according to your needs.90*90 mm,100*100 mm are the common styles.
The produced block is in intensity of 1.07 mpa, with vertical force of 1590 N and horizontal force of 1660 N.
5, CE approved
6, 220V, 380V or according to your requirements.
wood pallet block production line:
