Woodworking Machinery

Woodworking Industrial CNC Beam Saw Machine CNC Panel Saw Dps828 Dezmag

Qingdao Yingsi Machinery Co., Ltd.
  • Warranty:Two Years
  • Type:Panel Dividing Saw
  • Power Type:Electric
  • Layout:Horizontal
  • Controlling Mode:CNC
  • Automatic Grade:Automatic

Base Info

  • Model NO.:DPS828
  • Precision:Precision
  • Certification:CE, ISO
  • Customized:Customized
  • Condition:New
  • Color:Customized
  • After-sales Service:Two Years
  • Max Cutting Board Size:2900X2800X100mm
  • Max Cutting Speed:110 M,Min
  • Max Saw Forward Speed:90 M,Min
  • Diameter of Main Saw Blade:400mm
  • Diameter of Scoring Saw Blade:200mm
  • Main Saw Motor Power:15kw
  • Scoring Saw Motor Power:2.2 Kw
  • Feeding Servo Motor Power:2.2kw
  • Saw Carriage Servo Motor:2.2kw
  • Voltage:380V 50Hz 3phase (Optional)
  • Weight:5000kg
  • Transport Package:Wooden Case
  • Trademark:DEZMAG
  • Origin:China
  • HS Code:84659100
  • Production Capacity:200

Description

Basic Info.

Model NO. DPS828 Precision Precision Certification CE, ISO Customized Customized Condition New Color Customized After-sales Service Two Years Max Cutting Board Size 2900X2800X100mm Max Cutting Speed 110 M/Min Max Saw Forward Speed 90 M/Min Diameter of Main Saw Blade 400mm Diameter of Scoring Saw Blade 200mm Main Saw Motor Power 15kw Scoring Saw Motor Power 2.2 Kw Feeding Servo Motor Power 2.2kw Saw Carriage Servo Motor 2.2kw Voltage 380V 50Hz 3phase (Optional) Weight 5000kg Transport Package Wooden Case Trademark DEZMAG Origin China HS Code 84659100 Production Capacity 200

Product Description

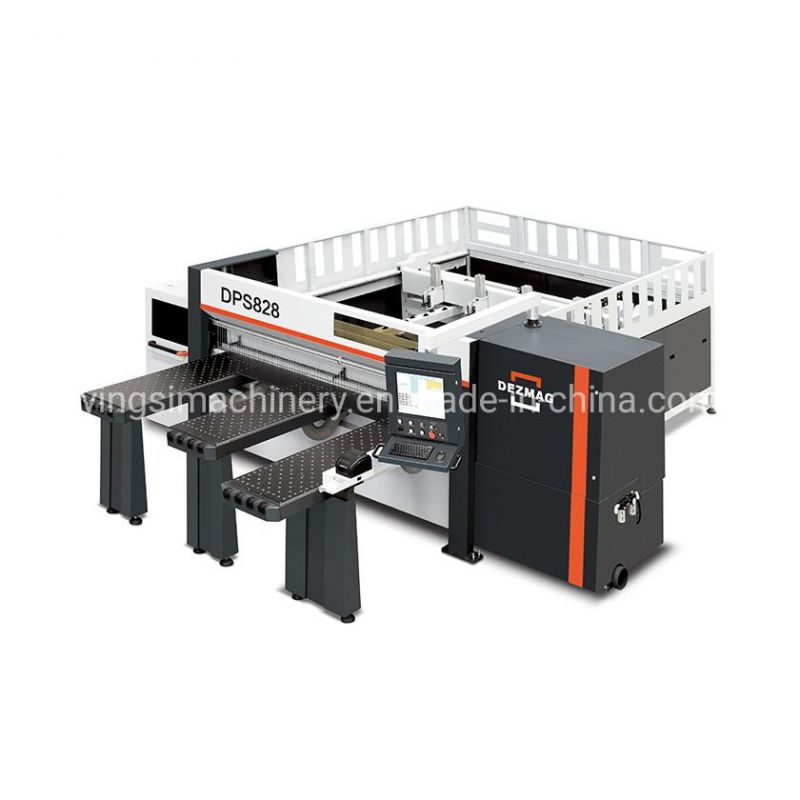

DPS828 Panel Dividing Saw
DPS828 Panel Dividing Saw used for cutting a variety of MDF, particleboards, wood-based panels, ABS boards, PVC boards, organic glass plates and solid wood and other wood similar to the hardness of the plate.

Woodworking Industrial CNC Beam Saw Machine CNC Panel Saw Dps828 Dezmag
Woodworking Industrial CNC Beam Saw Machine CNC Panel Saw Dps828 Dezmag
Max process board size2900*2800*100mm
Diameter of main saw blade400 mm
Speed of main saw spindle4500 r.p.m/min
Diameter of scoring saw blade200 mm
Speed of scoring saw spindle5600 r.p.m/min
Max cutting speed110 m/min
Max saw forward speed90 m/min
Main saw motor power15 kw
Scoring saw motor power2.2 kw
Feeding servo motor power2.2kw
Saw carriage servo motor2.2kw
Voltage380v 50Hz (Optional)
Weight5000 kg
Woodworking Industrial CNC Beam Saw Machine CNC Panel Saw Dps828 DezmagWoodworking Industrial CNC Beam Saw Machine CNC Panel Saw Dps828 DezmagWoodworking Industrial CNC Beam Saw Machine CNC Panel Saw Dps828 Dezmag
FAQ:
1. What's your guarantee? Which type after sale service can you provide to us?
All the machine, we can offer the 2 year guarantee to our customers; any parts damaged due to the quality issue, we will send the parts via DHL, Fedex or air shipment urgently.
After sale service: if you purchased our CNC nesting center or edge bander, and we don't have any dealer or agent in your region, we will send our engineer to your site for installation and training ( you should pay the round-trip flight ticket, salary of engineer- each day 100.00USD, also take charge of the local accommodation. ). Considering the situation, we can do the online training.  Also any small issues, you can knock us online, we will offer the rapid action to your concerns.
2. Which type payment term can you accept? How could we keep our capital safe?
We can accept the T/T and L/C at sight. We have more than 20 years exporting experience, so we know more about the capital safty concern of our customer. We will offer the video call or pictures to your side, during our loading, then you can check what we have done for the loading, if any cheating, then you can control your payment (T/T or L/C).
3. What is the leading time, if we did the payment to your side?
The leading time of most common machines, will be 10-25 days after collecting the down payment / copy of L/C. Specially designed production will take little bit longer time.
4. Can you accept some O.E. M service to us? or any other service could you do for us?
We have more than 20 years experience in the woodworking machinery industry, also have more than 10 experienced engineers, so we can do the special design according to your requirement.
Also, our exporting team has more than 20 years of experience in this field, so they can help you to purchase relevant products, parts, or tools, which can save your time and your cost.
