• Model NO.：QSG1000P6
• Condition：New
• Color：Iron Grey
• After-sales Service：1 Year
• Model：Qsg1000p6 Brush Sanding Machine
• Working Width：1000mm Brush Sanding Machine
• Working Thickness：2-100mm Brush Sanding Machine
• Feed Speed：5-25m,Min Brush Sanding Machine
• Quantity of Sanding Roller：Brush Sanding Machine
• Quantity of Sanding Disc：8 (in Two Rows) Brush Sanding Machine
• Total Motor Power：11.21kw Brush Sanding Machine
• Overall Dimensions：4000*2000*2200mm Brush Sanding Machine
• Transport Package：Standard Export Packing
• Specification：ISO9001
• Trademark：HZH
• Origin：Qingdao
• HS Code：84659300
• Production Capacity：50sets,Month

Basic Info.

Model NO. QSG1000P6 Condition New Color Iron Grey After-sales Service 1 Year Model Qsg1000p6 Brush Sanding Machine Working Width 1000mm Brush Sanding Machine Working Thickness 2-100mm Brush Sanding Machine Feed Speed 5-25m/Min Brush Sanding Machine Quantity of Sanding Roller Brush Sanding Machine Quantity of Sanding Disc 8 (in Two Rows) Brush Sanding Machine Total Motor Power 11.21kw Brush Sanding Machine Overall Dimensions 4000*2000*2200mm Brush Sanding Machine Transport Package Standard Export Packing Specification ISO9001 Trademark HZH Origin Qingdao HS Code 84659300 Production Capacity 50sets/Month

Product Description



Model	QSG630P6	QSG1000P6	QSG1300P6
Working Width	20-630mm	20-1000mm	20-1300mm
Working Thickness	5-120mm	5-120mm	5-120mm
Min working length	400mm	400mm	400mm
Brush disc speed	0-400r/min	0-400r/min	0-400r/min
Brush disc amount	7	7	9
Cross brush speed	0-400r/min	0-400r/min	0-400r/min
Cross brush amount	6	6	8
Brush roller speed	0-400r/min	0-400r/min	0-400r/min
Brush roller amount	2	2	2
Oscillating speed	30times/min	30times/min	30times/min
Feeding speed	0-18m/min	0-18m/min	0-18m/min
Working table height	900mm	900mm	900mm
Brush disc diameter	φ180mm*20	φ180mm*20	φ180mm*20
Cross brush diameter	φ300mm*35	φ300mm*35	φ350mm*35
Brush roller diameter	φ300mm*50	φ300mm*50	φ300mm*50
Brush disc power	1.5kw	1.5kw	0.75kw*2
Cross brush board	1.5kw	1.5kw	1.5kw
Brush roller power	1.5kw*2	1.5kw*2	1.5kw*2
Feeding power	2.2kw	2.2kw	2.2kw
Top body Lifting power	0.75kw	0.75kw	0.75kw
Each unit Lifting power	0.37kw*4	0.37kw*4	0.37kw*4
Oscillating power	0.37kw*4	0.37kw*4	0.37kw*4
Working air pressure	≥0.6Mpa	≥0.6Mpa	≥0.6Mpa
Volume of dust collector	8200m3/h	10000m3/h	12000m3/h
Dust outlet diameter	φ120mm*6	φ120mm*6	φ150mm*6
Dimension	4000*1700*2200mm	4000*2000*2200mm	4000*2300*2200mm
Weight	2T	3T	4.5T

Functions:

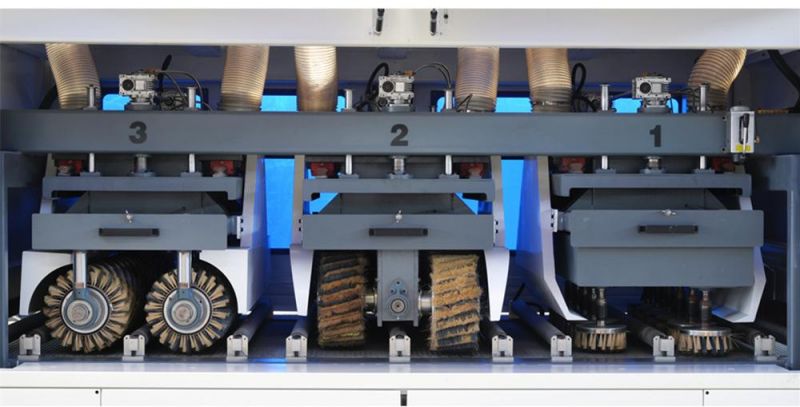

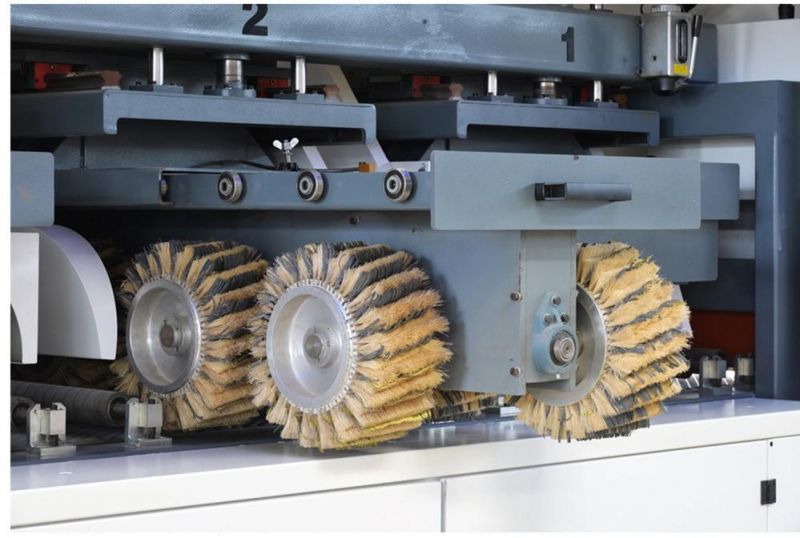

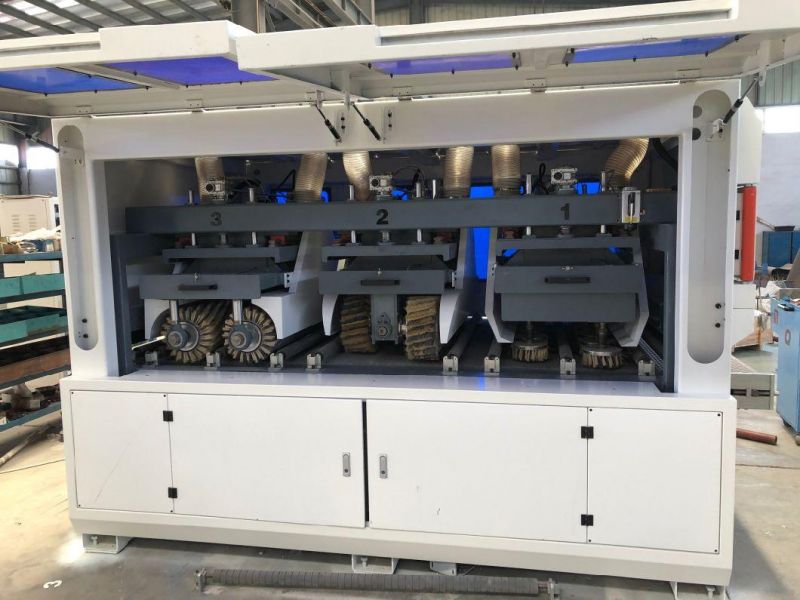

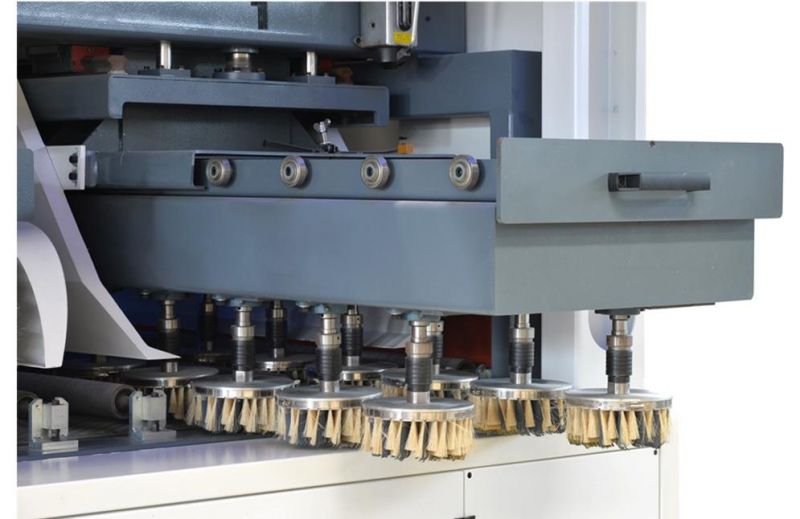

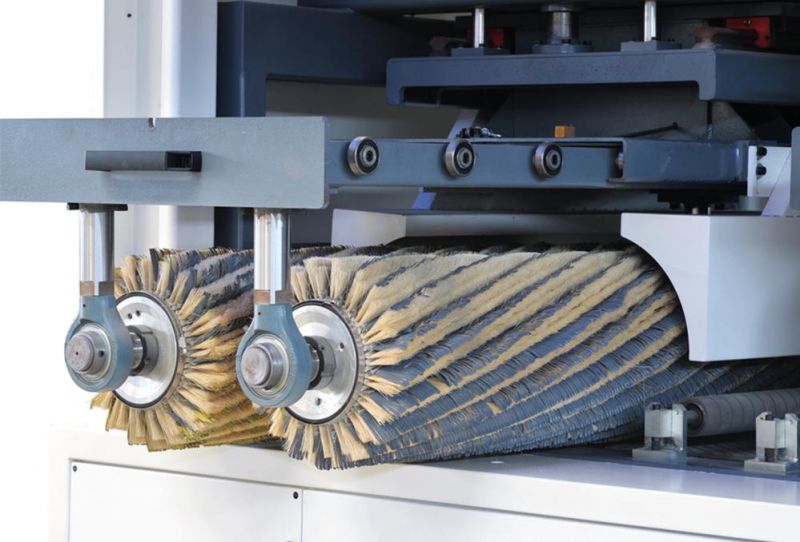

1) 2 rows oscillating brush disc,2 rows of oscillating cross roller, 2 brush rollers. All roller are frequency speed control.Each unit can be a separate swing, to eliminate the grinding wheel in the grinding process generated traces of the plate surface smoother.
2) Electric lifting system: height of each unit is electrically controlled due to different processing requirement
3) Guide system: each unit can be pushed out and pull in, change of sandpaper strips is more simple
4) Separate dust removal system: each unit had separate dust removal system which greatly improve the production environment

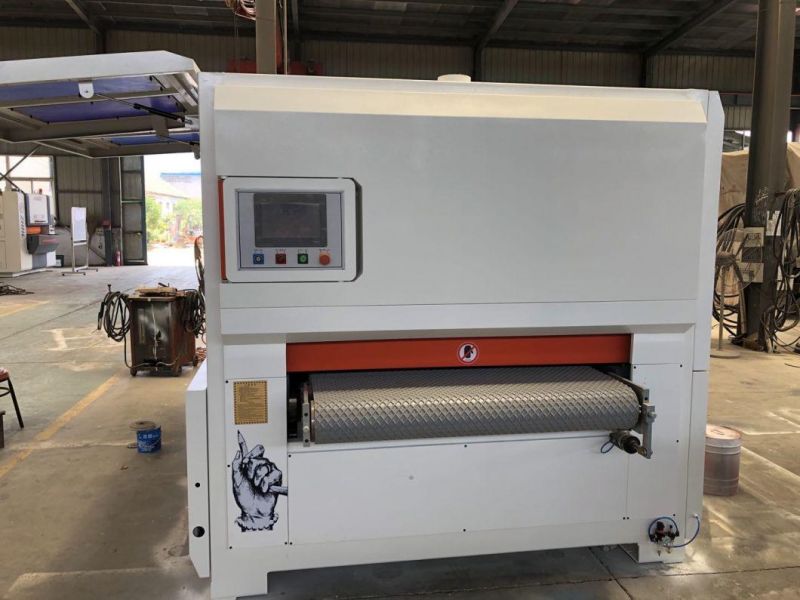

5)Working tale is fixed, the top machine body can float up and down according to work piece thickness, suitable for sanding production line










Packaging & Shipping

Package: Plywood case package.

Delivery: About 30 days after receive the down payment



Company Information

Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.

FAQ

What is the Warranty of machine?

Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.



What is the working table length of panel saw?

Usually is 160-3800mm. Also It is changeable according to clients requests.



Why choose HAOZHONGHAO?

1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Panel Saw, Veneer Slicer and Grinder.

2,Excellent: Established in 1958, ISO9001 certificated, CE certificate

3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.

4 Location: One hour reach Qingdao sea port



How to contact us?



web: sandingmachine.en.made-in-china.com
