Woodworking Hydraulic Hot Press Machine for Laminating MDF Boards
QINGDAO SOSN MACHINERY CO., LTD.- Warranty:2 Year Warranty
- Work Forms:Hydraulic Pressure
- Processing Technics:Hot Press
- Structure:Frame Type
- Pressing Shape:Flat Press
- Platen Surface Pressure:High Pressure
Base Info
- Model NO.:BY214X8,12(3)H
- Pressing Layer:Multi Layer
- Work Mode:Continuous
- Controlling Mode:CNC
- Automatic Grade:Automatic
- Certification:CE
- After-sales Service:2 Year Warranty
- Product Name:Hot Press
- Max. Working Pressure:120t
- Service Opening:100 mm
- Number of Cylinders:6
- Number of Layers:3
- Transport Package:Strong Stretch Film
- Specification:3900*1700*2000mm
- Trademark:SOSN
- Origin:China
- Production Capacity:100 Sets Per Month
Description
Basic Info.
Model NO. BY214X8/12(3)H Pressing Layer Multi Layer Work Mode Continuous Controlling Mode CNC Automatic Grade Automatic Certification CE After-sales Service 2 Year Warranty Product Name Hot Press Max. Working Pressure 120t Service Opening 100 mm Number of Cylinders 6 Number of Layers 3 Transport Package Strong Stretch Film Specification 3900*1700*2000mm Trademark SOSN Origin China Production Capacity 100 Sets Per MonthProduct Description

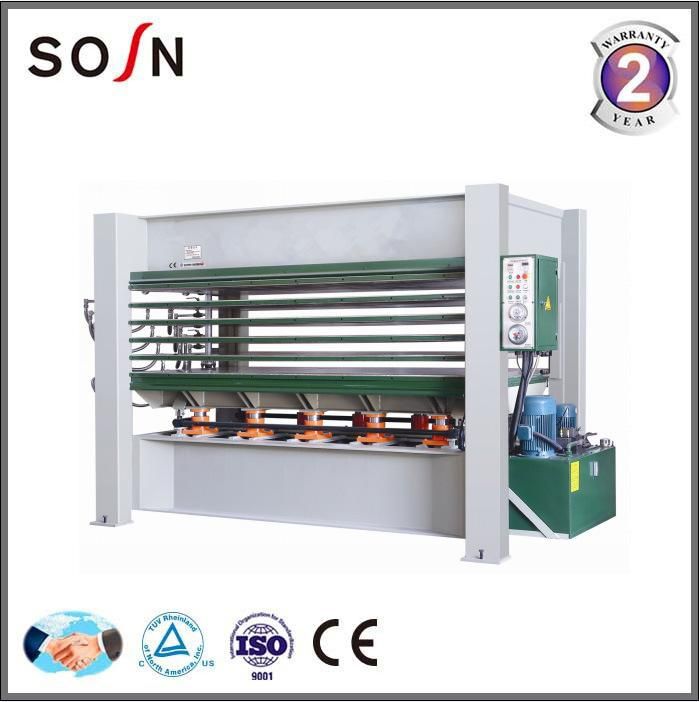

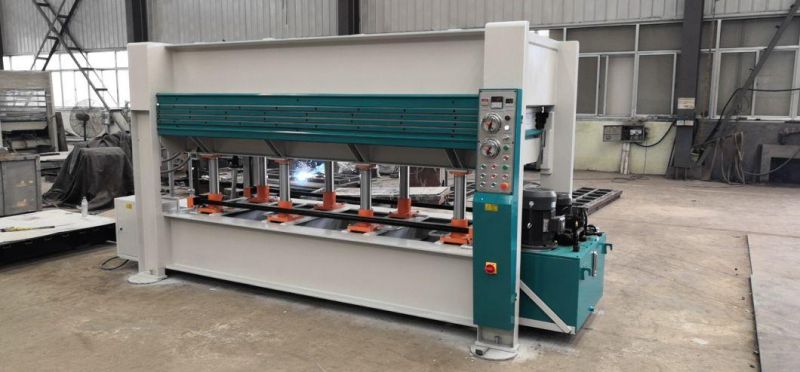

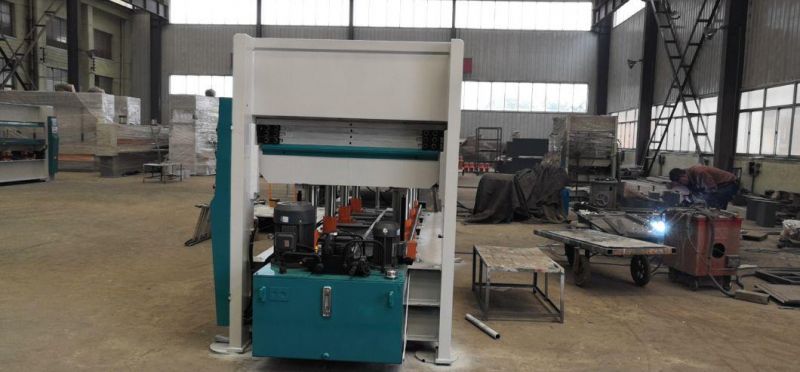

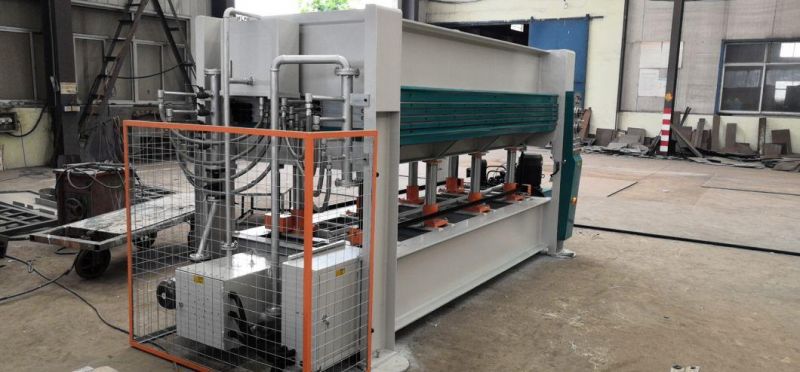

Woodworking hydraulic hot press machine for laminating MDF boards BY214X8/12(3)H
The hydraulic hot press is widely used for producing doors, plywood, lamination boards, and decoration boards etc.
Model | BY214X8/12(3)H |
Dimension of hot platens (mm) | 1300X2500 |
Nominal pressure (T) | 120 |
Service opening (mm) | 100 |
Power | 4.5kw |
Heaing power | 37.5 kw |
Number of cylinders | 6 pcs *100 mm |
Number of layer | 3 |
Heating media | Thermal oil or steam |
• reamed steel plate with high quality
• Equipped with the high and low pressure gauge controller
• Temperature control is carried out pressing thermostat
• The press is equipped with an automatic timer on the outdoor table
• Hydroelectric include and easy to install and operate

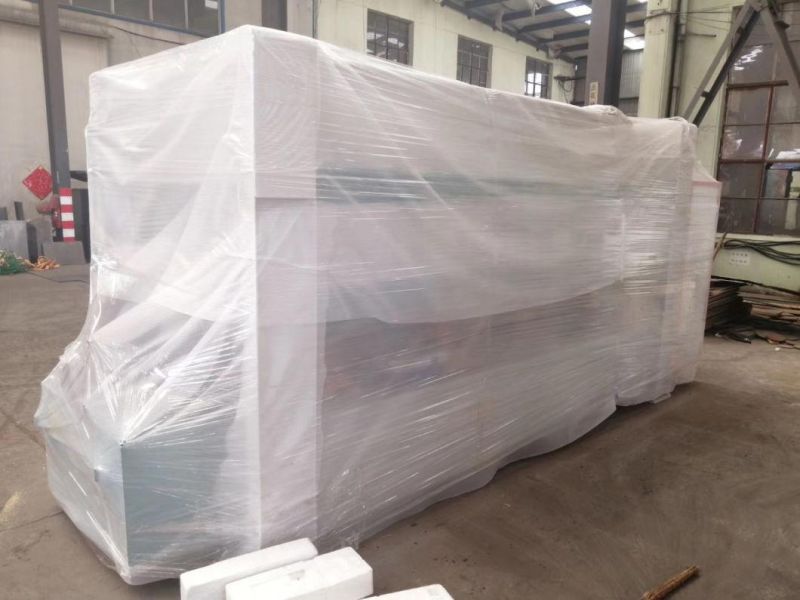

Strength film package
Have any need, pls contact us freely. Thank you.
