• Model NO.：TYJ860-III
• Warranty：1 Year Except The Spare Parts
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：All Working Life Service
• Power：220kw
• Capacity：3-4ton,Hr
• Weight：13.5t
• Raw Materials：Agricultural & Wood Waste
• Ideal Moisture：10-15%
• Transmission：Big Gear Transmission
• Wearing Parts：Die and Roller
• Material of Die and Roller：High Alloy Steel
• Lubrication：Automatic Lubrication System
• Output Pellets：4-12mm
• Installation：Manual,Video Chat,Engineer Guide
• Bearing：Hrb Brand
• Optional Voltage：380V,415V,440V
• Transport Package：Iron Case
• Specification：2100*1300*2000
• Trademark：TONY
• Origin：China
• HS Code：8479300000
• Production Capacity：100sets,Month

Requirement of Raw Materials:


Size:2-4mm(All the raw materials must be crushed into sawdust before going to wood pellet machine.If not, you may need a wood chipper, wood crusher.)



Moisture: Generally, 10-15% is best for producing good quality wood pellet. If too high, or too low, you need to dry or moisture them first.

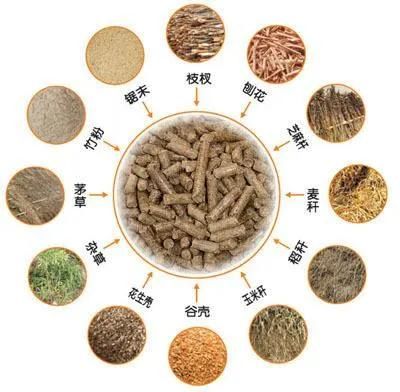

Raw materials: The materials can be wood chips,tree branches,corn stalks, wheat straw, cotton stalks, rice straw, rice husk, peanut shell, corn cob, branches, leaves, sawdust and other crops in rural areas , solid waste, etc.

Output pellets:Pellets Diameter: 4mm, 6mm, 8mm, 10mm, 12mm

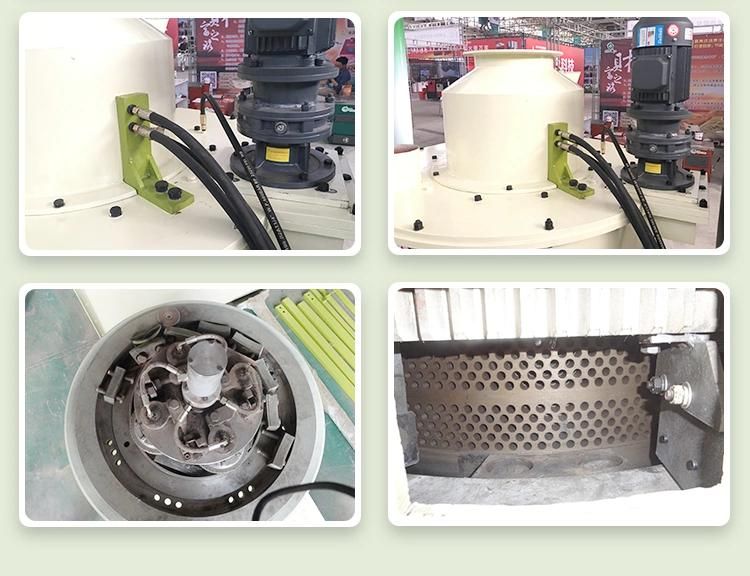

Main Spare Parts of ring die biomass pellet equipment TYJ860-III

Ring Die1. Made of alloy and stainless steel;
2. The professional heat treatment processing technology can make its hardness above HRC62.
3. Vertical Ring die, feeding vertically.
4. Double-lay die, dual use. When one side is damaged, turn over and use the other side.
5. Hole diameter:4mm, 6mm, 8mm, 10mm, 12mm
6. Service Time: 2500-3000 hours

Roller
1.Materials:Stainless steel
2.Service:2000-2500 hours
3.According to actural factors, such as capacity and raw material, two or three or four rollers are used.

Motor
Rated Vlotage: 380V,
Rated Frequency: 50HZ,
Also made according to user need(Brand and vlotage).
400V, 415V, 420V, 440V, 690V.etc.

Other Spare Parts
Gear box,Main Shaft, Bearing, Electric control box and auto-lubricate system.

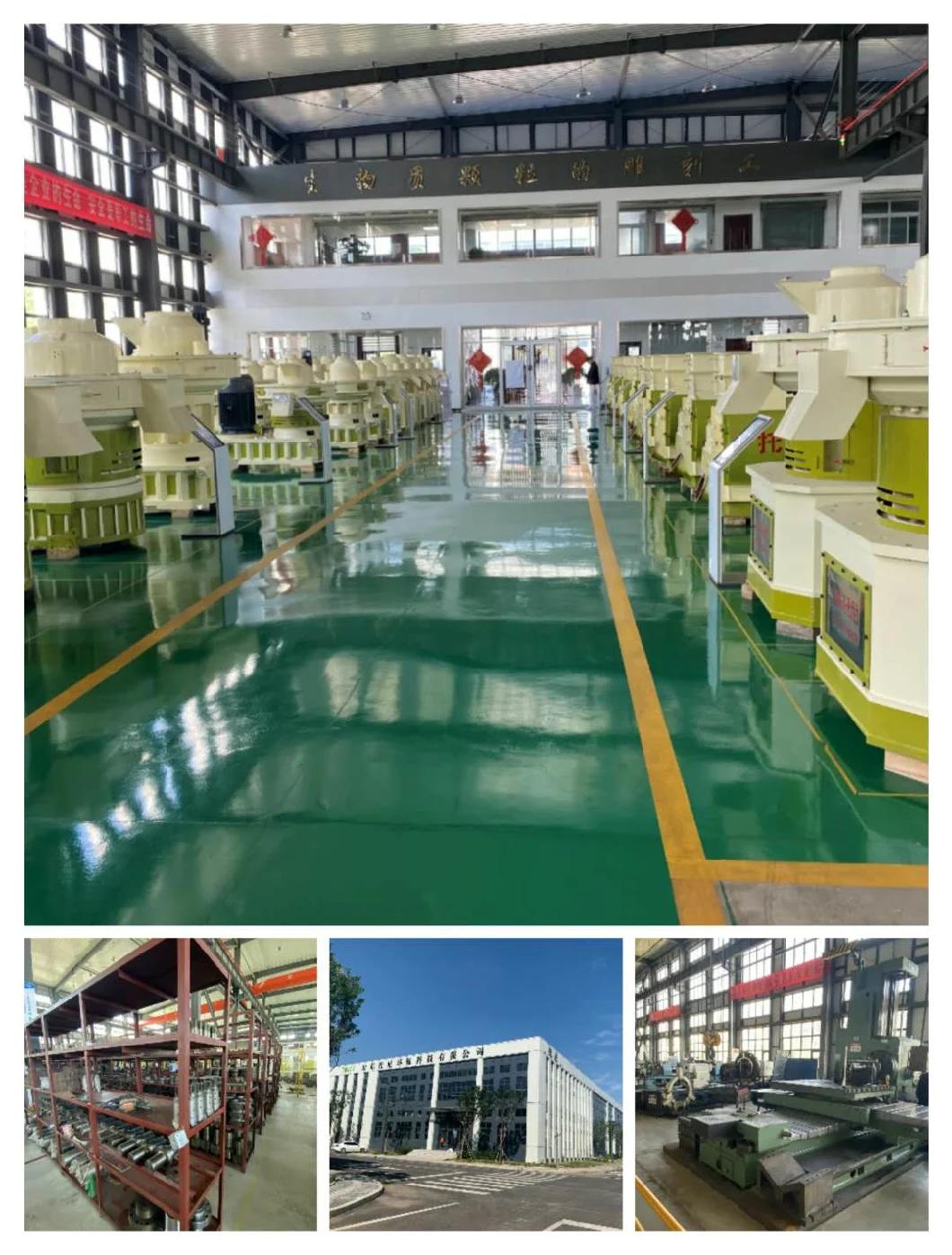

Clean Production Workshop and Professional Device

Customers' pellet production site with ring die biomass pellet equipment TYJ860-III

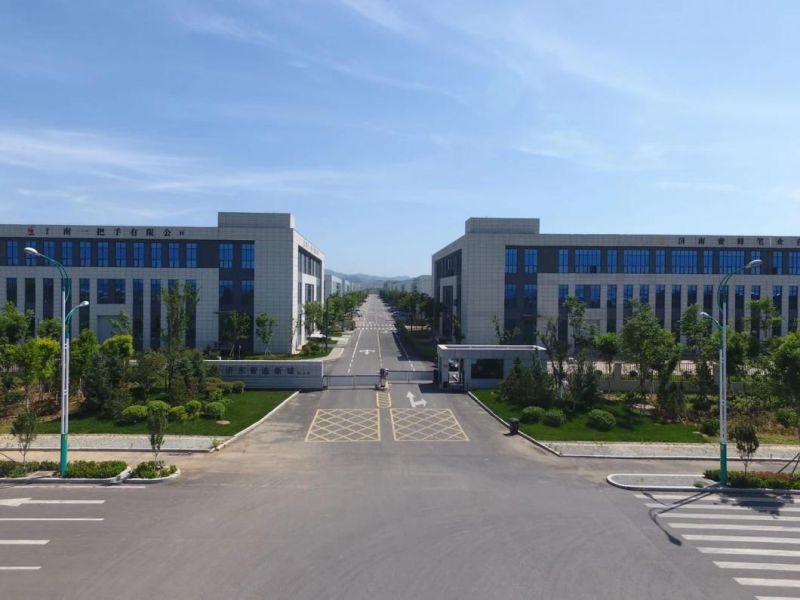

 SHANDONG TONY ENVIRONMENTAL PROTECTION SCI-TECH CO.,LTD is an integrated enterprise specializing in developing, manufacturing, customer training and international trade of pelleting equipments for years. The unique industrial chain and geographic location are the leading advantages for Tony to develop and produce biomass pellet equipments. Main products are biomass energy ring die and flat die pellet machine, flat die,ring die feed pellet machine, biomass pelleting making production line, air-flow and drum series drying equipments, crushing and grinding equipments, cooling,screening ,mixing and conveying equipments.
 Main Products:
Biomass wood pellet line, various pellet mill/machines, grinding and crushing equipments, drying equipments, cooler, screening, conveying products and so on.

Best Service:
-24 Hours Online Service.
-Inquiry will be replied within 2 hours.
-All-the-way tracking service offered from placing order to delivery.
-Free training for operation, debugging and daily maintenance.
-We can provide professional guide installation.
-One year warranty and all-round after-sales service.
-Customized design and flow chart are available for our clients.
-Independent R&D team and strict & scientific management system.
FAQ:

Q: What is the capacity of the production line?A:  The capacity of wood pellet production line can be ranged from 300kg/h to 10ton/h per production line.

Q: What is the capacity of the production line?A:  The capacity of wood pellet production line can be ranged from 300kg/h to 10ton/h per production line.
 Q: What's the size of final pellets?A: Pellets Diameter: 4mm, 6mm, 8mm, 10mm, 12mm, (Different Diameters for your Different Requirement.)      Pellets Length:  10-50mm; (Adjustable, normally between 20-36mm)
 Q: How many people needed to operate the pellet line?
A: It generally needs 2-5 persons to operate the pellet line.(According to your materials)

Q: Are you trading company or factory?
A: We are both trading company and manufacturer, professionally manufacturing pellet machines with many years experiences.
