Woodworking Machinery Automatic CNC Beam Saw Computer Cutting Panel Saw

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty：1 Year
  • Type：Table Panel Saw
  • Power Type：Electric
  • Layout：Horizontal
  • Controlling Mode：CNC
  • Automatic Grade：Automatic

Base Info

  • Model NO.：DZ3300
  • Precision：High Precision
  • Certification：CE, ISO
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • Model Name：Dz-3300
  • Max.Cutting Height：120mm
  • Max.Cutting Size：100*100mm
  • Main Saw Blade Motor Power：15kw
  • Main Saw Blade Diameter：450mm
  • Main Spindle Diameter：75mm
  • Main Saw Blade Speed：4000r,Min
  • Scoring Saw Motor Power：2.2kw
  • Scoring Saw Diameter：200mm
  • Scoring Spindle Diameter：500mm
  • Scoring Saw Speed：6000r,Min
  • Pusher System Drive Motor：2.4kw
  • High Pressure Blower Motor：3kw
  • Working Air Pressure：6-7kg,Cm²
  • Overall Size：6900*4600*2180mm
  • Transport Package：Wooden
  • Specification：2700mm-3800mm
  • Trademark：SOSN
  • Origin：China
  • HS Code：84659100
  • Production Capacity：20 Sets Per Month

Description

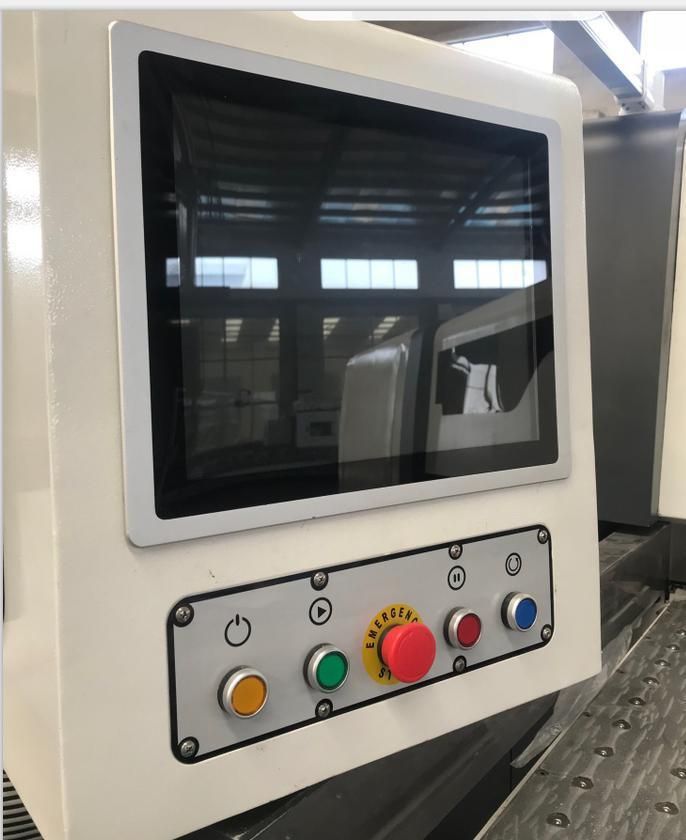

Woodworking Machinery Automatic CNC Beam Saw Computer Cutting Panel SawAdvantage IPC original, Delta PLC LCD system, Safe and reliable operation, editable management of sawing and sawing tasks, compatible with optimized sawing software.

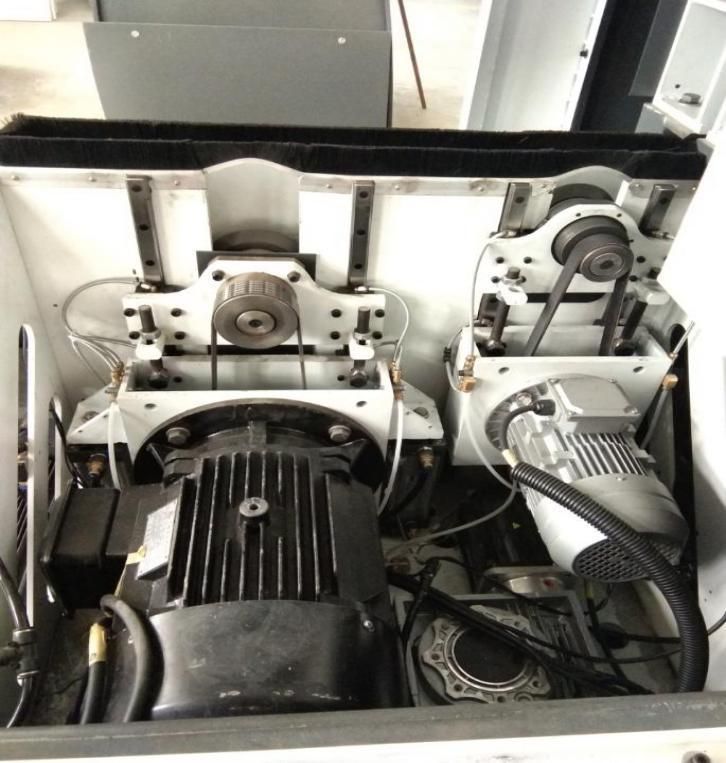

 Woodworking Machinery Automatic CNC Beam Saw Computer Cutting Panel Saw-- Two independent motors
-- Main motor power 15KW,scoring saw motor power 2.2KW
-- Main saw diameter 450mm, scoring saw diameter 75mm
-- Saw seat adopts linear guide rail lifting, high precision and smooth operation
-- Drive system: Liming reducer and Japan servo motor.
 Woodworking Machinery Automatic CNC Beam Saw Computer Cutting Panel SawShort board robot

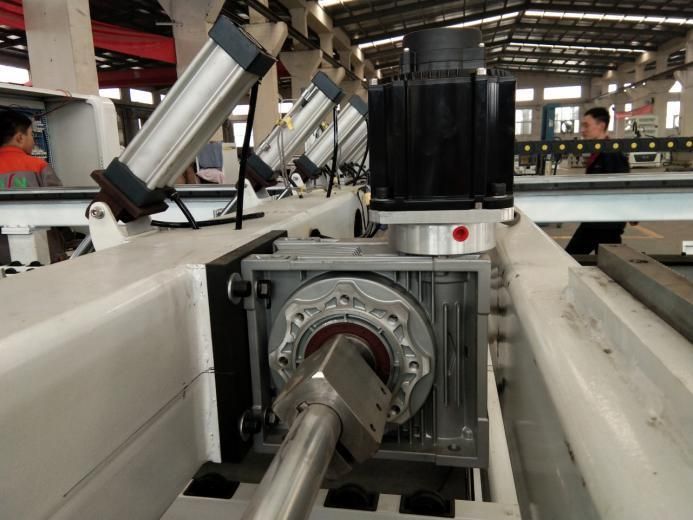

 Woodworking Machinery Automatic CNC Beam Saw Computer Cutting Panel Saw2.4KW servo drive

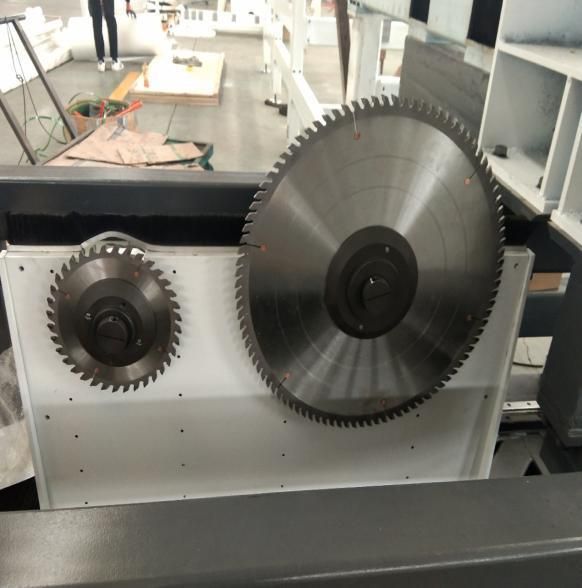

 Woodworking Machinery Automatic CNC Beam Saw Computer Cutting Panel Sawsaw blade is installed vertically, nut locking device, easy to assemble without adjustment;

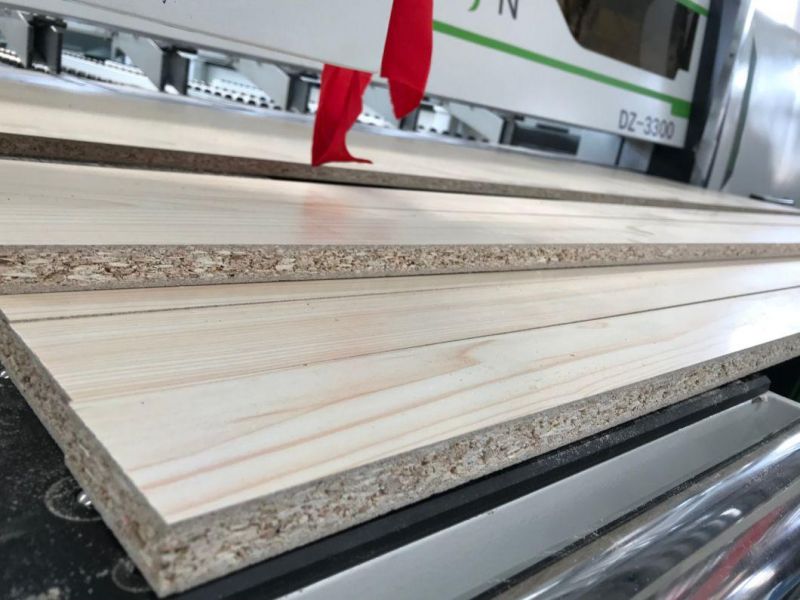

Saw cutting to ensure accuracy and no chipping.

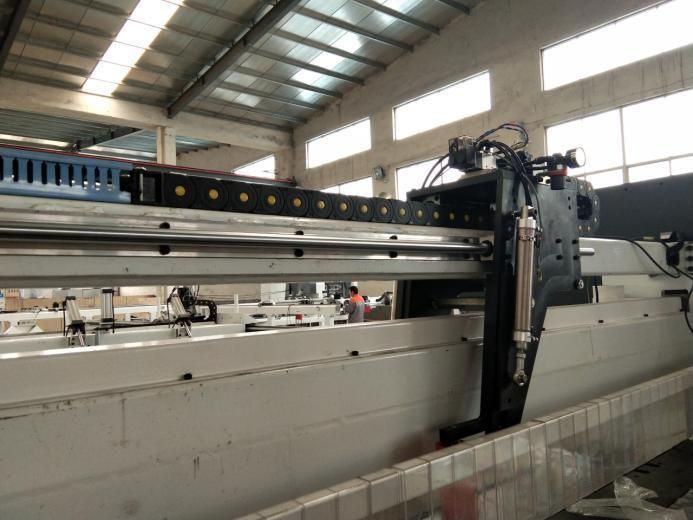

 Woodworking Machinery Automatic CNC Beam Saw Computer Cutting Panel SawPusher structure
-- 8 Grippers
High performance robotic servo feed clamp
--Precision servo drive position
--Automatic feeding, low labor intensity and high production efficiency.
 Woodworking Machinery Automatic CNC Beam Saw Computer Cutting Panel SawWorking table base is covered with high pressure compact laminate which is hardly and smoothly surface to avoid panel surface scratch.

Three in-feed floating tables are also covered with high pressure compact laminate with Teflon balls.
Safety steel cable on the surface of machine front cover when meet emergency situation happened.
Number of roller modules collocate in pusher area, panel saw roller sticks to avoid panel surface scratch.
The machine roller tracks under pusher position in the middle of grippers.
Every section probably will cause machine damage parts has connected sensors to avoid damage happen.

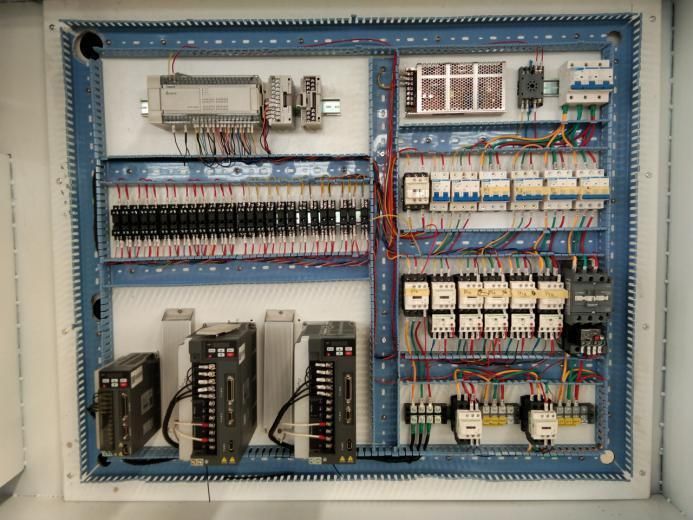

 Woodworking Machinery Automatic CNC Beam Saw Computer Cutting Panel SawDelta PLC
Japan Servo Drive
OMRON switching

 Woodworking Machinery Automatic CNC Beam Saw Computer Cutting Panel SawPVC Organ cover save space, Mainly used to protect the machine guide surface to prevent the erosion of sawdust, metal chips and coolant.

The functions are dust proof, anti-dust, anti-cooling liquid, etc., thus prolonging the precision life of the machine.
 Woodworking Machinery Automatic CNC Beam Saw Computer Cutting Panel Saw

Note:
-- We guarantee the machine body for one year, three months for easy-broken parts.
-- Package: Standard export wooden cast package.
-- Delivery time: 30 working days after getting the deposit.(depends the quantity)
-- Payment: 30% the deposit by T/T, the balance 70% before the shipment.

If you have any need of this machine, please feel free to contact me :-)
