• Model NO.：USM2130
• Vacuum Table：Stronger Vacuum Table
• Motor and Drivers：Japan Yaskawa Servo Motor and Drivers
• Control System：Taiwan Syntec 6MB
• Feeding Table：Loading Table and Unloading Table
• Inverter：11kw Fuling Inverter
• Positioning Cylinder：Y Axis 3 Pieces , X Axis 2 Pieces
• Tool Magazine：10,12,14,16 Pieces Tool Amount
• Rail Guide：Taiwan Hiwin ,PMI Rail Guide
• Rack：Helical Rack and Pinion
• Machine Body：Stronger Heavy Duty Machine Body
• Vacuum Pump：7.5kw vacuum Pump
• Dust Collector：5.5kw Double Bags Dust Collector
• Packing：International Plywood Case Oacking
• Transport Package：Plywood Case Packing Box
• Specification：2100*3000mm
• Trademark：UNISTAR
• Origin：China Jinan
• HS Code：8465990000
• Production Capacity：100 Sets , Month

Model

USM2130

Working travel

2100*3000*200mm

Table structure

Stronger welding metal tube machine body , more stabe

Guide rail

Taiwan original HIWIN/PMI square guide rail

XY axis transmission

X,Y axis rack and pinion transmission , Z axis by TBI  ball screw transmission

Feeding table

 Up and download table

Working precision

±0.02mm

Repositioning precision

±0.03mm

Max air move speed

500000mm/min

Max working speed

150000mm/min

 Table

 Vacuum adsorption table

Spindle

Imported Italy HSD  9KW atc air cooling spindle(auto change tools)/9KW HQD ATC spindle

Motor and drivers

Japan yaskawa servo motor and drivers

Spindle rotating speed

0-24000RPM

 Tool magazine

 12/14/16 pieces  tool magazine

Inverter

Delta inverter Surfar 11KW

Driving system

Japan YASKAWA servo motor with reducer

Command

G code

Oiling system

Automatic

Working voltage

AC 380v/3phase(220v is optional)

 Tool  sensor

 Automatic tool sensor

Dust collector

2 units of double bags dust collector

Vacuum pump

7.5kw air vacuum pump

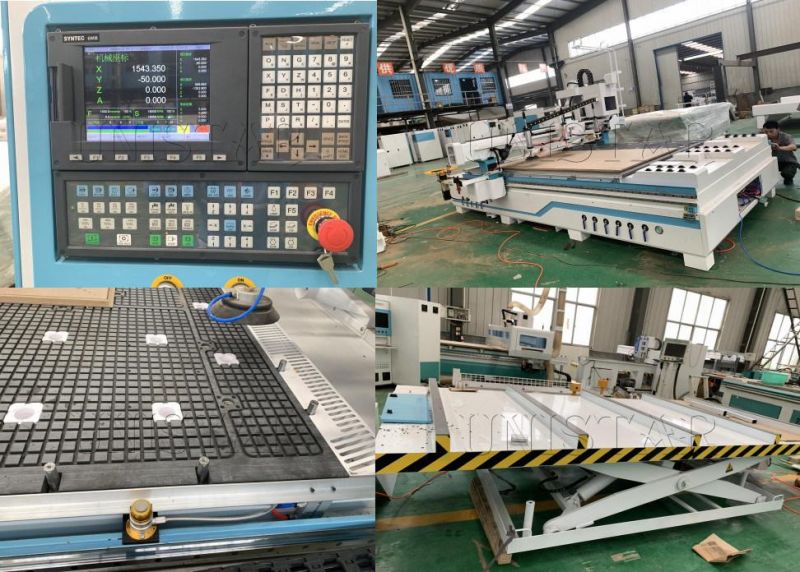

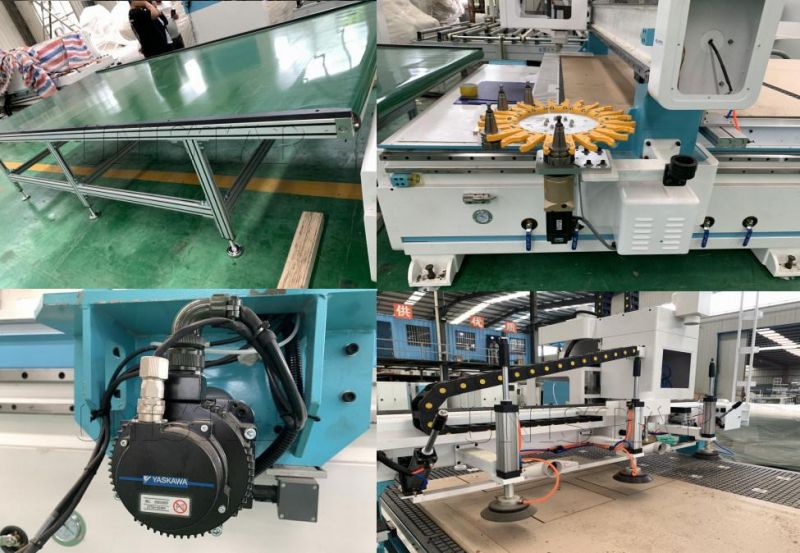

Features picture of  ATC cnc router with up down table




Sample picture of ATC cnc router for furniture



FAQ

1.How we choose the suit cnc machine ?  this is our first time to buy this machine

  We have professional sales people guide for you , you are just tell us your detail demands , industry
  what products you want to make by cnc router , what function and effective , then we will recommend
  you suit machine according to our rich experience .

2.How to send  machine to us ?

   As usually , The machine can sent to customer by sea shipping , by air , by international express .
   different machine have different size , usually for cnc machine , it ship by sea shipping ,you are tell
   us your nearest seaport  ,we can offer you detail shipping things .


3.How to pay for machine  ?

1)  30% T/T payment at deposit  , after machine finish , 70% T/T balance before shipping machine  (Prefered )
2) Visa card or Mastercard are supported.
3) By Paybal or western Union or Moneygram
4)  By Alibaba Credit Insurance
5) 30% T/T in advance ,70% L/C at sight ,  or 100% L/C at sight

Warranty and service.

1> Jinan Unistar CNC guarantees all new machines sold to be free of manufacturer's defective workmanship,
parts and material. We will repair or replace, without charge.

2> If your machinery breaks due to the operator's error, the warranty will pay for the work to repair the machine.
  Examples are spindles crashing, damaged guide rails.

3> If the Machinery was new when the warranty began, in the event of a total loss,
we pay the new replacement value of the machine including the cost of dismantling less the value of salvaged parts.


Video training
Our customers have access to free training videos covering a wide range of topics from basic use of the machine
and software to advanced automation techniques.


Telephone Hotline
You will find the answers to most questions in the knowledge base or on one of the training videos about our machines.
If you have a questions or support needs outside of our machines, software or software training, call and schedule support time



VIRTUAL SUPPORT
Virtual support is a great way to allow us to virtually be at your side and help navigate a new project or provide training.
Call or email us to schedule a virtual meeting


Oversea service
If you needed our engineer training in your country, It's also ok, before you are receiving machine,
we will prepare for applying for visa in advance,
but please. offer tickets fees, engineers living and eating.
