• Model NO.：ABC3125-II
• Certification：CE, ISO, FDA, SGS
• Customized：Customized
• Condition：New
• Color：Customized
• Dust Collector System：Yes
• Processing Sides：Four(4) Sides
• Stacker System：Automatic Vacuum Stacker System
• Motors：Huali ,Siemens
• Electrics：Omron
• PLC：Delta
• Pneumatic Device：Air Tac
• Saw Blade：Japan
• Working Size：3′x6′- 4′x8′
• Stacking Way：Automatic Stacker
• Transport Package：Container Shipment
• Specification：8500x5500x1020mm
• Trademark：METROMACH
• Origin：China
• HS Code：8465910000
• Production Capacity：150sets,Year

Basic Info.

Model NO. ABC3125-II Certification CE, ISO, FDA, SGS Customized Customized Condition New Color Customized Dust Collector System Yes Processing Sides Four(4) Sides Stacker System Automatic Vacuum Stacker System Motors Huali /Siemens Electrics Omron PLC Delta Pneumatic Device Air Tac Saw Blade Japan Working Size 3′x6′- 4′x8′ Stacking Way Automatic Stacker Transport Package Container Shipment Specification 8500x5500x1020mm Trademark METROMACH Origin China HS Code 8465910000 Production Capacity 150sets/Year

Product Description

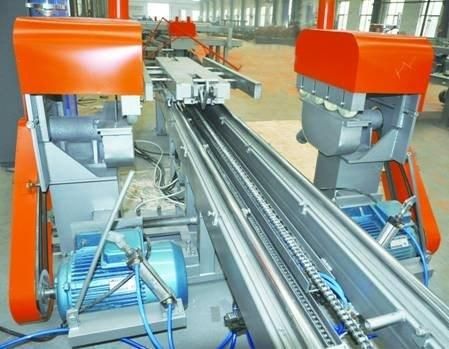

High Precision Automatic Lengthways- Transverse Trimming Saw
 Main features:1.The main structure is welded by national standard steel, high stability and no deformation.2.The operating system is accurately controlled by PLC to achieve the high precision sawing size and automatic stacking, reduce the labor's intensity.3.The main electric units adopt famous brand Omron, Schneider, safety and reliable.4.The machine adopts high precision wear-resistance guide rails and infrared positioning, diagonal error of plywood can be less than 0.5mm.
5.The machine adopts pre-load device, just need two workers, one work shift can produce 3000-4000Pcs 16mm plywood.6.It has the automatic saw waste remover device.
Technical parameters:

Model	ABC3215-II
Working dimension	2440x1220mm
Diameter of saw blades	Ф250-Ф315mm
Working thickness	3-50mm
Rotary speed of the main saw blades	6500-7000r/pm
Overall dimension	8500x5500x1020mm
Machine weight	7200Kgs
Total motor power	43Kw
Remark	Include the automatic stacking system with lifting table and 4Pcs saw blades

Machinery Details show:

High Precision Wear-Resistance Guide Bar

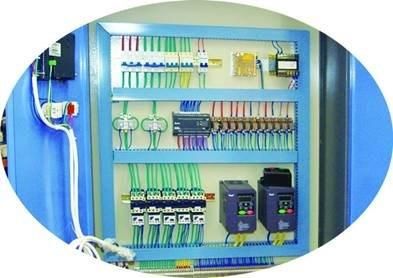

Electrical control cabinet all use the international brand: Omron, Schneider, Delta PLC...

Saw waste automatic remover device

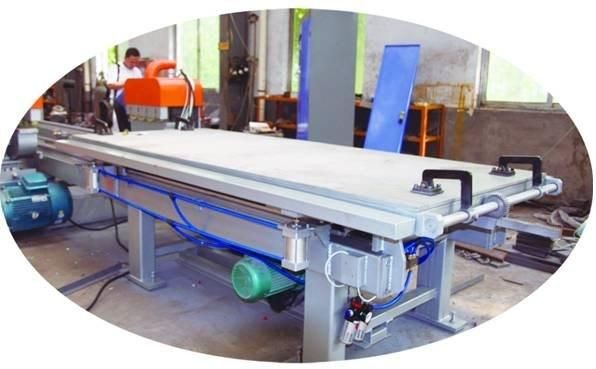

Automatic Pre-Loader Device, save the working time, continuous working.
