Woodworking Machinery

New Designed Wood Shaving Making Machine Wood Shaving Machine

Zhengzhou Tamok Machinery Co., Ltd.
  • Warranty:1 Year
  • Machine Material:Carbon Steel
  • Usage:Wood Shavings Making
  • Application:Animal Bedding, Paper Making, Energy Source, etc
  • Color:Green, White, Red, Gray, Blue or at Request
  • Machine Type:Disc Type

Base Info

  • Model NO.:420
  • Driven Type:Electric Motor, Diesel Engine
  • Electricity:280V,50Hz or Customized
  • Raw Material:Wood, Tree, Wood Branch, Wood Board, etc
  • After Sale Service:Available
  • Certification:CE, ISO
  • Transport Package:Wooden Case
  • Specification:New
  • Trademark:Tamok
  • Origin:Henan
  • HS Code:8465920000
  • Production Capacity:300sets,Month

Description

Basic Info.

Model NO. 420 Driven Type Electric Motor, Diesel Engine Electricity 280V/50Hz or Customized Raw Material Wood, Tree, Wood Branch, Wood Board, etc After Sale Service Available Certification CE, ISO Transport Package Wooden Case Specification New Trademark Tamok Origin Henan HS Code 8465920000 Production Capacity 300sets/Month

Product Description

                        New designed wood shaving making machine wood shaving machine
This shaving machine is mainly used to cut the wood into uniform shavings,and the thickness ofshavings
can be adjusted from 0.2mm to 1.5mm.This machine can shave different kinds of log,twit or branch,
plywood,board or plate,etc.

The final product can be used as material of particleboard and paper pulp,and also used as bed for animals,such as pigs,cattle,sheep and horse, biomass energy as well.

How it works
Inlet adopts automatic feeding device,the material comet into the machine through the feeding port,after the blade section in the interior of the machine, and then enter the screen.
Finally it will produce uniform particle size,the thickness can be adjusted automatically.It is used to make
wood shavings.
The different size of final product can be adjusted by tuning the cutter and changing the
sieve.

The raw material gets into the machine from feeding port, through the cutter tothe crushing room,under
the effect of the mutual striking hammers,the material is being crushed.The wood sh
avings is the same as the ones from furniture
factory.

Application
1.It can be used for shaving board;
2.Raw material of wood pulp paper in paper-making plant;
3.Shipping company used as fillings for shipping fragile things;
4.As the biological fuel;
5.Used as animal beds fillings in farm plant for cow,pig,horse,sheep or all kinds of animals;
6.Used in Shaving board plant,board millt,paper-making plant.

Maintain

1.Adjust the belt tension after it is used every day,decreased 6-10mm.
2.Clean the parts inside of the machine to keep no pulverized material by the last remnants.
3.Timely fill butter into bearing,fill butter per 3-4 hours of continuous work.


Technical parameters
Model420600800950100012001400
Cutting dia.
(mm)
42055075085095010001200
Feeder size
(mm)
160×180180×200200×200200×250250×300300×400400×500
Speed
(R/min)
740740740740740740740
Power
(kw)
7.5153037455575
Capacity
(kg/h)
30050010001500200030004000
Pictures

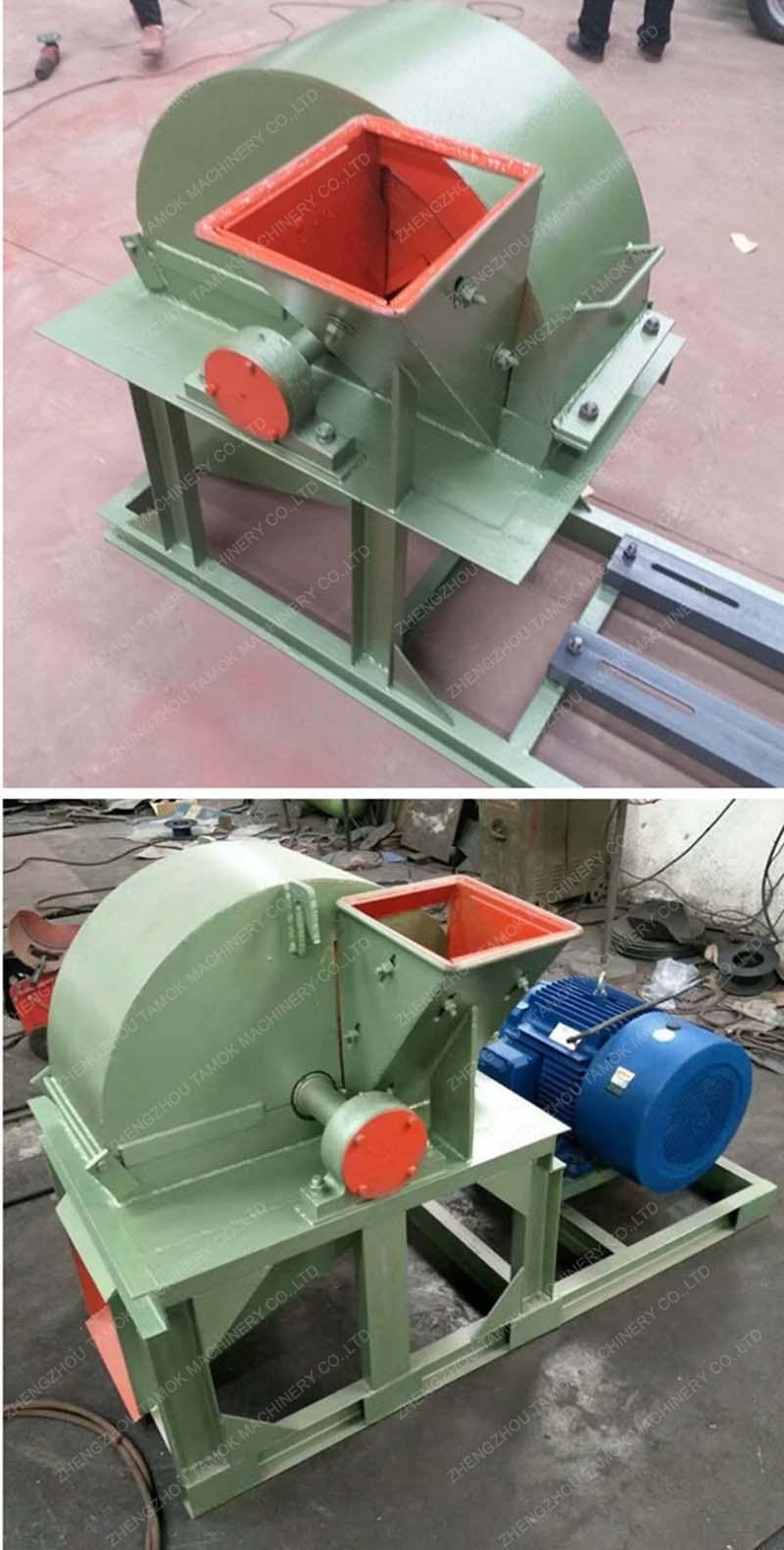

New Designed Wood Shaving Making Machine Wood Shaving Machine
New Designed Wood Shaving Making Machine Wood Shaving Machine

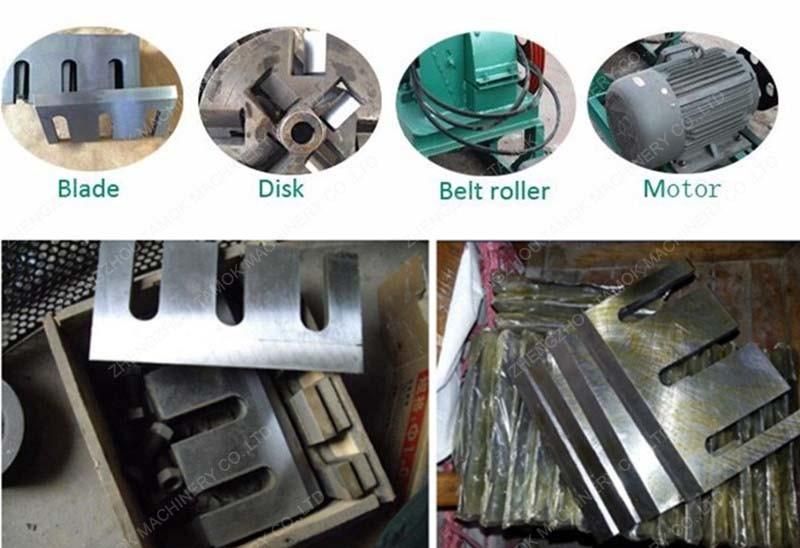

Cutter and bladesNew Designed Wood Shaving Making Machine Wood Shaving Machine

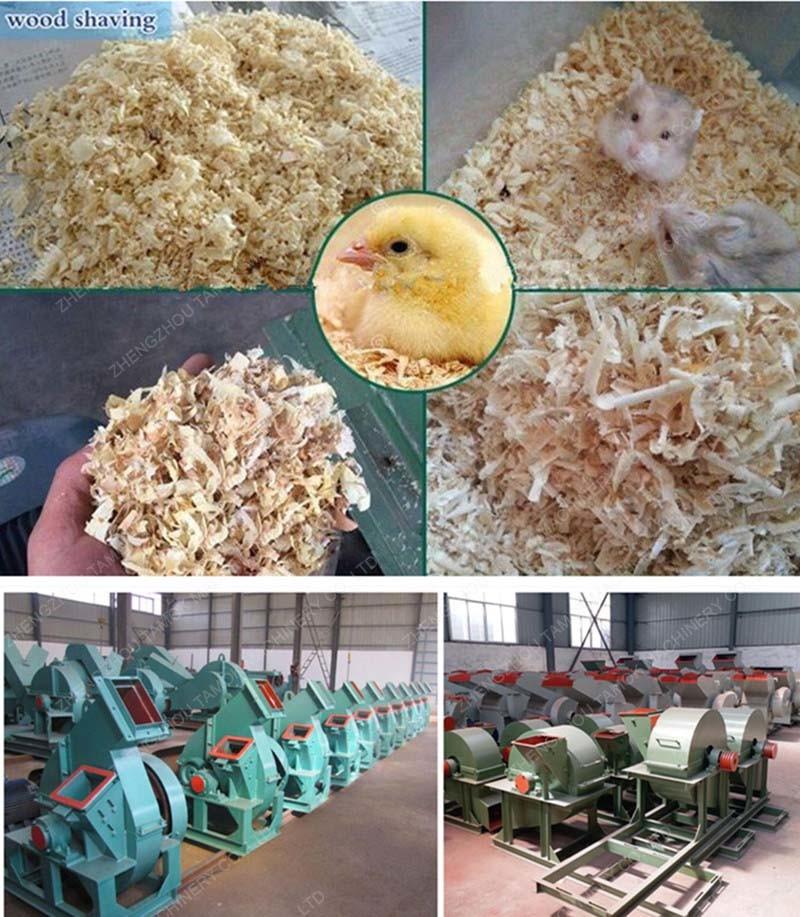

Product shavings and machine in stock

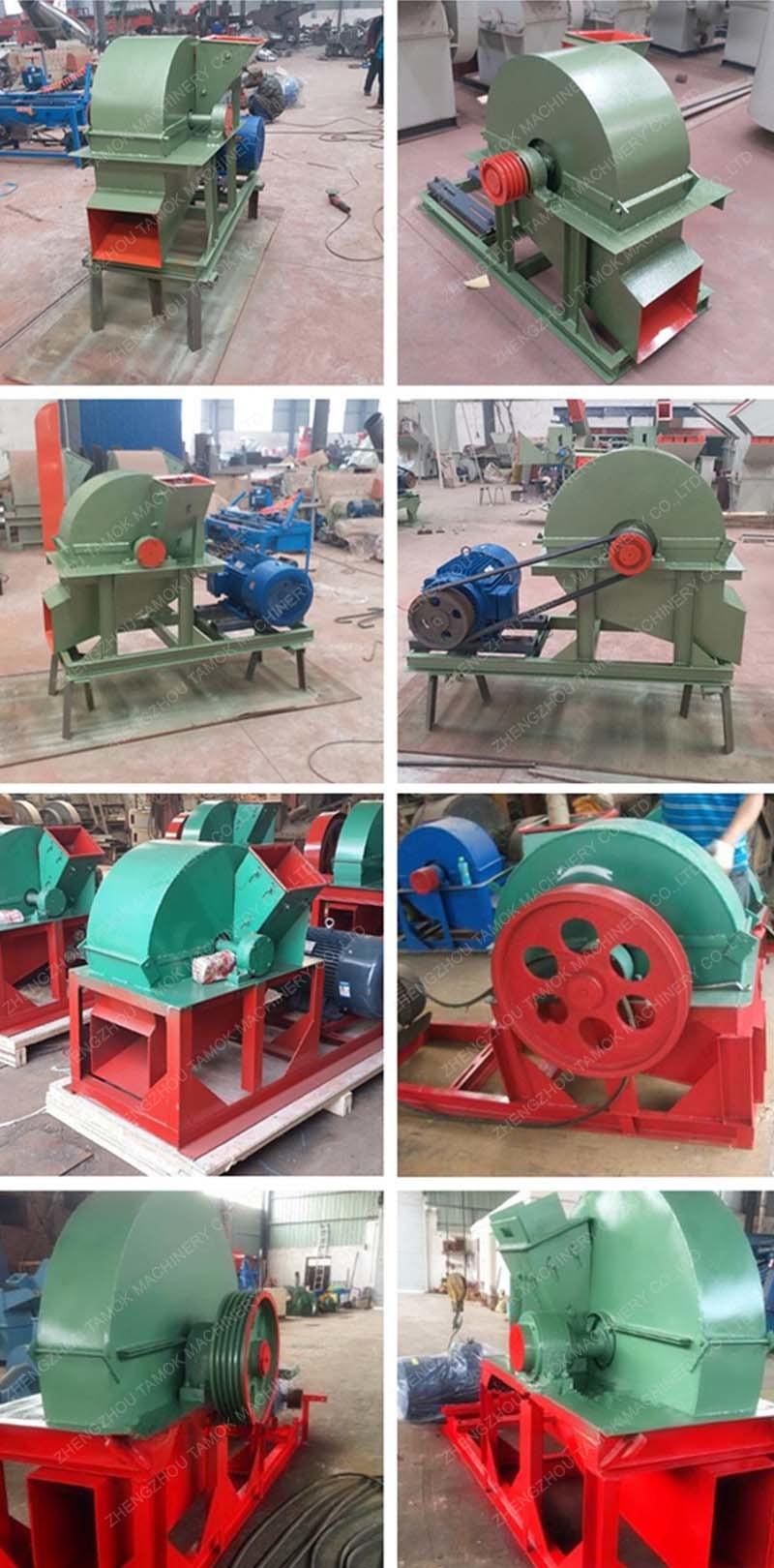

New Designed Wood Shaving Making Machine Wood Shaving Machine

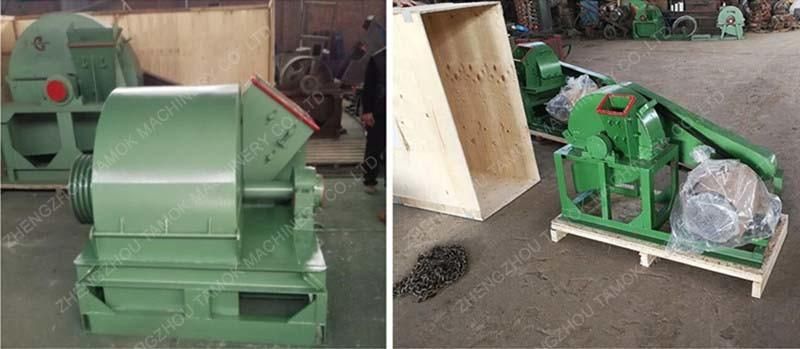

PackedNew Designed Wood Shaving Making Machine Wood Shaving Machine
We also have the related wood chipper machine,wood sawdust machine,wood pellet mill,hydraulic wood shaving machine,etc,welcome to inquiry!
