Automatic 8FT Woodworking Plywood Veneer Spindleless Peeling-Clipping Machine

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Type：Floor Lathe
  • Certification：CE, ISO
  • Voltage：380V,415V
  • Power Source：Electric

Base Info

  • Model NO.：BXQ1827,17A
  • Control Mode：CNC
  • Body：Fine Cast Steel Body
  • Auo Hydraulic Knife Clamping System：N,Normal Mechanical Change Knife
  • Transport Package：Container
  • Specification：4600× 1850× 1700
  • Trademark：METRO
  • Origin：China
  • HS Code：8465100000
  • Production Capacity：10 Sets, Month

Description

Basic Info.

Model NO. BXQ1827/17A Control Mode CNC Body Fine Cast Steel Body Auo Hydraulic Knife Clamping System N/Normal Mechanical Change Knife Transport Package Container Specification 4600× 1850× 1700 Trademark METRO Origin China HS Code 8465100000 Production Capacity 10 Sets/ Month

Product Description

Product Description8FT Plywood Veneer High Speed CNC Spindleless Rotary Peeling Machine with Clipper
 1. Product Features:
1.The peeling Speed can be changed automatically according the Program setting.
2.Automatic knife cutter peeling angle adjustment,the veneer surface finish is very smooth, increase the quality of the veneer.
3.CNC knife peeling angle control,the veneer thickness can be changed by touch screen.
4.The after angle of knife cutter are designed to change with the log diameter.

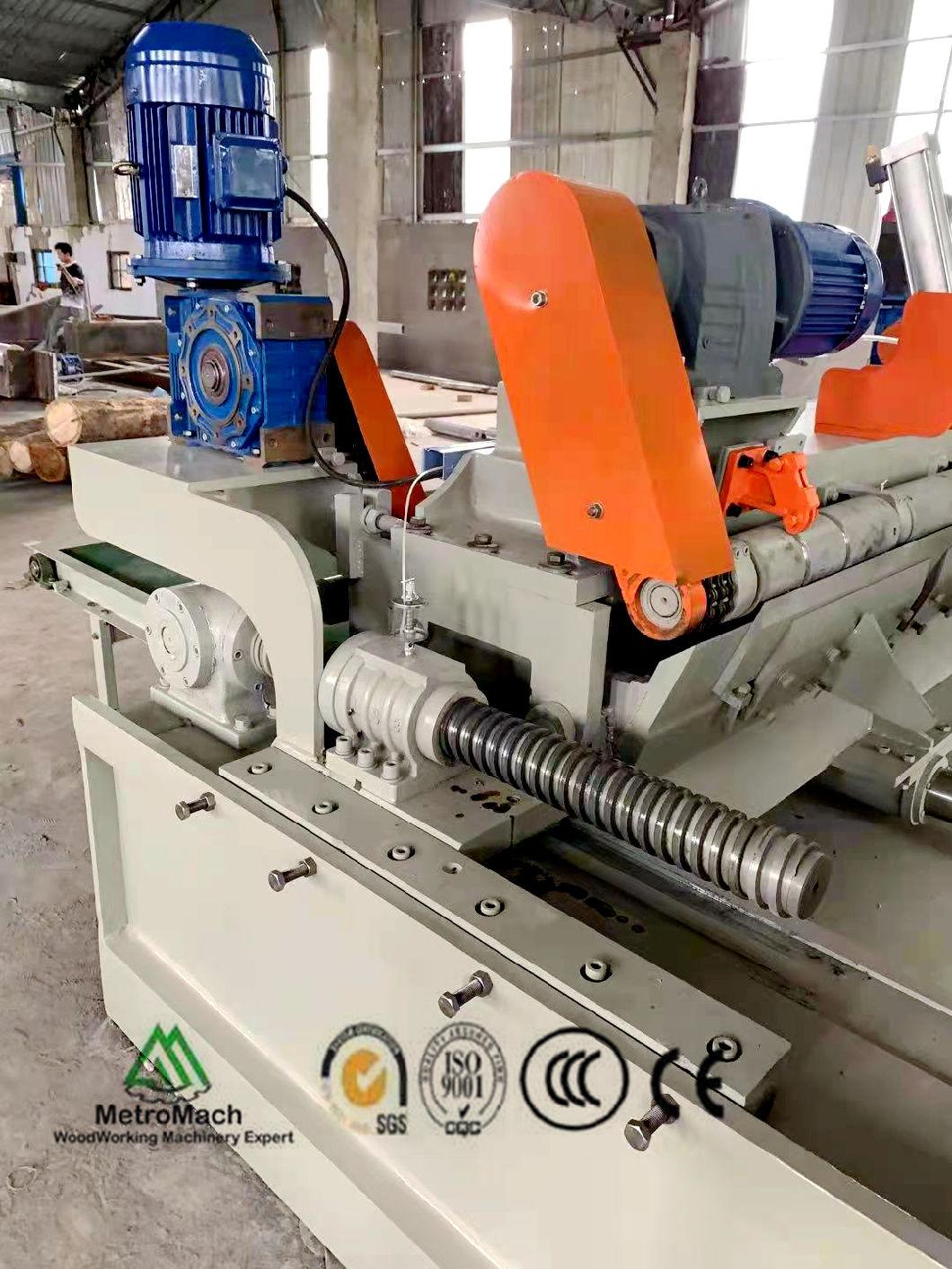

5.By using ball screw.
6.The worktable movement use Precision linear guide rail.

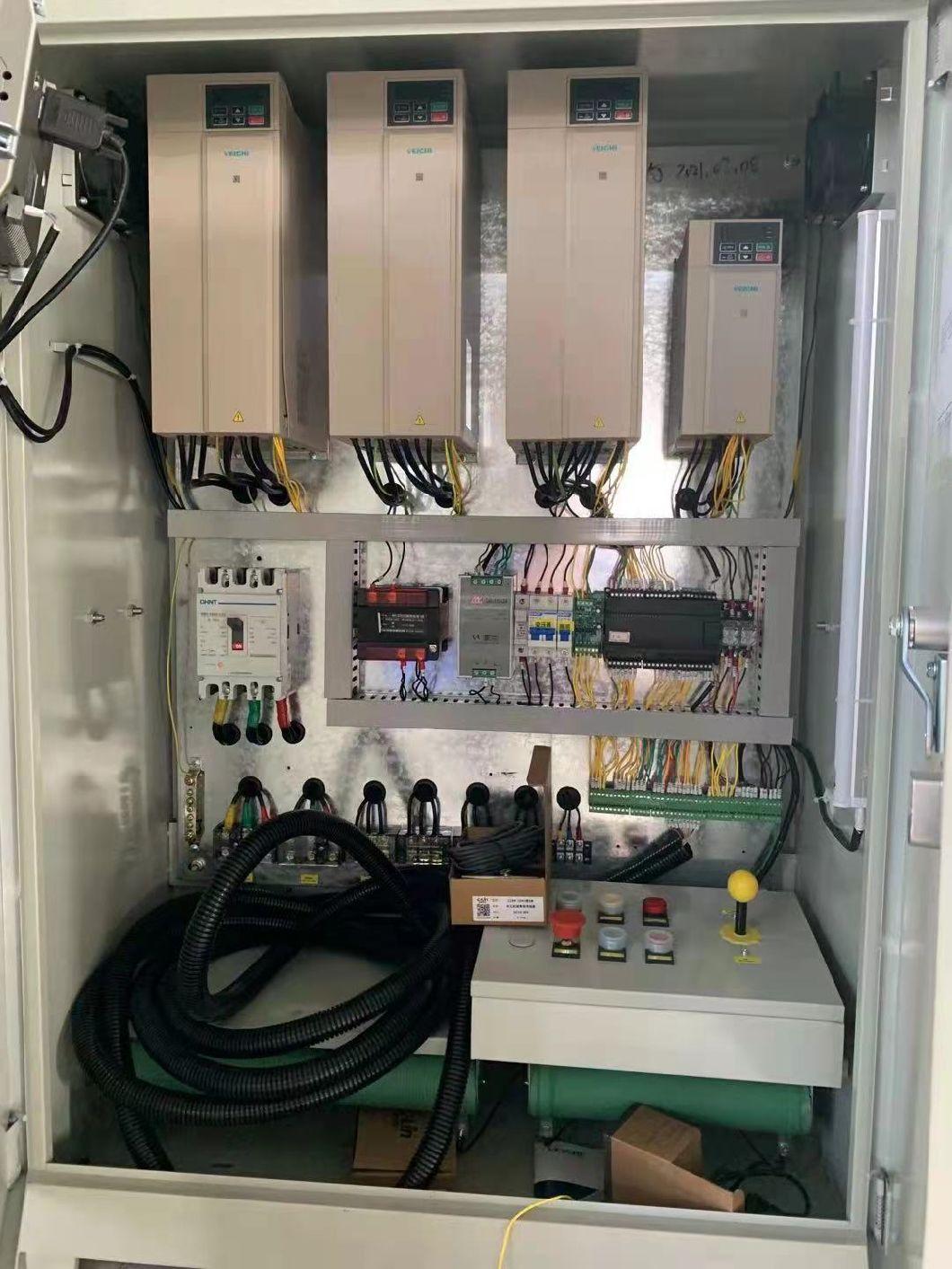

7.Electric parts use Schneider.
8. The machine has Automatic Hydraulic Knife Change system, Japan Real Mitsubishi Servo System,Siemens Motor. And the machine is Casted Iron Body.

2. Parameters:
Max. working length2600mm
Max.Working diameter500mm
Max. working speed30-110m/min
Veneer thickness0.3~3mm
Double rollers motor power11kw x 2sets
Single roller motor power7.5kw x 2sets
Screw Feeding motor power15kw
Rotary clipper motor power3.7kw
Rubber belt conveyor motor2.2kw
Machine weight9500kgs

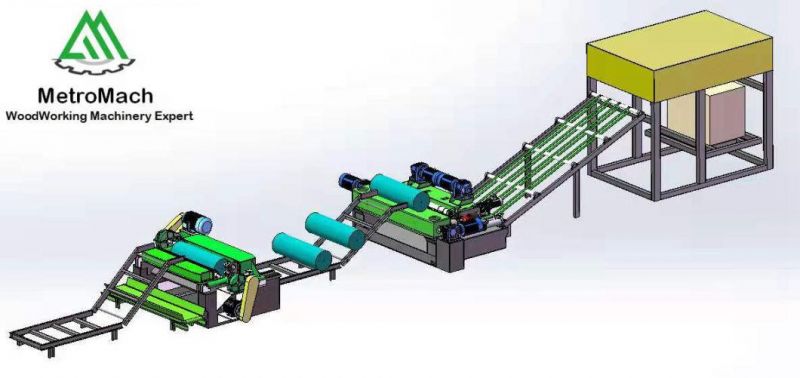

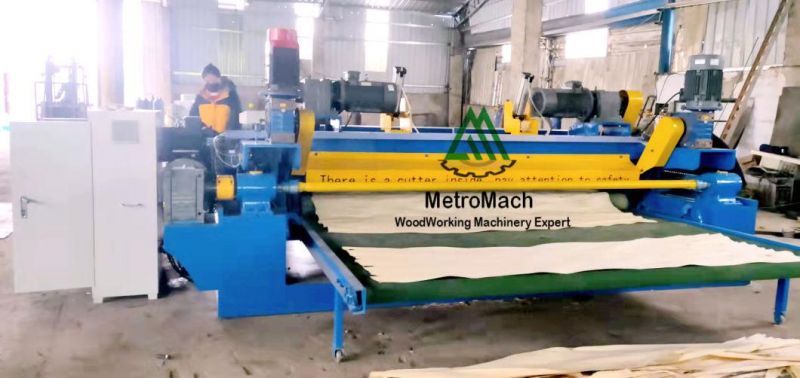

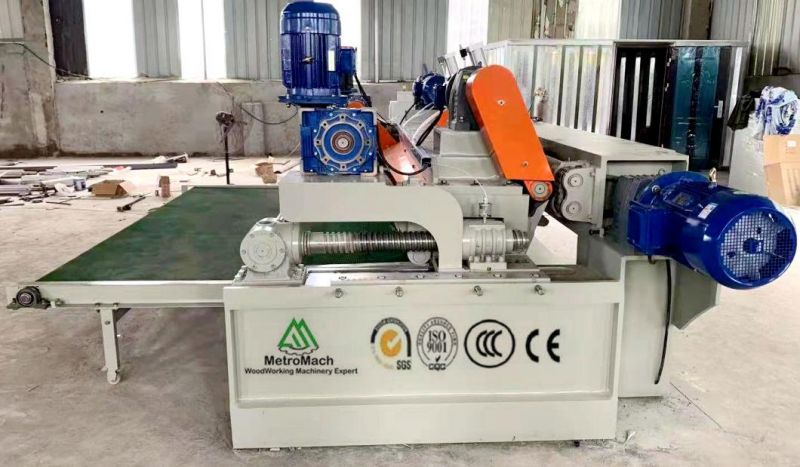

3. More Pictures:
Automatic 8FT Woodworking Plywood Veneer Spindleless Peeling-Clipping MachineAutomatic 8FT Woodworking Plywood Veneer Spindleless Peeling-Clipping MachineAutomatic 8FT Woodworking Plywood Veneer Spindleless Peeling-Clipping MachineAutomatic 8FT Woodworking Plywood Veneer Spindleless Peeling-Clipping Machine
Automatic 8FT Woodworking Plywood Veneer Spindleless Peeling-Clipping MachineAutomatic 8FT Woodworking Plywood Veneer Spindleless Peeling-Clipping MachineAutomatic 8FT Woodworking Plywood Veneer Spindleless Peeling-Clipping Machine
Automatic 8FT Woodworking Plywood Veneer Spindleless Peeling-Clipping MachineAutomatic 8FT Woodworking Plywood Veneer Spindleless Peeling-Clipping MachineAutomatic 8FT Woodworking Plywood Veneer Spindleless Peeling-Clipping Machine
Automatic 8FT Woodworking Plywood Veneer Spindleless Peeling-Clipping Machine
Automatic 8FT Woodworking Plywood Veneer Spindleless Peeling-Clipping Machine


4. Service:

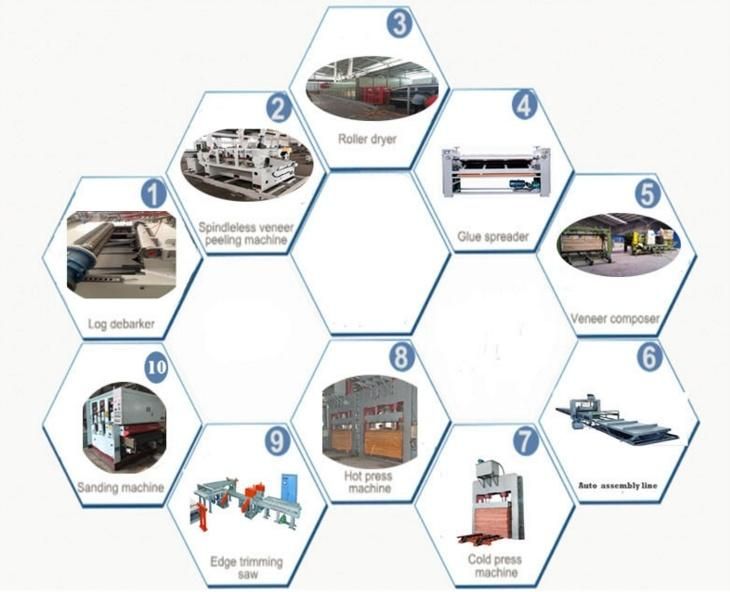

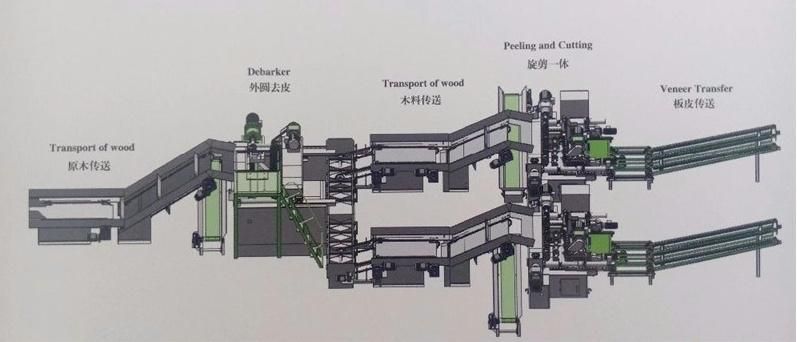

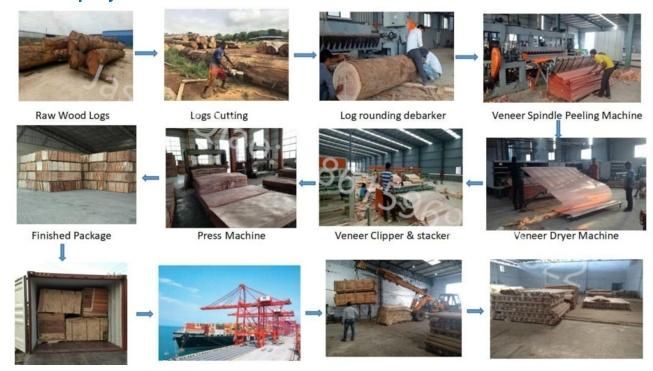

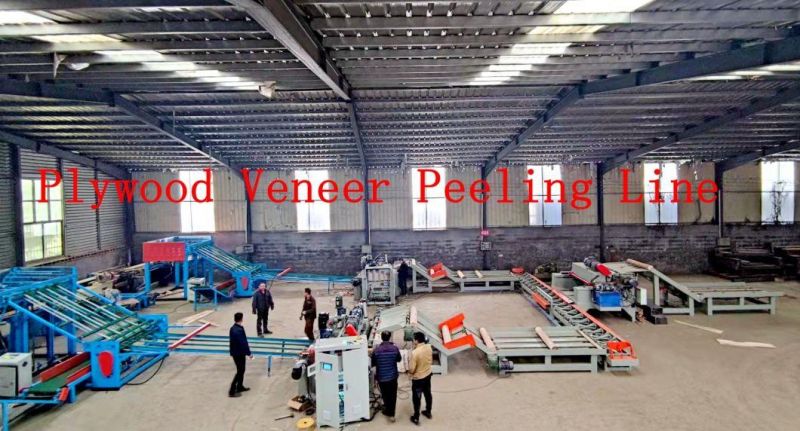

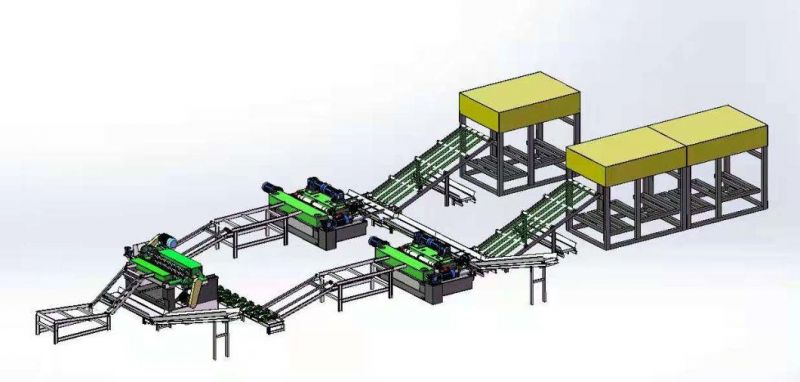

1. We supply full core/face veneer production line according to customer's demand, fully/semi-automatic avaliable.
2. One year guarantee of machines, and lifetime after-sales service and information consult.
3. Our technical people have much experience in installation, debugging, run testing all kinds of machine in different countries.
4. Our company attends most of the international exhibitions every year, and will visit the local customers to collect customer's feedback and suggestions on our machines, then we can update our machines continuously.
