CNC Automatic Plastic/Aluminum/Copper Electronic Cutting Saw
Dongguan Mintech Electronic Technology Co., Ltd.- Warranty:1 Year
- Type:Band Saw
- Power Type:Electric
- Layout:Horizontal
- Controlling Mode:CNC
- Automatic Grade:Automatic
Base Info
- Model NO.:MS-2600
- Precision:High Precision
- Certification:CE
- Customized:Customized
- Condition:New
- Color:Customized
- After-sales Service:Online Support
- Engraving Machine Type:Auto Beam Saw
- Transport Package:Wooden Packing
- Specification:4900*5100*1700mm
- Trademark:Mintech
- Origin:China Guangdong Province
- HS Code:8465910000
- Production Capacity:10unit , Month
Description
Basic Info.
Model NO. MS-2600 Precision High Precision Certification CE Customized Customized Condition New Color Customized After-sales Service Online Support Engraving Machine Type Auto Beam Saw Transport Package Wooden Packing Specification 4900*5100*1700mm Trademark Mintech Origin China Guangdong Province HS Code 8465910000 Production Capacity 10unit / MonthProduct Description

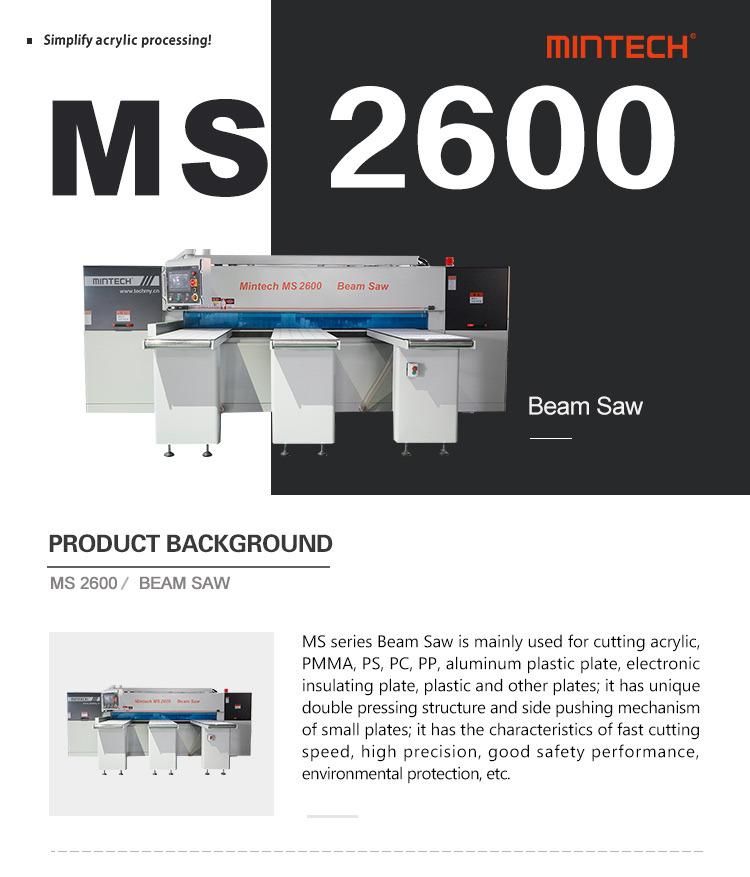

Sliding table panel saw machine for acrylic (MS2600)Model | MS1300 | MS2600 |
Control PLC | Mitsubishi | Mitsubishi |
Feed servo motor | Delta 1.5kw | Delta 1.5kw |
Electrical devices | ||
Frequency converter | Made in China | Made in China |
Main Spindle | 7.5kw | 7.5kw |
Slider of guide rail | Taiwan | Taiwan |
Pneumatic device | Airtec | Airtec |
Machine Size | 3200/3200/1700mm | 4900/5100/1700mm |
Processing length | 1300/1300mm | 2600/2600mm |
Processing thickness | 80mm | 80mm |
Diameter of main saw blade | 355mm | 355mm |
Installation diameter of main saw blade | 60mm | 60mm |
Main saw speed | 4000rpm | 4000rpm |
Slot saw blade diameter | 180mm | 180mm |
Installation diameter of grooving saw blade | 50mm | 50mm |
Slot saw speed | 6500rpm | 6500rpm |
Feed speed of main saw | 0-100m/min | 0-100m/min |
Main spindle power | 7.5kw | 7.5kw |
Power of slot saw motor | 1.5kw | 1.5kw |
Spindle drive motor | 1.5kw( AC Servo motor) | 1.5kw( AC Servo motor) |
Feed drive motor | 1.5kw( AC Servo motor) | 1.5kw( AC Servo motor) |
Floating table blower | 4kw | 4kw |
Feed speed | 60m/min | 60m/min |
Working air pressure | 5-7kg/cm | 5-7kg/cm |
Table height | 910mm | 910mm |
Net weight | 2500kg | 4000kg |
A:Just tell us what you want to do byusing CNC machine, then let us give you perfectsolutions and suggestions.
Q:What technical services can you provide?
A:We will send video and English manual with the machine. And 24-hour professional technicians online training and problem solving. It provide detailed installation courses.
Q:If some problems happen to this machineduring warranty period, what should I do?
A:We will supply free parts during machine warranty periodif machine have some problems. While we also supplyfree life long after-sales service. So any doubts, just let usknow, we will give you solutions.
