CNC Cutting Engraving Electric Router Machine with Atc Spindle Motor
Jinan Uscam Machinery Co., Ltd.- Condition：New
- Certification：ISO, CE, BV
- CNC or Not：CNC
- Voltage：380V
- Driving System：Servo Motor,Stepper Motor
- Operating System：Systec Atc Control System
Base Info
- Model NO.：USM1325
- Spindle Speed：0-24000 (R, Min)
- Guide Rail：Square Rail
- Table Surface：Vacuum Table
- Transmission：Taiwan Tbi Ball Screw
- Working Area：1300X2500mm
- Software：Artcam,Type3
- Spindle Cooling：Air or Water Cooling
- Lathe Structure：Welding Steel Frame
- Transport Package：Plywood Package
- Specification：depend router type
- Trademark：USCAM
- Origin：Jinan City
- HS Code：84649090
- Production Capacity：5000,Month
Description
Italy HSD Air Cooling Spindle or Water Cooling Spindle
Top brand of the world. Spindle speed: 0-24000RPM
Ioutput 150% of rated torque at zero speed, can have "point to point" and relative distance control functions for position
Stepper or Servo Motor and Driver
Stepper and Servo motor driver can run with smaller noise, lower heating, smoother movement and
havebetterperformances at higher speed
DSP Control System (NC-Studio, Mach3 optional)
DSP controller for cnc router,USB connect,can be use without computer.
Taiwan TBI Ball Screw and Gear and Rack, Taiwan HINWIN Linear Rail
HG series linear guideway can achieve a long life with highly accurate and smooth linear motion.
Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables you
to clampthe workpiece in place.

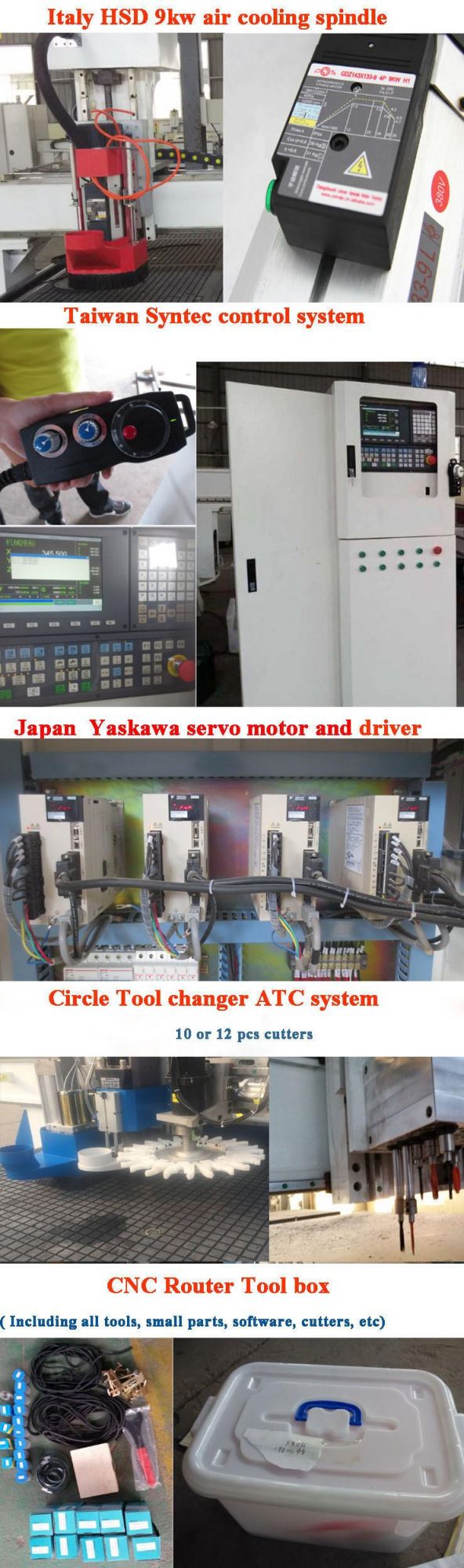

Parts of cnc router machine
Technology Parmeter
| Description | Parameter :USM1325-ATC |
| X,Y,Z working area | 1300x2500x200mm |
| X,Y,Z Traveling positioning accuracy | ±0.01 |
| X,Y,Z Repositioning positioning accuracy | ±0.01mm |
| Lathe bed frame | Steel square tubes,Lathe bed steel pipe thickness 8mm |
| X,Y Structure | Rack drive and Taiwan HIWIN guide |
| Z Structure | Taiwan TBI Ball screw and Taiwan HIWIN guide |
| Drive motors | Japan Yaskawa Servo motors |
| Table surface | vacuum table and vacuum pump |
| Max power comsumption | (without spindle)2.0KW |
| Max rapid travel rate | 100000mm/min |
| Max working speed | 80000mm/min |
| Spindle power (Linear or Disc) | Automatic tool change spindle Italy HSD 9kw |
| Spindle speed | 0-24000RPM |
| Spindle inverter | Taiwan Delta inverter |
| Working voltage | AC380V/50/60Hz,3PH |
| Command language | G Code |
| Operatiing system | Taiwan Syntec system |
| Collet | ISO30 or HSK F63 (3.175/4/6/12.7mm. Optional ) |
| X,Y Resolution | <0.02mm |
| Running environment temperature | 0-45 centigrade |
| Relative humidity | 30%-75% |
| G.W. | Approx. 2000kg |
| Delivery time and payment | 7-15 working days days after get 30% payment by T/T |
Sample of cnc router cutting engraving machine
After-sale Service
1.1.5years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free
of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery
7.Our staff can be sent to your company to install or adjust if necessary.
Packing and shipping
1. Standard plywood case, its compressive strength and bearing quality is better.
2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3. when importing, the plywood case is with fumigation-free, the procedure is simple.
4. Delivery Detail: within 7-15 days after received your payment
FAQ
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is
covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by
thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have
full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry,
you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will
send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or
someone else. We will response within 24 hours as quick as we can to solve it for you.

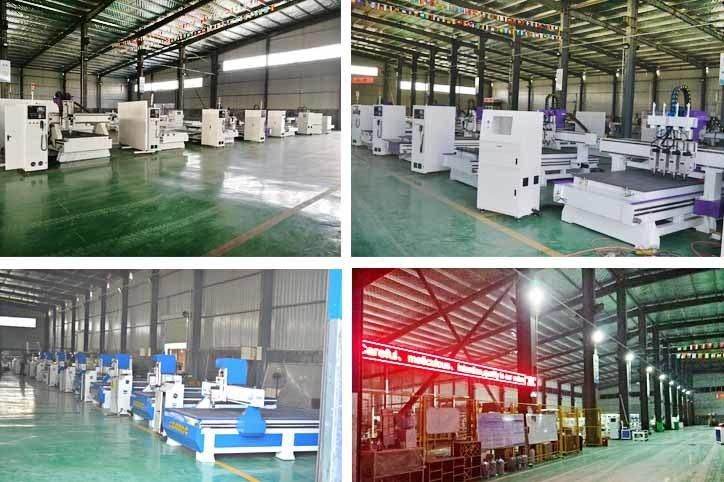

Welcome To Our Factory
