• Model NO.：FM15030
• Controlling Mode：CNC
• Power Source：Electric
• Processing Accessory：Chuck CNC Lathe
• Certification：CE, ISO, FDA
• Control System：DSP or Ncstudio Controller
• Guide Rail：Twain Hiwin Linear Guide Rail
• Transmission Way：Rack Gear
• Rotary Axis Diameter：300mm
• Motor：Step Motor , Servo Motor
• Driver：Fuling Inverter
• Transport Package：Standard Export Plywood Package
• Specification：10CBM
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. FM15030 Controlling Mode CNC Power Source Electric Processing Accessory Chuck CNC Lathe Certification CE, ISO, FDA Control System DSP or Ncstudio Controller Guide Rail Twain Hiwin Linear Guide Rail Transmission Way Rack Gear Rotary Axis Diameter 300mm Motor Step Motor / Servo Motor Driver Fuling Inverter Transport Package Standard Export Plywood Package Specification 10CBM Trademark FIRMCNC Origin Jinan, China HS Code 8465990000 Production Capacity 100 Sets/Month

Product Description

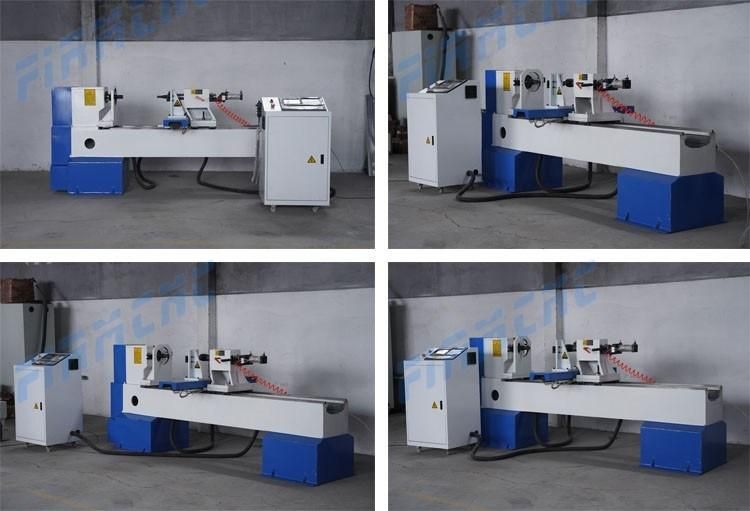

Customizable Auto Feeding CNC Wood Lathe For Making Table Legs

Main feature of cnc wood lathe

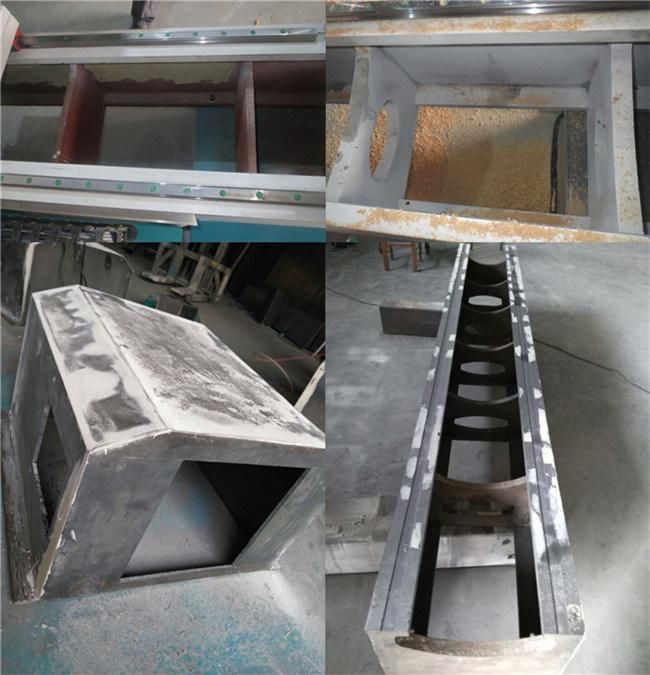

1. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief,
machine weight up to 1500kgs to make sure the lathe body stabilized and never deformed.
2. Special used for wood turning and wooden cylinder engraving, for table legs,stair railing (banisters), etc.
3.Adopting advanced handheld DSP system with USB port which is easy for operating even without a computer
4. Adopt Germany ball screw and Taiwan HIWIN helical square guide rail with high precision and longevity.
5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.
6. Rotating speed can be adjusted by inverter also you can see speed on control cabinet panel
7. One time tool setting to finish the whole work piece.
8.Turning,broaching and engraving can be done with one machine by high speed

Parameters of automatic wood lathe machine

Item	Parameter
Max. diameter	20-300mm
Max. Working length	1500mm
Quantity of spindle	1
Quantity of knife	2
Max.feeding speed	40mm/s
Processing accuracy	0.00125mm
Spindle motor power	4KW/5.5KW
Voltage	380V/50Hz/3Phase (Or 220V/50Hz/Single/3 Phase)
Compatible software	autoCAD,type3,artcam,etc.

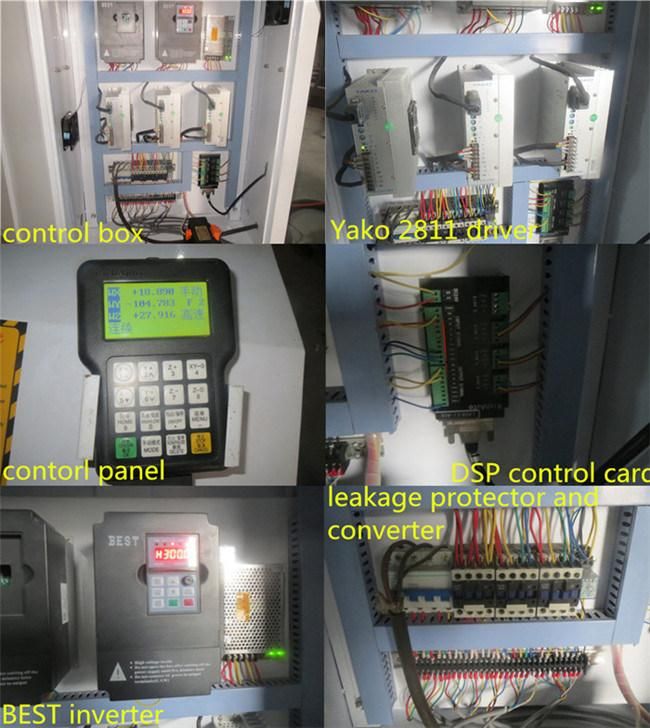

Main parts


Application of automatic wood lathe machine

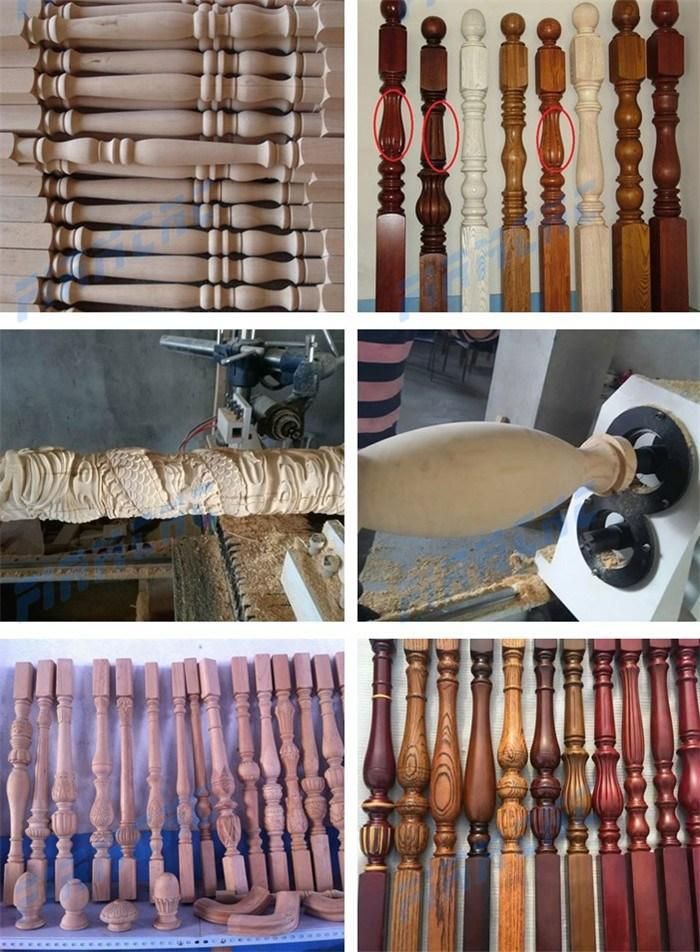

Staircases,stairway balusters,stairway newel posts;dining table legs;end table Legs;sofa table legs;bar stool legs;chair legs;
chair arm posts;chair stretchers;bed rails, lamp posts,baseball bats and so on

Our Services
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.

Quality control

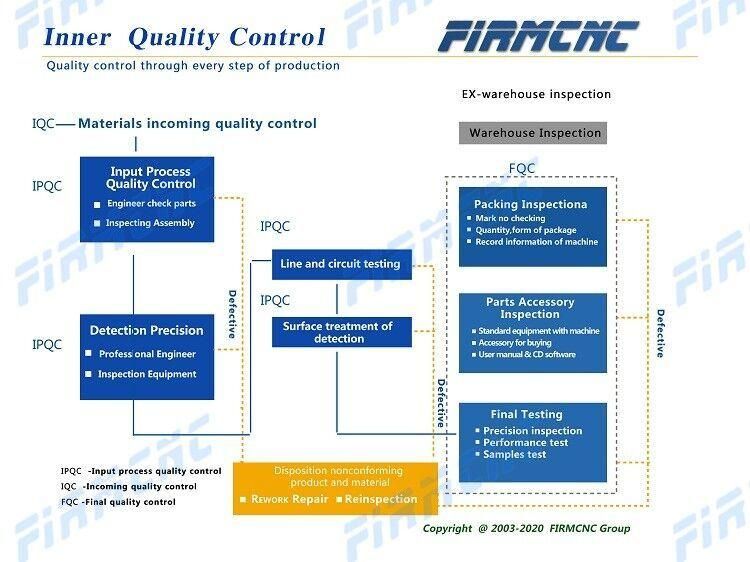

Inner control system
1. In the process of production, our professional technical engineers inspect the process to ensure
the quality of products.
2. Each link is strictly controlled to ensure the machine clean and beautiful.
3. 48 hours continuous working test before the machine leaving factory, ensure the high quality of each machine.


Company Information
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of cnc router appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on cnc router appliances.

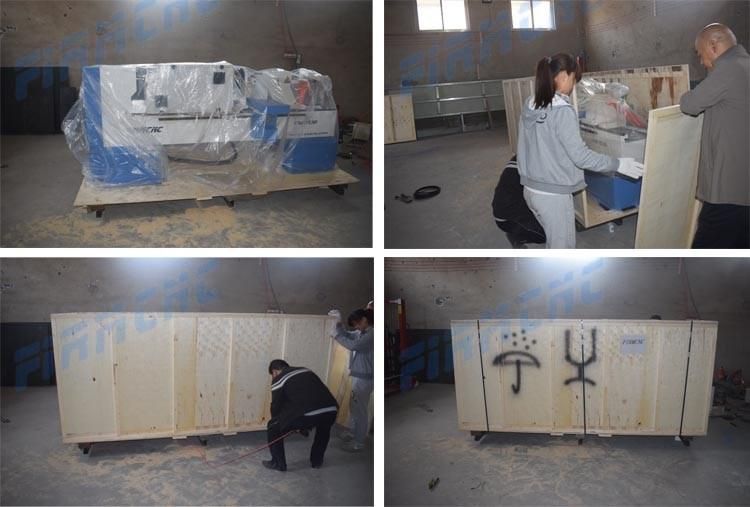

Packaging & Shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information

Other type cnc router machines

FAQ
1.How to choose a suitable model ? processing materials? max cutting thickness?
2.Do you have operation manual and working video?
3.Does your company can processing my samples?
4.If I bought machine, but don't know how to operation, what I can do?
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
6.Does your engineer do aftersale service at abroad? how much cost?
