• Model NO.：YHHPR-50-15A
• Boards Inlet Method：Transverse
• Main Steel Plate Thickness：35mm
• Controlling Methods：Automatic Hydraulic Stations
• Quantity of Cylinders：2PCS
• Diameter of Main Cylinders：320mm
• Working Stroke of Cylinders：1050mm
• Allowed Pressure：Less Than 25MPa
• Total Power：37.5kw
• Overall Size：3700*1370*4960mm
• Total Weight：34000kgs
• Warranty：1year
• After Sale：Door to Door,Online Service
• Transport Package：Shrinkage Film for Overall of Main Equipment
• Specification：500t15 layers
• Trademark：YIHE MACHINERY
• Origin：Linyi China
• HS Code：8465960000
• Production Capacity：20sets,Month

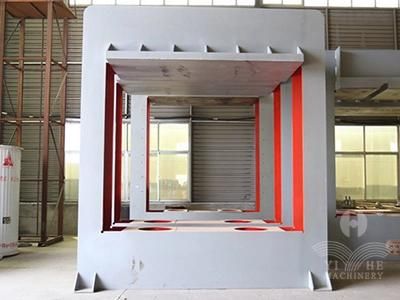

 1. CNC Planer Precision Process Frame

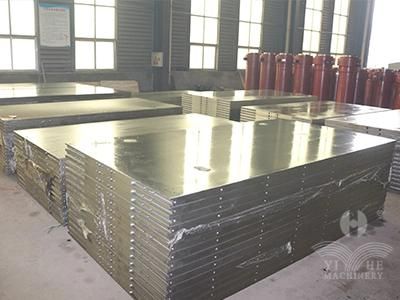

Frame is made by CNC planer precision process, To make sure plywood thickness accuracy and uniform. The frame uses GB Q235 steel or Manganese steel. Steel thickness is calculated according to machine pressure. 500T usually pressure steel thickness is 35mm.  2. Polishing Hot Platen

The hot platen is after polishing, very smooth and high accuracy. Thermal oil double inlet and double outlet huge heating energy and quick transfer. Thickness error is less than 1mm, heating transfer uniform and surface temperature error is very less.  3. WUXI Chrome-faced Cylinder

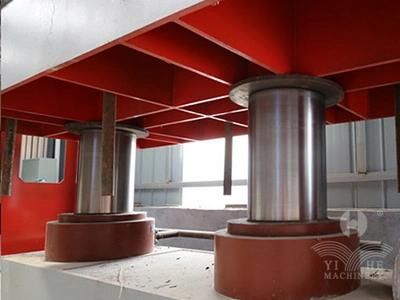

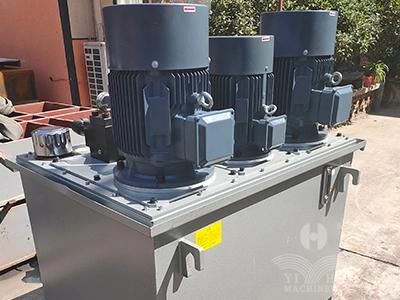

WUXI brand cylinder, chrome-faced, anti-rust treatment, iron cast and heavy duty. 360mm diameter cylinder of hot press machine weight is 1.9T.  4. Silent Dustproof Hydraulic Station

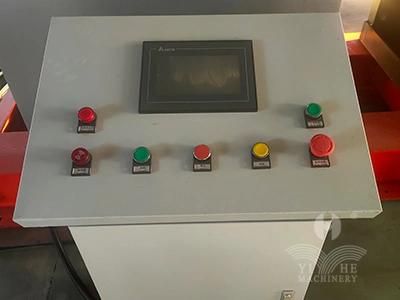

Hydraulic station uses TAIWAN hydraulic technology. It uses Siemens brand motor,, KINYUN solenoid valve, TAIWAN HEANG hydraulic pump. It has slient, dustproof and no-maintance advantage.  5. DELTA Full Automatic PLC System

The control cabinet adopts TAIWAN DELTA full automatic PLC system, the machine runs automatically, operation easily. It uses France Schneider brand electrical parts. And allow customize other brand according to client's requirement.



Shandong Linyi Jianye Shunda Machinery Co., Ltd.(formerly Linyi Jianye Machinery Factory)founded in 1991, is a set of production, sales, service, reach and development as one of the multi-company and multi-category professional manufacturers of wood machinery, It is a modern management services company, under the construction industry Shunda Machinery Manufactur of Zhu Bao Branch, Jianye Rubber Products Factory and Jinze import and Export Co., Ltd.

After more than 20 years of continuous development and growth, under the sincere cultivation of the vast number of customers and the joint efforts of all the employees of the company, Now we have the brand of "Yihe" and six categories of series.Glue spreader machine series, drying machine series, hot press machine series, sawing machine series, in the patchwork (scraper) series and rubber products series.Become more than 40 kinds of products of large and medium-sized wood machinery professional manufacturers.

The company always adheres to the service aim of the brand, high efficiency, honesty and pragmatism, and sincerely expects to cooperate, develop and progress with domestic and foreign businessmen.With sophisticated equipment, advanced processing technology and perfect testing methods, the company continuously improves its technical level and strives to provide satisfactory professional and personalized wood-based panel machinery manufacturing and service for the vast majority of wood processing enterprises at home and abroad.Domestic and foreign businessmen are welcome to visit.

For more information, please visit our company website: yihemachinery.en.made-in-china.com
