• Model NO.：ck6090
• Spindle Number：Single-Spindle
• Feed Mode：Mechanical
• Controlling Mode：CNC
• Certification：CE, ISO, FDA
• Customized：Customized
• Condition：New
• Color：Customized
• Working Size：1300X2500mm or as Your Choice
• Cooling Mode：Water Cooling Spindle
• Spindle Power：1.5,2.2kw,3kw,4.5kw,5.5kw,7.5kw
• Air Cooling Is Ok：Yes
• Machine Colour：Customers Choice , We Are White and Bule
• Software：DSP or Nc Studio or March3 as Your Option
• Rotary：Yes:500mm ,200mm 80mm
• Transmission：Z Axis : Ball Screw ,Xy : Gear and Rack Rail
• Rail：Tai Wan Hiwin
• Working Table：Vaccum Pump and Materials
• Transport Package：Plywood Packing
• Specification：iso ,SGS,FDA,CE
• Trademark：chanke
• Origin：Shandong
• HS Code：847989999
• Production Capacity：50sets,Months
• Package size per unit product：120.00cm * 110.00cm * 100.00cm
• Gross weight per unit product：280.000kg

Basic Info.

Model NO. ck6090 Spindle Number Single-Spindle Feed Mode Mechanical Controlling Mode CNC Certification CE, ISO, FDA Customized Customized Condition New Color Customized Working Size 1300X2500mm or as Your Choice Cooling Mode Water Cooling Spindle Spindle Power 1.5/2.2kw/3kw/4.5kw/5.5kw/7.5kw Air Cooling Is Ok Yes Machine Colour Customers Choice , We Are White and Bule Software DSP or Nc Studio or March3 as Your Option Rotary Yes:500mm /200mm 80mm Transmission Z Axis : Ball Screw ,Xy : Gear and Rack Rail Rail Tai Wan Hiwin Working Table Vaccum Pump and Materials Transport Package Plywood Packing Specification iso /SGS/FDA/CE Trademark chanke Origin Shandong HS Code 847989999 Production Capacity 50sets/Months

Packaging & Delivery

Package size per unit product 120.00cm * 110.00cm * 100.00cm Gross weight per unit product 280.000kg

Product Description

This machine Mini wood working machine size is: 600x900mm advertising cnc router, it can engrave on the acrylic, double colour board, ABS, PVC, glass, aluminum,iron,plastic, stone..

It's working size is: 600x900mm with 1.5/2.2kw water cooling spindle power, can engrave on the wood acrylic brass aluminum and stone and also can cut this materials and to do the 3D embossment work, fit for the furniture and cabinet upholster, wooden door, fretwork, instrument, board MDF, Plastic PVC

This machine can be produced not lathe bed, it is the desktop, it is convenience for you to take this machine.

1. If it works on the cylinder, the max diameter is: Φ 100mm. The max length is: 1200mm.
2. It adopt the T slot with clamp as working table, then you could fit different size of carved materials.
3. DSP control system, no need computer.
4. It has the break-point memory points for 10 pcs, reducing materials waste.
5. Iron cast wholly frame, double-screw auto eliminating clearance ball screw, floor-type liner guide transmission.
6. Well designed dust and water proof device ensure the machine easy maintenance.
7. CAD/CAM designing software like Type 3/ArtCAM/Castmate /wentai and so on.



The round rail between with the square rail:


Compare the round rail, the square rail has more higher precision , less wear and tear can maintain high accuracy, square rails apply to high speed move and greatly

reduce the driver horsepower the machine required, what's more, can bear the load from left and right up and down at the same time. but the round rail has large bearing

capacity, cheaper than square rails.



why we use the DSP for you?



DSP control system don't need connect with the PC, and it included three parts, control card, U DISK and handle controller, when you set the tool path by the software(

Artcam Type3. etc.), then copy it to the U-disk. then insert U disk to control card , the tool path will show in the hand controller, you can control the tools cut or engrave.


It fit for the small work production

Mini wood working machine Applicable industry:
outdoor light box, advertising logo, signage, seal, breastplate, handicraft, stationery, ornament, instrument panel, PCB board, carpentry product, etc

Forget to tell you, we can according to your requirements to produce the machine.

Agent price and end user price is different, so please tell me you are the end user or agent, when you send us the letter.

so don't hesitate contact us !

Items	Destription of Mini wood engraving machine
Effective working area	600(X)mm*900(Y)mm*120(Z)mm
Max.thickness of the materials	≤200mm(the distance between Z-axis and the bottom of the working station)
Materials	Cast iron machine bed ,cast aluminum gantry
Guide rail	Linear square  guide rail
Transmission	ball screw
Working table	Aircraft aluminum T slot
Voltage	AC 220v 50/60Hz single phase
Driving mode	Stepper motor
Spindle motor	2.2kw water cooling /1.5kw water cooling spindle
Collet type	ER11
Suitable tools diameter	3.175mm,4mm,6mm
Spindle speed	0-24000rpm/min
Empty traveling speed	0-60000mm/min
Engraving speed	0-25000mm/min
Voltage	AC 220V 50/60Hz single phase or
Machine accuracy	0.05mm
Control system	MACH3 /Original NcStusio /DSP

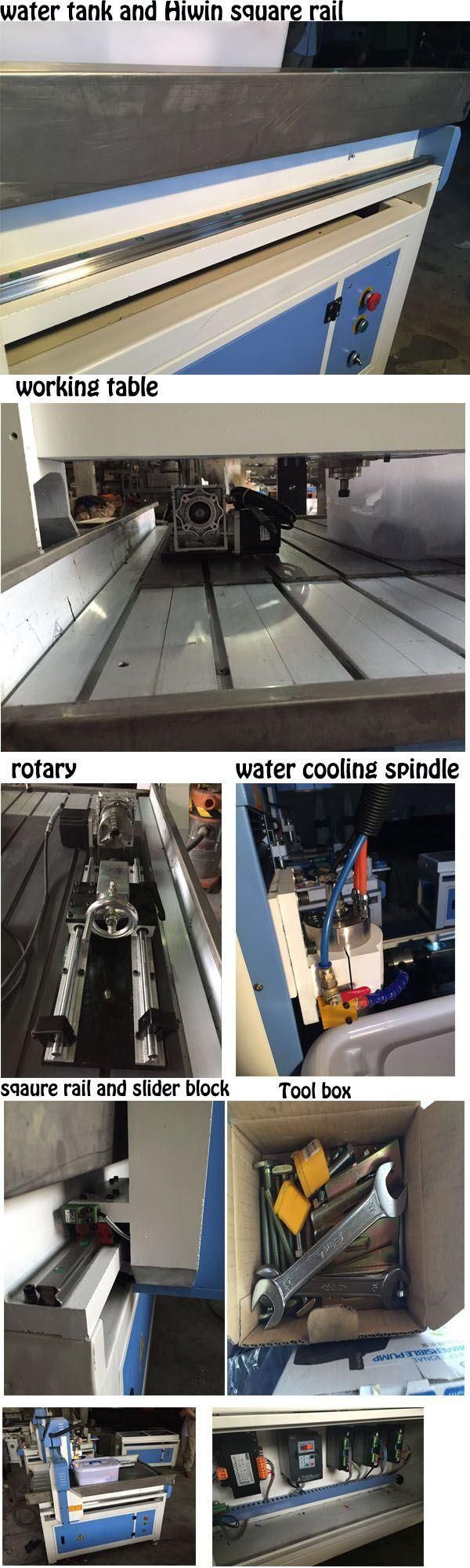

  Mini wood engraving cnc router machine Features

1 , 2.2kw water cooling  spindle ,high rotated speed,hign power can engraving on the hardness materials(or air cooling spindle ),low noise .

2,Dustproof system,make the working table more convenient

3,Aircraft aluminum T slot working table covered PVC protects the tools from breaking .T-slot with clamps makes it convenient to fix the materials

4,The machine cast iron machine bed ,cast aluminum gantry , more stable ,no deformation ,little shock ,moving stability .

5,linear square guide rail ,ball screw transmission,more precision.

6,T-shape dragon gate makes 3 axis working stable ,high speed and accuracy.Dragon gate moving,customer can work on any area  of the materials.

7,Optional control system ,such as Ncstudio/DSP/Mach3,high stability ,high efficiency ,easy to learn

8,Continuing working after the break point /power failure,lower the rejection rate

9,Good software compatibility ,can compatible with th Artcam/Type3/Ucancam/JDPaint such CAS/CAM software ,convenient to using.

10,Control cabinet it includes :round transformer ,leadshine driver,inverter

(1) Round transformer:change the local power voltage into 40-60v

(2) Inverter :it can control the spindle speed and save energy

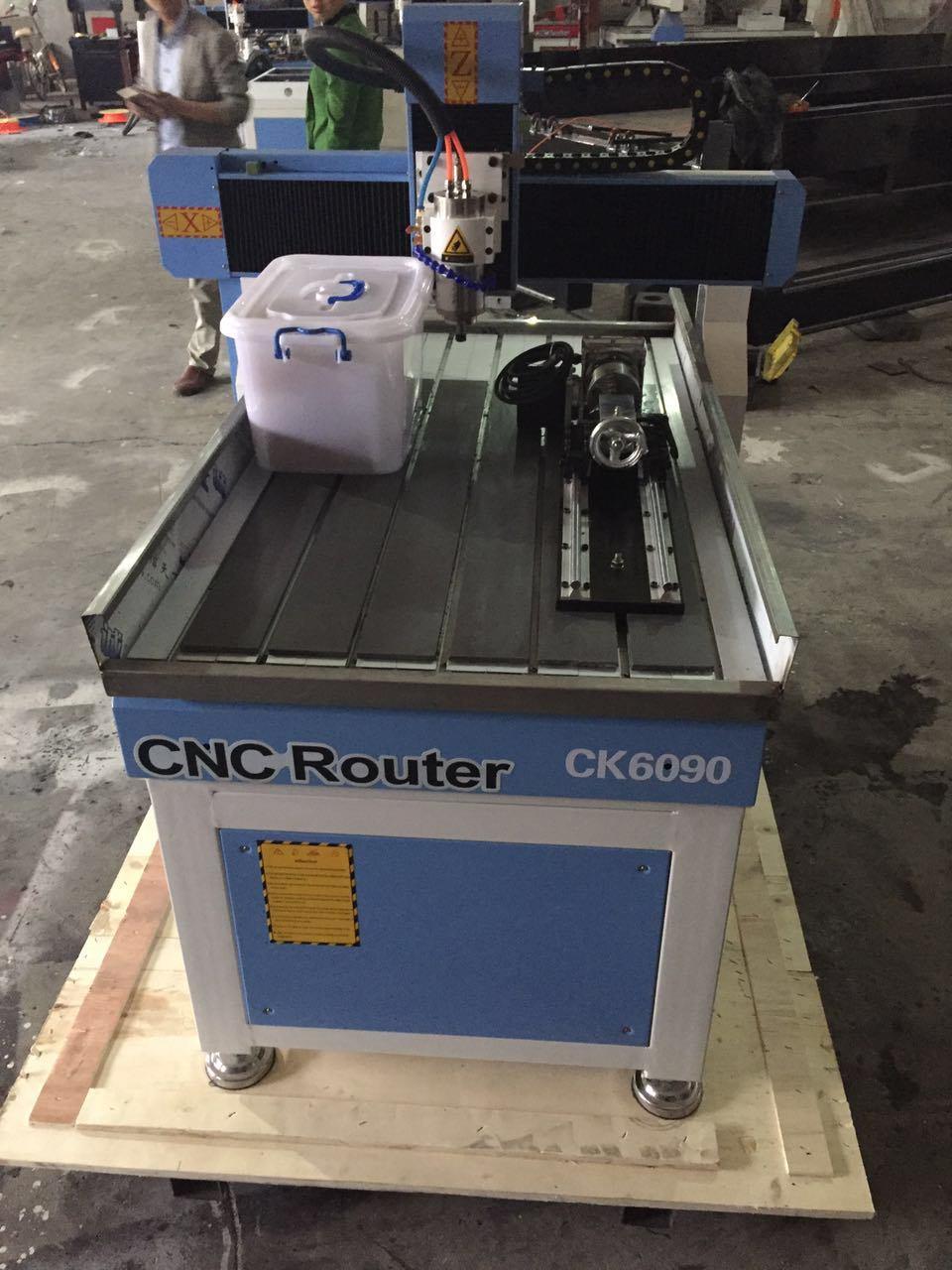

 Whole machine :(Mini wood engraving machine )

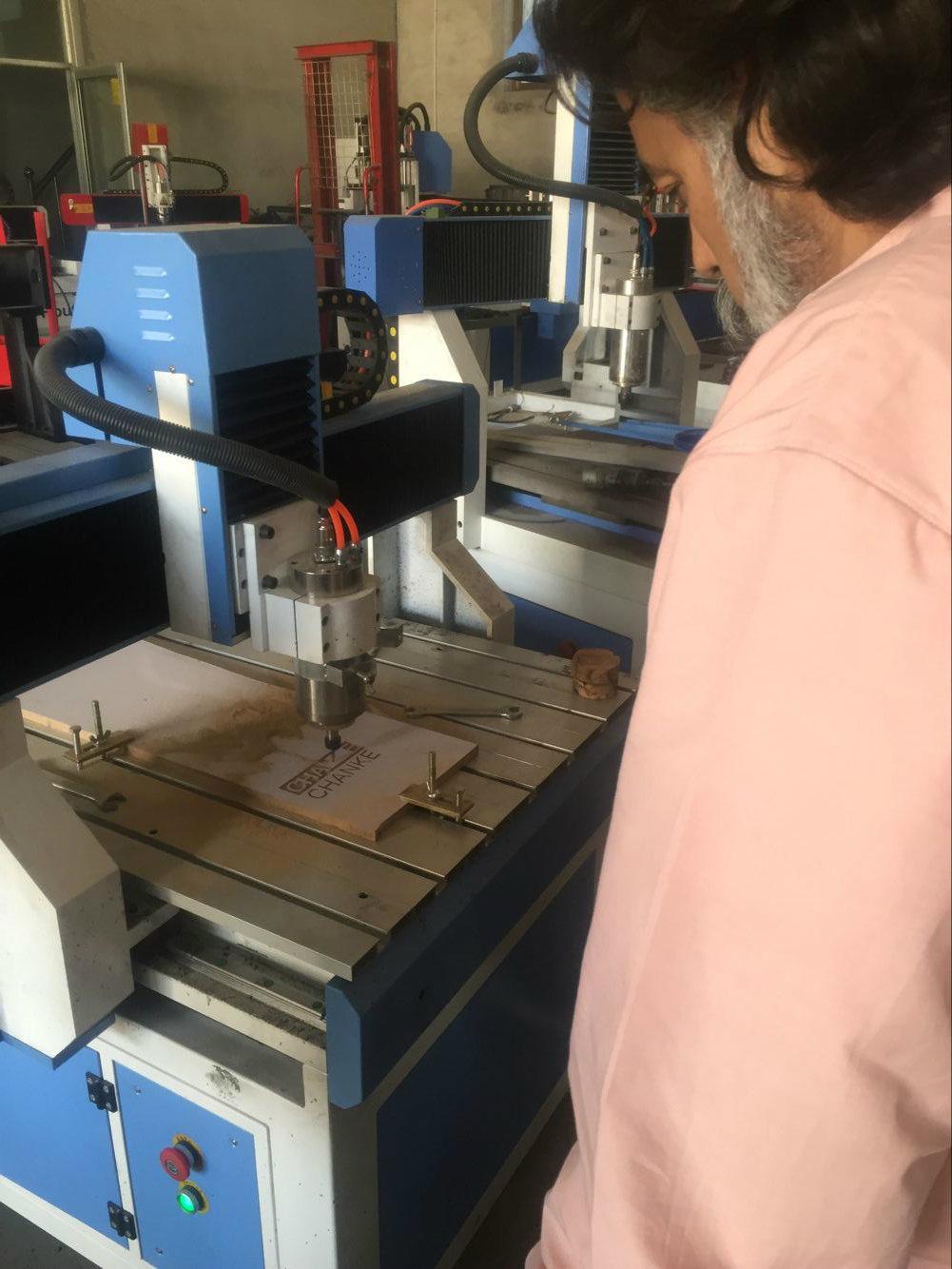

Customer from pakistan

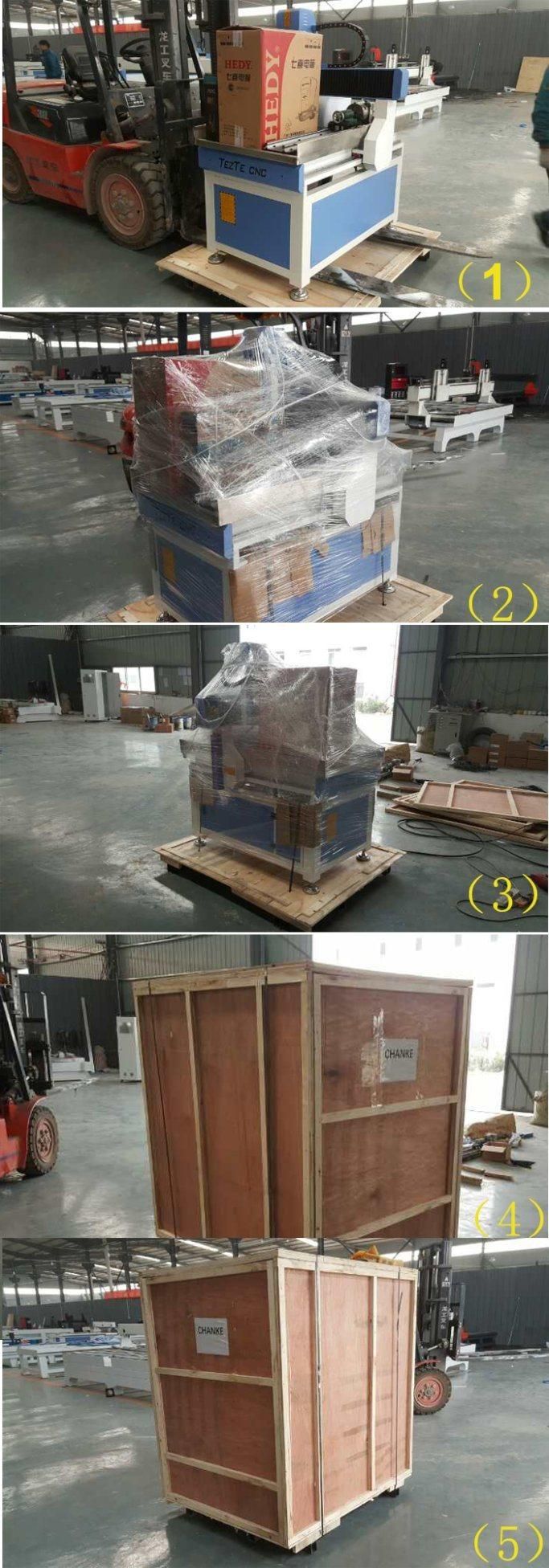

Packing:
All wood working machine are packed with standard inner plastic wrap and steel structure and outer plywood case, inner package would be help to tight all the Small parts in the package. and the plywood is firm enough to protect the laser machine during shipping.

The advantages of plywood case package:

Firstly, plywood case, its compressive strength and bearing quality is better, is the market of choice for the goods of high weight packing.

Secondly, the board area is big, the soil structuer is good and operational process is simple, so its is better in leakproof ness and waterproof.

Thirdly, when importing, the plywood case is with fumigation-free, the produre is simple.


After sale service:

1. 2 years warranty
2. Engineer can go to your country help you install and repair the machine if machine has big problems.

3. the easy broken parts are all change within the 9 months, so within 9 months if the easy brokens are working under a normal enviroment, so we can change for you for free.

4. 24 hours online to help you slove all the problems.

5. Engineers can speak English.


Professional Service

From producing in our factory to shipping the goods directly to your port or company, we supply
all-in-one service for our customers. With the rich experience of dealing with shipping issue and custom
 clearance, we can make the most economical delivery plan for you and ensure the quick leading time.
 No matter your quantity is our MOQ or very big, we take each customer as the only one.

With us your money in safe, your business is in safe, we can promise using the true brand and good quality spare parts for you.  trust us! we will don't let you disapoint.


Note:
This type working size is samll 600x900mm, we has bigger type for wood cutting and engraving . eg:  1300x2500mm/2000x3000mm/1200x1800mm or as your request :
