Woodworking Automatic Plywood Veneer Cast Body Spindleless Peeling Machine

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Type：Floor Lathe
  • Certification：CE, ISO
  • Voltage：380V,415V
  • Power Source：Electric

Base Info

  • Model NO.：BXQ1827,5B
  • Control Mode：CNC
  • Body：Fine Cast Steel Body
  • Auo Hydraulic Knife Clamping System：N,Normal Mechanical Change Knife
  • Transport Package：Container
  • Specification：4600× 1850× 1700
  • Trademark：METRO MACH
  • Origin：China
  • HS Code：8465100000
  • Production Capacity：10 Sets, Month

Description

Basic Info.

Model NO. BXQ1827/5B Control Mode CNC Body Fine Cast Steel Body Auo Hydraulic Knife Clamping System N/Normal Mechanical Change Knife Transport Package Container Specification 4600× 1850× 1700 Trademark METRO MACH Origin China HS Code 8465100000 Production Capacity 10 Sets/ Month

Product Description

Product DescriptionAutomatic 8FT Plywood Veneer Cast Body Spindleless Rotary Peeling-clipping Machine
 1. Product Features:
1.The peeling Speed can be changed automatically according the Program setting.
2.Automatic knife cutter peeling angle adjustment,the veneer surface finish is very smooth, increase the quality of the veneer.
3.CNC knife peeling angle control,the veneer thickness can be changed by touch screen.
4.The after angle of knife cutter are designed to change with the log diameter.
5.By using ball screw.
6.The worktable movement use Precision linear guide rail.
7.Electric parts use Schneider.
8. The machine has Automatic Hydraulic Knife Change system, Japan Real Mitsubishi Servo System,Siemens Motor. And the machine is Casted Iron Body.

2. Parameters:
Max. working length2600mm
Max.Working diameter480mm
Max. working speed60m/min
Veneer thickness0.8~3mm
Double rollers motor power11kw x 2sets
Single roller motor power11kw x 2sets
Screw Feeding motor power11kw
Rotary clipper motor power3 kw
Knife gate servo motor power1.5kw
Hydraulic motor power1.5 kw
Machine weight13160kgs

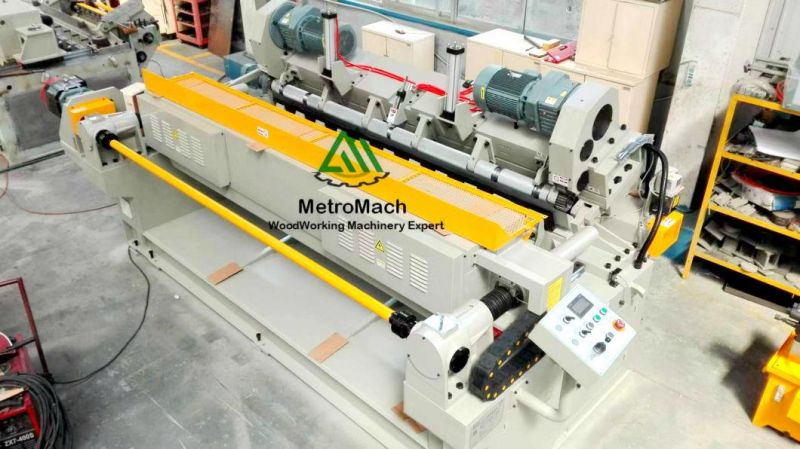

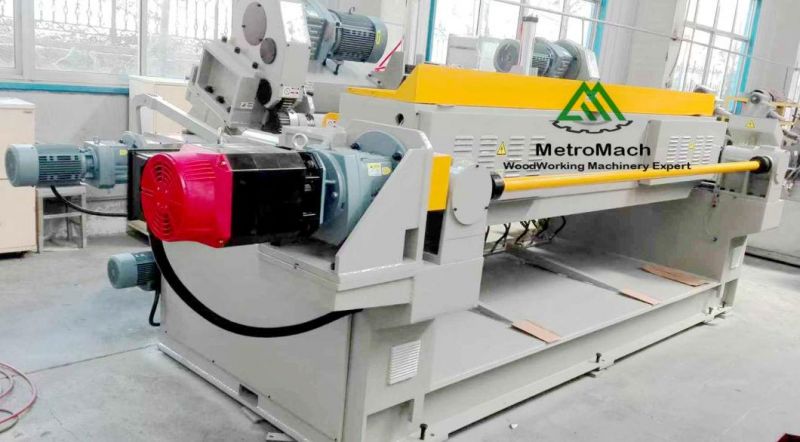

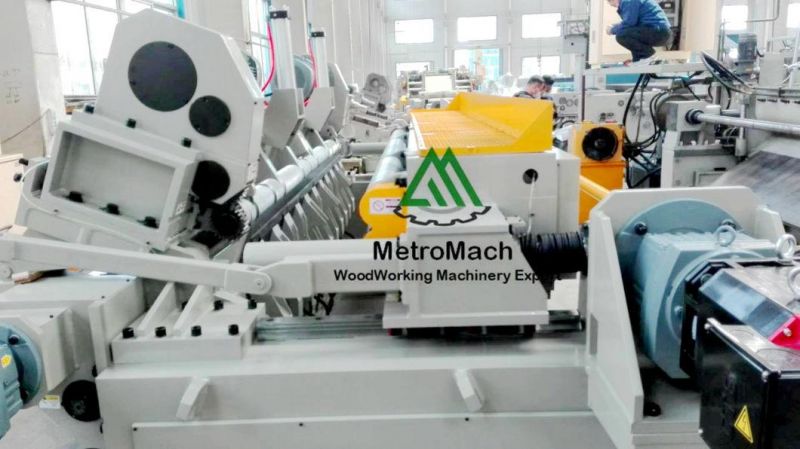

3. More Pictures:
Woodworking Automatic Plywood Veneer Cast Body Spindleless Peeling Machine
Woodworking Automatic Plywood Veneer Cast Body Spindleless Peeling MachineWoodworking Automatic Plywood Veneer Cast Body Spindleless Peeling MachineWoodworking Automatic Plywood Veneer Cast Body Spindleless Peeling MachineWoodworking Automatic Plywood Veneer Cast Body Spindleless Peeling Machine
Woodworking Automatic Plywood Veneer Cast Body Spindleless Peeling MachineWoodworking Automatic Plywood Veneer Cast Body Spindleless Peeling Machine
Woodworking Automatic Plywood Veneer Cast Body Spindleless Peeling Machine
Woodworking Automatic Plywood Veneer Cast Body Spindleless Peeling Machine


4. Service:

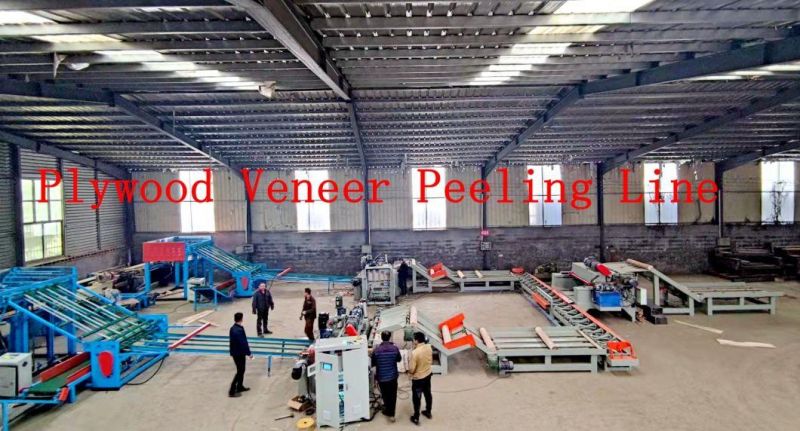

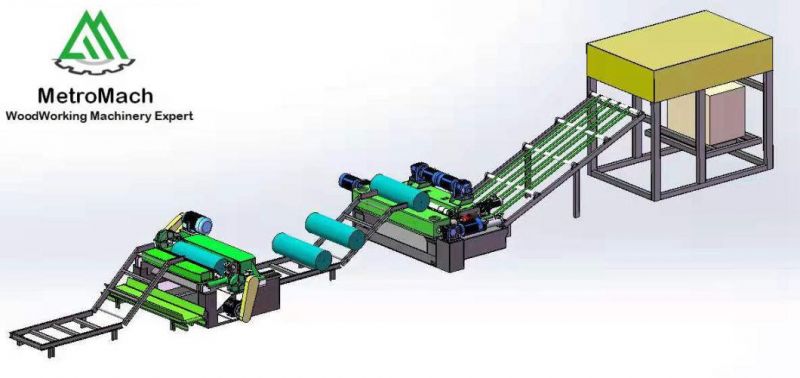

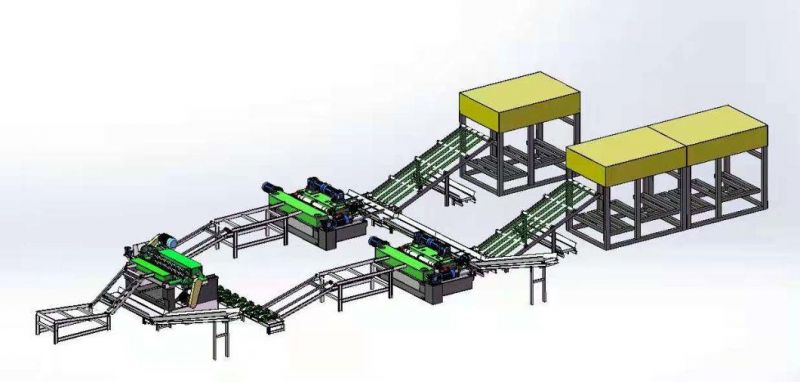

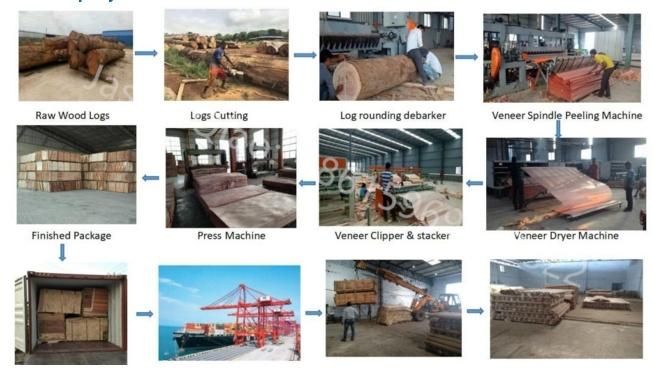

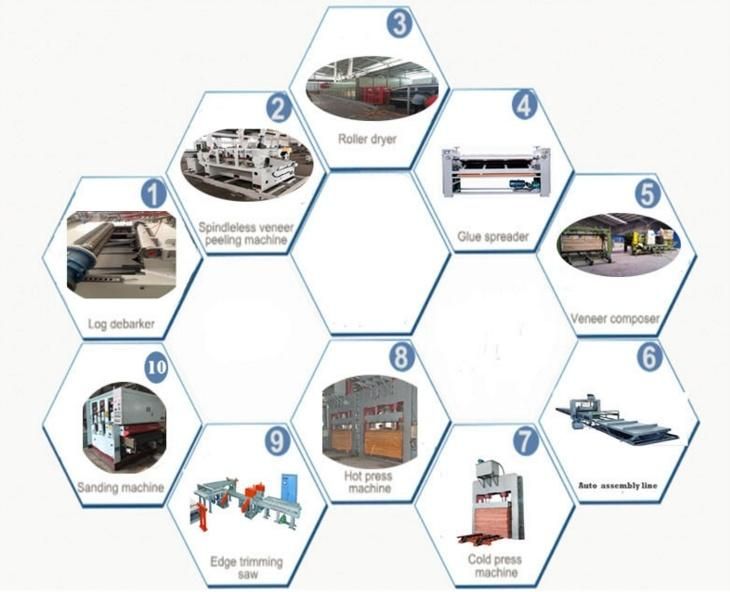

1. We supply full core/face veneer production line according to customer's demand, fully/semi-automatic avaliable.
2. One year guarantee of machines, and lifetime after-sales service and information consult.
3. Our technical people have much experience in installation, debugging, run testing all kinds of machine in different countries.
4. Our company attends most of the international exhibitions every year, and will visit the local customers to collect customer's feedback and suggestions on our machines, then we can update our machines continuously.
