Vertical Spindle Veneer Peeling Machinery for Plywood Making
Linyi Jianye Shunda International Trade Co., Ltd.- Type:8FT Vertical Spindle Veneer Peeling Machine
- Automatic:Automatic
- Certification:CE, ISO
- Structure:Vertical
- Wood Length:2000mm-2600mm
- Max Wood Diameter:1500mm
Base Info
- Model NO.:YIHEVP
- Remaining Wood Min Diameter:120mm
- Wood Loading System:2 Pieces of Rotary Crane
- Veneer Thickness:0.2-2.6mm
- Motor Brand:China Huli
- Main Motor Power:30kw Inverter Motor 30kw
- Chuck Motor Power:4kw*2PCS
- Feeding Motor Power:1.5kw*1PCS
- Knife Adjusting Motor:1.1kw*1PCS
- Hydraulic Motor Power:0.75kw*1PCS
- Loading System Motor Power:3kw*2PCS
- Inverter:Taiwan Delta
- Total Weight:About 9500kg
- Transport Package:Plywood Pallet
- Specification:6000*2300*2600mm
- Trademark:YIhe
- Origin:Linyi Shandong China
- Production Capacity:3000 Pieces,Year
Description
Basic Info.
Model NO. YIHEVP Remaining Wood Min Diameter 120mm Wood Loading System 2 Pieces of Rotary Crane Veneer Thickness 0.2-2.6mm Motor Brand China Huli Main Motor Power 30kw Inverter Motor 30kw Chuck Motor Power 4kw*2PCS Feeding Motor Power 1.5kw*1PCS Knife Adjusting Motor 1.1kw*1PCS Hydraulic Motor Power 0.75kw*1PCS Loading System Motor Power 3kw*2PCS Inverter Taiwan Delta Total Weight About 9500kg Transport Package Plywood Pallet Specification 6000*2300*2600mm Trademark YIhe Origin Linyi Shandong China Production Capacity 3000 Pieces/YearProduct Description

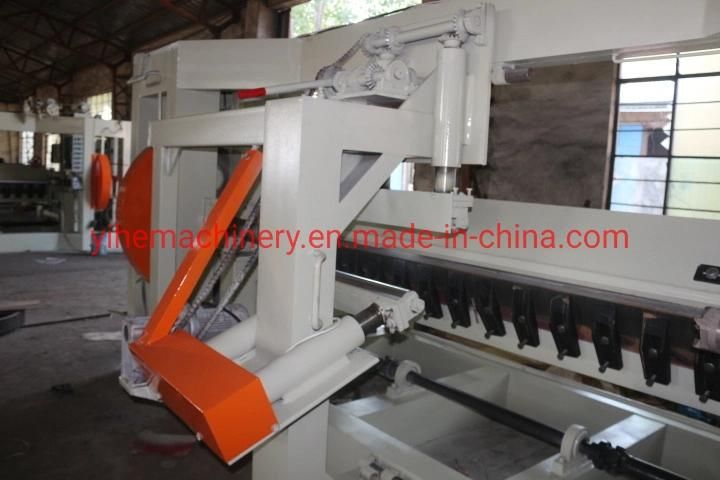

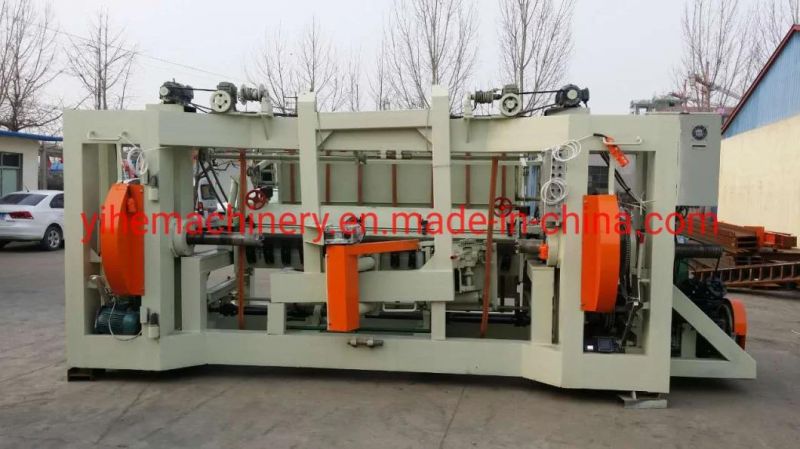

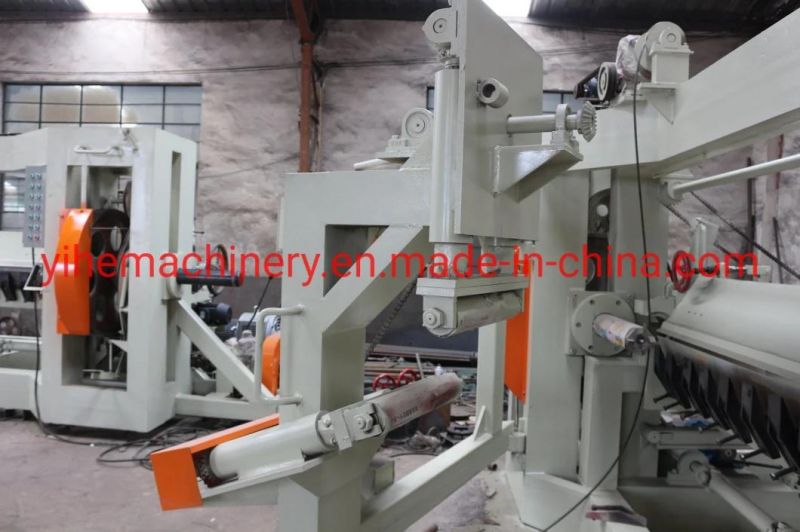

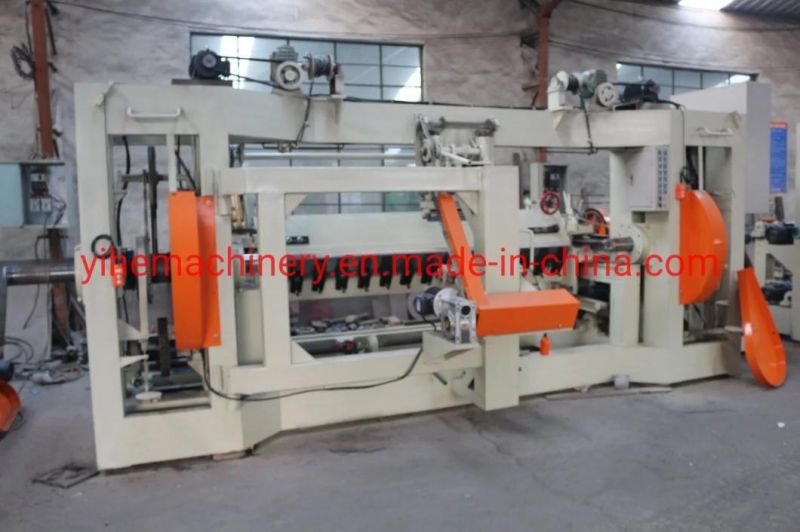

8FT Vertical Spindle Veneer Peeling machine for Plywood Making or woodworkingVertical Spindle Veneer Peeling machine is one of important equipment for plywood production,it mainly produces about 0.2-2.6mm nature decoration veneer (face veneer) for plywood surface decoration.It is suitable for big diameter can be up to 1500mm.The machine can be customized according to client's requirement.
Technical parameters:
Product name | 8FT Vertical Spindle Veneer Peeling machine |
Structure | Vertical |
Wood length | 2000mm-2600mm |
Max. wood diameter | 150mm |
Remaining wood Min diameter | 120mm |
Wood loading system | 2 pieces of Rotary crane |
Veneer thickness | 0.2-2.6mm |
Motor brand | CHINA HUALI |
Main motor power | 30kw Inverter motor 30kw, |
Chuck motor power | 4kw*2pcs |

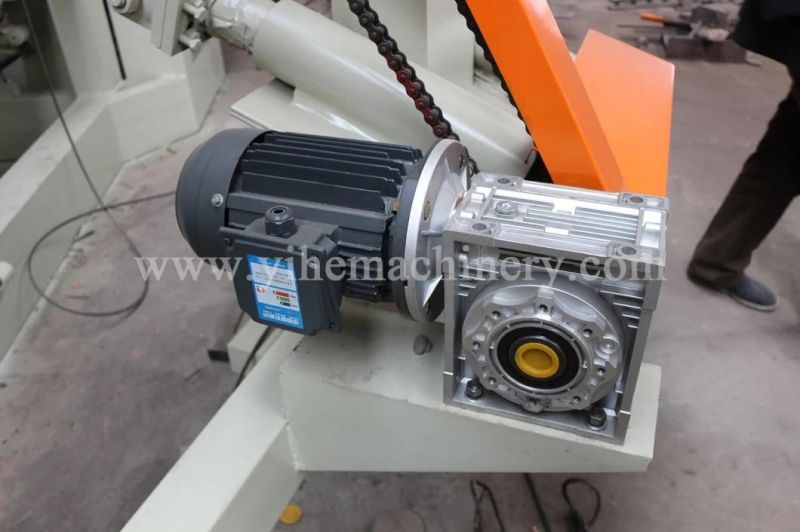

Feed motor | 1.5kw*1pcs |
Knife adjusting motor | 1.1kw*1pcs |
Hydraulic motor power | 0.75kw*1pcs |
Loading system motor | 3kw*2pcs |
Total power | 47.35kw |
Inverter | TAIWAN DELTA |
Voltage and hertz | 380V,50HZ |
Gearbox | CHINA brand |
Pressure bar | Electric |
Peeling knife | HSS(high speed-steel) |
Machine weight | about 9500KGS |
Machine dimension | 6000*2300*2600mm |
Features:
1.It is used to rotary cut the big diameter wood and wood diameter can be up to 900mm.
2.TAIWAN DELTA brand inverter and FRANCH SCHNEIDER electric components, machine runs stably.
3.The whole structure is welded by the Q235B steel and channel steel, and it is durable.
4.Rotary cutting with high accuracy, quick speed, veneer surface smooth.
5.Machine bottom can be installed with small diameter wood log conveying system, can realize automatic thickness adjusting system.
6.Machine peeling spindle can be equipped with SPINDLE SUPPORTING FRAME,can realize 2fe-8ft different processing widthadjustment,max.realize one machine having multi-function,reduce investment cost.
