• Model NO.：UG-1560-2
• Z-Axis Number：2, Independent
• Spindle Power：5.5kw, Water Cooling, Er25
• Guide Rail：Linear Square Guide Rail, Hiwin, Taiwan
• Transmission：Helical Rack and Pinion Transmission
• Control System：Original PCI Ncstudio Control System
• Driving：Leadshine Hybrid Servo Motor and Driver
• Lubrication：Semi-Auto
• Tools Calibration：Auto
• Transport Package：Plywood Case
• Specification：6700*2280*1960mm( L* W * H), 2000kgs
• Trademark：UPGOAL
• Origin：Jinan City, Shandong Province, China
• HS Code：84659900
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. UG-1560-2 Z-Axis Number 2, Independent Spindle Power 5.5kw, Water Cooling, Er25 Guide Rail Linear Square Guide Rail, Hiwin, Taiwan Transmission Helical Rack and Pinion Transmission Control System Original PCI Ncstudio Control System Driving Leadshine Hybrid Servo Motor and Driver Lubrication Semi-Auto Tools Calibration Auto Transport Package Plywood Case Specification 6700*2280*1960mm( L* W * H), 2000kgs Trademark UPGOAL Origin Jinan City, Shandong Province, China HS Code 84659900 Production Capacity 200 Sets/Month

Product Description

Large 1500*6000mm CNC Woodworking Engraving Machine with Double Z-axis



Features

1.Welded steel T type structure as a whole with vibration Temper aging treatment ensures no deformation for long time.

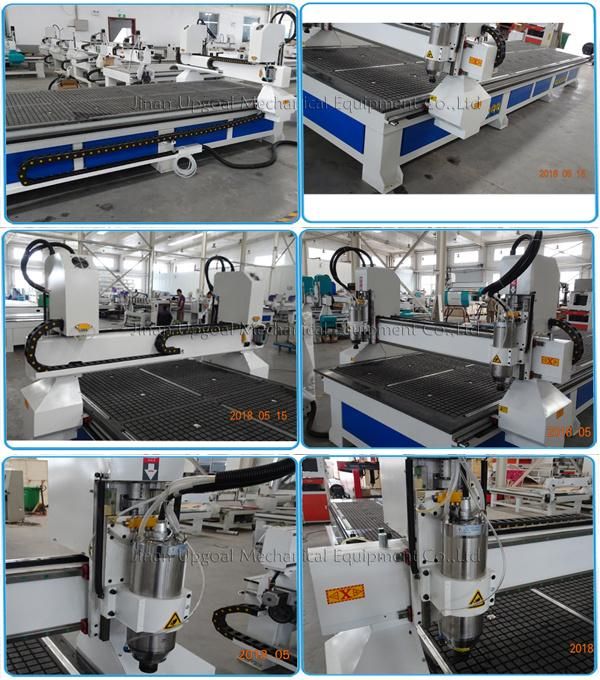

2. Independent double Z-axis, each head can do same work or just one head working, much improving efficiency.

3.Powerful 5.5KW water  cooling spindle( China famous Hanqi brand) which is with stable performance, low noise and high torque, matched with high-performance frequency Inverter.

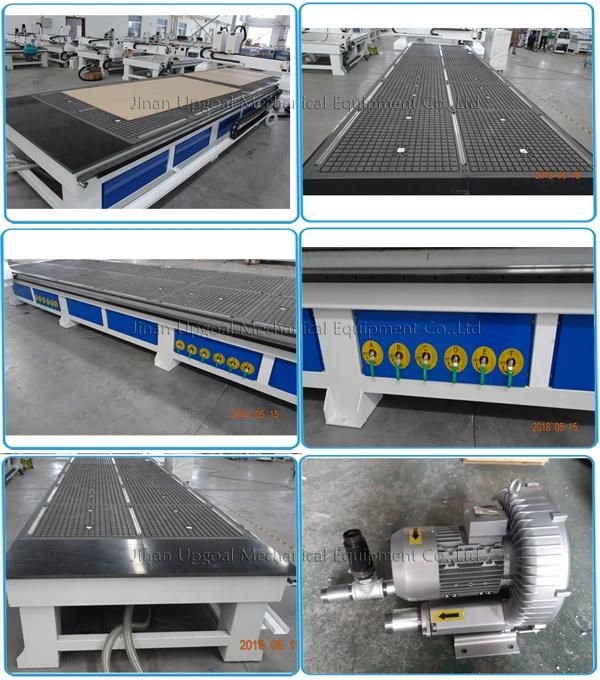

4. Vacuum adsorption system with powerful air cooling vacuum pump,  vacuum table with aluminum alloy T slot,can adsorb different size materiel from small to big, saving materials load-unloaded time.

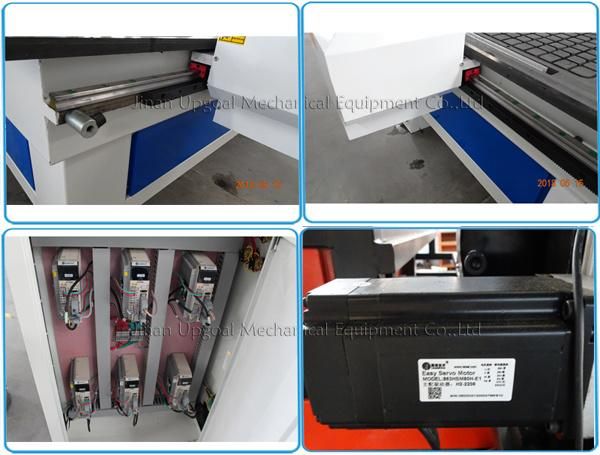

5. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adpot imported precision ball screws, tools feeded with more accuracy.

6. Helical gears Pinion with Racks type transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.

7. China famous Leadshine hybrid servo motor and driver for XYZ-axis,  high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

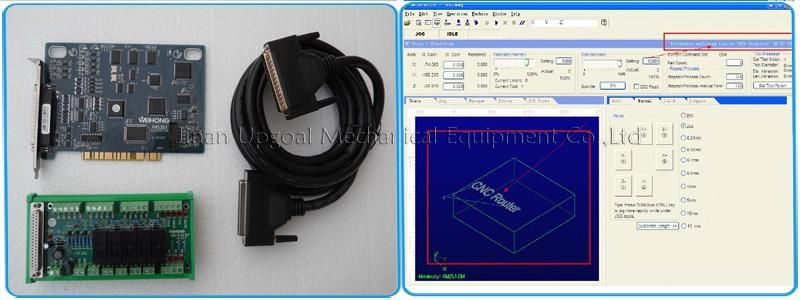

8. Original PCI NcStudio control system with its characteristic pre-calculation rule, fully excavates potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working. Which is doing well in Various application industry for its excellent control technique, capable for not only batch production but also personalized fabrication.



9.Semi-auto lubrication system more convenient for maintenance.

10. Auto tools calibration, precision for Z-axis 0 point setting.


11. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

12. With the function of Break-point memory,power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.

Technical Parameters


Effective working area	1500mm(X)*6000mm(Y)*200mm(Z)
Materials	More thickness steel pipe welded machine holder bed& gantry
Z-axis number	2, independent
Working table	Vacuum table with aluminum T slot
Moving type	Gantry moving
Guide rail	Linear square guide rail ( Hiwin, Taiwan)
Transmission	Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis
Driving mode	Leadshine hybrid servo motor and driver
Spindle motor	5.5kw water cooling, ER25
Spindle speed	0-24000rpm
Inverter	Fuling
Voltage	AC 380V±  10%, 50/60Hz, three phases
Traveling speed	>25000mm/min
Engraving speed	>12000mm/min
Machine accuracy	0.02mm
Control system	Original PCI NcStudio control ( for desktop computer)
Suitable software	Artcam, Type3, Ucancam V9,etc
Carving Instructions	G code *Uoo *mmg *plt HPGL
Running environment temperature	0-45 ºC
Relative humidity	30%-75%
Lubrication system	Semi-auto
Tool calibration	Auto
Certificate	CE



Application

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc

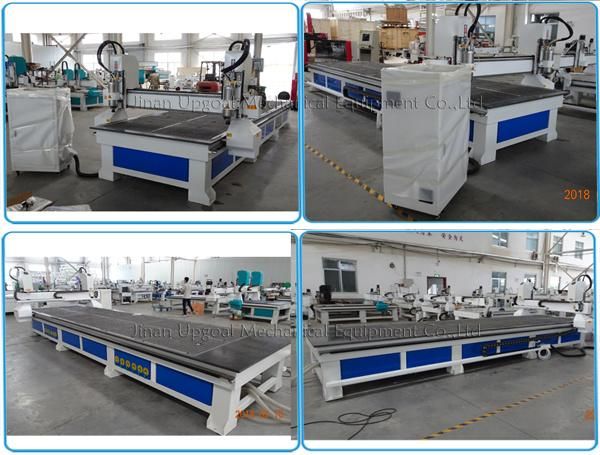

Reference Sample Photos

Reference Working Videos



https://youtu.be/SMNtT5xF-0A



 For more information, just feel free to contact us!
