Vacuum Table 1325 CNC Router Wood Carving Machine

Jinan Firm CNC Equipment Co., Ltd.
  • Type:Engraving Router
  • Spindle Layout:Spindle Over
  • Spindle Number:Single-Spindle
  • Feed Mode:Manual
  • Controlling Mode:CNC
  • Certification:CE, ISO, SGS

Base Info

  • Model NO.:FM1325
  • Customized:Customized
  • Condition:New
  • Color:Customized
  • Working Size:1300*2500*200mm
  • Spindle Rate:3kw Water Cooling Spdinle
  • Motor Type:Stepper Motor , Servo Motor
  • Control System:Nc-Studio or DSP
  • Transmit Way:Taiwan Imported Tbi Ball Screw
  • Rails:Taiwan Hiwin Linear Rail
  • Software:Artcam , Type3
  • Table Structure:Vacuum and T-Slot Table
  • Working Speed:8-15m, Min
  • Transport Package:Standard Export Woode Case
  • Specification:CE, SGS, ISO
  • Trademark:FIRMCNC
  • Origin:Jinan Shandong China
  • HS Code:8465990000
  • Production Capacity:100 Sets,Month

Description

Basic Info.

Model NO. FM1325 Customized Customized Condition New Color Customized Working Size 1300*2500*200mm Spindle Rate 3kw Water Cooling Spdinle Motor Type Stepper Motor / Servo Motor Control System Nc-Studio or DSP Transmit Way Taiwan Imported Tbi Ball Screw Rails Taiwan Hiwin Linear Rail Software Artcam / Type3 Table Structure Vacuum and T-Slot Table Working Speed 8-15m/ Min Transport Package Standard Export Woode Case Specification CE, SGS, ISO Trademark FIRMCNC Origin Jinan Shandong China HS Code 8465990000 Production Capacity 100 Sets/Month

Product Description

Vacuum Table 1325 CNC Router Wood Carving Machine

Main Feature
1.3.0KW constant water cooling spindle(optional HQD or HSD spindle), high precision, long life time, steady working, easy to start up.
2.Thicken square pipe structure, well welded,no distortion for whole structure.
3.Adopt Taiwan square orbit, double slippers. Bearing heavy, working steadily high precision, and long life time.
4.DSP controller system with USB interface, working without connecting with computer during working and easy to control.
5.This machine can engrave any design,support scanners,direct support ,Art CAM,Type3,Wen tai,carving and many other
G-code format generated by CAD/CAM
6.Adopt high speed step motor Max speed is 20M/MIN.
7.Dust collector (contain dust collector pump and dust collector pipes), for sucking away the dusts, such as wood dusks and so on.

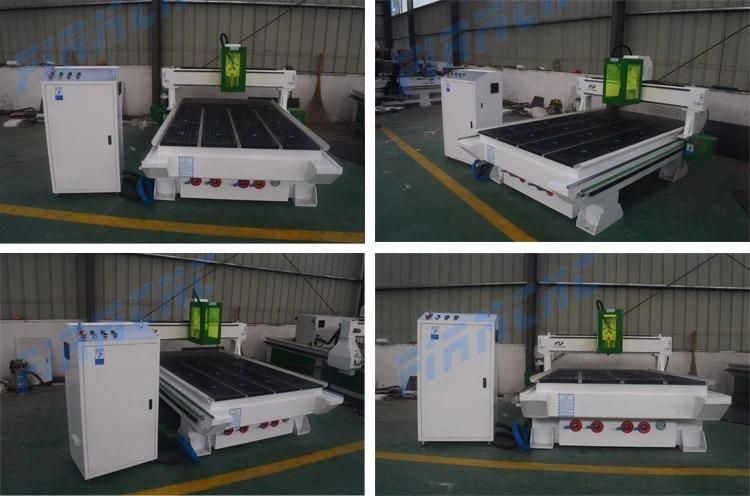

Vacuum Table 1325 CNC Router Wood Carving Machine
Vacuum Table 1325 CNC Router Wood Carving Machine
Technical Date
BrandFIRMCNC
ModelFM1325
Engraving area1300*2500*200
Working FormFull-automatic
Spindle Power3.0kw constant water cooled spindle
Spindle Rotate (rpm)24000rpm/min
Motor DriverHigh speed step motor (optional servo motor )
Transmission SystemImported ball screw or high accuracy gear rack
Guide rail Imported square rail
Mechanical Accuracy<0.03/300mm
EngravingSpeed (mm/min)10-20m/min
Contorl system DSP CONTROL (optional Mach3 NCstudio contol)
Tool Diameter (mm)Ø3.175,Ø4,Ø6, Ø12.7mm
Machine StructureIndustry square tube structure
Data TransmissionPC connect
Support FormatG code or HPGL
Working Voltage380V/3P/50Hz
Range of ApplicationWoodworking relief engrave ,Cutting , Hollow
Machine Net Weight1200Kg

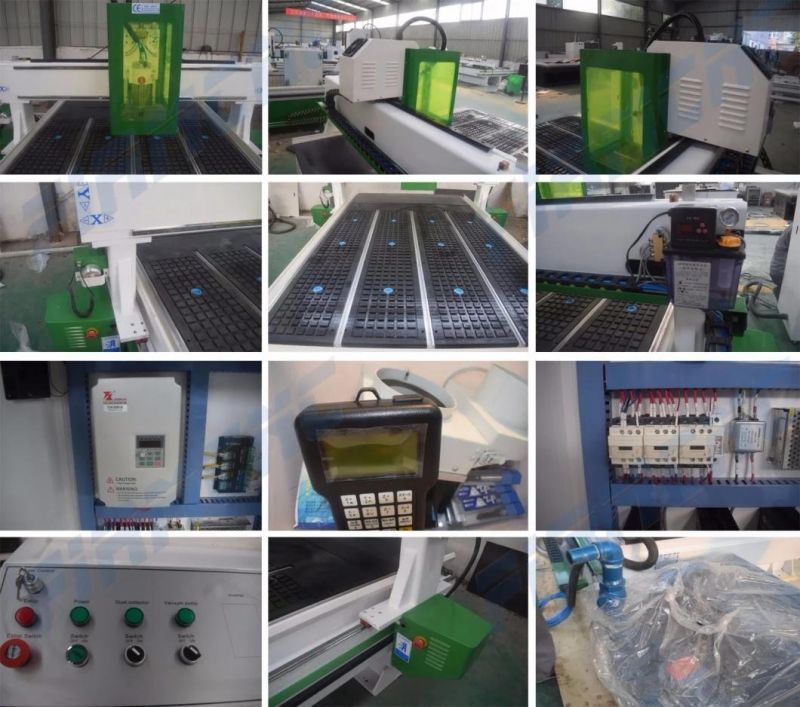

Main parts
Vacuum Table 1325 CNC Router Wood Carving Machine

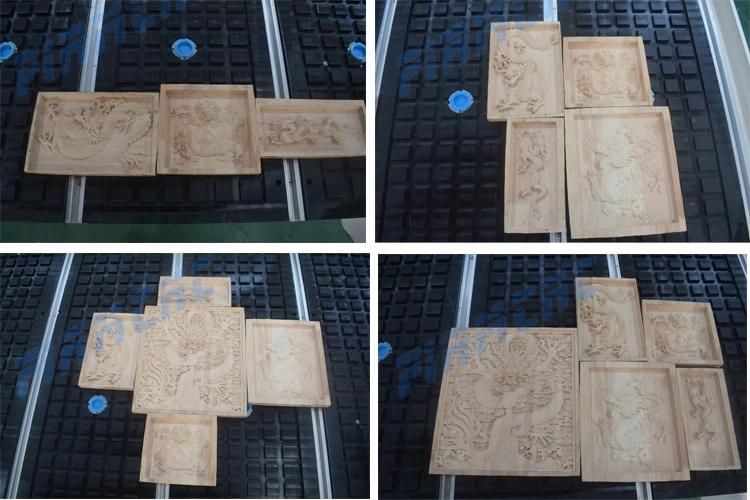

Application

1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,
shoes cleaning machine,the cabinet of the playing machine and the board, mahjong table,computer table .
2 Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
3.Model industry:It can engrave on the steal materials such as copper, aluminum ,iron etc and  non-mental materials such as man-made marble,
sand, plastic board PVC materials, wood board etc.
4.Other field:It can engrave many image, embossment,and widely used in artistic industry.
Vacuum Table 1325 CNC Router Wood Carving Machine
Company information:

The machines we are manufacturing and supplying:
cnc router, big watts fiber laser machine,
wood cnc machine, wood lathe,laser engraving
machine, fiber laser marking machine,
plasma cutting machine, oscilating machine,
stone carving machine
And besides good quality machines above, CO2 laser source, CO2 glass laser tube, water chiller, Air pump, fan, lens and mirror, laser cutting head etc.
Thanks to your correspondence reply, we can give you best quotation accordingly,
Thanks in advance

Woodrouter, cnc router, edge banding machine, woodlathe, woodturning lathe, cnc machine, fresatrici wood cnc, cnc router machine, wood cnc router, wood lathes for sale, laser cutting machine, carpentry machines, jinan equipment leather processing, cnc otherpowertools, oscillating tangential knife, drechselbank, cnc engraving machine, cnc router 1325, fiber laser cutting machine, metal mold engraving machine, shandong machinery, wood tools, woodworking tools, plasma cutting machine, punching

Vacuum Table 1325 CNC Router Wood Carving Machine
Vacuum Table 1325 CNC Router Wood Carving Machine
Other type wood cnc router machines for your refence
# Linear or Circular type ATC wood cnc router
# Pneumatic 4 head ATC cnc router
# Wood cnc router with air cooling spindle
# Wood cnc router with water cooling spindle
# Mini cnc router for wood advertising
# Double heads wood cnc router

Vacuum Table 1325 CNC Router Wood Carving Machine
Package:
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information

Vacuum Table 1325 CNC Router Wood Carving Machine
Perfect after Services
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;
After sale:
We would provide English Version working manual.
Vacuum Table 1325 CNC Router Wood Carving Machine
If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is two years.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.

Vacuum Table 1325 CNC Router Wood Carving Machine
FAQ
1.Can you recommend a cnc router to me ?
Yes, In order to give you a suitable cnc router,pls tell me your working area ? processing materials ?
Then perfect suitable machine will be recommend.
2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.
3.Does your company can processing my samples?
Yes, we can
4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
During the period of warranty, we will free send broken parts to you, after warranty, we can offer agent price for parts.
usually for all parts can perfect working one year without any broken .
6.Does your engineer do aftersale service at abroad? how much cost?
Yes, our technician can do training and after sale service at yoru factory, you only need to pay the round air tickets cost and accommodation for technician.
