• Model NO.：WZLH420
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• Capacity(T/H)：0.8-1.2
• Main Power(Kw)：75,90
• Pellet Size(mm)：6-8
• Power of Screw Feeder(Kw)：3
• Power of Force Feeder(Kw)：1.5
• Transport Package：Iron Pallet and Soft Guard
• Specification：CE, ISO9001, SGS
• Trademark：FDSP
• Origin：Jiangsu, China (Mainland)
• HS Code：8479300000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. WZLH420 Warranty 1 Year Customized Customized Condition New Color Multi Color Capacity(T/H) 0.8-1.2 Main Power(Kw) 75/90 Pellet Size(mm) 6-8 Power of Screw Feeder(Kw) 3 Power of Force Feeder(Kw) 1.5 Transport Package Iron Pallet and Soft Guard Specification CE, ISO9001, SGS Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8479300000 Production Capacity 5 Sets/Month

Product Description

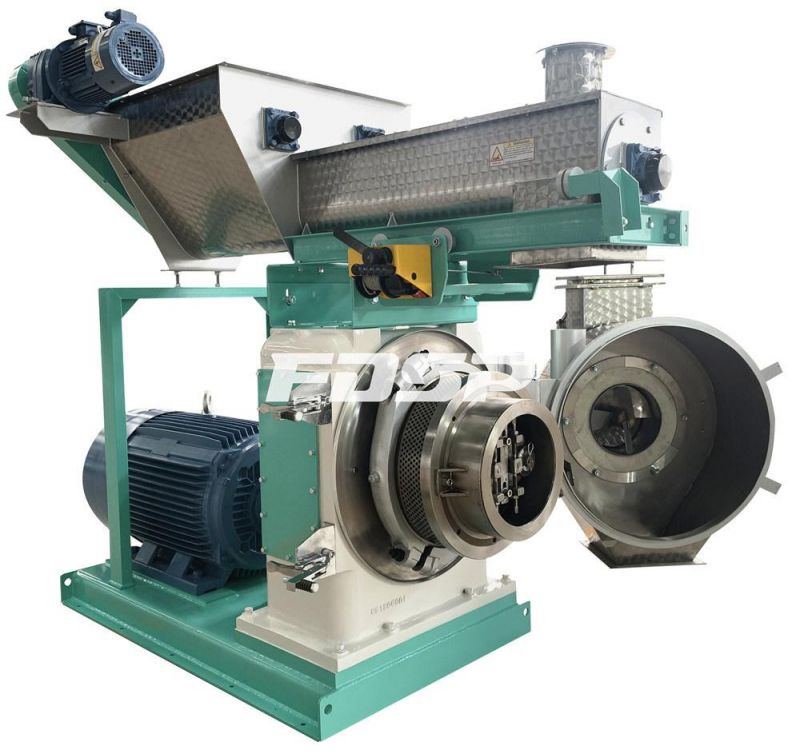

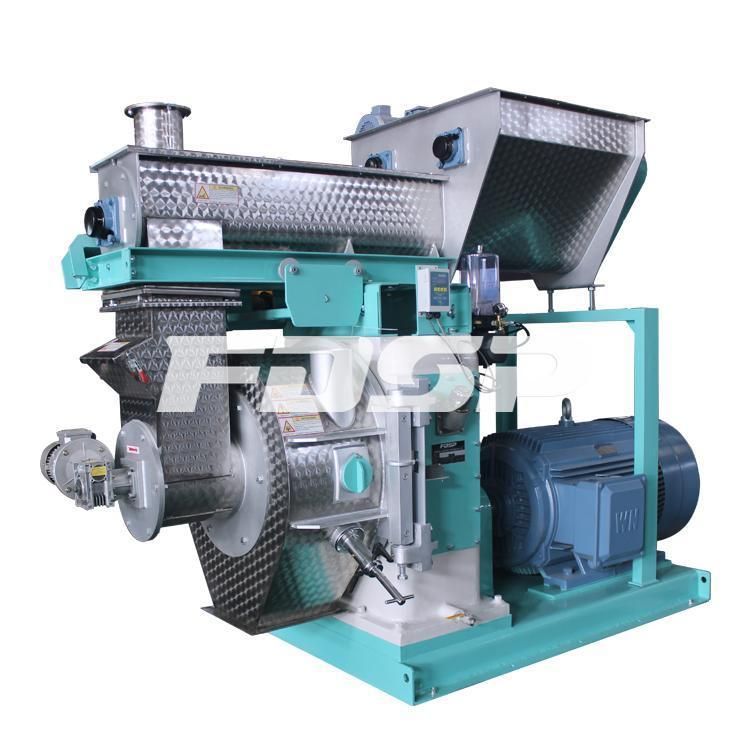

Wood Shaving Pelletizer Press Machine Price/Wood Branch Pellet Mill Machine




What Materials Can Be Pelletized By Bio-energy Pellet Mill?
Nearly all forestry and agro-waste material can be made into wood pellets by our ring die wood pellet mill, such as: Wood Chips, Shaving, Sawdust, Groundnut-shell, Sugarcane ,Caster Shells/Stalk, Coffee Husk, Paddy Straw, Sunflower Stalk, Cotton Stalks, Tobacco Waste, Mustard Stalk, Jute Waste, Bamboo Dust, Tea Waste, Wheat Straw, Palm husk, Soybeans Husk, Coir Pitch Barks/Straws, Rice Husks etc. The final pellets can be used for industrial boilers and large power plants as well as home heating.




Features:
1. It is widely used for pellet of light substance, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;
2. The feeder's especial structure makes materials conveyed evenly, it is specially designed for pellet of light substance with the density of 0.3-0.6g/ cm3;
3. Feeder, conditioner and chute are made of stainless steel with long service life;

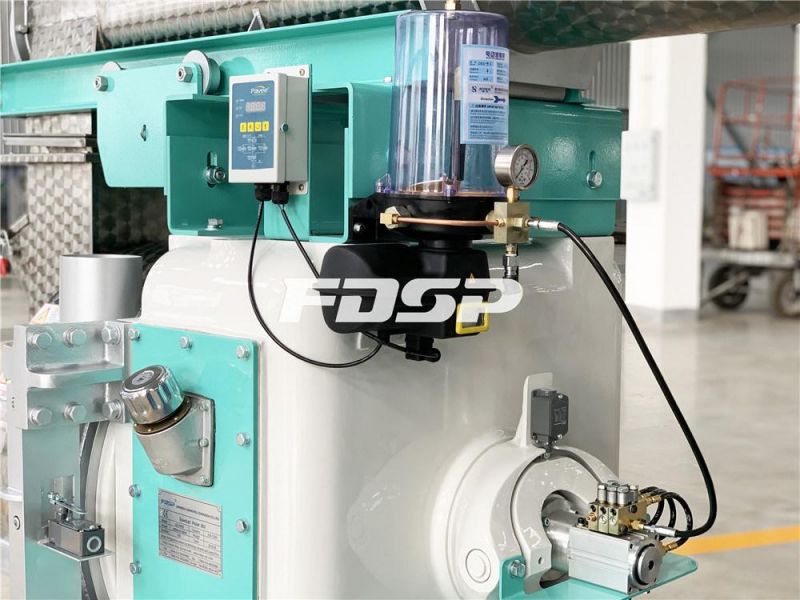

4. It is with magnet and over load protection system, which can protect machine well during production;
5. Feeder is with a variable speed controlled to meet different outputs requirements;
6. It makes gear directly-connecting as the driver, and is with quick-release die fixed by clamps, which can increase the output 15% more than the same type machine with belt-convey;
7. The bearing and oil seal in the main drive are imported from Japan to ensure highly-efficient, stability, credibility;
8. The alloy steel die is with international advanced equipment and technics, and has long service life, slippery pellet and high quality.

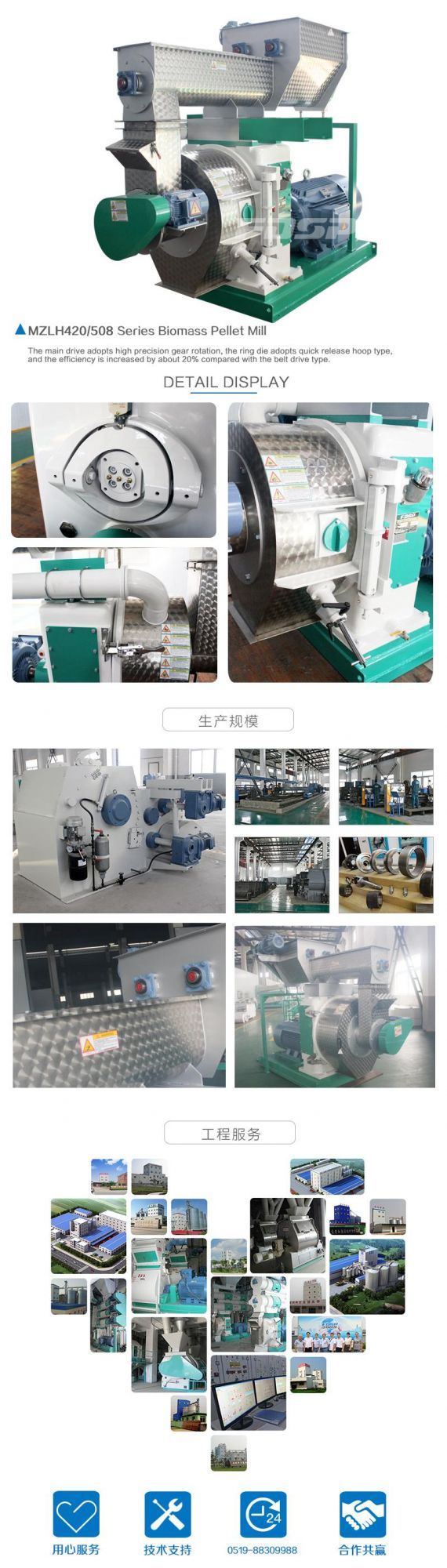

Item	Wood biomass pellet machine
Pellet Mill Type	- With Standard Feeder - With Anti-broken Feeder
Technical Parameters	- Capacity: 0.8-1.2(T/H) - Size: 2800*1150*2100(mm) - Power: 75/90KW - Inner diameter of die: 420(mm) - Pellet size: 6ø, 8ø, 10ø(mm) - Net weight: 4000(kg)
Main Features	- CE & ISO & SGS certification - Siemens motor, NSK bearing - High precision gear-driven transmission system - One ring die and two rollers system
Optional Parts	- Screw feeder with anti-broken - Conditioner: To adjust the moisture of raw material.  - Auto cooling system for gear-box(large capacity)
Packing Mode	Iron pallet with stretched film, etc
MOQ	1 set
Payment	L/C, T/T, Western Union, Money Gram...
Warranty	12 months

Performance Parameter

Model	WZLH420	WZLH520	WZLH680	WZLH780
Capacity(T/H)	0.8-1.2	1.5-1.8	2-2.5	2.5-3.5
Main motor power(kw)	75/90	110/132	160/185	200/220
Feeder power(kw)	2.2	3	4	4
Ring die dia(mm)	420	520	680	780
Pellets dia(mm)	6-8	6-8	6-8	6-8

On basis of absorbed advanced technology for biomass pelleting from abroad, we are leading company to develop independently turn-key equipment for biomass pelleting for agricultural crops in China. Meanwhile it can be pelleted for waste of forestry, too. We can customize and design turn-key project for all kinds of materials for customers according to their various request, materials, and site.


FAQ
1.Q:Are you a factory or trading company?
A:We are a factory .
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai.You can fly to Shanghaiairport directly.All our clients, from home or abroad, are warmly welcome to visit us!


WHY CHOOSE US?
Our products have passed the SGS,ISO9001:2008,CE certifications.Moreover,we own several patents,such as "utility model patents certificate"and "high-tech products certificate",etc.Our goods exported to many countries and won the good reputation by the high quality and superior service.



FAQ
1.How does your factory do regarding quality control?
Our factory has gained CE, ISO9001, SGS authentication.'Quality is priority'. We always pay great attention on quality controlling from the beginning to the end.

2.How long is your guarantee?
One year. After this period we will definitely support you when needed. You are welcome to contact us at any time.

3.Will you send engineers to install the plant?
Yes, we can send our engineers do the guide installation overseas.

4.Where is your company located? How can I get there?
Our company is located in Nanjing City, Jiangsu Province, China, near Shanghai.
If you arrived Nanjing Lukou International Airport, you can come to our company by Car about 30 Mins. Or you arrive Shanghai Hongqiao Airport, you can by train about 1.5H.

5. Where is your factory located? How can I visit there?
Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai; and our International Business Centre is in Nanjing City. You can fly to Shanghai airport or Nanjing Airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
