Automatic 4feet and 8feet Log Debarking and Rounding Machine for Plywood
Linyi Gaotong Import & Export Co., Ltd.- After-sales Service：Online Technical Support
- Warranty：2 Years
- Type：Log Debarker
- Automatic：Automatic
- Certification：CE, ISO
- Condition：New
Base Info
- Model NO.：GTDB003
- Debarking Rate：99%
- Wood Loss Rate：8%
- Wood Lenght Range：1300,2600mm
- Power：35.5kw
- Weight：8000kg
- Dimension：4800*2200*1500mm
- Voltage：380,415,440
- After Sale Service：Online Technical Support and Training
- Power of Double Roller：7.5kw*2
- Power of Oil Pump：5.5kw
- Max Opening：550mm
- Length of Roller：7.5kw*2
- Feature：Heavy Duty
- Transport Package：in Nude
- Specification：2.6m
- Trademark：GTCO
- Origin：China
- HS Code：8465
- Production Capacity：2,Day
Description
LOG DEBARKER Model LDP2700-550 LD1500mm-550 Max Length of log 2600mm 1300mm Max Diameter of log 550mm 600mm Min Diameter of log 80mm 80mm Speed 45m/min 45m/min Blade size 2700*180*16mm 1500*160*13mm Total Power
(24KW ) Double Roller Motor Φ150mm ,11KW
Single Roller Motor Φ150mm , 7.5KW
Hydraulic Motor 5.5KW Double RollerΦ200mm/ Motor ,11KW
Single RollerΦ180mm/ Motor ,7.5KW
Hydraulic Motor , 5.5KW Overall size 5200*2200*1100mm 3500*2250*1450mm Weight About 5000KGS About 3500KG
Machine Features
1. Good quality of the veneer, smooth and evenness, thickness tolerance range is ±0.05mm
2. Stable roller running speed, ruduce the influence of the voltage fluctuation.
3. Automatic after log dropper.
4. Hardened helical gear & heavy duty gear box.
5. Advance CNC and user friendly operating system.
6. Electronic pump for automatic lubrication.
7. Host R helical gear ruducer.
Our Services
1. Design and produce based upon your production need. Provide full sets of drawings and manuals.
2. One year warranty for the machine. Liftetime after-sales service and maintenance.
3. Professional team for oversea machine installation&debugging.
4. Help train and guide machine operating.

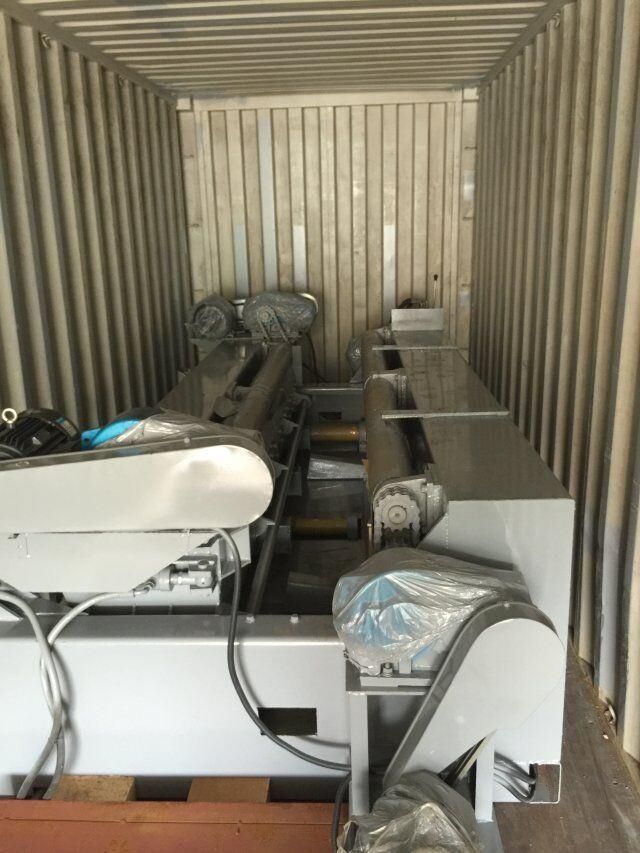

Packing and Shipping:
1. Machine body packed in plastic film
2. Spare parts and electrical parts packed in plywood boxes.
3. Fixed in container with steel wires.
