• Model NO.：UG-1325
• Guide Rail：Linear Square Guide Rail ( Hiwin, Taiwan)
• Transmission：Helical Rack &Pinion for X Y -Axis, Lead Ball Scre
• Driving Mode：Stepper Motor (86bygh450b) and Driver for Xyz-Axis
• Spindle Motor：3.2kw Water Cooling, Er20, 0-24000rpm
• Control System：DSP A11e, 3 Axis, Richauto
• Suitable Software：Artcam, Type3, Ucancam V9, etc
• Carving Instructions：G Code *Uoo *Mmg *Plt Hpgl
• Dust Collector：3.0kw
• Transport Package：Plywood Case
• Specification：3200*2180*1960mm, 1300KGS
• Trademark：UPGOAL
• Origin：Jinan City, Shandong Province, China
• HS Code：84659900
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. UG-1325 Guide Rail Linear Square Guide Rail ( Hiwin, Taiwan) Transmission Helical Rack &Pinion for X Y -Axis, Lead Ball Scre Driving Mode Stepper Motor (86bygh450b) and Driver for Xyz-Axis Spindle Motor 3.2kw Water Cooling, Er20, 0-24000rpm Control System DSP A11e, 3 Axis, Richauto Suitable Software Artcam, Type3, Ucancam V9, etc Carving Instructions G Code *Uoo *Mmg *Plt Hpgl Dust Collector 3.0kw Transport Package Plywood Case Specification 3200*2180*1960mm, 1300KGS Trademark UPGOAL Origin Jinan City, Shandong Province, China HS Code 84659900 Production Capacity 200 Sets/Month

Product Description

4*8 Feet 1325 CNC Wood MDF Furniture Engraving Machine



Features

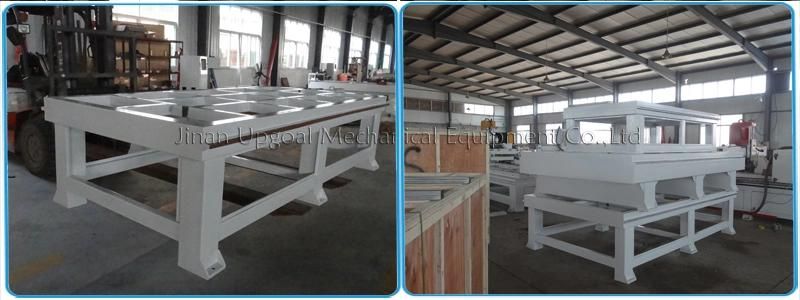

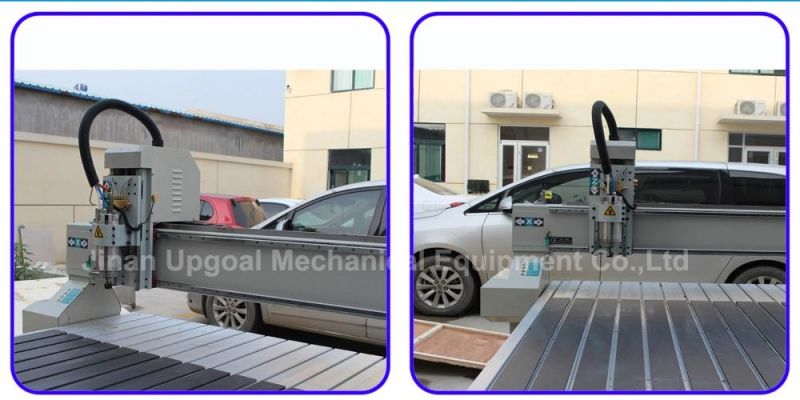

1.Welded steel tube structure as a whole with vibration Temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.




2. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.

3. Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.

4. Large power 3.2kw water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter.



5. China famous 86BYGH450B stepper motor and driver for XYZ-axis,  high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

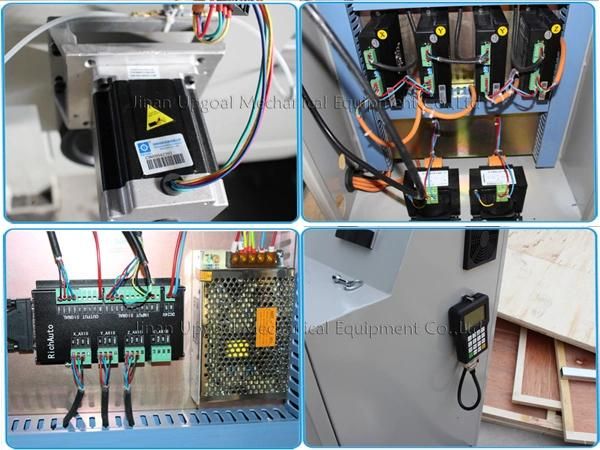

6. DSP offline control system with USB interface which is completely off from Computer. More Humanizeddesign with Simple and Convenient Handle type operation.With per-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle start up and stop automatically.



7. Dust collector, helping to suck dust, milling dust,keeping machine cleaning.

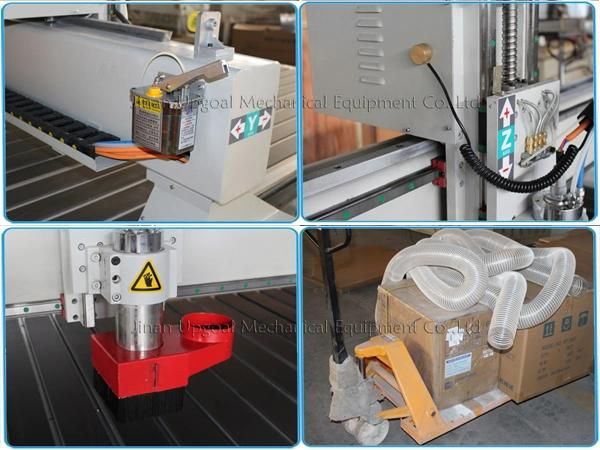

8. Semi-auto lubrication system more convenient for maintenance.

9. Auto tool calibration, more convenient for each time Z-axis 0 point setting.



10. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

11. With the function of Break-point memory ,power failure resuming and automatic home/orgin correction function, effectively ensure long time working precision.

Technical Parameters

Effective working area	1300(X)mm*2500(Y)mm*200(Z)mm
Materials	More thickness steel pipe welded machine holder bed, cast iron gantry
Working table	Aluminum T slot working table
Moving type	Gantry moving
Guide rail	Linear square guide rail ( Hiwin, Taiwan)
Transmission	Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis
Driving mode	Stepper motor (86BYGH450B) and driver for XYZ-axis
Spindle motor	3.2kw, water cooling
Spindle speed	0-24000rpm
Collets type	ER20
Inverter	Sunfar
Voltage	AC 220V±10%, 50/60Hz, single phase or AC 380V±10%, 50/60Hz, three phases
Traveling speed	>25000mm/min
Engraving speed	>12000mm/min
Machine accuracy	0.03mm
Control system	DSP offline, A11, 3 axis, RichAuto
Suitable software	Artcam, Type3, Ucancam V9,etc
Carving Instructions	G code *Uoo *mmg *plt HPGL
Running environment temperature	0-45 ºC
Relative humidity	30%-75%
Lubrication system	Semi-auto
Tool calibration	Auto
Certificate	CE



Application

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc

Reference Working Videos

https://upgoalcnc.en.made-in-china.com

Reference Sample Photos

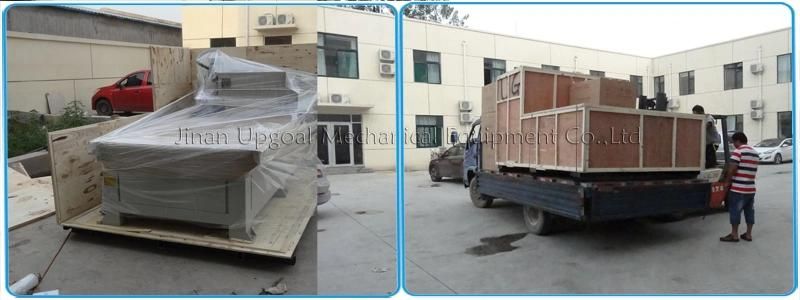

Packing and delivery
