110ton Hot Press Through PLC-HMI Programmed Control
Linyi Jianzhong Wood Machinery Co., Ltd.- Type:Hot Press Machine
- Automatic:Automatic
- Certification:CE, ISO, Press Machine
- Platen:12-18
- Pressure Plate Spacing:120mm
- Oil Pressure:25.0MPa
Base Info
- Model NO.:jz4*8,4-15 d
- Main Cylinder Diameter:320*6mm
- Platen Terperature:<=180
- Closing Time:<=10s
- Heating Media:Thermaloil
- The Number of Screen:2decks
- Screen Area:7.5m*M*3
- Principal Axis Rev:210~250r,Min
- Power:7.5kw
- Weight:4t
- Transport Package:Packed in Wooden Cases
- Specification:total pressure 1200kn
- Trademark:JZ
- Origin:China
- HS Code:8466990000
- Production Capacity:5000piece,Yes
Description
Basic Info.
Model NO. jz4*8/4-15 d Main Cylinder Diameter 320*6mm Platen Terperature <=180 Closing Time <=10s Heating Media Thermaloil The Number of Screen 2decks Screen Area 7.5m*M*3 Principal Axis Rev 210~250r/Min Power 7.5kw Weight 4t Transport Package Packed in Wooden Cases Specification total pressure 1200kn Trademark JZ Origin China HS Code 8466990000 Production Capacity 5000piece/YesProduct Description

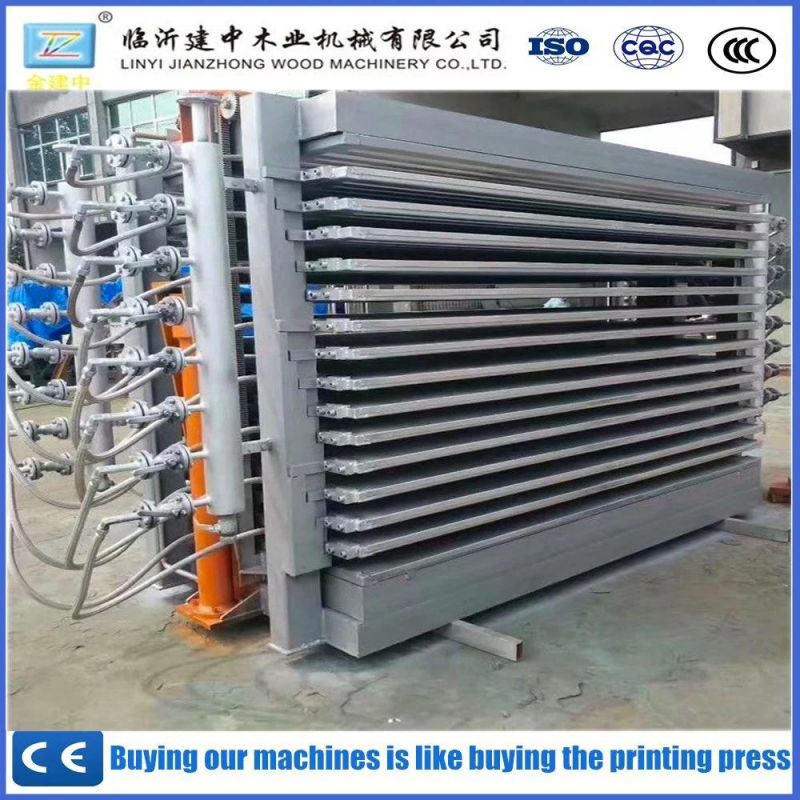

product description110ton Hot Press Through PLC-HMI Programmed Control is intelligent CNC hot press, with PLC, pressure sensor, temperature sensor, HMI and other exact numberical control electrical parts can set and display the main parameter such as pressure,temperature,time and safety, all the message from the LCD screen interface can lead the operator, so that reduce teh troubles and scrap rate, and prevent the machine from being damaged.

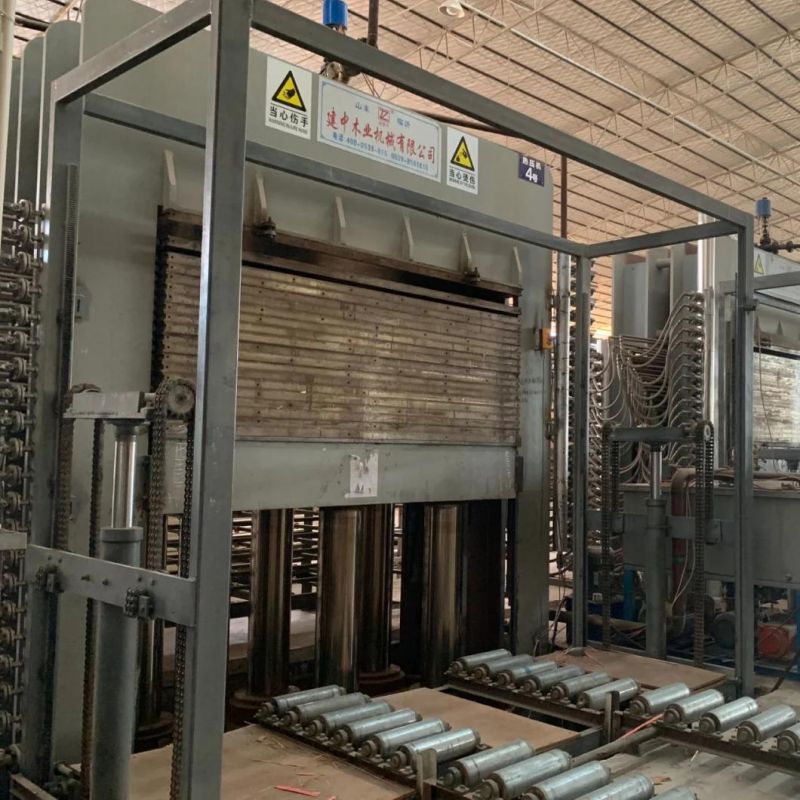

Laminating hot press is fit for the furniture factory or panel secondary processing plant, which can make lamination for furniture panel,building partition, wooden door or laminate all kinds of decorative material on man-made board. It also can be used for drying or leveling veneer.
Main features:
1. Adopt solid drilled conduction board, warming up faster, uniform thermal conductivity, and energy consumption lower.

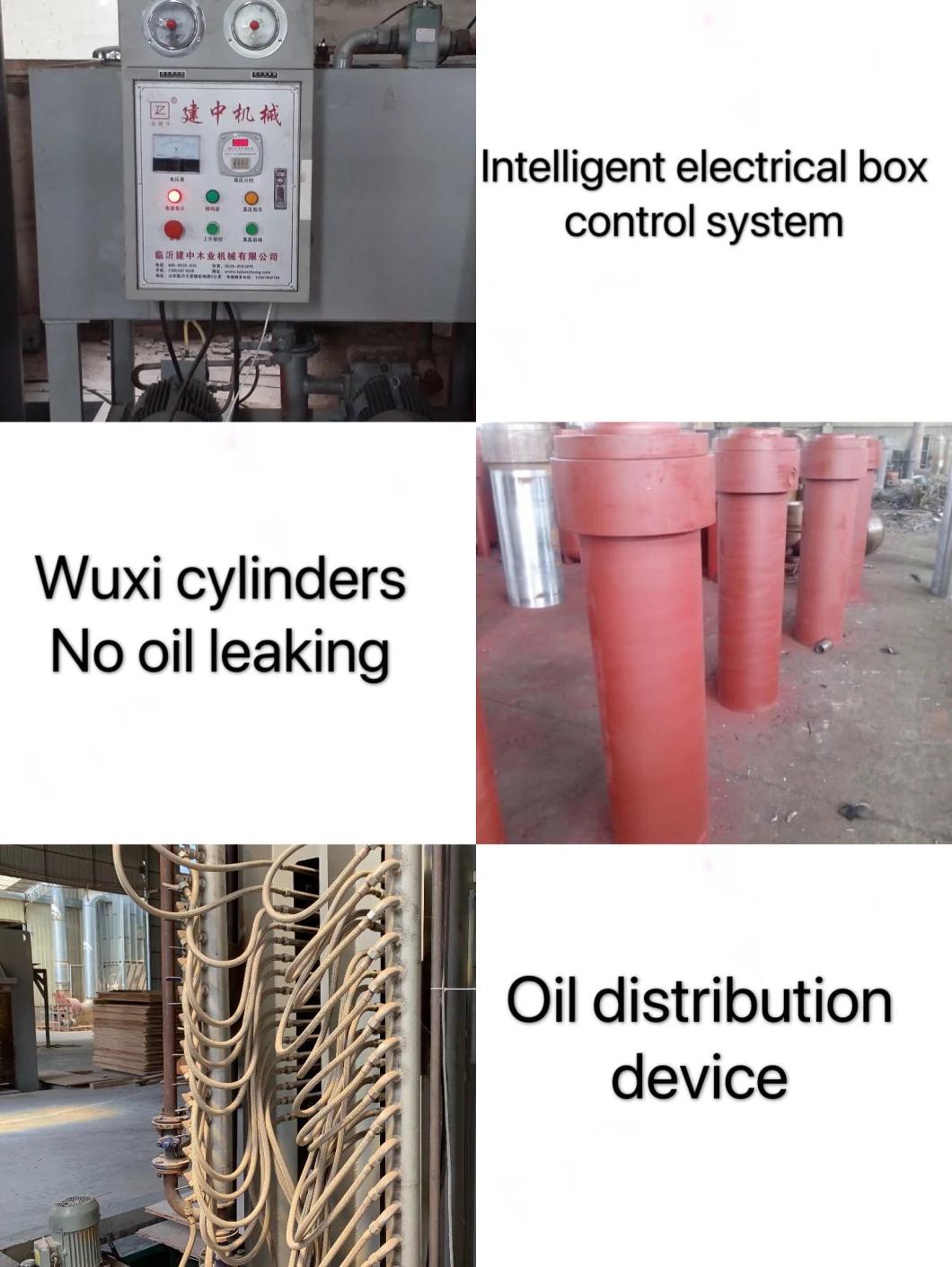

2. Omron or Schneider main electric components, it is stable and durable.
3. Hawe valve from German for auto-open hydraulic valve, high holding pressure, reliable performance, less human factors.
4. Piston mode for cylinder. Grind, plate hard chromium on the surface and polish piston
after heat treatment. It is durable and high precision. Adopt special seal-rings for reliability and durability.
5. Mylar for in and out of the hose, external spoke flexible reinforced, using cycle is long and difficult to damage.
6. Configure pull E-stop switch, temperature secondary protection equipment.
Technical parameter:
Model | jz4X8/4-15H1RC(S) | jz8X5/5-15H1RC(S) |
Total pressure | 4000kN | 5000kN |
Working layers | 12 | 18 |
Unit surface pressure | 3.7kgf/cm2 | 2.7kgf/cm2 |
Platen No.& Size | 4-2500x1300x42mm | 4-3000x1500x42mm |
Opening | 120mm | 120mm |
Cylinder No.& Diameter | 8-φ85mm | 8-φ85mm |
Heating way | electric heated with thermal oil | electric heated with thermal oil |
Installed power | 52.75kw | 77.5kw |
Closed speed | 40mm/s | 30mm/s |
