• Model NO.：1200
• Specification：1750*700*1750mm
• Trademark：sea eagle
• Origin：Jinan China
• HS Code：8465990000
• Production Capacity：3000sets,Year

Basic Info.

Model NO. 1200 Specification 1750*700*1750mm Trademark sea eagle Origin Jinan China HS Code 8465990000 Production Capacity 3000sets/Year

Product Description

Product Description

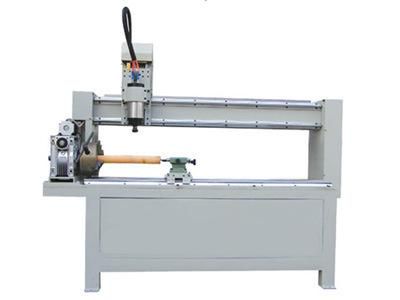

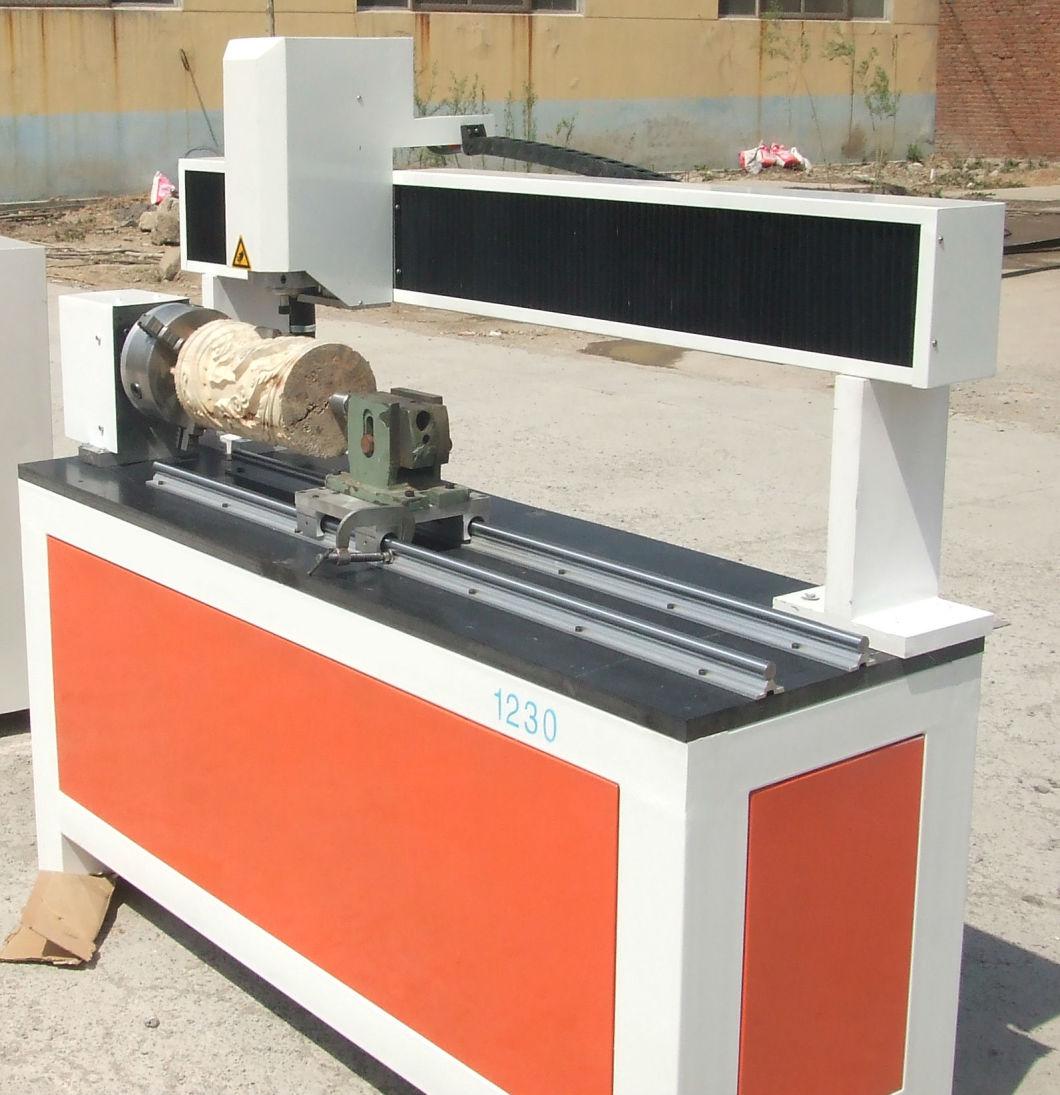

1200 China Factory Supply 3D Woodworking CNC Router with Rotary






Product overview:
This series is at the service of three-dimensional cylinder engraving, machine configuration is changed from materials. Ordinary series machines can also engrave cylinder by rotary axis added to.

Products features:
1.360 degree cylinder engraving expands the application of CNC router and satisfies the demands in furniture and gift making industry.
2. Cylinder materials is fixed by chuck thought three holders, force exerted uniformly and effectively and center positioned accurately so that the working accuracy is guaranteed.
3. Rotary's diameter and length can be customized.
4. Bi-directional orienting guides provide high positioning accuracy.
5. Restoring function enable the machine continue t work after sudden stop, such as accident tool breaking.


Application:
Most perfect for engraving on common stone like marble, bluestone and even on hard stone like granite, it is also capable for engraving on glass of thickness more than 5mm.
Suitable to not only stone engraving for tombstone, tile or other related industries, but also can do jobs with skill and ease on common material in woodworking, advertising and metal industry with a wide range and application and high practicality.




CE, SGS

Model	1200	optional
Working area (X*Y*Z,mm)	1200*0*φ200	customization is available
Machine structure	Steel structure lathe bed
Working holding	By chuck
Overall dimension	1750*700*1750
Precision(mm)	0.07
Position accuracy(mm)	0.02
Repeatability(mm)	0.02
Lding speed (mm/min)	6000
Working speed(mm/min)	4500
spindle	2.2KW,water-cooling	Air cooling(0-18000rpm),multi-head,specified power
Available tools(mm)	φ3.175~φ12.7	Automatic tool changer
Drive system	Stepper motors	Servo motors
Working voltage	AC380V±30V,50HZ
Command code	G Code(*.nc,*.mmg,*.u00,etc),*.eng
Control system	NcStudio system	DSP Hand-held
Compatible software	Window98/XP/7 G code

Guarantee&Aftersales Service:
1. Guarantee for two  years
2.24-hour technical support by email or phone
3. User-friendly English manual and video CD for machine using and maintaining
4. Providing free operation training service in our factory.
