• Model NO.：RZJL1560A*600A
• Transport Package：Soft Package
• Specification：RZJL1560A*600A
• Trademark：SAMACH
• Origin：China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. RZJL1560A*600A Transport Package Soft Package Specification RZJL1560A*600A Trademark SAMACH Origin China Production Capacity 20 Sets/Month

Product Description

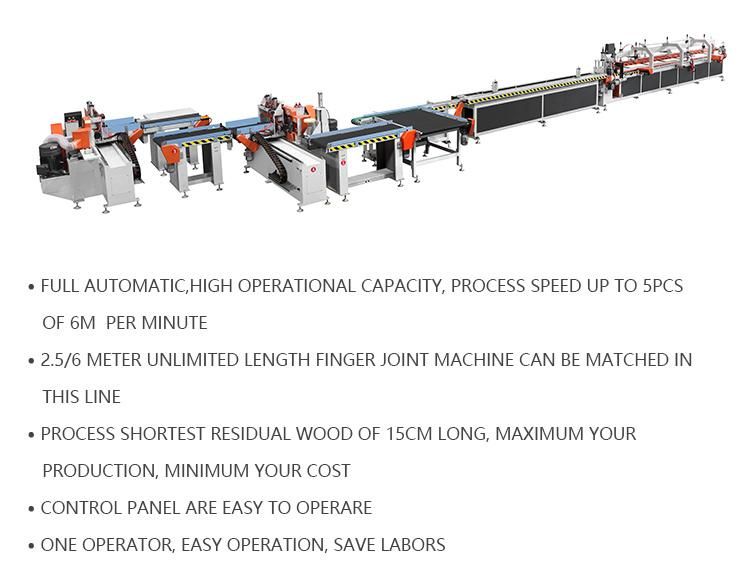

High Quality Finger Joint Press Machine Automatic Finger Jointing Line

	Finger joint shaper	Finger joint shaper(with gluing)
Model	RSJ3515A	RSJ3515TA
Worktable size	850*600mm	850*600mm
Max. working size	850*80*150mm	850*80*150mm
Min. working size	150*20*30mm	200*30*20mm
Shaper spindle diameter	Φ70mm	Φ70mm
Shaper blade diameter	Φ160mm	Φ160mm
Main saw blade size	Φ255mm	Φ255mm
Main saw spindle speed	2840rpm	2840rpm
Shaper spindle speed	6000rpm	6000rpm
Working air pressure	0.5-0.8 Mpa	0.5-0.8 Mpa
Total power	16.12kw	18.74kw



	Finger joint machine
Model	RZJ1560A
Max. length of inoculation	2000-6250mm
Max. width of inoculation	30-155mm
Max. thickness of inoculation	18-80 mm(15-100mm is optional)
Rotating speed of saw blade	3700r/min
Diameter of saw blade	405mm
Rated power of saw motor	3kw
Rated power of oil pump	2.2kw
Air pressure of working	0.5-0.8Mpa
Max. engaging force	7800kg
Install power	7.5kw
Overall dimension	7650*1000*1420mm



	Infeed strap conveyor	Middle strap conveyor	Output strap conveyor
Model	MF756A	MF756B	MF756C
Length of work table	1150mm	1150mm	1150mm
Width of work table	600mm	600mm	600mm
Rate power of motor	0.375kw	0.375kw	0.375kw
Working pressure	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa
Overall diameter	1180*1330*920mm	1180*725*920mm	1180*725*920mm



	Horizontal belt conveyor	Upender
Model	MF746	MF762A
Width of work table	150mm	150mm
Rate power of motor	1.5kw	1.5kw
Working pressure	0.6Mpa	0.6Mpa
Overall diameter	1800*1200*1000mm	2600*650*1200mm



	5 meter Chain type belt conveyor
Model	MF765
Length of work table	5000mm
Work thickness	18-80mm
Width of work table	25-150mm
Motor power	1.5kw*2pcs
Reducer power	1.5kw*2pcs
Working pressure	0.6Mpa
Overall diameter	5200*650*1200mm

1. How to make an order?
You can order online by Made in china, Or Email us your details, and we will contact you immediately and help you proceed with the orders.

2. Where is your factory?
Our factory is located in shandong which is a famous city for producing the machine. Welcome to visit our factory any time.

3. Can you offer special discounts to the wholesaler or we make big quantity?
Yes, we will give you best support according to your quantity, and will arrange some promotion products every month.

4. What is your delivery time?
Normally, we can finish one order at about 25-30days, but the exact time depends on different styles and different quantities you order.

5. Can you arrange the shipment by door to door?
We can offer door to door service both by sea and by air, which can save your time and money. Also, we have cooperated forwarder in some countries and can arrange the customs clearance for you.

6. Do I have to assemble all items by myself or by my customer himself?
Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts), and others need to be assembled, But it is so easy to assemble with the user manual or video teaching.

7. What's your warranty?
We normally will provide one years warranties. If the product is caused by factory mistakes, We will give you free replacement for the spare parts. If it was damaged during the shipping or other reasons, we will provide the best solutions for you.

8. What payment do you accept?
Normally we can provide T/T, L/C ect. Any other ideas, please contact us for better support.


Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time ^_^ !
