• Model NO.：WZLH420
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：Provided
• Volume ( M³)：1
• Capacity/Batch (Kg)：4-6
• Homogeneity：10
• Power (Kw)：15
• Transport Package：Iron Pallet and Soft Guard
• Specification：2000KG
• Trademark：FDSP
• Origin：China
• HS Code：8436000000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. WZLH420 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Provided Volume ( M³) 1 Capacity/Batch (Kg) 4-6 Homogeneity 10 Power (Kw) 15 Transport Package Iron Pallet and Soft Guard Specification 2000KG Trademark FDSP Origin China HS Code 8436000000 Production Capacity 5 Sets/Month

Product Description

4-6TPH Biomass Production Line With Sludge And Sawdust
 FDSP specializes in the production of complete biomass pellet fuel forming equipment, can provide customers with logs, wood chips, shavings and other raw materials of biomass pellet production line; Biomass granulation production line with building template, woodworking scrap and other raw materials; Complete biomass pelleting production line with corn straw, wheat straw and straw grass as raw materials; Complete biomass pelleting production line with fruit shell, fruit residue and palm as raw materials; Complete biomass pelleting production line with crop waste, sludge, coal and other raw materials, tailor-made complete equipment solutions for customers, to meet the different needs of customers.



Now take the production line project of sludge and sawdust mixed granulation production line as a case, according to the technological process and each section to do the following introduction and explanation.
Definition of sludge granulation line:
Sludge is mixed with other materials for multiple processing processes to produce biomass particles. It can be widely used in biomass power plant, biomass steam boiler, domestic fireplace, drying oven and biomass gasifier,etc.
Brief introduction to the process:

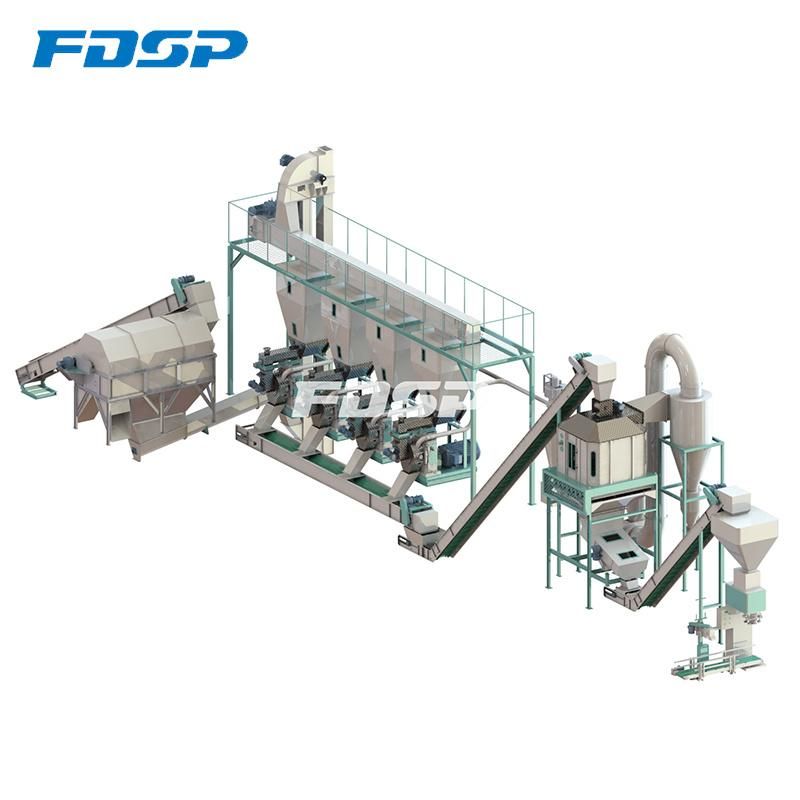

After the sludge is dried by the paddle dryer, it is screened by the cleaning screen and finally processed by granulation. The diameter of processed finished particles is 6-10mm, which can be optional. After pelleted and cooled, it is packaged into 20-50kg/ bag by the small bags scale, easy to transport and sell. This project is 4-6 tons per hour sludge and sawdust granulation production line. The total power of the equipment is about 540kw, the workshop covers an area of 1200 square meters, including raw materials and finished products warehouse; The whole line has a compact design, reasonable structure, and meets the environmental requirements, which can be customized design according to customer requirements.

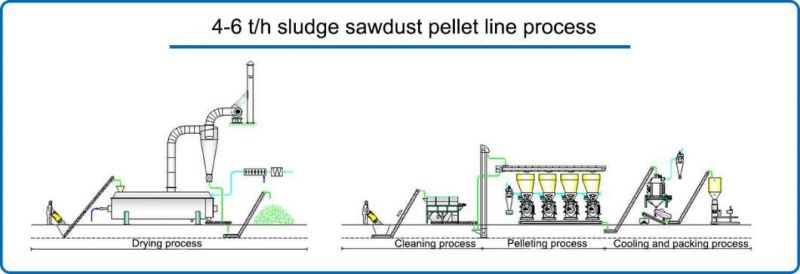

Procedure drawing
Grinding section     Pelleting section     Cooling & Bagging section

 Drying section: Paddle type drying system mainly includes feeding system, air preheating system, drying system, discharging system, exhaust drainage system, and control system. It is used for sludge or sludge mixture drying, paddle stirring which drys uniformly. The drying equipment is with compact structure, reasonable design, large output and other characteristics.
Pelleting section: biomass pellet diameter 6-10mm optional, biomass pellets is with high calorific value, pollution-free, ash low characteristics, and can be widely used in biomass power plants, biomass steam boiler, household fireplace, drying furnace and biomass gasifier.

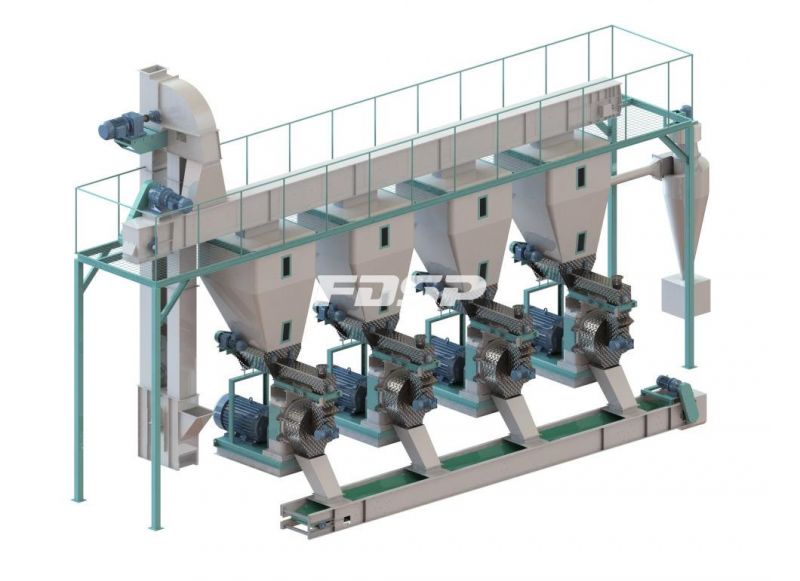

Pelleting equipment (4 sets) : WZLH420, main engine power 90kw, forced feeder power 0.75kw, designed to produce 1-2t/h/ set.

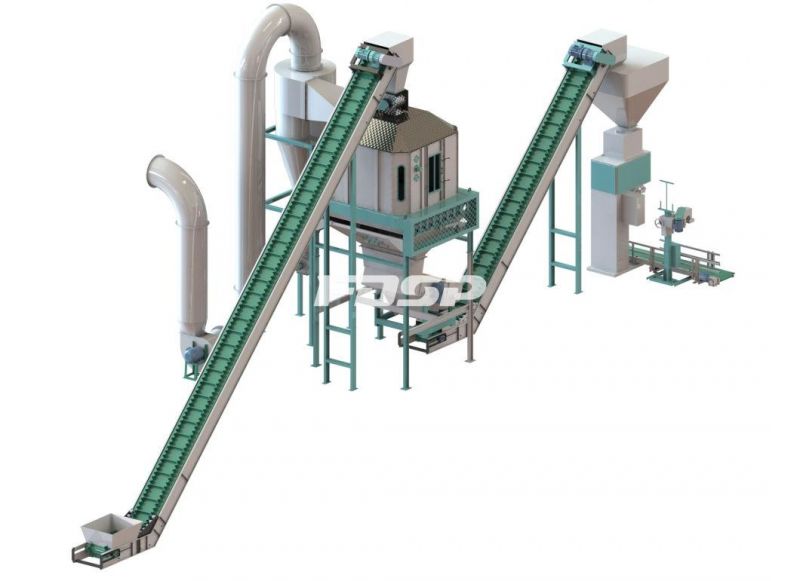

Cooling and packaging section: used to reduce pellet temperature and reduce pellet moisture. After cooling, pellet temperature is generally no higher than room temperature of 5ºC. After cooling, pellet moisture is about 8-10%, pellet bulk density is 650-750kg/m3. Packaging can be according to the customer's local sales needs. Choose the appropriate packaging weight to facilitate the customer to sell products. Usually there are two specifications of small bags and ton bags. Small bag packing scale packaging specifications: 20-50kg/ bag, ton bag packaging specifications: 500-1000kg/ bag.
Cooling equipment: MKLB2.5, cooling chamber volume 2.5m3, designed to produce 4-6tph.
Packing equipment: MDBLY-K, packing specification 20-50kg/ bag, packing speed 3-5 bags/minute.


According to the needs of different customers, the scheme can be optimized:
1. If necessary, buffer bins can be added between each section to replace the storage yard. The advantage is that it can improve the automation degree of production line and reduce dust pollution in the workshop; The disadvantage is that it will increase the construction cost of the production line, and because the bulk density of materials after crushing is very light, it is easy to bridge in the bins and material does not drop.
2. The packaging equipment can be adjusted according to customers' requirements for finished product packaging. It can also be stored in bulk or stored into silos.



FDSP is total solution provider mainly for feed industry and integrated with feed machinery, storage machinery, fertilizer machinery renewable en ergy machinery and its engineering. Taking "To create value for customers" as our motto, we are dedicated to provide elaborately-designed, economic & attractive, durable solution for our overseas customers.
We have passed Certificate for ISO9001, CE, SGS and our customers are enjoying with us in SEA, Middle East, Africa, Oceania, South America, etc. We have accumulated abundant experience for comprehensive development, utilization of agriculture.
We will become leader definitely for industry and strive to boost well-beings of society, be trustworthy, stable partner for long-term and create value for customers.
FAQ:
Q:why choose us?
A: we are the manufacturer which has about 20 years experience, has own research and development team.
Q:I know little about feed machine and production line ,what am I supposed to do?
A:please tell us your requirement, such as what kind of feed you want produce, the output you want per hour, how many raw materials you use and so on, we will design the flow diagram for you. And further our engineer will discuss the suitable product line for you depend on your situation.
Q:our worker can not know how to operation the production line, what should I do?
A:we has installation and AS service team, our engineer can go to client's factory to install the equipments and train your relevant employee.
Q:if the machine has small mistake when produce and can not solve, what am I supposed to do ?
A:please contact us immediately by email, skype, telephone and so on. We can give you solution with video guidance, also if it is necessary our engineer can go your site directly.
