• Model NO.：1325r
• Working Table：More Thickness (3mm) Aluminum T Slot
• Moving Type：Gantry Moving
• Guide Rail：Linear Square Guide Rail ( Hiwin, Taiwan)
• Transmission：Helical Rack &Pinion for X Y -Axis, Lead Ball SCR
• Inverter：Sunfar
• Spindle Motor：3.2kw Water Cooling
• Spindle Speed：0-24000rpm
• Driving Mode：Stepper Motor
• Transport Package：Plywood Case
• Specification：1working area: 300(X)mm*2500(Y)mm*200(Z)mm
• Trademark：Dragondiamond
• Origin：Guang Dong(China)
• Production Capacity：50pieces,Month

Basic Info.

Model NO. 1325r Working Table More Thickness (3mm) Aluminum T Slot Moving Type Gantry Moving Guide Rail Linear Square Guide Rail ( Hiwin, Taiwan) Transmission Helical Rack &Pinion for X Y -Axis, Lead Ball SCR Inverter Sunfar Spindle Motor 3.2kw Water Cooling Spindle Speed 0-24000rpm Driving Mode Stepper Motor Transport Package Plywood Case Specification 1working area: 300(X)mm*2500(Y)mm*200(Z)mm Trademark Dragondiamond Origin Guang Dong(China) Production Capacity 50pieces/Month

Product Description

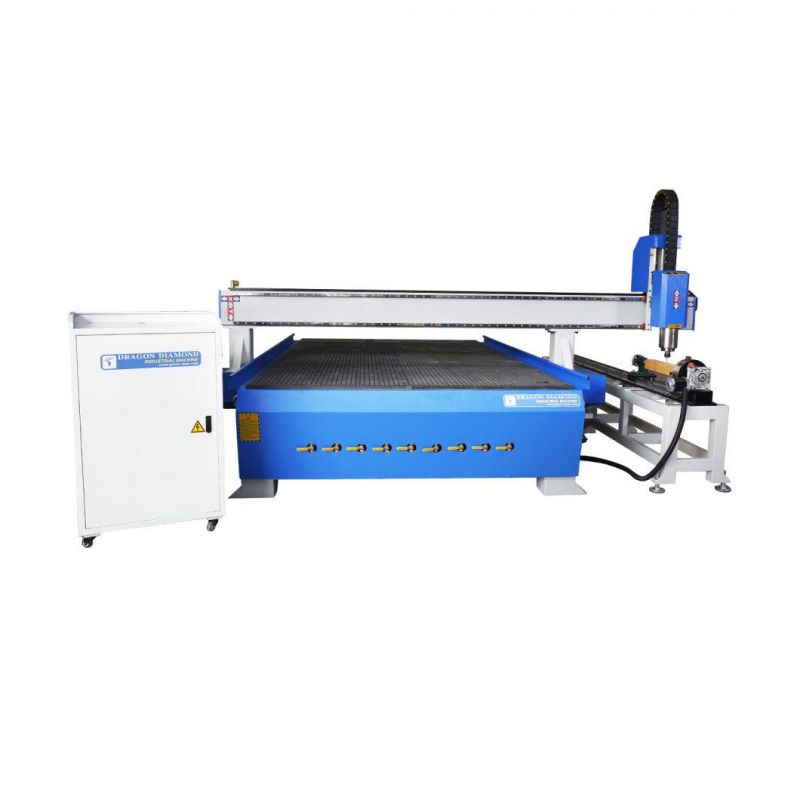

Home Decoration desk legs Roman column Cylinder pattern cutting engraving cnc router with rotary
Mchine Parameter

Effective working area	1300(X)mm*2500(Y)mm*200(Z)mm

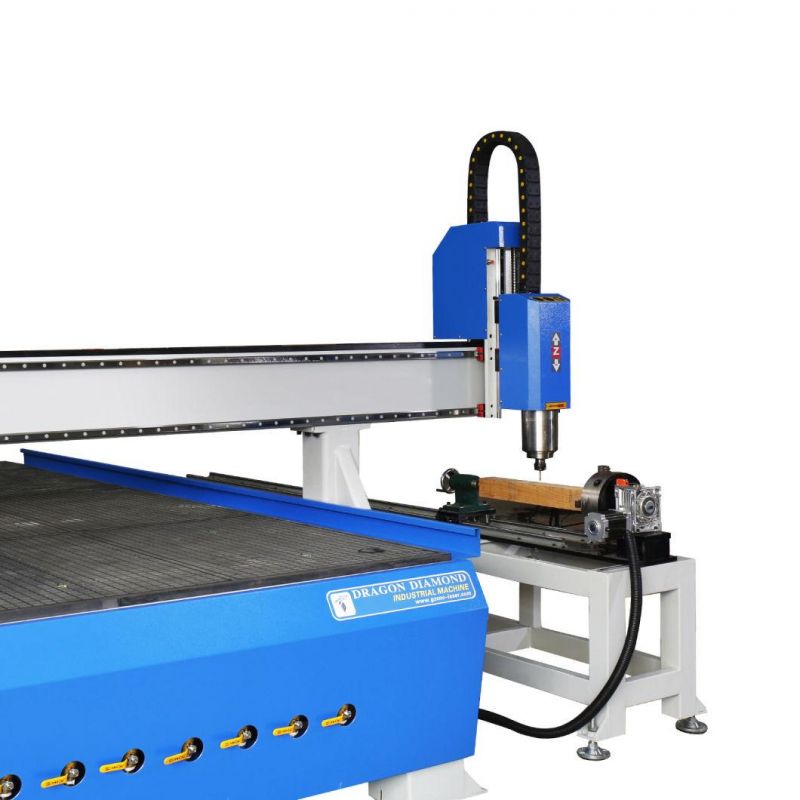

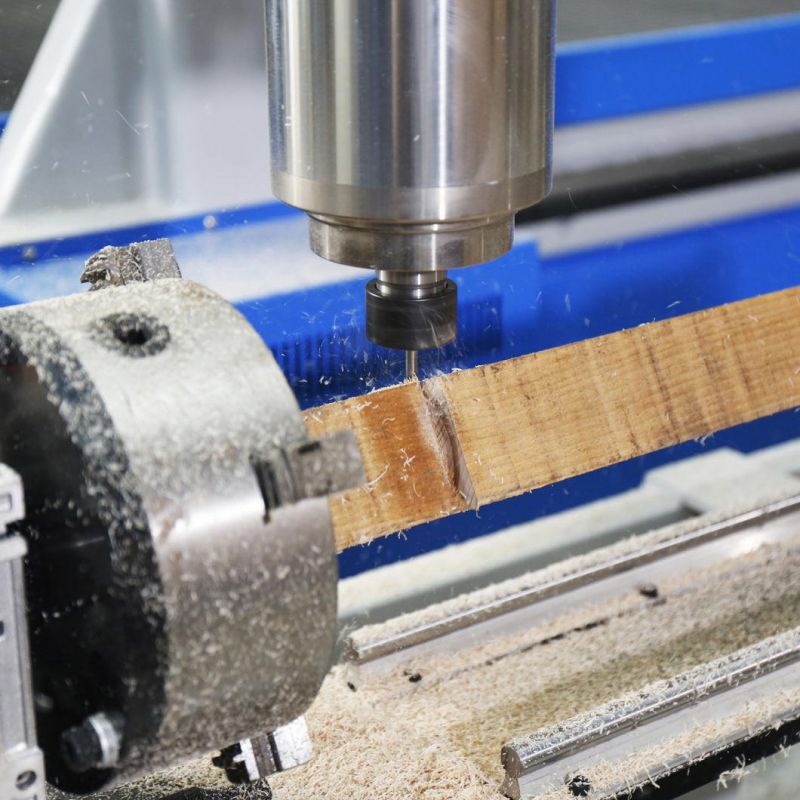

Rotart axis	Diameter 300mm, working length 2500mm, reduction gear type rotary axis
Machine Structure	More thickness steel pipe welded machine holder bed, cast iron gantry
Working table	More thickness (3mm) aluminum T slot
Moving type	Gantry moving
Guide rail	Linear square guide rail ( Hiwin, Taiwan)
Transmission	Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis
Inverter	Sunfar
Voltage	AC 220V± 10%, 50/60Hz, single phase or AC 380V±10%, 50/60Hz, three phases
Driving mode	Stepper motor
Spindle motor	3.2kw water cooling
Spindle speed	0-24000rpm
Traveling speed	>25000mm/min
Engraving speed	>12000mm/min
Machine accuracy	0.03mm
Controller	DSP offline control system A18, 4axis, RichAuto
Suitable software	Artcam, Type3, Ucancam V9,etc
Running environment temperature	0-45 ºC
Relative humidity	30%-75%
Lubrication system	Semi-auto
Tool calibration	Auto
Certificate	CE

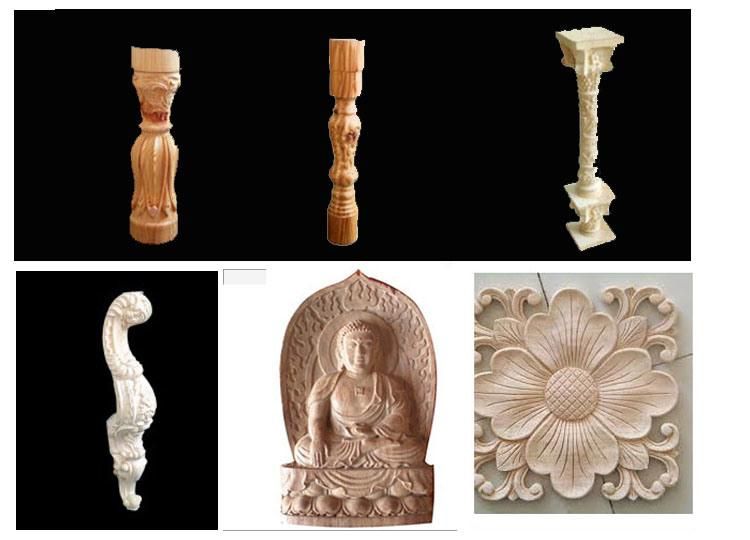

Machine Application & Sample
 Application:Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc
