Fully Automatic Edge Banding Machine PVC Edgebander with CE

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty：2 Year
  • Function：Pre Milling, Gluing, Edge Banding, End Trimming, Rough Trimming, Fine Trimming, Contour Tracking, Scraping, Buffing
  • Type：Linear Edge Banding Machine
  • Edging thickness：0.4-3mm
  • Automatic Grade：Automatic
  • Panel Feeding Speed：15-23m,Min

Base Info

  • Model NO.：FZ450DJ
  • Certification：CE, ISO
  • Panel Thinkness：10-60mm
  • Min.length panel：120mm
  • Min.width panel：60mm
  • Manufacturing Principles：Glue Tank Underneath
  • Customized：Customized
  • After-sales Service：2year
  • Overall Size(L x W x H)：6755*970*1800mm
  • Transport Package：Stretch Film
  • Specification：16.5KW
  • Trademark：SOSN
  • Origin：China
  • HS Code：84659900
  • Production Capacity：200 Sets Per Month

Description

Basic Info.

Model NO. FZ450DJ Certification CE, ISO Panel Thinkness 10-60mm Min.length panel 120mm Min.width panel 60mm Manufacturing Principles Glue Tank Underneath Customized Customized After-sales Service 2year Overall Size(L x W x H) 6755*970*1800mm Transport Package Stretch Film Specification 16.5KW Trademark SOSN Origin China HS Code 84659900 Production Capacity 200 Sets Per Month

Product Description

3mm melamine pvc automatic edge banding machine for cabinet
For PVC, wood panel and veneer, acrylic,etc.
Automatic Edge Banding Machines CNC Edgebanding Machine For Wood Made In China
Fully Automatic Edge Banding Machine PVC Edgebander with CE

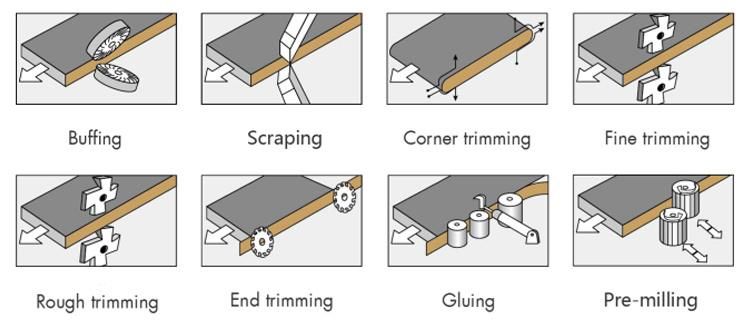

Functions:
premilling + gluing + end cutting + rough trimming + fine trimming +corner rounding+ scrapping + buffing.
Fully Automatic Edge Banding Machine PVC Edgebander with CE
1.using imported quality engines and electric components
2.Serialized products, a wide range of selection by customers
3.High precision and efficiency

Technical parameter:
Overall Size(L x W x H)6750*970*1800mm
Working Pressure0.6Mpa
Total power16.5KW
Feed speed15-23m/min
Electric lifting0.37KW
Panel Thickness10-60mm
Sheet length>=120mm
Panel Width>=60mm
Edge thickness0.4-3mm
Fully Automatic Edge Banding Machine PVC Edgebander with CEFully Automatic Edge Banding Machine PVC Edgebander with CE
Fully Automatic Edge Banding Machine PVC Edgebander with CEFully Automatic Edge Banding Machine PVC Edgebander with CEFully Automatic Edge Banding Machine PVC Edgebander with CEFully Automatic Edge Banding Machine PVC Edgebander with CEFully Automatic Edge Banding Machine PVC Edgebander with CE
Package for edge banding machine:
After test the PVC edge banding machine all well, firstly do the cleaning work before package.
Fully Automatic Edge Banding Machine PVC Edgebander with CE

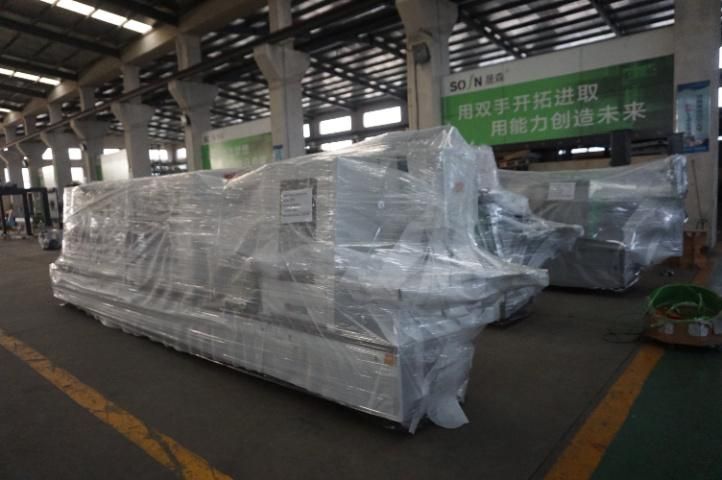

Strong strech film will be used for the package of  the edge banding machine.
Fully Automatic Edge Banding Machine PVC Edgebander with CE
Reasons to choose SOSN:
1: professional team--as much as possible to meet your needs
2: quick delivery--timely and effective
3: excellent after-sale services--no worries anymore
4: friend partner relationship--a win-win cooperation

Should you have any interest of this machine, please contact me.
