• Model NO.：QMB523W
• Motor Power：38.25kw
• Cutter Shaft：5
• Spindle Speed：6800 r,min
• Process Type：Heavy Processing
• Certification：CE, ISO
• After-sales Service：3 yeas
• Weight：5500kg
• Total motor power：38.25kw
• Feeding speed：8-33 meters
• Max. sawing thickness：160mm
• Min. sawing length：700mm (intermittent) 400mm(continuous)
• Dia. of spindle：40mm
• Dia. of feeding roller：140mm
• Transport Package：Plywood Carton or Bulk Packing
• Specification：4680*1850*1830 (MM)
• Trademark：Qingcheng
• Origin：China
• HS Code：8465920000
• Production Capacity：20000,Sets

Basic Info.

Model NO. QMB523W Motor Power 38.25kw Cutter Shaft 5 Spindle Speed 6800 r/min Process Type Heavy Processing Certification CE, ISO After-sales Service 3 yeas Weight 5500kg Total motor power 38.25kw Feeding speed 8-33 meters Max. sawing thickness 160mm Min. sawing length 700mm (intermittent) 400mm(continuous) Dia. of spindle 40mm Dia. of feeding roller 140mm Transport Package Plywood Carton or Bulk Packing Specification 4680*1850*1830 (MM) Trademark Qingcheng Origin China HS Code 8465920000 Production Capacity 20000/Sets

Product Description

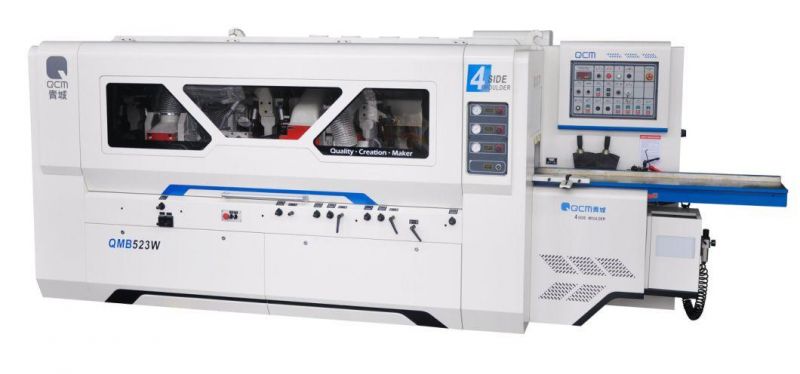

QMB523W Woodworking Machinery Wood Planer Four-side Moulder with universal spindle

Reference photo:









1. Technical parameters


Specifications	Unit	QMB523W
Working width	mm	20-230
Working thickness	mm	8-160
Min.working length(intermittent/continuous)	mm	700/400
Dia of spindle	mm	Φ40
Dia of feeding roller	mm	Φ140
Feeding speed	m/min	8-33
Rotation speed of spindle	r/min	6800
Cutter dia of first bottom cutter	mm	Φ125
Left/Right vertical cutter	mm	Φ108-Φ200
The first upper cutter	mm	Φ108-Φ200
The Second upper cutter	mm	/
Back bottom cutter	mm	/
Universal spindle	mm	Φ108-Φ160
Total power	kW/HP	38.25/51
The first bottom cutter	kW/HP	5.5/7.5
Left vertical cutter	kW/HP	7.5/10
Right vertical cutter	kW/HP	5.5/7.5
The First upper cutter	kW/HP	7.5/10
The second upper cutter	kW/HP	/
The second bottom cutter	kW/HP	/
Universal spindle	kW/HP	7.5/10
Feeding motor	kW/HP	4/5.5
Beam lifting motor	kW/HP	0.75/1
upper cutter lifting motor	kW/HP	/
Radial adjustment of the vertical spindle	kW/HP	/
Rear pressing plate elevation	kW/HP	/
Side feeding motor	kW/HP	/
Belt conveyor	kW/HP	/
Disc conveyor	kW/HP	/
Suction hood dia	mm	5*Φ150
Air supply pressure	Mpa	0.6
Overall dimensions	mm	4680x1850x1830
Weight	kg	5500

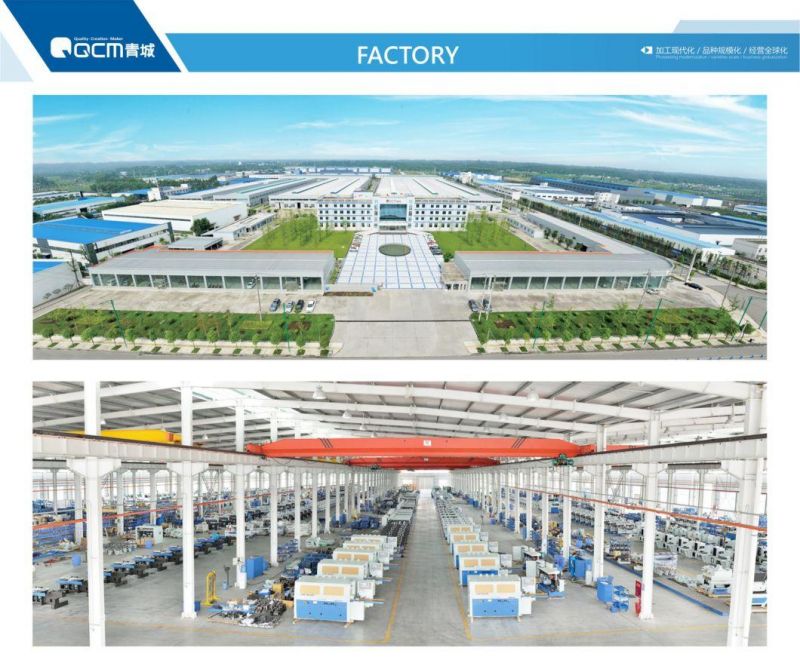

2. About Qingcheng Woodworking Machinery:

Qingcheng Woodwokring Machinery Co., Ltd is a professional manufacturer of woodworking machinery since 1970. With more than 40 years experience, we have developed to the top and most powerful manufacturer of woodworking machinery in China.

We mainly engaged in six series of woodworking machinery:
Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoner , and Sanding Machine

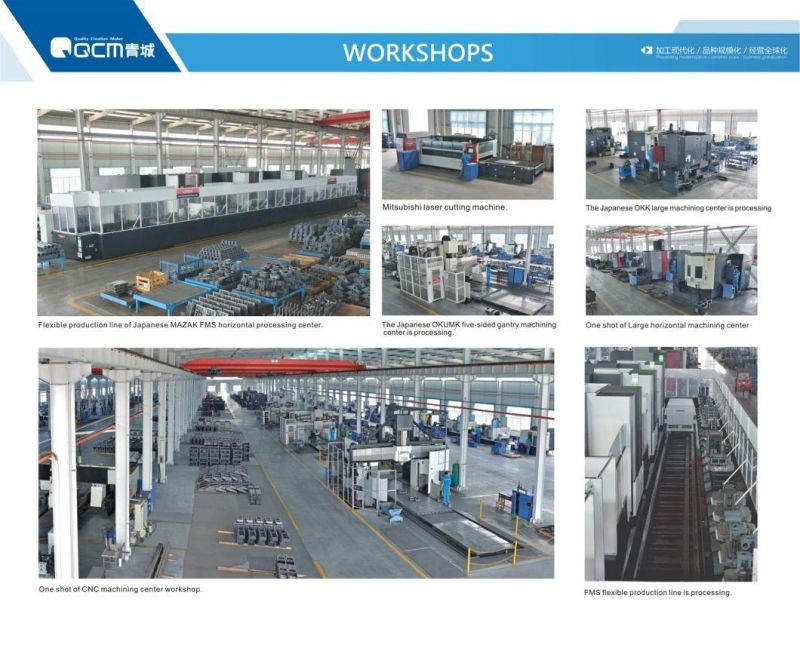

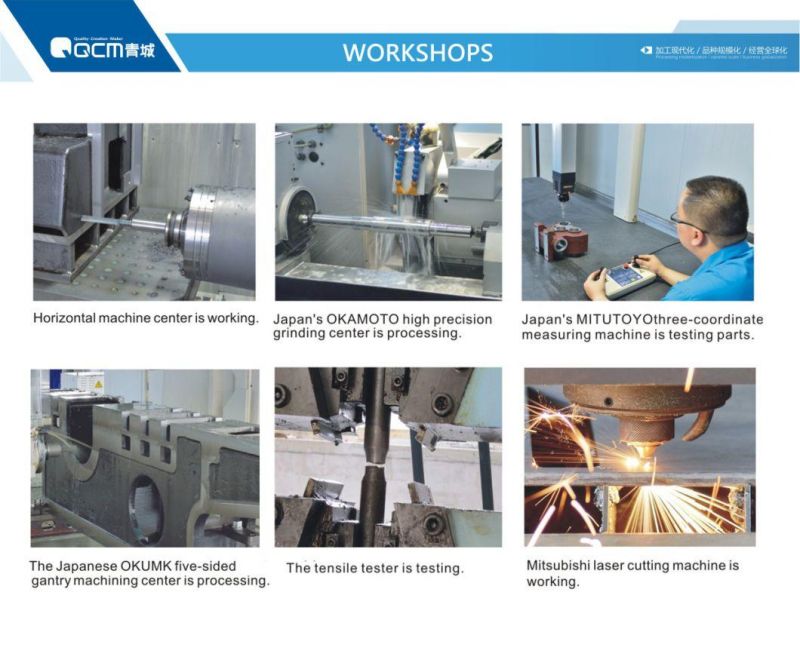

To make machinery with high precision and stability, we have introduced the world's advanced modern processing and testing equipment, including OKUMA five-surface gantry machining-center, FMS flexible machining production line, MAKINO horizontal machining center, MORI SEIKI(nine-axis linkage) lathe-mill cutting center, LGMazak vertical machining center, Mitsubishi laser cutting machine, OKK large machining center, Okamoto CNC grinding center, and Mitutoyo three coordinate measuring machine.










3. Our Products:

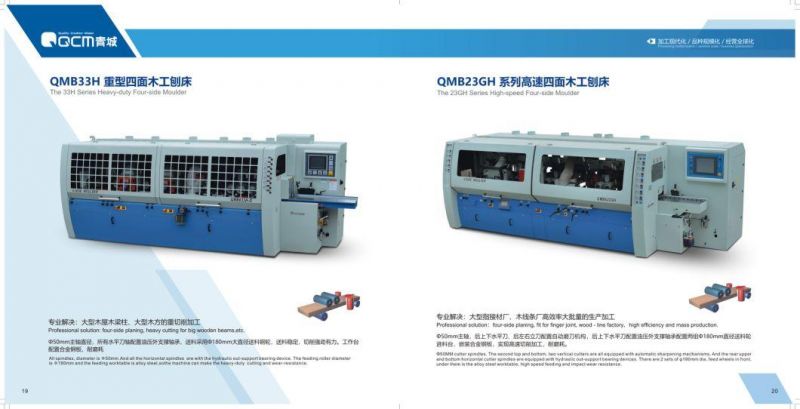

A: Four Side Moulder



B: Double Side Planer

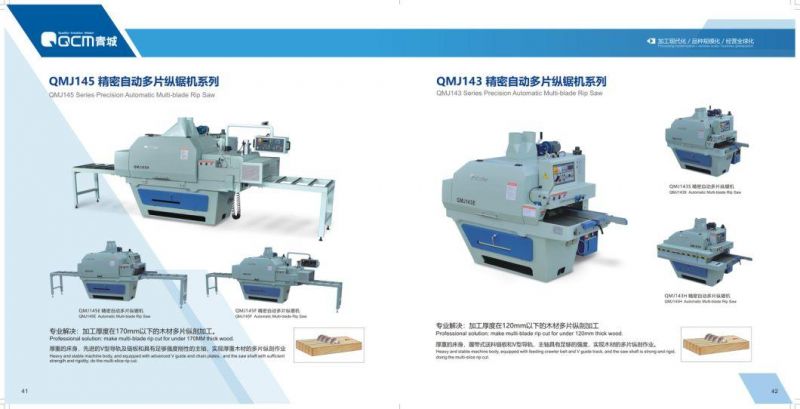

C: Rip Saw



D: Planing and Sawing Combination Machine




E:Double-end Tenoining Machine

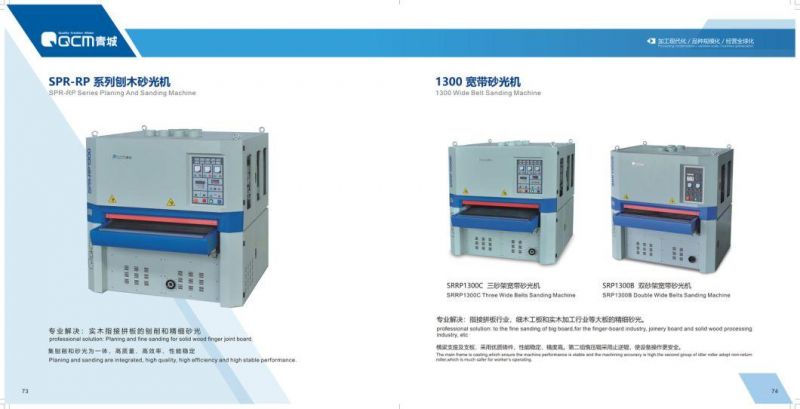

F: Sanding Machine
