Hot-Sale Upside Pressure Cold Press Machine for Plywood

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Work Forms：Hydraulic Pressure
  • Processing Technics：Cold Press
  • Structure：Frame Type
  • Pressing Shape：Flat Press
  • Platen Surface Pressure：High Pressure
  • Pressing Layer：Multi Layer

Base Info

  • Model NO.：BY814x8
  • Work Mode：Continuous
  • Controlling Mode：CNC
  • Automatic Grade：Automatic
  • Certification：CE, ISO, FDA
  • Pressure：400-600t
  • Voltage：380V,50Hz
  • Position of Cylinder：Upside,Downside
  • Net Weight：19000kg
  • Stroke of Cylinder：1000mm
  • Thickness of Steel Plate：40mm
  • Thickness of Acctive Crossbeam：22mm
  • Transport Package：Standard Export Package
  • Specification：400T, 500T, 600T
  • Trademark：Metro
  • Origin：Shandong, China
  • HS Code：8465990000
  • Production Capacity：50set,Month

Description

ModelBY814X8/5ZNorminal Gross Pressure5000KNDirection of feeding plateHorizontalMax opening1200mmDiameter of cylinder360mm(Wuxi)Numbers of cylinder2pcsSide helpful cylinder63mmX2Pressurization≤25MPAStroke of cylinder1000mmPosition of cylinderUpsidePressure of unit plate blank15kgf/cm2Dimensions of the board2560X1280mmAllowed pressure≤25MPANet weight19000kgOverall dimensionsAbout 3600X1380X3750mmControl methodAutomatic pumping stationThickness of upper and lower crossbeams900mmThickness of steel plate40mmThickness of acctive crossbeam22mmThickness of steel plateoptionedWith chains tranport device
Pictures Show:

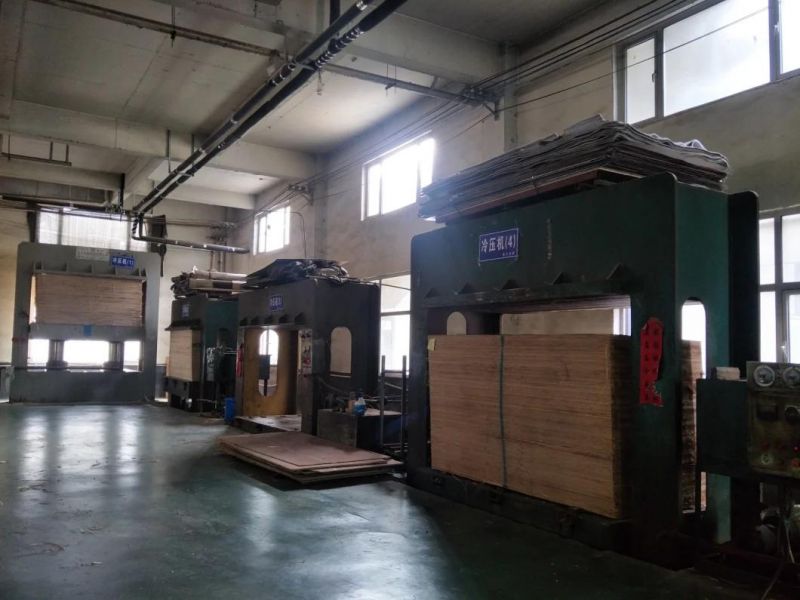

Hot-Sale Upside Pressure Cold Press Machine for Plywood
Hot-Sale Upside Pressure Cold Press Machine for Plywood
Hot-Sale Upside Pressure Cold Press Machine for Plywood

Hot-Sale Upside Pressure Cold Press Machine for Plywood
Hot-Sale Upside Pressure Cold Press Machine for Plywood


Hot-Sale Upside Pressure Cold Press Machine for Plywood
Hot-Sale Upside Pressure Cold Press Machine for Plywood
