China Linear Atc CNC Router 4 Axis 3D Foam Wood Carving Machine with Rotary Axis
Jinan Firm CNC Equipment Co., Ltd.- Type：Engraving Router
- Spindle Layout：Spindle Over
- Spindle Number：Single-Spindle
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE, ISO, FDA
Base Info
- Model NO.：FM1530 4 axis
- Customized：Customized
- Condition：New
- Color：Customized
- Spindle Power：9.0kw Atc Air Cooling Spindle
- Motor Driver：Yaskawa Servo Motor and Drivers
- X, Y Structure：Rack and Pinion Drive, Hiwin Square Rail
- Z Structure：Hiwin Square Rail and Ball Screw
- Control System：Nk280, Syntec Controller
- Inverter：Taiwan Delta Inverter
- Table Surface：Vacuum and T-Slot Table
- Frame：Welded Steel Tube Structure
- Working Voltage：AC380V, 50,60Hz, 3pH
- Command Language：G Code
- Working Speed：15-25m, Min
- Transport Package：Standard Export Package-Plywood
- Specification：3000*1500*400mm
- Trademark：FIRMCNC
- Origin：Jinan, China
- HS Code：8465990000
- Production Capacity：100 Sets,Month
Description

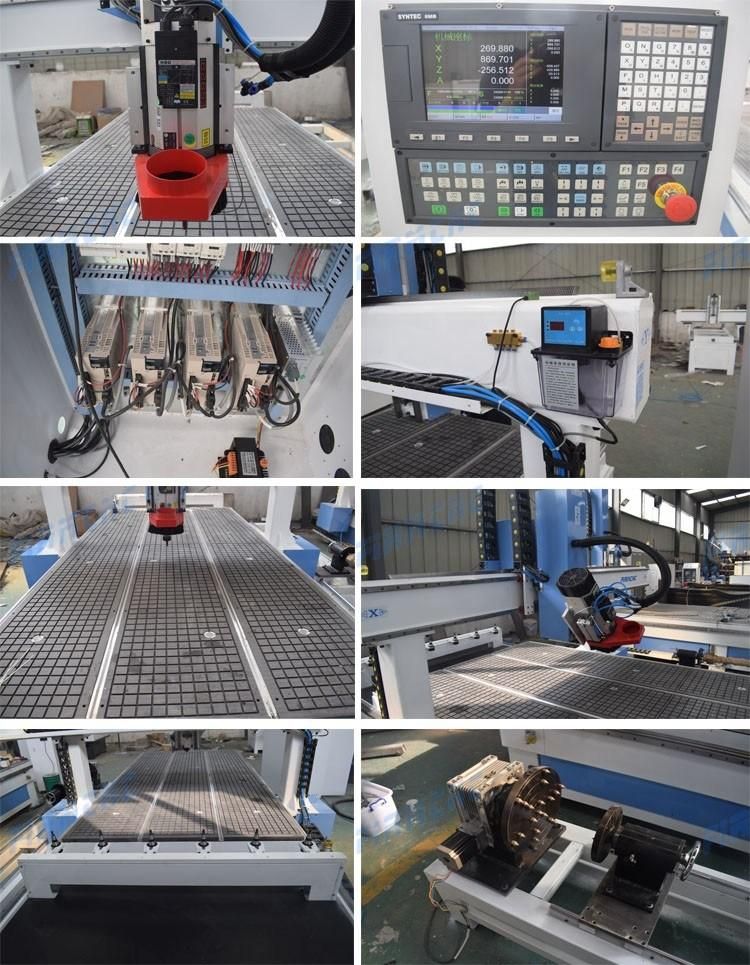

#Controller:
Syntec controller system
1.With separate control board,easy and convient to operate.
2.More than 20 years experience on cnc,with mature technology
#Spindle:
Italy 9.0kw Spindle
1.Change tool automatically,save time and labor.
2.Strong power and long lifetime.the rotate speed max to 24000rpm
#Rotate head:
Rotate head
1.Make spindle rotate at C axis to 180°,suitable for side drilling and cutting
#Servo system:
Japan YASKAWA Servo driver and motor
Optional Panasonic servo motor
#Reducer:
Japan Shimpo Reducer
The world best reducer brand.Used for replace traditional rack and belt,to make machine more powerful and stable
#Tool sensor :
Auto tool Calibration
Optional
#Airtech pro dust collector: our new deaign to vacuum, and it is very clean to absorb wood dust.
#Vacuum pump: Oil free pump 5.5Kw/Air pump 5.5Kw
#CAM Software: VCarve/VCarve Pro/ArtCAM/UcanCAM,etc.
#CW3000 water chiller: dedicated to water-cooled spindles
#Other details parts, such as servo motor and drivers
4 Axis CNC Router Appliation industry and materials
1) Mold: wood,wax, wood, gypsum,foams,wax
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

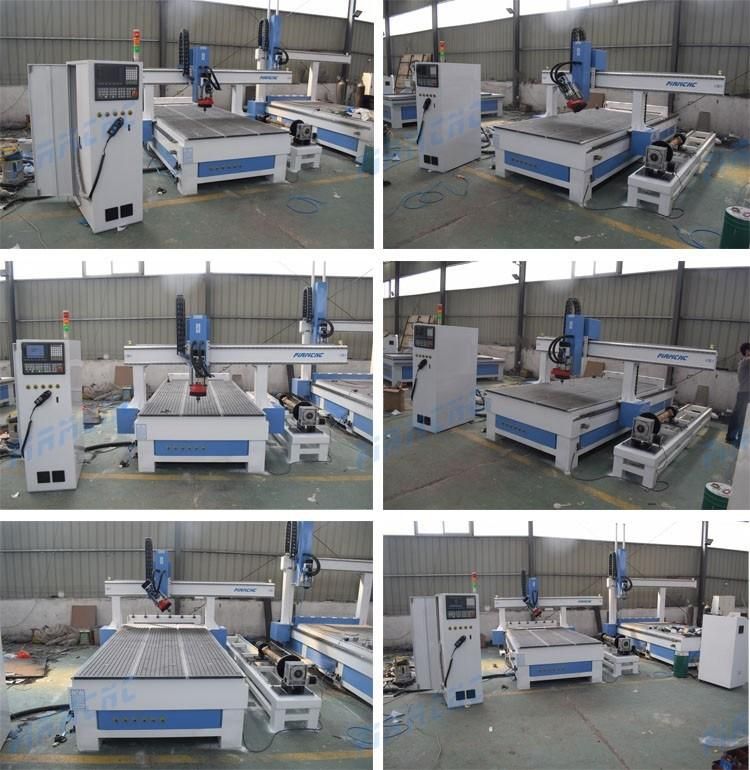

4 Axis CNC Router Samples

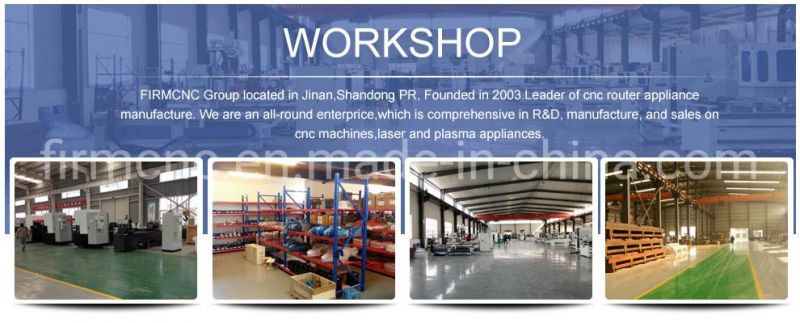

Our company
Jinan Firmcnc Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router,laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate.The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.

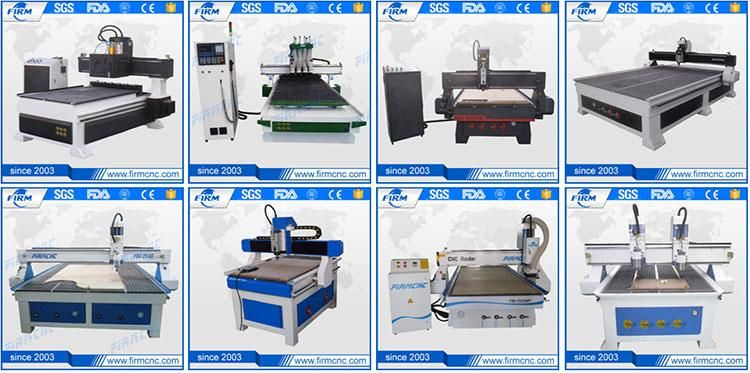

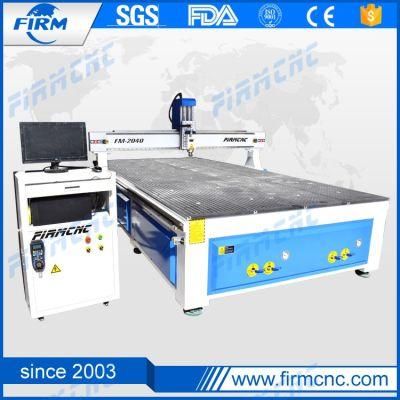

Other type wood cnc router machines for your refence
# Linear or Circular type ATC wood cnc router
# Pneumatic 4 head ATC cnc router
# Wood cnc router with air cooling spindle
# Wood cnc router with water cooling spindle
# Mini cnc router for wood advertising
# Double heads wood cnc router
Perfect after Services
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;
After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is two years.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
4 Axis CNC Router Packaging and shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information
FAQ
Q1: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Q2: How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Q3: Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Q4: How about Guarantee & After Sales Service?
1) The machine guarantee is 24 months.
2) 24 hours technical support by phone, email or msn, skype etc.
Q5: If some problems happened to this machine during warranty period,what should i do?
We will supply free parts in machine warranty period if machine have some problem.While we also supply free after-service forever, so any doubts,just let us know, we will give you solutions in 24 hours.
Q6: What is the MOQ?
MOQ for our products is 1 set machine,we could send it to your country port if you tell detail information about your country port.
