• Model NO.：S300
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：3000KG
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. S300 Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 3000KG Trademark Mars Origin China HS Code 8465990000 Production Capacity 3000 Sets/Year

Product Description

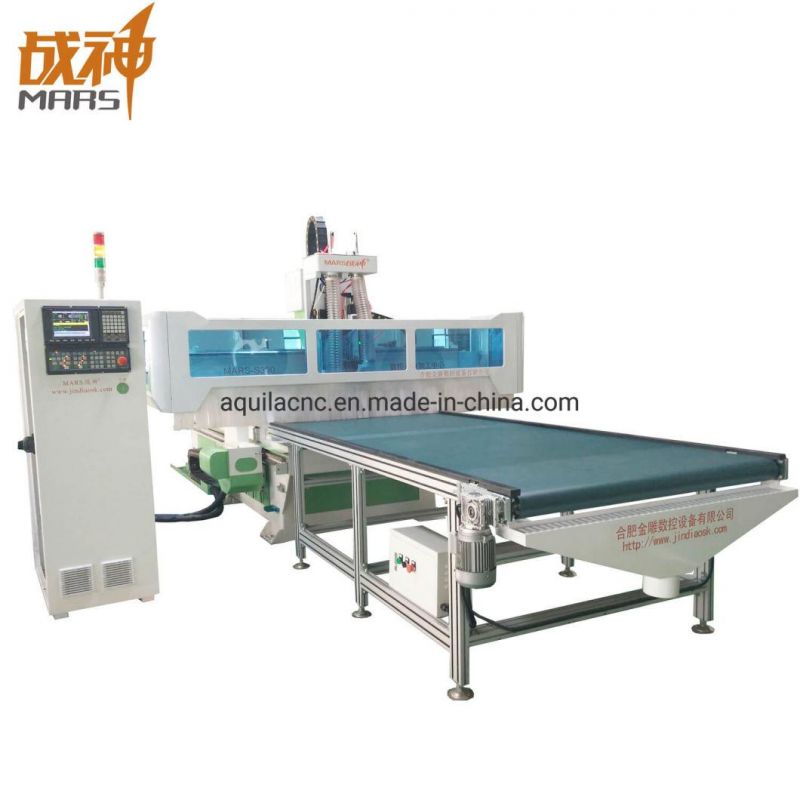

S300 Nesting CNC Machining Center for Panel Furniture
 Keywords:15 years experience of production
                  ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                  Three Brand: Mars, Golden Eagle,Borio



Description:
S300 Nesting CNC Machining Center for Panel Furniture is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.

Functions:
The functions of this machine include plane cutting,milling,chamfering,punching,engraving and other anxiliary processing.


Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.

Application Scope:
Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings.


Parameters:

Model	S300 Nesting CNC Machining Center for Panel Furniture
X/Y/Z axis working stroke	1300*2500*300mm
Table surface	vacuum Table
Frame machine	Heavy-duty thicken steel structure, w/ tempering
Spindle power	HSD 9KW air cooling spindle
Spindle speed	0-24000 rpm/min
Automaitc tool change	Carousel, 8pcs
Control system	Syntec/ Osai
Drive sytem	Yaskawa/ Delta servo motor
Transmission	XY axis rack and pinion, Z axis ball screw
Guide rail	Taiwan Hiwin linear rail
Vacuum pump	5.5kw vacuum pump
Inverter	Fuling or Zoncn
Oil lubrication	Automatic
Positioning Accuracy	± 0.05mm

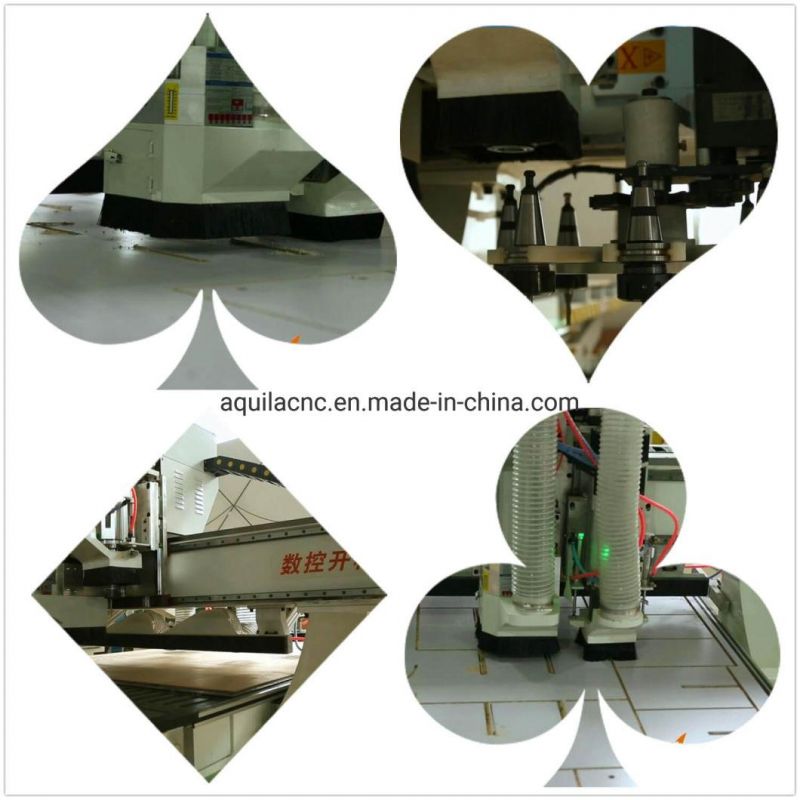

Accessories:


Performance Features:
1. Equipped with all the leading international brand components, with carousel tools magazine.
2. High-power Italy HSD air-cooling spindle, Japan YASKAWA servo motor and driver.
3. Vacuum table, high adsorption capacity, able to adsorb materials of different sizes.
4. Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area.
5. Syntec CNC control system can automatically accomplish multi-layer 3D job, cutting, engraving, milling, all at ease. Offline operation can be realized.

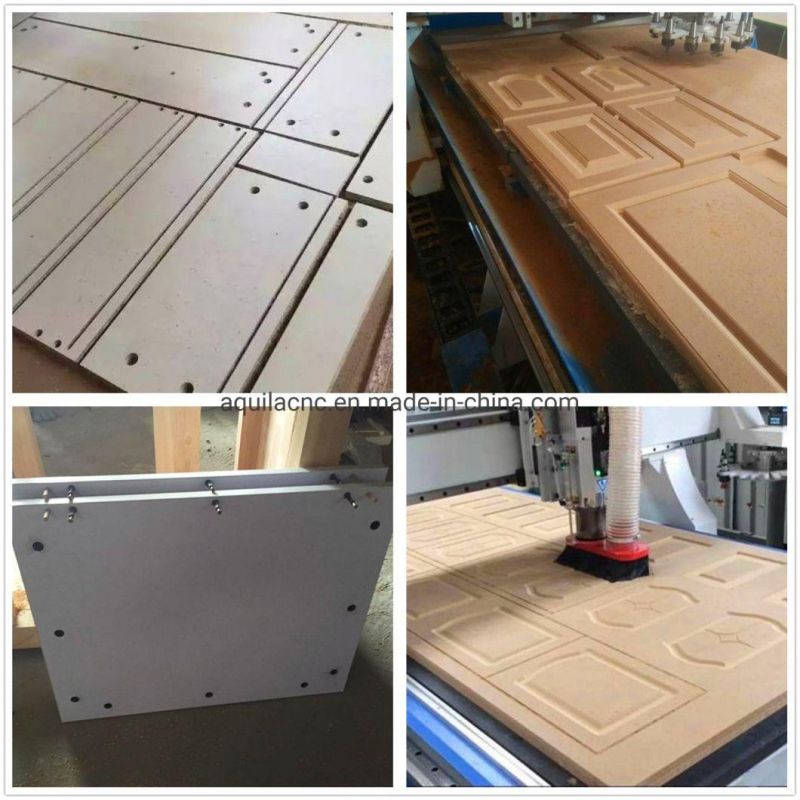

Samples:
