• Model NO.：JZ-C-188
• Overall Dimension：3550*1400*4100mm
• Weight：10t
• Color：Customized
• Transport Package：Container
• Specification：total pressure 500t
• Trademark：JJZ
• Origin：China
• HS Code：8465990000
• Production Capacity：1000sets,Year

Basic Info.

Model NO. JZ-C-188 Overall Dimension 3550*1400*4100mm Weight 10t Color Customized Transport Package Container Specification total pressure 500t Trademark JJZ Origin China HS Code 8465990000 Production Capacity 1000sets/Year

Product Description

Automatic cold press machineBrief Introduction:
Hydraulic presses used in plywood are also called plywood presses, hydraulic presses and plywood cold presses. Hydraulic Press for Plywood Machinery. Hydraulic preloading is used to manufacture plywood products. The main application of hydraulic plywood press is to compress materials by preloading. The application of preloading force in the production of plywood products by hydraulic preloading and particleboard by plywood to produce MDF board and HDF board by particleboard. Another application of a hydraulic preloader is to press a pressure plate onto a plywood, door, board or board. These cold compressors for plywood are widely used in the plywood industry and furniture manufacturing industry, bonding plywood with plywood, doors, boards or boards.



Advantages:

1. This machine is a combination of individual components with small volume, it can be carried and assembled easily.

2. Main components of hydraulic device installed on the top of mainframe, less occupied area, the outlet oil pipe is already assembled before leaving factory.

3. Shallow foundation, less than 1.5m at the deepest, easy to clean and maintain, good security and lower cost.

4. Small installed power, fast closing speed.

5. Smooth movements, small trouble.

Product Description:

Total pressure	500 T
Board feeding direction	Transverse
Layers	1
Layer spacing	1800mm
work plate size	2700*1370mm
Stroke	800mm
Cylinder	ø360mm*2pcs
Power	15KW
Overall dimension	3550mm*1370mm*4200mm
Weight	10Tons
Stand plate width	370MM*4
Composite frame	Detachable
Upper and bottom beam	800mm
Thickness of the frame	35mm Q235
Middle beam	400mm

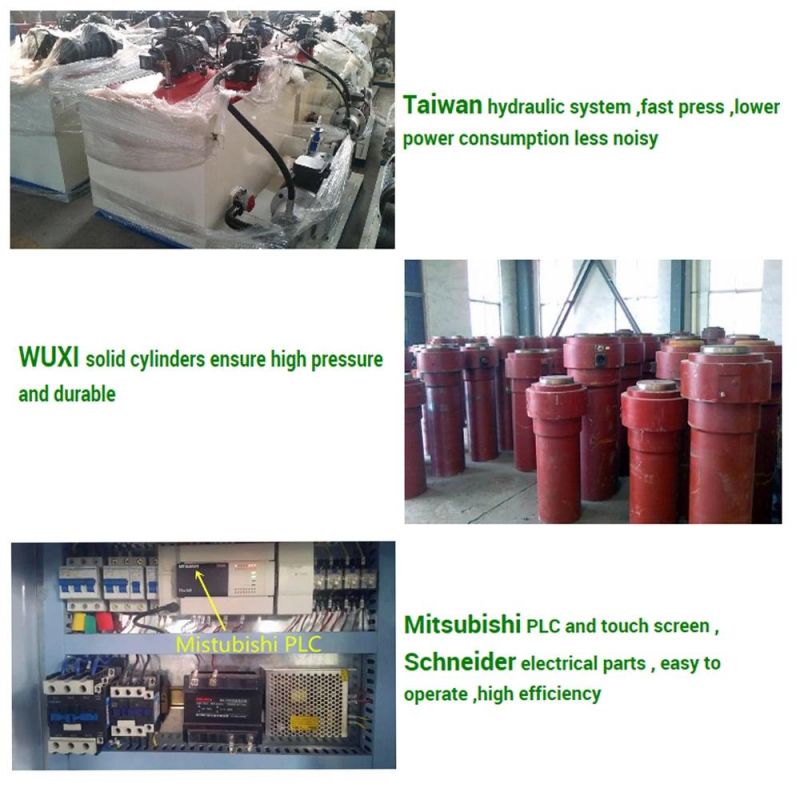

Detail images:



Packing&Shipping:



Certifications:




Our Services:




About us:

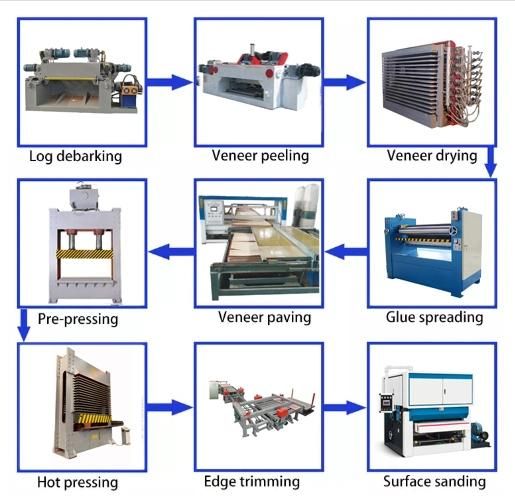

LINYI JIANZHONG WOOD MACHINERY CO.,LTD was established in 1998, which is located in Linyi, Shandong province, with a 30000 square meters' factory. Our company specializes in wood working machinery that includes wood debarker, veneer peeling machine, veneer dryer, glue spreader, glue mixer, plywood hot press machine, plywood cold press machine, planking machine, plate turnover, lift table, plywood sawing machine, grinding oblique machine, plywood paving machine and plywood sanding machine, with abundant domestic sales experience and export experience.
With the whole plywood production line and the strong research team, the machines which independently developed by our company have gained national patents and good reputation. With the huge economic forces and production well as rich experience, we can provide the perfect equipments and the solution to the wood working industry. Besides, our products can be found everywhere in China and we also export to Australia, Southeast Aisa and so on. Currently, our products have been exported to more than 20 countries and regions, we provide life-cycle service solutions and technical support for our customers.

History:




Please be comfortable to contact us right now to get more information if you have some interests!

All kinds of plywood and plywood woodworking machinery products can be customized according to your requirements~
