PVC Automatic Edge Banding Machine for Door Making with Ce

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty：1 Year
  • Function：Pre Milling, Gluing, Edge Banding, End Trimming, Rough Trimming, Fine Trimming, Contour Tracking, Scraping, Buffing
  • Type：Linear Edge Banding Machine
  • Edging thickness：0.4-3mm
  • Automatic Grade：Automatic
  • Certification：CE

Base Info

  • Model NO.：FZ450J
  • Panel Thinkness：10-60mm
  • Min.length panel：120mm
  • Min.width panel：60mm
  • Manufacturing Principles：Glue Tank Overhead
  • Customized：Customized
  • Edge Machine：Edge Machine
  • Total Power：16.5kw
  • Transport Package：Standard Wooden Case Package
  • Specification：5500*800*1600mm
  • Trademark：SOSN
  • Origin：China
  • HS Code：84659900
  • Production Capacity：600 Sets Per Month

Description

Basic Info.

Model NO. FZ450J Panel Thinkness 10-60mm Min.length panel 120mm Min.width panel 60mm Manufacturing Principles Glue Tank Overhead Customized Customized Edge Machine Edge Machine Total Power 16.5kw Transport Package Standard Wooden Case Package Specification 5500*800*1600mm Trademark SOSN Origin China HS Code 84659900 Production Capacity 600 Sets Per Month

Product Description

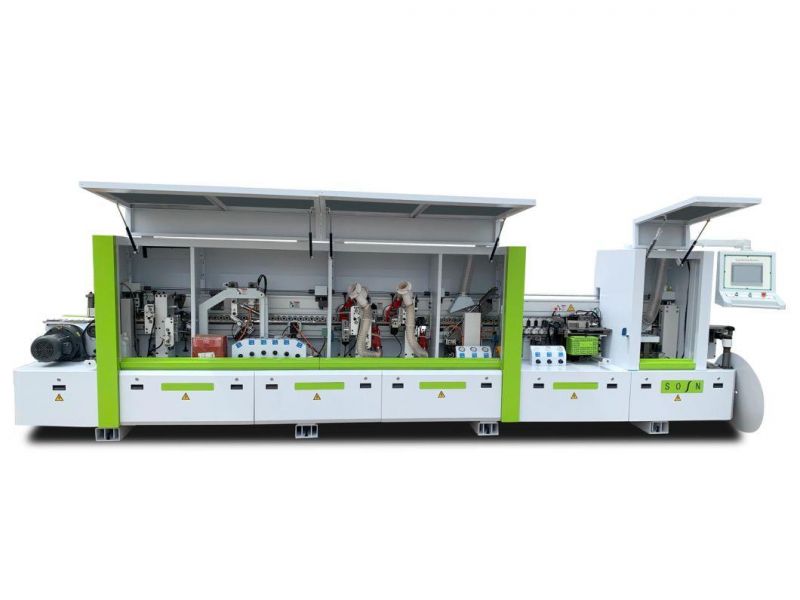

                   PVC Automatic Edge Banding Machine for Door Making with CE
PVC Automatic Edge Banding Machine for Door Making with Ce

used for the linear sealing of PVC, wood plank and veneer, acrylic,etc.
Functions:
Pre-milling + gluing + end cutting + rough trimming + fine trimming +corner rounding+ scrapping +buffing
Main technical parameter:

Motor power 15.6kw
Overall size 7100x1100x1600mm
Feed speed12-20m/min
Panel thickness10-60mm
Edge banding tape thickness0.4-3mm
Panel width ≥ 80mm
Working air pressure 0.8Mpa
Weight 2800kg

Introductions

1. This machine is mainly used for the Linear sealing side of the plywood, fibreboard, Particle board, and so on.

2. Its structure is compact and have a reasonable disposition. It works steadily and operates safely.

3. It is adjustable; The machine adopts the devices of sound insulation, controlling of dust, preventing the overloading, Auxiliary frame electrical adjusted; It has the function of glue spreading, Trimming before and after, Rough up and down the sides.

4.Blow up and down the side, Surface polishing up and down and so on.

 We have auto, semi-auto and manual Edge banding machines for your choice

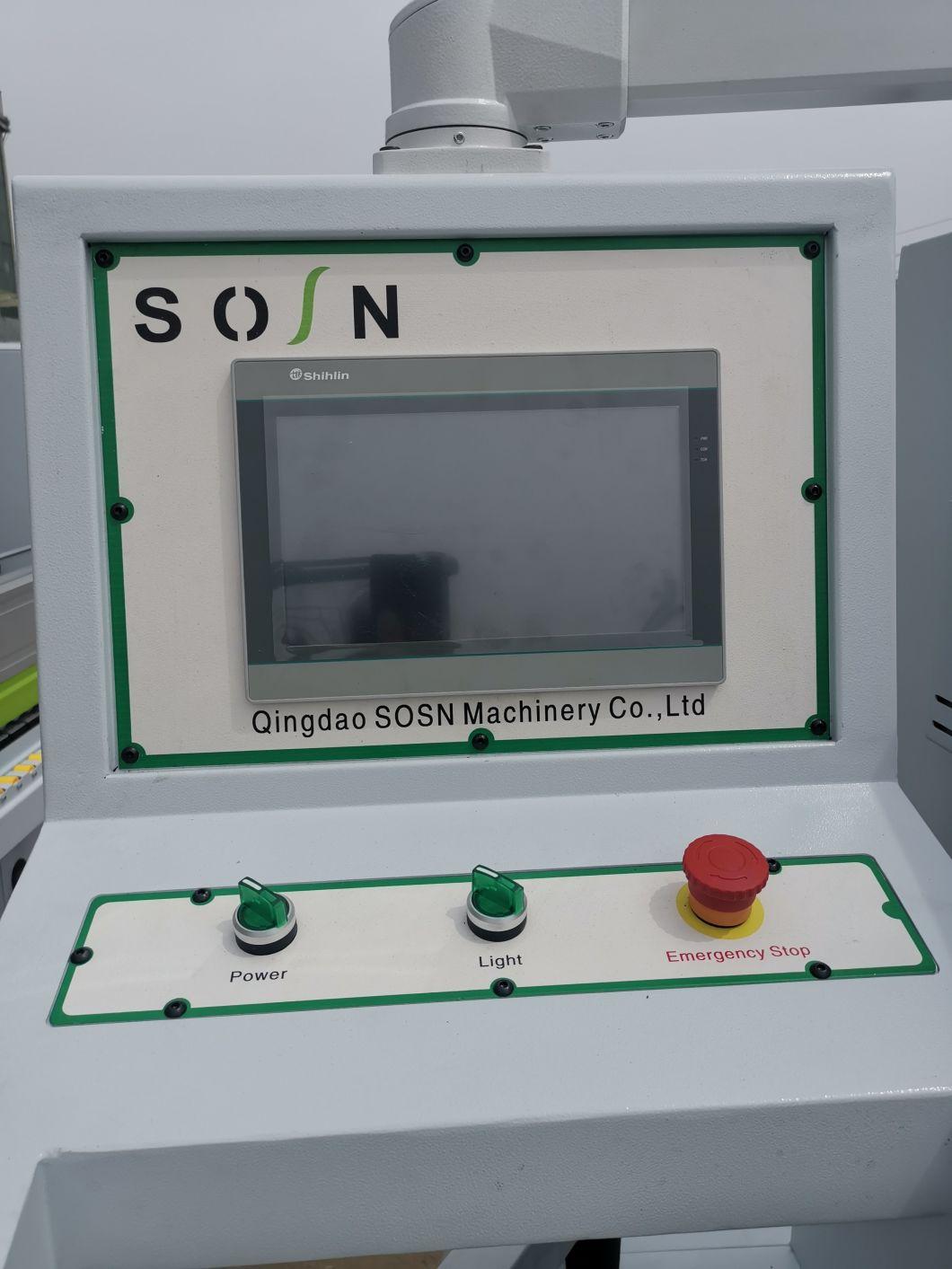

PLC control board:
PVC Automatic Edge Banding Machine for Door Making with Ce

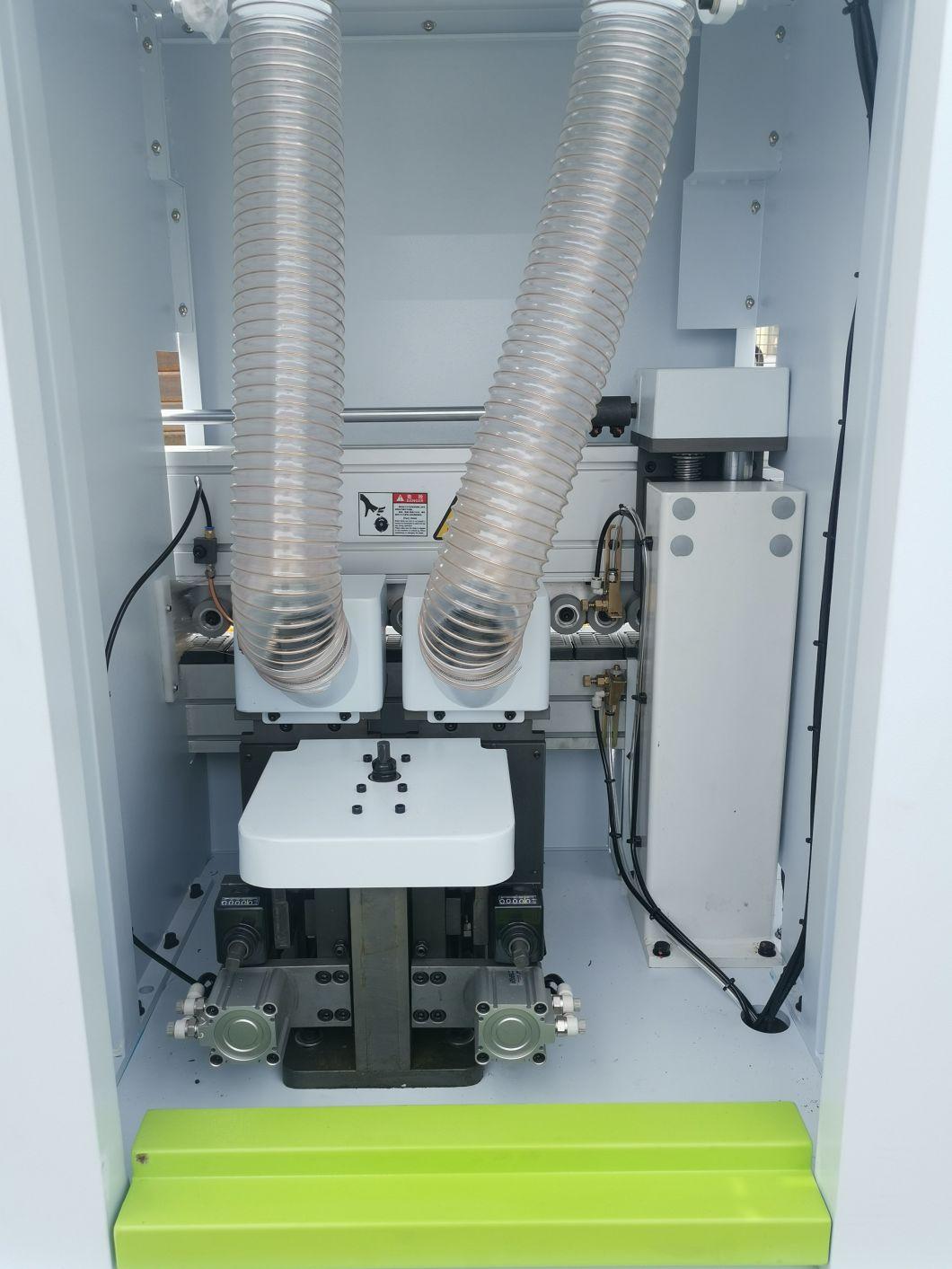

Pre-milling:
PVC Automatic Edge Banding Machine for Door Making with Ce

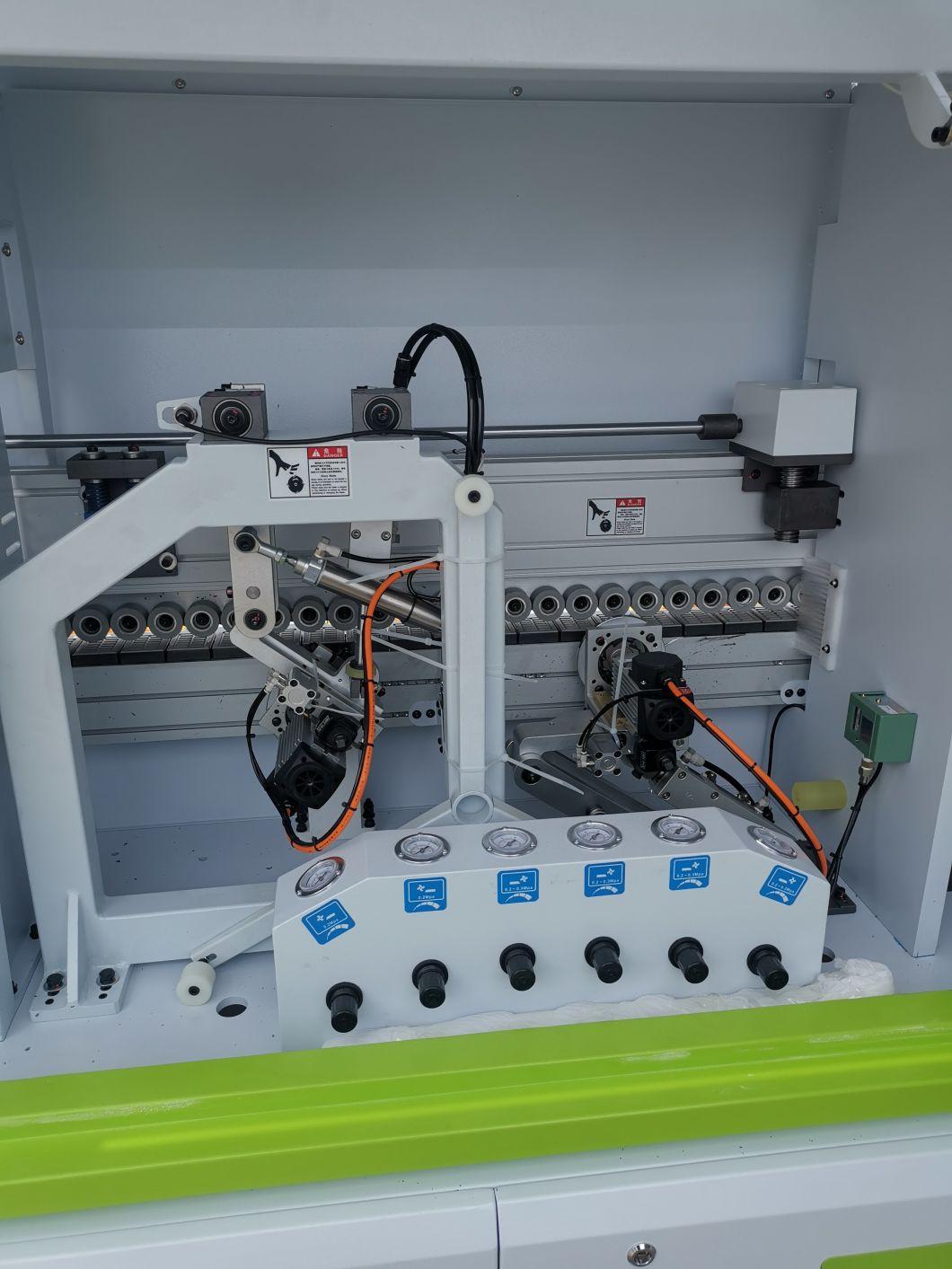

End cutting trimming + rough trimming + fine trimming
PVC Automatic Edge Banding Machine for Door Making with Ce

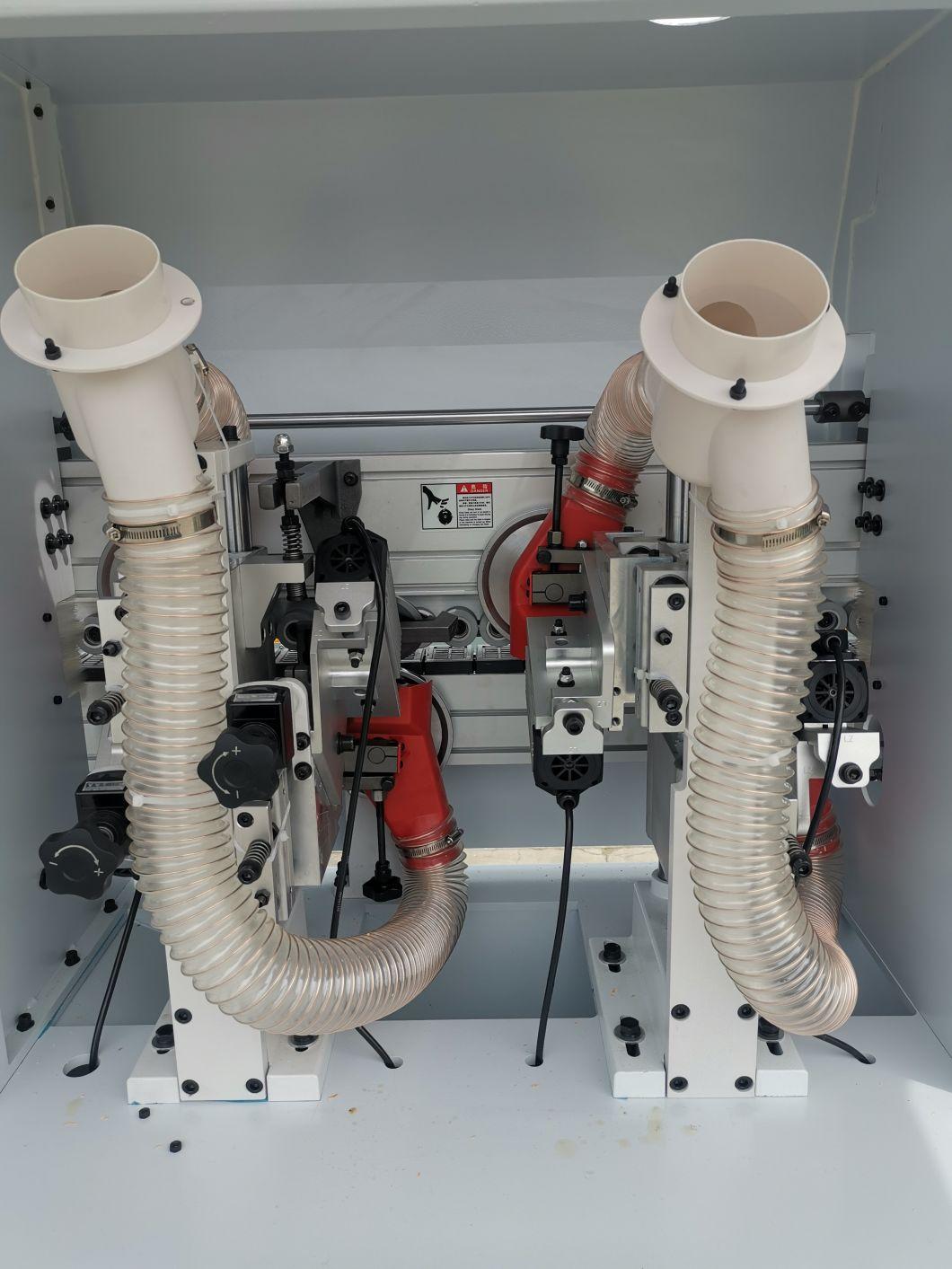

Corner rounding
PVC Automatic Edge Banding Machine for Door Making with Ce


 Notes
1. We can arrange shipment for you if you need.
2. We guarantee the machine body for one year, three months for easy-broken parts.
3. Package: standard export wooden case package.
4. Delivery time:25 days after getting the deposit.

Anything I can do here for you,pls feel free to let me know.
It's my pleasure to serve you !
