Woodworking Machinery

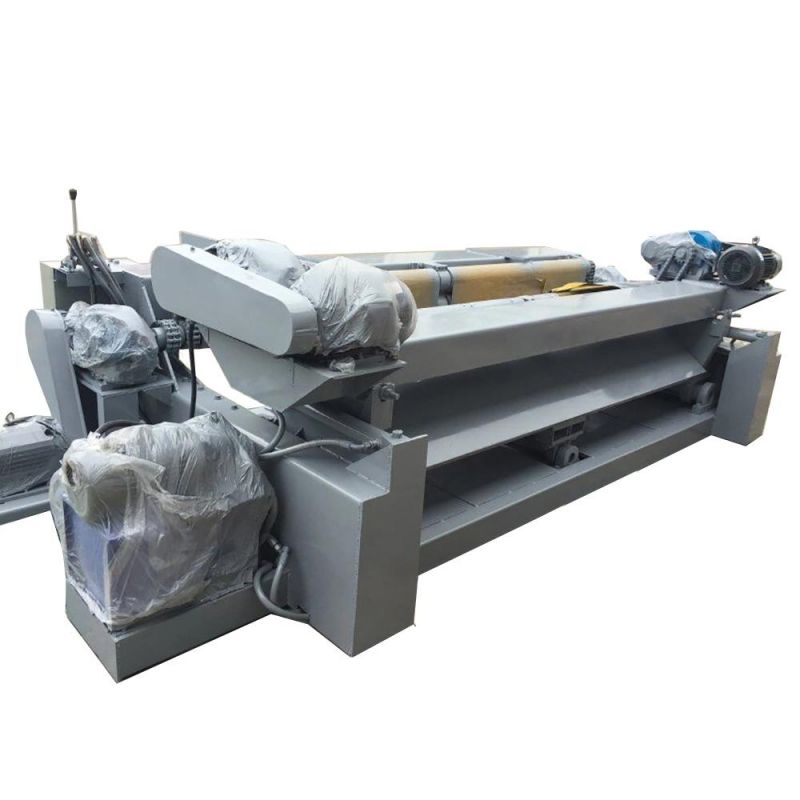

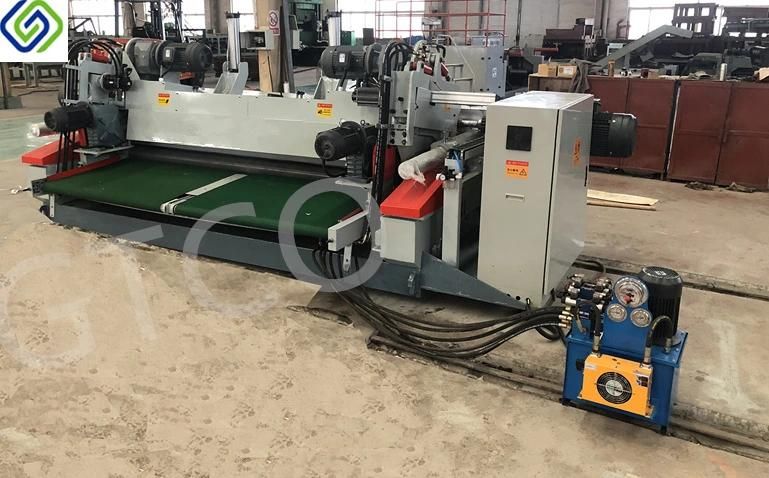

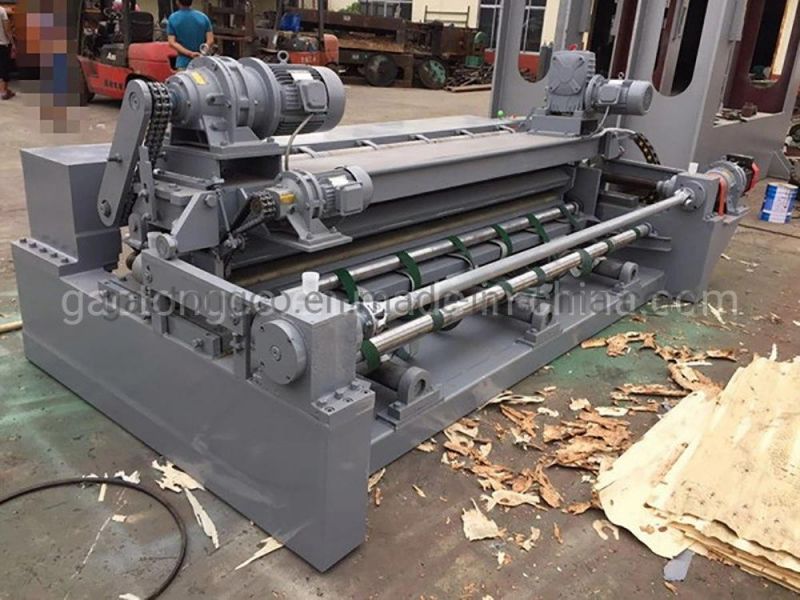

Wood Veneer Peeling Machine Log Debarker Rounding Machine

Linyi Gaotong Import & Export Co., Ltd.
  • After-sales Service:China
  • Automatic Grade:Full-Automatic
  • Warranty:1
  • Machine Type:Debarker Machine
  • Rotary Peeling Veneer Thickness:From 0.5mm to 4mm
  • Driver:Servo Motor

Base Info

  • Model NO.:GTCO
  • Processing Accessory:Centre CNC Lathe
  • Controlling Mode:CNC
  • Model No.:8 Feet Wood Veneer Production Line
  • Wood Logs Length:2700mm
  • Max Log Diameter:700mm
  • Residue Wood Diameter:35mm
  • Speed Adjust System:Yes
  • with Log Centering System:Yes
  • Peeling Machine Power:57kw
  • Hydraulic System:Yes
  • Veneer Stacker:New Model
  • Veneer Thickness:1 to 4mm
  • Transport Package:Standard Export Packing
  • Specification:7m*29m
  • Trademark:GTCO
  • Origin:Shandong, China
  • HS Code:8465960000
  • Production Capacity:50 Sets,Month

Description

1300mm Wood Peeling Machine Technicial Details Max. wood diameter 500mmMax.Wood log length1300mmBlade length1500mmThickness of veneer peeling0.8-4.0mmLinear speed of host machine55m/minDouble roller diameter120mmSingle roller diameter120mmDouble roller motor power7.5kw*2pcsSingle roller motor power5.5kw*2pcsCutting knife motor power2.2kwRubber roller motor power1.5kwFeeding motor power7.5kw(servo motor)Veneer conveyor motor power1.5kwTotal power38.7kwTotal weight6000kgMachine dimension4500*1900*1450mmWood Veneer Peeling Machine Log Debarker Rounding MachineRelated Machine --Wood Log Debarking and Rounding Machine
Technical SpecificationsWood Veneer Peeling Machine Log Debarker Rounding MachineMax. working length2600mmWorking diameter range22~700mmMax. working speed70m/minVeneer thickness0.5~4mmDouble rollers motor power11.5kw x 2setsScrew Feeding motor power11kwRotary clipper motor power4kwMachine size6000x2200x1700mmMachine weight8500kgsThe Function:
Removing wood bark, and make log round.
The Structure:
Wood debarker machine structure is simple, mainly consist by: machine frame, motors, cylinder, hydraulic station, knife
The Working Principle:
When start machine, put log into it, worker shake handle, machine will work.

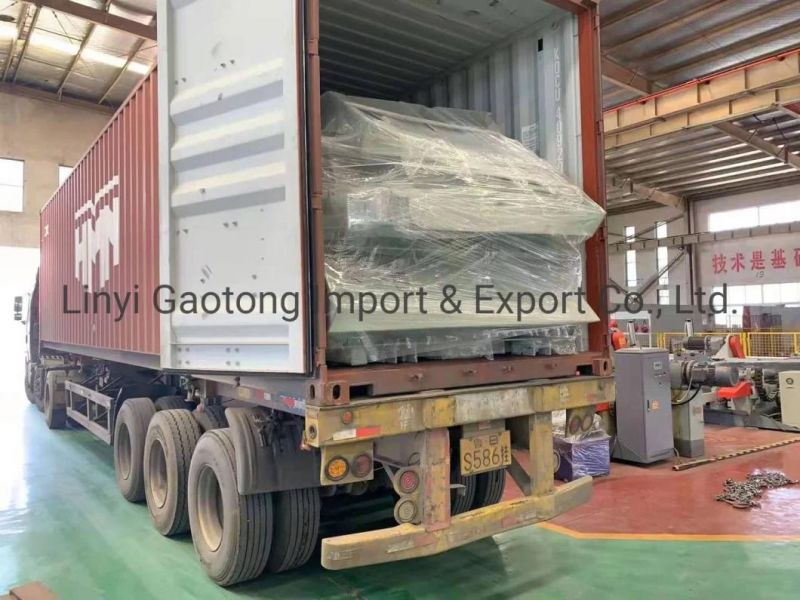

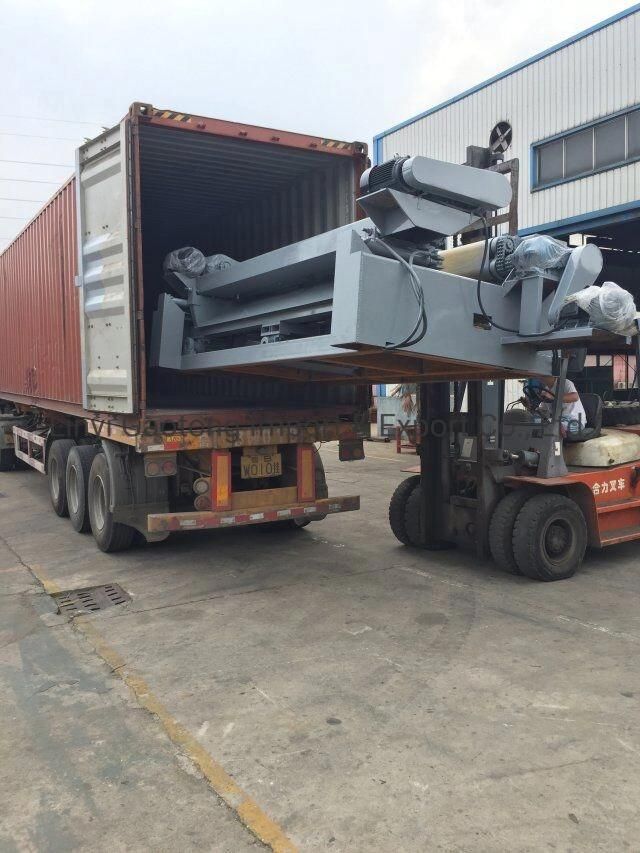

  Wood Veneer Peeling Machine Log Debarker Rounding MachineWood Veneer Peeling Machine Log Debarker Rounding MachinePacking and Shipping:
1. Machine body packed in plastic film
2. Spare parts and electrical parts packed in plywood boxes.
3. Fixed in container with steel wires.

Wood Veneer Peeling Machine Log Debarker Rounding MachineWood Veneer Peeling Machine Log Debarker Rounding MachineOur Services
1. Design and produce based upon your production need. Provide full sets of drawings and manuals.
2. One year warranty for the machine. Liftetime after-sales service and maintenance.
3. Professional team for oversea machine installation&debugging.
4. Help train and guide machine operating.

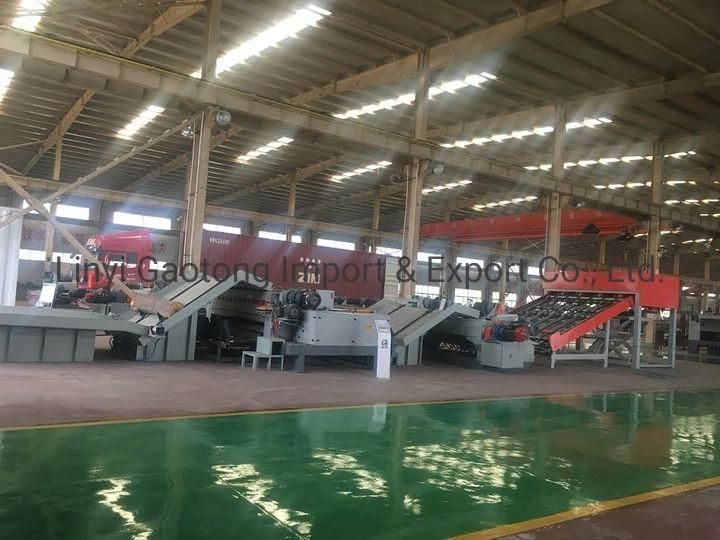

We also supply the whole veneer peeling machine production line.
Wood Veneer Peeling Machine Log Debarker Rounding MachineWood Veneer Peeling Machine Log Debarker Rounding MachineWood Veneer Peeling Machine Log Debarker Rounding Machine

Our staff of sales and technical support is available to help you in selecting the right equipment for your application; Also according to the actual requirements provide solutions with clients.

1.Engineers available to service machinery overseas;

2.Warranty: 1year;

3.For the installation, seller will send the drawing for fabrication on site. Seller shall send

engineers to guide installation. Buyer shall supply all the necessary help during

installation. Air tickets and accommodation will be borned by buyer, our engineers should

be paid 100USD per day.


For more details,please contact me as below
Lydia Hu
