• Model NO.：DW1325
• Customized：Customized
• Condition：New
• Color：Customized
• X,Y Working Area：1300mm*2500mm
• Z Working Area：200mm
• Table Size：2100mm*3100mm*1750mm
• Max Feeding：4m-5.5m,Min
• Work-Holding：2m-3m,Min
• Resolution：0.005mm
• Interface：USB
• Command：G Code*.U00*.Mmg*.Plt
• Drive Motor：Stepper
• Spindle Power：2.2 Kw
• Transport Package：Plywood Box, Free From Fumigation
• Specification：CE
• Trademark：DWIN
• Origin：Jinan, Shandong, China
• HS Code：846599
• Production Capacity：50 Sets Per Month

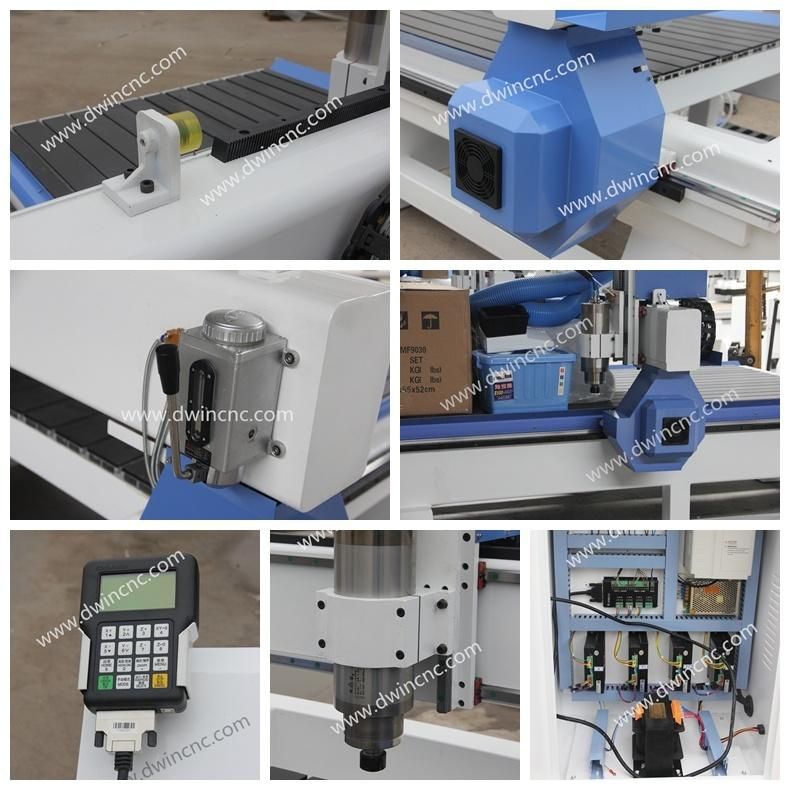

Model NoDW-1325-ATCPlatform Size (mm)1380*2900mmEngraving range (mm)1300*2500mmZ axis traveling height(mm)180mmMax feeding height200mmFuselage Structure8MM thick heavy-duty tubular steel frame,Full-welded.VSR processedZ-axis ClevisU-shape casting aluminium,CNC processingY-axis side wallcasting Iron,CNC processingBed body8mm thick steel frame CNC processingX-axis Cleviscasting Iron,CNC processingBeam8mm steel frame,CNC processingBed frame6mm steel frameSheet metal2mm baking paint sheet metalSurface materialthicken aluminiumAdsorption method5.5 kw Vaccum tableXY TransmissionGermany Slanting rackZ-axis TransmissionTaiwan Hiwin 25 ball ScrewRail configurationTaiwan Hiwin 25 Square linear guide railPositiong accuracy0.15/300mmSpindle speed0-24000(r/min)Y-dual driveJapanYaskawa Servo-drivenX/Z axis driveJapanYaskawa Servo-drivenControl systemNK200 Nc studion control system human-machine interfaceCode formatsG code ,U00 mmg ,ncIdle speed0-2000mm/mimWorking speed0-1500mm/minResolution0.00625/minCutter diameter3.175mm,4mm 6mm,8mm,10mm,12.7mmSpindle power5.5kw watter cooling ATCCooling systemsWater coolingATC magazine8-tool Linear ATC magazineWeight2700kgsElectric BoxNormal Elecrtic BoxPower220-380v 50hz(internal power)Mode of motionGantry moving

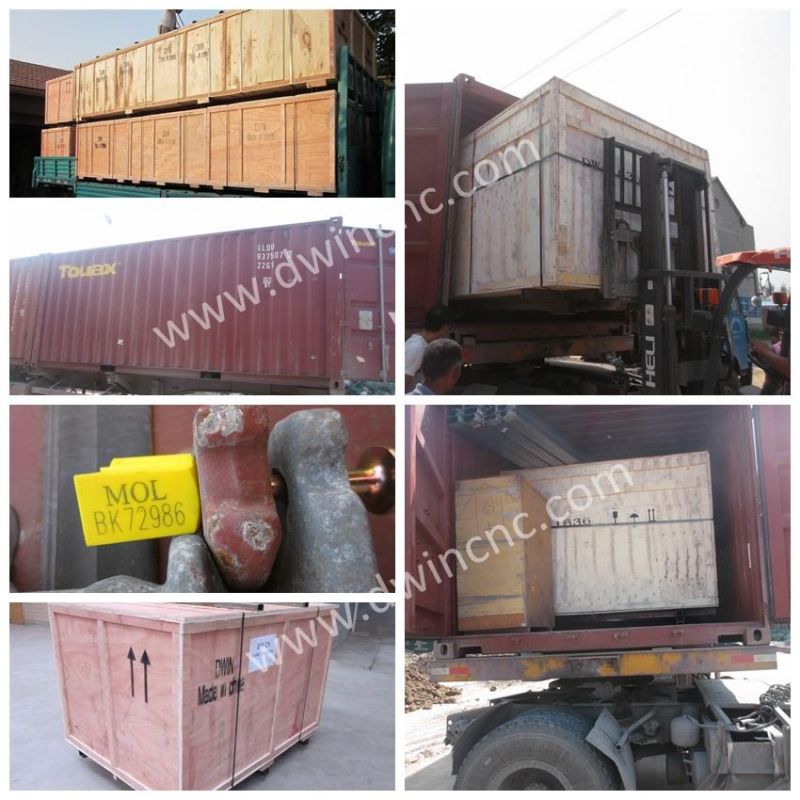

 Packaging and shipping :
All cnc router machine are packed with standards inner plastic wrap and outer plywood case, inner package would be help to tight all the machine samll parts in the package. And the plywood is firm enough to protect the cnc router machine during shipping.

Guarantee & After Sales Service:
1. Gurantee for cnc router are two years excluding consumable parts. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charge.
2. Free training course at our plant.
3.We will provide the consumable parts at an agency price when you need replacement.
4.Machine has been debugging before delivery, operation disk was included. If there is also any questions, pls kindly tell me
5.12 months quality guaranty, the cnc router machine with main parts(excluding the consumables)shall be changed free of charge when if there is any problem during the warranty period.
6.24 hours online service(skype, wechat, whatsapp, email, telephone) each day, free technical support.
