3D 4 Axis 1325 1530 Wood CNC Router for Woodworking
SHANDONG IGOLDEN CNC TECHNOLOGY CO., LTD.- Condition：New
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：380V
- Model No.：1325 CNC Woodworking Machine
- Guide Rail：Taiwan Hiwin Square Guide Rail
Base Info
- Model NO.：IGP-3A-1325
- Transmission：Taiwan Tbi Ball Screw
- Motor and Driver：Stepper and Servo for Your Choose
- Inverter：Fuling Inverter
- Software：Ucancam , Artcam,Type3
- Transport Package：Strong Wooden Case
- Trademark：iGoldencnc
- Origin：China
- Production Capacity：300 Sets

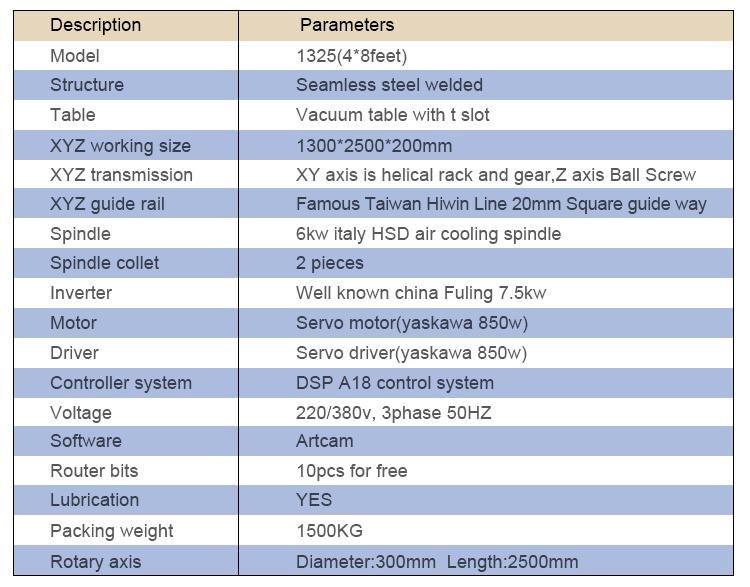

Description
Usable working area (X*Y*Z)
Table size
Z travel
Package Size
Total weight (with package)
1500*3000*500mm
3800*2000mm
800mm
4000mm*2200*1800mm
2000KGS
Machine structure
Table
Gantry
Color
Parts
Thick steel frame
Aluminium T-Slot with PCV covered
Steel
Standard color red
Metric norm
X configuration
Y configuration
Z configuration
Hiwin linear square guide rails. Rack and pinion
Hiwin linear square guide rails. Rack and pinion
Hiwin linear square guide rails.Hiwin ball screw
X servo-motor
Y servo-motor
Z servo-motor
Brand servo-motors and servo-drivers
Servo-motor with precision gearbox
Double servo-motor with precision gearbox both
Servo-motor with precision gearbox
Leadshine
Resolution
Reposition accuracy
0.02mm
0.05mm
Max. Traveling speed XYZ
Max. Working speed
35000mm/min
25000mm/min
Spindle type
Spindle power
Spindle speed
Inverter
Air cooling ER32
9.0Kw
0-24000rpm
11Kw
Working voltage
380V / 220V-50Hz
Command code
G-code
Control system
NC- Studio
Software
Artcam
Dust collector
Yes
MPG Handwheel
Yes
Tool setter (Sensor)
Yes
oil lubricator
Yes
3 Kit collets ER32
13,10,8mm
Electric control box
Yes
EMI Filter
Yes
Wire protect
Yes
Computer
Monitor
Software and configuration install PC
Setup control
I3 processor-2Gram-2G graphics-100G disc
19"
Windows 7 and all programs installed
Milimeters
User Manual machine
CE conformity machine
Electrical sheet cabinet
User Manual inverter
User Manual servo driver and motors
User Manual all software
Yes
Yes
Yes
Yes
Yes
Yes
