Woodworking Machinery

Bandsaw Portable Sawmill / Portable Horizontal Band Sawmill

Yantai Rima Machinery Co., Ltd.
  • Type:Band Saw
  • Power Type:Gas
  • Layout:Horizontal
  • Controlling Mode:Hydraulic Semi-automatic
  • Automatic Grade:Manual
  • Precision:High Precision

Base Info

  • Model NO.:RS31G
  • Certification:CE, ISO
  • Customized:Non-Customized
  • Condition:New
  • Color:Yellow
  • Power:Gasoline 15HP (Lifan, Manual Start)
  • Displacement:420cc
  • Cutting Capacity:790*178*2794mm(31" *7" *110")
  • Frame:4PCS
  • Blade Size:3670*34*0.9mm (144"*1.25"*0.035")
  • Safe Cutting Speed:13-15s,M
  • Blade Speed:17m,Min
  • Distance Teeth:22mm (0.86”)
  • Blade Wheel Dia:475 mm (18.7”)
  • Dimension:4064*1778*1800mm (160" *70" *71")
  • Track Size:4042X900mm(159" X 35.4")
  • Packing:P1: 1800*550*810mm, P2: 2000*140*95mm
  • Weight:312,344kg
  • 20"/40"Hc:39PCS,78PCS
  • Transport Package:Iron Frame and Carton
  • Specification:31in
  • Trademark:Rima
  • Origin:China
  • HS Code:84659100
  • Production Capacity:200 Pieces , Month

Description

Basic Info.

Model NO. RS31G Certification CE, ISO Customized Non-Customized Condition New Color Yellow Power Gasoline 15HP (Lifan, Manual Start) Displacement 420cc Cutting Capacity 790*178*2794mm(31" *7" *110") Frame 4PCS Blade Size 3670*34*0.9mm (144"*1.25"*0.035") Safe Cutting Speed 13-15s/M Blade Speed 17m/Min Distance Teeth 22mm (0.86”) Blade Wheel Dia 475 mm (18.7”) Dimension 4064*1778*1800mm (160" *70" *71") Track Size 4042X900mm(159" X 35.4") Packing P1: 1800*550*810mm, P2: 2000*140*95mm Weight 312/344kg 20"/40"Hc 39PCS/78PCS Transport Package Iron Frame and Carton Specification 31in Trademark Rima Origin China HS Code 84659100 Production Capacity 200 Pieces / Month

Product Description



Product Description

The reliable bandsaw mill offers sawyers an economical and durable solution to meet their milling needs. From the powder-coated structure, to the reliable Kohler gas engine, this mill will exceed your expectations.  The head moves up and down along galvanized steel channel via a very easy to turn hand crank system. The blade is kept lubricated by utilizing a water drip system. This prevents sap from gumming up your blade.

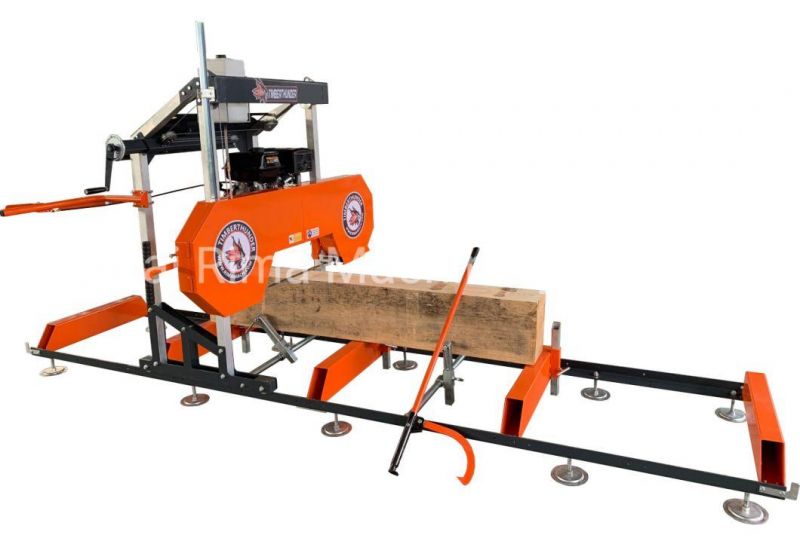

Bandsaw Portable Sawmill / Portable Horizontal Band Sawmill




Specifications

ModelRS26GRS31G
Power Gasoline 9HP (LIFAN, Manual start)

Gasoline 15HP (LIFAN, Manual start)
Displacement
301cc

420cc
Cutting capacity660*178*2794mm
(26"*7"*110")
790*178*2794mm
(31"*7"*110")
Frame
4pcs

4pcs
Blade size3670*34*0.9mm
(144"* 1.25"* 0.035")
3670*34*0.9 mm
(144"*1.25"*0.035")
Safe cutting Speed
13-15s/m

13-15s/m
Blade speed
17m/min

17m/min
Distance teeth
22mm (0.86")

22mm (0.86")
Blade Wheel Dia.
475 mm (18.7")

475 mm (18.7")
Dimension4064*1778*1800mm (160"*70"*71")4064*1778*1800mm (160"*70"*71")
Track size
4042x900mm(159"x35.4")

4042x900mm(159"x35.4")
PackingP1: 1800*550*810mm, P2: 2000*140*95mmP1: 1800*550*810mm, P2: 2000*140*95mm
Weight
312/344kg

352/380kg
20"/40"HC
39pcs/78pcs

39pcs/71pcs


Detailed Image

1. Cutting

The mill is capable of cutting 26" (66cm) diameter logs up to 110" (2.8m) long. Additional track sections are available in 79" (2m) lengths. The RS26G will cut within 1" (25mm) of the deck ensuring you maximize your usable board foot output.

Bandsaw Portable Sawmill / Portable Horizontal Band Sawmill



2. Power

The RS sawmill can be powered by your choice of a 14 HP Kohler recoil start gas engine. It features a slant cylinder design, with a cast iron cylinder bore and overhead valve for easy access. The Quad-Clean 4-stage air filtration system ensures only clean air enters the engine for maximum power and life of the engine. In addition, this engine is backed by a 3 year commercial warranty. Attached to the engine is an industrial centrifugal clutch system which offers "gas and go" efficiency and ease.
                  Bandsaw Portable Sawmill / Portable Horizontal Band Sawmill

3. Track System

Heavy duty cross supports provide additional rigidity to the track system. The track features a simple adjustable log support to securely hold the log while milling. The track itself consists of two sections allowing for 110" (2.8m) log lengths. Additional 79" (2m) tracks may be attached to accommodate logs of any length.

Bandsaw Portable Sawmill / Portable Horizontal Band Sawmill

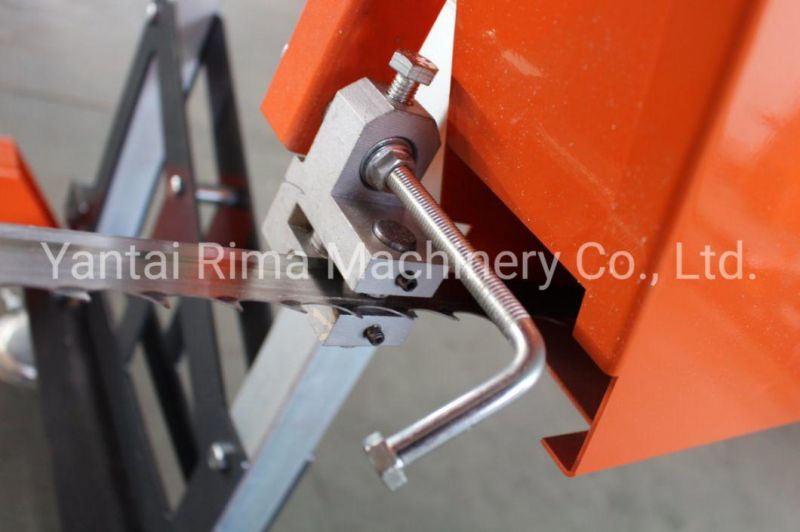

4. Blades

RS sawmill utilizes 3670*34*0.9 mm(144"*1.25"*0.035")  hardened tipped blades. Blade kerf is kept to a minimum at just 0.08″ (2mm) to maximize the most amount of lumber per log.

Bandsaw Portable Sawmill / Portable Horizontal Band Sawmill



5. Warranty

The sawmill is covered with a 1 year warranty against manufacturer's defect and excludes wearing parts (belts, blades & bearings). The Kohler engine is covered by a 3 year commercial warranty which is honoured through any Kohler small engine dealer.

Bandsaw Portable Sawmill / Portable Horizontal Band Sawmill


Accessories

 1. 2m Track Extension

Bandsaw Portable Sawmill / Portable Horizontal Band Sawmill

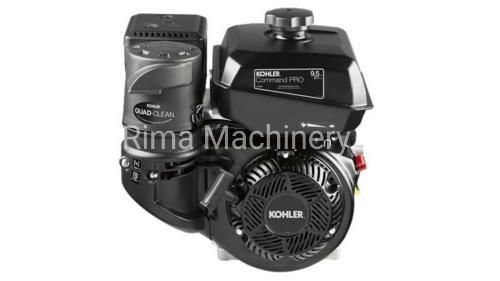

2. 14 HP Kohler

Bandsaw Portable Sawmill / Portable Horizontal Band Sawmill

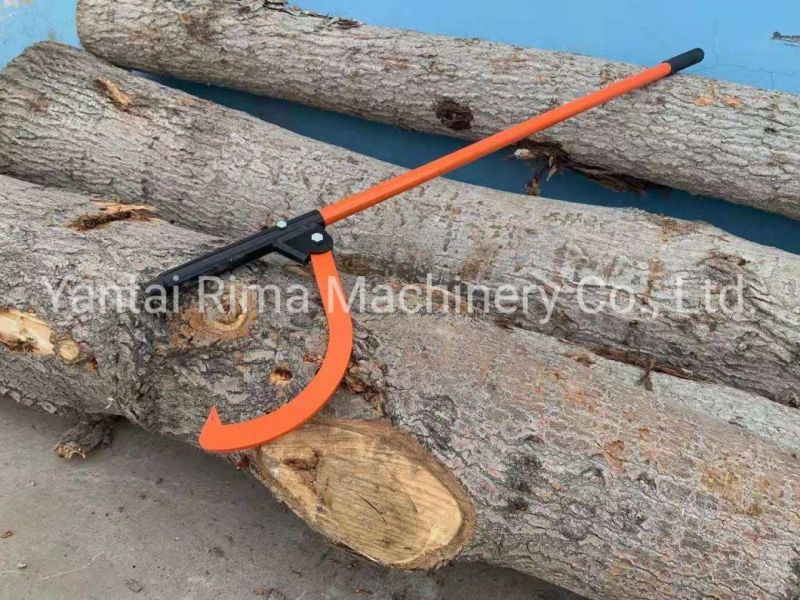

3. 48in Log TongBandsaw Portable Sawmill / Portable Horizontal Band Sawmill

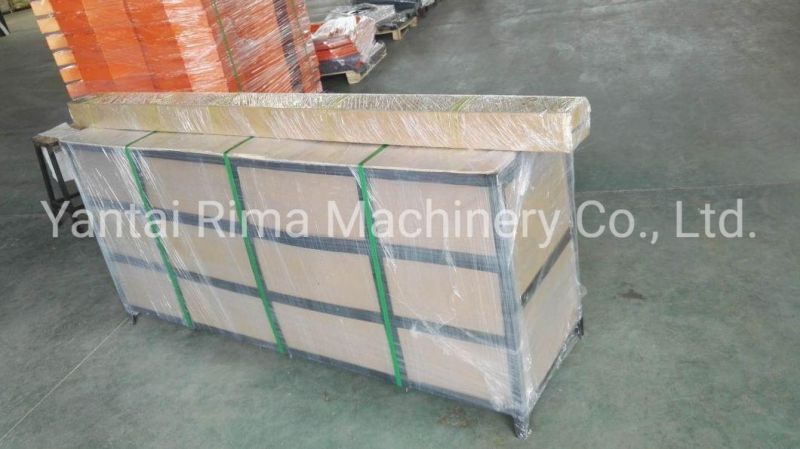

Shipping Information

Bandsaw Portable Sawmill / Portable Horizontal Band Sawmill


Certifications
Bandsaw Portable Sawmill / Portable Horizontal Band Sawmill
