• Model NO.：SK1328A
• Precision：High Precision
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• After-sales Service：2 Year Warranty
• Name：4 Side Door Frame Cutting Machine
• Traveling Size：1300X2800X150 mm
• Worktable Size：1300X2800 mm
• Gross Cut Capacity：2700 mm
• Cutting Width：1200 mm
• Max. Cutting Thickness：65 mm
• Spindle Power：5.5kw *3+ 1.1kw *3
• Scoring Saw Blade Diameter：120 mm
• Main Saw Blade Diameter：300 mm
• Driving System：Servo Drive
• Transport Package：PE Package
• Specification：5500*2300*2300 mm
• Trademark：SOSN
• Origin：China
• Production Capacity：100 Sets, Year

Basic Info.

Model NO. SK1328A Precision High Precision Certification CE, ISO Customized Customized Condition New Color Customized After-sales Service 2 Year Warranty Name 4 Side Door Frame Cutting Machine Traveling Size 1300X2800X150 mm Worktable Size 1300X2800 mm Gross Cut Capacity 2700 mm Cutting Width 1200 mm Max. Cutting Thickness 65 mm Spindle Power 5.5kw *3+ 1.1kw *3 Scoring Saw Blade Diameter 120 mm Main Saw Blade Diameter 300 mm Driving System Servo Drive Transport Package PE Package Specification 5500*2300*2300 mm Trademark SOSN Origin China Production Capacity 100 Sets/ Year

Product Description

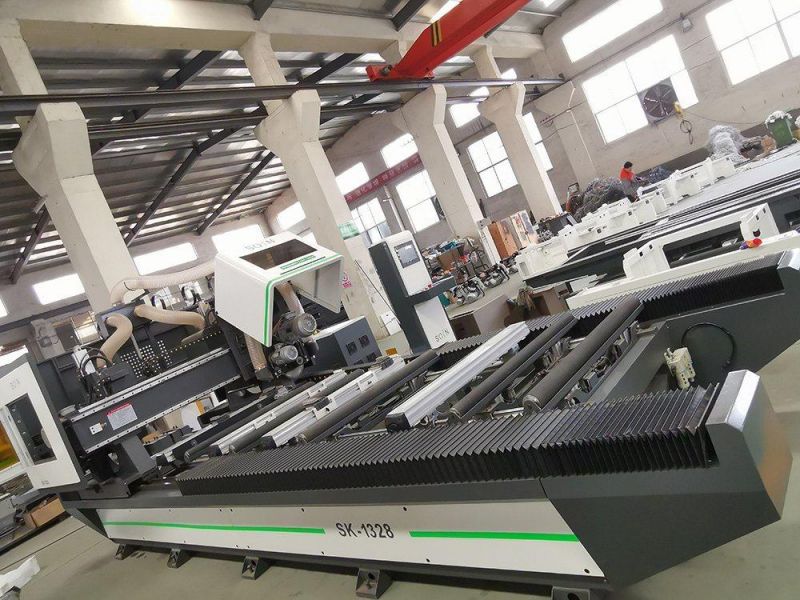

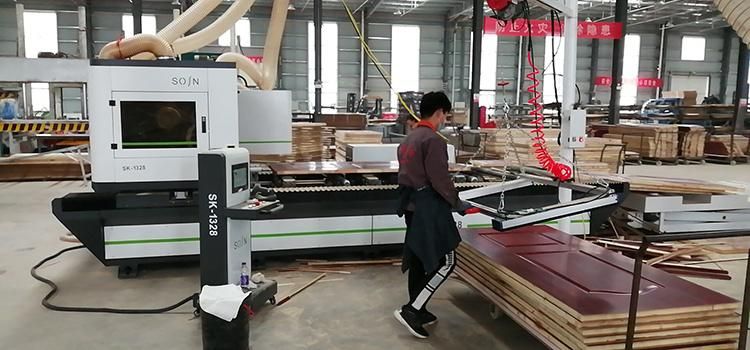

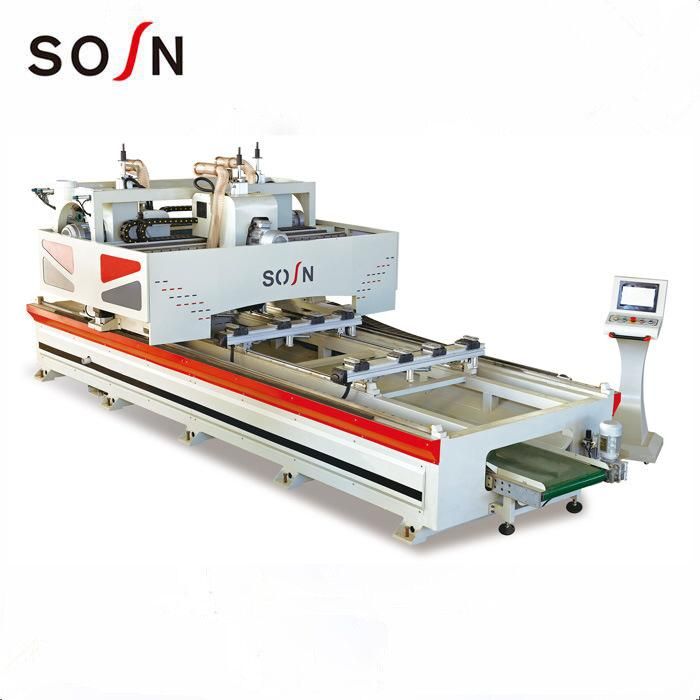

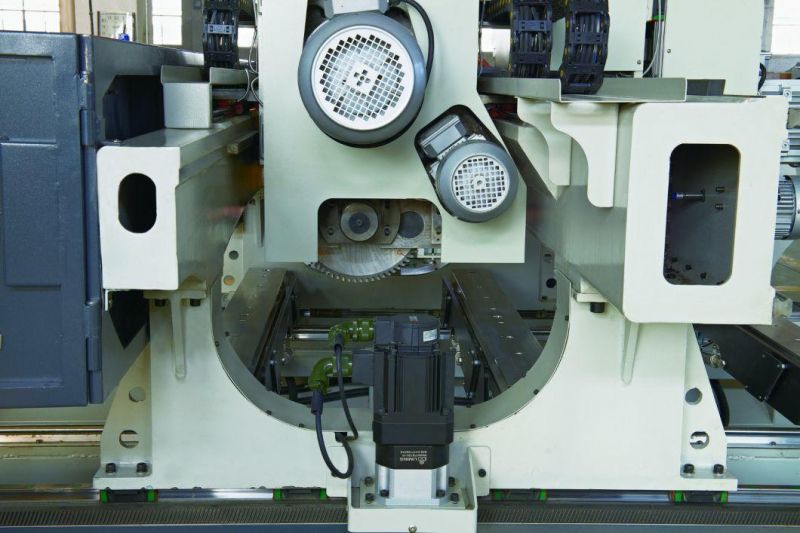

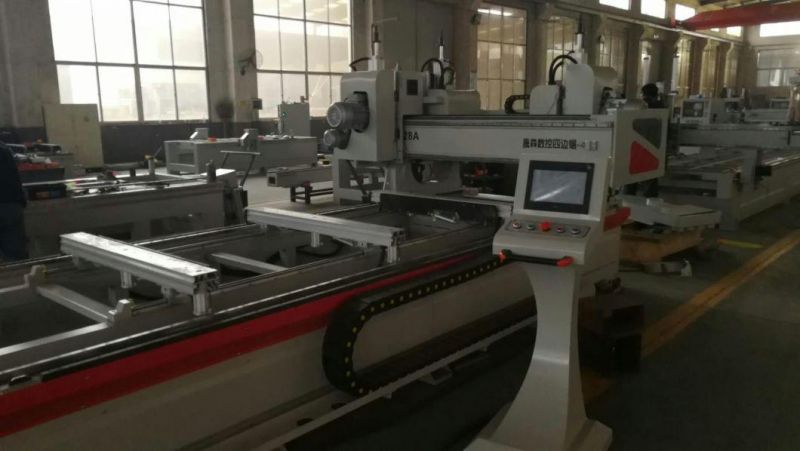

CNC 4 side door frame edge cutting machine SK1328A

Main configuration

1. Taiwan control system
2. Taiwan high precision guide rail and grinding screw rack
3. Japan servo drive system and planetary reducer
4. Imported components, such as France electronics, stable performance.

Feature

1. The body through FEA finite element analysis and annealing treat, body stability and not deformation.
2. Floating adsorption table, the whole plate adsorption or point to point adsorption. Simply enter the cutting size, and then cut. Quickly loading and unloading, shorten the auxiliary time. Improve production efficiency and reduce the intensity of labor.

Applicable industries:
It is widely used in plywood, wooded door, panel furniture, laminated timber puzzle, Blockboard, MDF, chipboard, glass magnesium board, calcium silicate board, gypsum fiberboard, Carpentry board and other manufacturers for customized size edge cutting process.
Main technical parameter:

Traveling size	1300x2800x150 mm
Worktable size	1300x2800 mm
Gross cut capacity	2700 mm
Cutting width	1200 mm
Max. Cutting thickness	65 mm

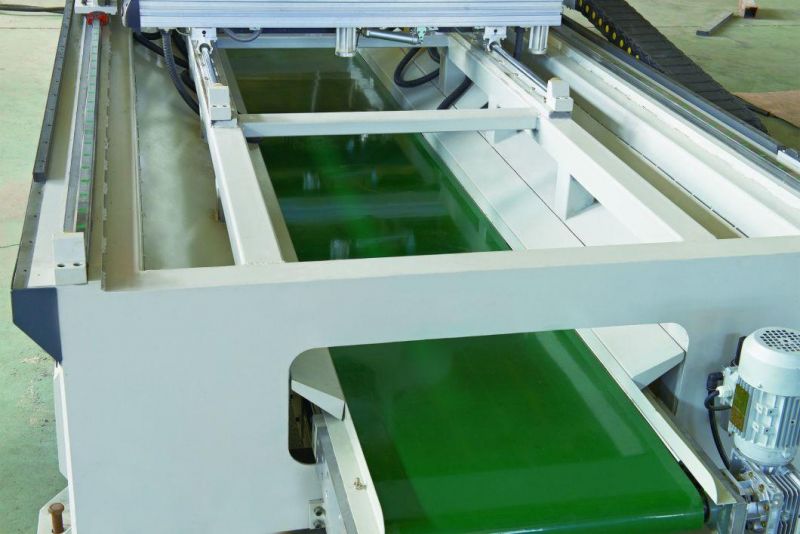

Table structure	Floating adsorption table
Drive type	Rack drive

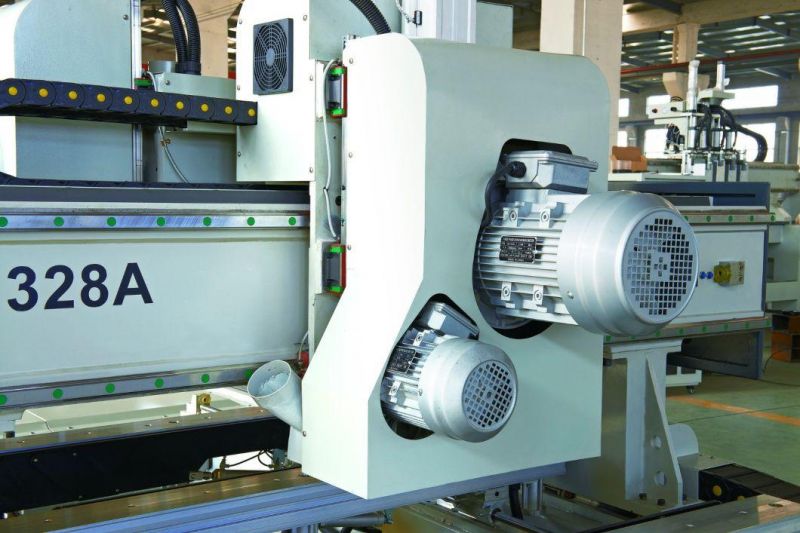

Spindle power	5.5kw *3  1.1kw *3
Spindle speed	5000 r/min
Main spindle speed	4500-6000 rpm
Scoring spindle speed	7000-9000 rpm
Max. Working speed	25 m/min

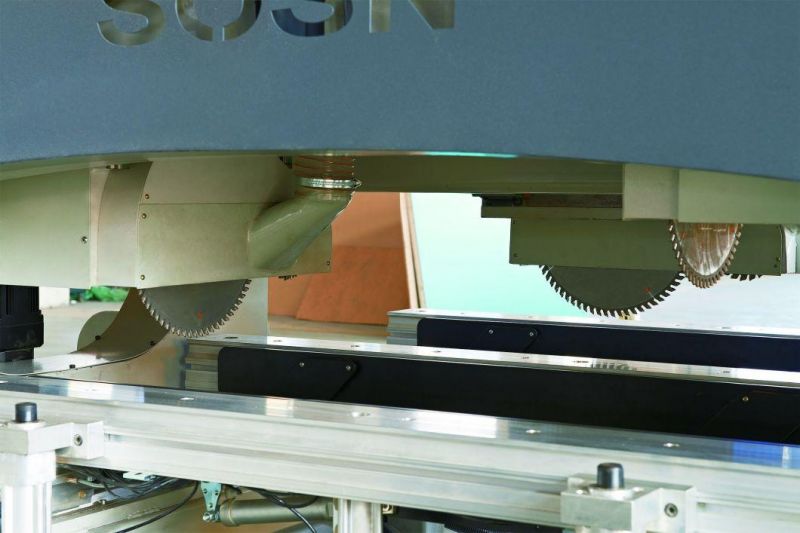

Scoring saw blade diameter	120 mm
Main saw blade diameter	300 mm
Driving system	Servo drive
Voltage	380v, 50hz, 3 phase
Control system	Taiwan Fatek
Overall dimension	5500x2300x2300 mm
Gross weight	4.5T

Working video for reference:https://youtu.be/Ns2NotXzjsA
