• Model NO.：JZ-S-288
• Trademark：JJZ
• Origin：China
• HS Code：8465910000
• Production Capacity：1000sets,Year

Basic Info.

Model NO. JZ-S-288 Trademark JJZ Origin China HS Code 8465910000 Production Capacity 1000sets/Year

Product Description

Plywood cutting machineBrief Introduction:
Our plant Saw-edge microcomputer control, high degree of automation, the use of automatic stacking,
saving manpower and resources. Infrared control, sawing precision, small error, high degree of automation, large output the automatic saw by infrated positioning, pre plate device, vertical saw car, sawn lengthwise dolly pressing mechanism, sawn lengthwise car chain transmission part, a slitting saw head, crosscut frame, crosscut car, cross cutting saw head,crosscut car chain transfer part, automatic stacking device, the whole action by the PLC control, the realization of automatic cutting and stacking of the saw, divided into 3*6 feet, 4*8 feet two specifications, power 5.5kw, 7.5kw, 11kw three specifications.


Advantages:
 1. The main structure is welded by national standard steel, high stability and no deformation.

2. The operating system is accurately controlled by PLC to achieve the high precision sawing size and automatic stacking, reduce the labor's intensity.

3. The main electric units adopt famous brand Omron, safety and reliable.

4. The machine adopts high precision wear-resistance guide rails and infrared positioning, diagonal error of plywood can be less than 0.5mm.

5. The machine adopts pre-load device, just need two workers, one work shift can produce 3000-4000Pcs 16mm plywood.

6. It has the automatic saw waste remover device.

Product Description:


Model	ABC3215-II
Working dimension	2440x1220mm
Diameter of saw blades	Ф250-Ф315mm
Working thickness	3-50mm
Rotary speed of the main saw blades	6500-7000r/pm
Overall dimension	8500x5500x1020mm
Machine weight	7200Kgs
Total motor power	43Kw
Remark	Include the automatic stacking system with lifting table and 4Pcs saw blades

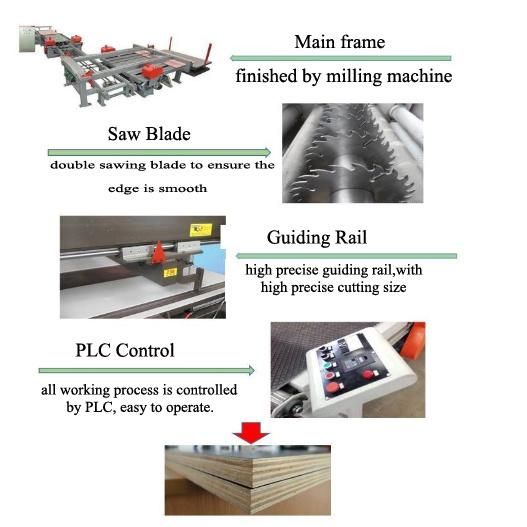

Detail images:

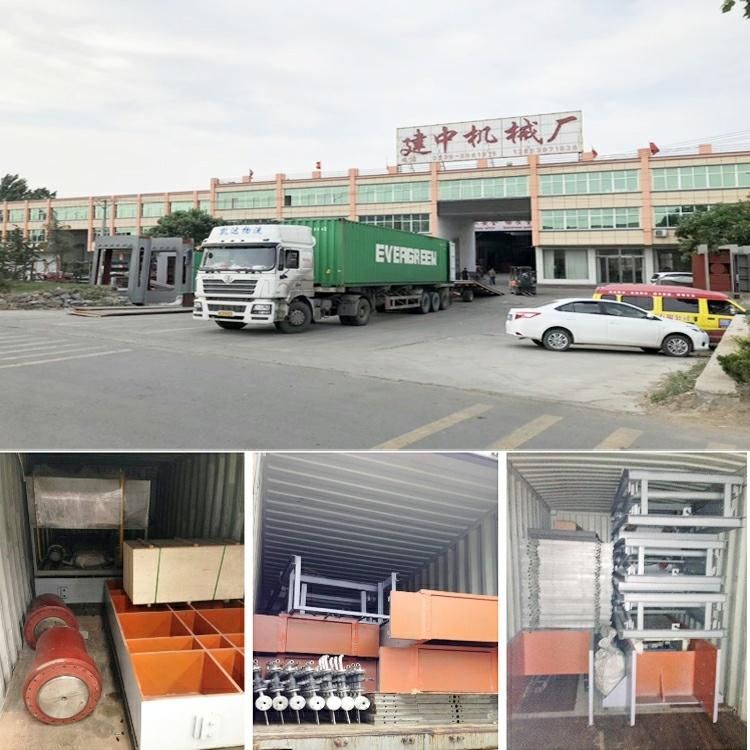

Packing&Shipping:



Certifications:



Our Services:

About us:

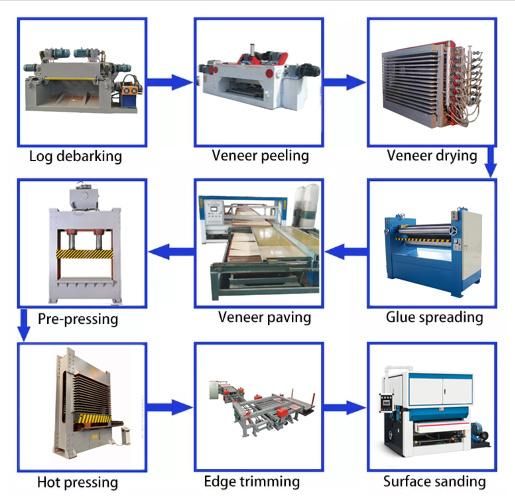

LINYI JIANZHONG WOOD MACHINERY CO.,LTD was established in 1998, which is located in Linyi, Shandong province, with a 30000 square meters' factory. Our company specializes in wood working machinery that includes wood debarker, veneer peeling machine, veneer dryer, glue spreader, glue mixer, plywood hot press machine, plywood cold press machine, planking machine, plate turnover, lift table, plywood sawing machine, grinding oblique machine, plywood paving machine and plywood sanding machine, with abundant domestic sales experience and export experience.
With the whole plywood production line and the strong research team, the machines which independently developed by our company have gained national patents and good reputation. With the huge economic forces and production well as rich experience, we can provide the perfect equipments and the solution to the wood working industry. Besides, our products can be found everywhere in China and we also export to Australia, Southeast Aisa and so on. Currently, our products have been exported to more than 20 countries and regions, we provide life-cycle service solutions and technical support for our customers.

History:




Please be comfortable to contact us right now to get more information if you have some interests!

All kinds of plywood and plywood woodworking machinery products can be customized according to your requirements~
