High Efficient Straw Stalks Material Granulator Manufacturer

Jiangsu Liangyou Zhengda Co., Ltd.
  • Type:Wood Pellet Mill
  • Voltage:380V
  • Automatic Grade:Automatic
  • Controlling Mode:Artificial
  • Energy Saving:Energy Saving
  • Certification:CE, ISO

Base Info

  • Model NO.:LZLH470
  • Warranty:1 Year
  • Customized:Customized
  • Condition:New
  • Color:Multi Color
  • After-sales Service:Provided
  • Capacity(T/H):0.8-1.2
  • Main Power(Kw):75,90
  • Pellet Size(mm):6-8
  • Power of Screw Feeder(Kw):3
  • Power of Force Feeder(Kw):1.5
  • Transport Package:Iron Pallet and Soft Guard
  • Specification:1000 KG
  • Trademark:FDSP
  • Origin:Jiangsu, China (Mainland)
  • HS Code:8479300000
  • Production Capacity:5 Sets,Month

Description

Basic Info.

Model NO. LZLH470 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Provided Capacity(T/H) 0.8-1.2 Main Power(Kw) 75/90 Pellet Size(mm) 6-8 Power of Screw Feeder(Kw) 3 Power of Force Feeder(Kw) 1.5 Transport Package Iron Pallet and Soft Guard Specification 1000 KG Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8479300000 Production Capacity 5 Sets/Month

Product Description

High Efficient Straw Granulator at Factory Price
Introductions of pellet making machine:

1.Biomass wood pellet machine is a kind of machine which could process sawdust,straw dust,rice husk,peanut shell,tree branches etc biomass through pre-treatment and process.Those biomass material will be solidified into high-density pellet fuel.

2.Advantages of wood pellet machine:
a.  Biomass fuel is a kind of solid pellet fuel made up from corn straw,wheat straw,rice straw,peanut shell,rice husk,tree branches,leaves,sawdust,tree bark etc solid waste.These materials are processed with crushing,pressing and molding to small rod-like solid  granular fuel.The fuel is extruded by rollers and ring die under common temperature.The density of the fuel is about 0.9-1.6g/m³.

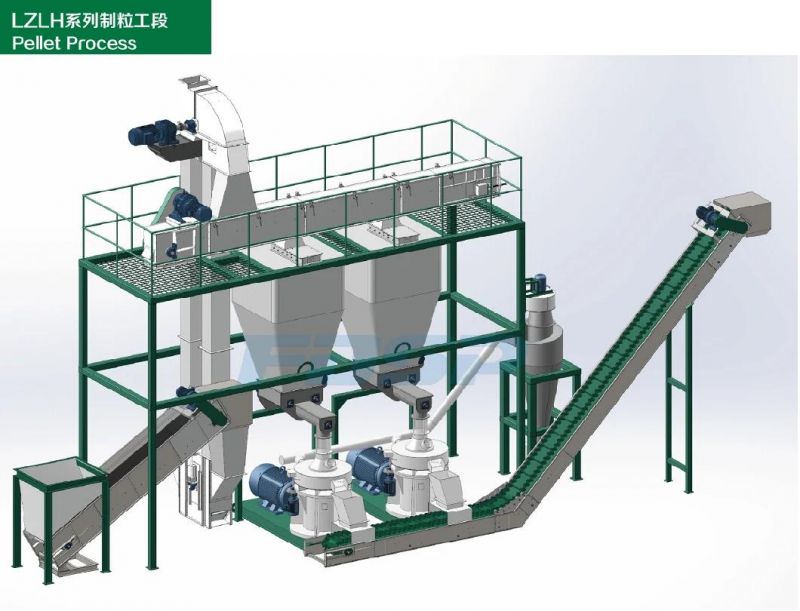

b. The technological process:Materials collection-----Crushing-----Drying-----Molding----Packing

c. The application of biomass fuel:A new kind of bio-energy,which could talk place of wood,coal,gas etc and widely used in heating,life stoves,industrial boilers,biomass power plant etc.

3.Classification:Flat die wood pellet machine,horizontal ring die wood pellet machine and vertical ring die wood pellet machine.Our product is horizontal ring die pelletizer,which have higher output than flat die machine,compared with vertical ring die pelletizer,our product is better choice with the stable performance for long time and easy maintenance.Moreover,our finished pellets are compact so they can be applied for industrial boiler.


High Efficient Straw Stalks Material Granulator Manufacturer
The features of our biomass pellet machine:
ItemWood biomass pellet machine
Pellet Mill Type- With Standard Feeder
- With Anti-broken Feeder




Technical Parameters

- Capacity: 0.8-1.2(T/H)
- Size: 2800*1150*2100(mm)
- Power: 75/90KW
- Inner diameter of die: 420(mm)
- Pellet size: 6ø, 8ø, 10ø(mm)
- Net weight: 4000(kg)


Main Features
- CE & ISO & SGS certification
- Siemens motor, NSK/ SKF bearing
- High precision gear-driven transmission system
- One ring die and two rollers system

Optional Parts
- Screw feeder with anti-broken
- Conditioner: To adjust the moisture of raw material.
- Auto cooling system for gear-box(large capacity)
Packing ModeIron pallet with stretched film, etc
MOQ1 set
PaymentL/C, T/T, Western Union, Money Gram...
Warranty12 months

Performance Parameter
ModelLZLH630LZLH680LZLH880
capacity(t/h)1.5-22-2.53-3.5
inner diameter of ring die mm630700880
working surface width of ring die mm55(single)147(double)187(double)
qty of roller3pcs3pcs3pcs
power132+2.2+1.5+0.08+0.55160+2.2+1.5+0.08+1.5*2220+2.2+2.2+0.08+1.5*2
ring die hole size mm6/8/106/8/106/8/10
High Efficient Straw Stalks Material Granulator ManufacturerFDSP is total solution provider mainly for feed industry and integrated with feed machinery, storage machinery, fertilizer machinery renewable en ergy machinery and its engineering. Taking "To create value for customers" as our motto, we are dedicated to provide elaborately-designed, economic & attractive, durable solution for our overseas customers.
We have passed Certificate for ISO9001, CE, SGS and our customers are enjoying with us in SEA, Middle East, Africa, Oceania, South America, etc. We have accumulated abundant experience for comprehensive development, utilization of agriculture.
We will become leader definitely for industry and strive to boost well-beings of society, be trustworthy, stable partner for long-term and create value for customers.

High Efficient Straw Stalks Material Granulator Manufacturer

FAQ:
Q:why choose us?
A: we are the manufacturer which has about 20 years experience, has own research and development team.

Q:I know little about feed machine and production line ,what am I supposed to do?
A:please tell us your requirement, such as what kind of feed you want produce, the output you want per hour, how many raw materials you use and so on, we will design the flow diagram for you. And further our engineer will discuss the suitable product line for you depend on your situation.

Q:our worker can not know how to operation the production line, what should I do?
A:we has installation and AS service team, our engineer can go to client's factory to install the equipments and train your relevant employee.

Q:if the machine has small mistake when produce and can not solve, what am I supposed to do ?
A:please contact us immediately by email, skype, telephone and so on. We can give you solution with video guidance, also if it is necessary our engineer can go your site directly.
