Woodworking Machinery

Low Investment Hammer Beater Wood Chips Grinder

Jiangsu Liangyou Zhengda Co., Ltd.
  • Type:Wood Hammer Mill
  • Voltage:380V
  • Automatic Grade:Automatic
  • Controlling Mode:CNC
  • Energy Saving:Energy Saving
  • Certification:CE, ISO

Base Info

  • Model NO.:MFSP66*60
  • Warranty:1 Year
  • Customized:Customized
  • Condition:New
  • Color:Blue
  • Output (T/H):3.5-4
  • Power (Kw):75
  • Rotor Diameter(mm):660
  • Grinding Chamber Width(mm):600
  • Rotating Speed(M/Rpm):2970
  • Transport Package:Pallet
  • Specification:CE, ISO, SGS
  • Trademark:Liangyou
  • Origin:Jiangsu China
  • HS Code:8479300000
  • Production Capacity:5 Sets,Month


Basic Info.

Model NO. MFSP66*60 Warranty 1 Year Customized Customized Condition New Color Blue Output (T/H) 3.5-4 Power (Kw) 75 Rotor Diameter(mm) 660 Grinding Chamber Width(mm) 600 Rotating Speed(M/Rpm) 2970 Transport Package Pallet Specification CE, ISO, SGS Trademark Liangyou Origin Jiangsu China HS Code 8479300000 Production Capacity 5 Sets/Month

Product Description

Low investment hammer beater wood chips grinder
1. It is used for grinding of small wood block, chip before pelleting;
2. Multi grinding chamber to increase efficiency by 15%;
3. Multi grinding chamber to prolong service life of screen and beater;
4. Modified rotor to increase stability and minimize over heating of bearing;
5. Modified screen locking device to make assembling &disassembling easily;
6. Unique structure design of door to absorb shake and reduce noise;
7. Modified design for grinding chamber to reduce airflow resistance and increase efficiency;
8. Depress barycenter of rotor to make more balance and coarse and fine grinding can be executed easily.

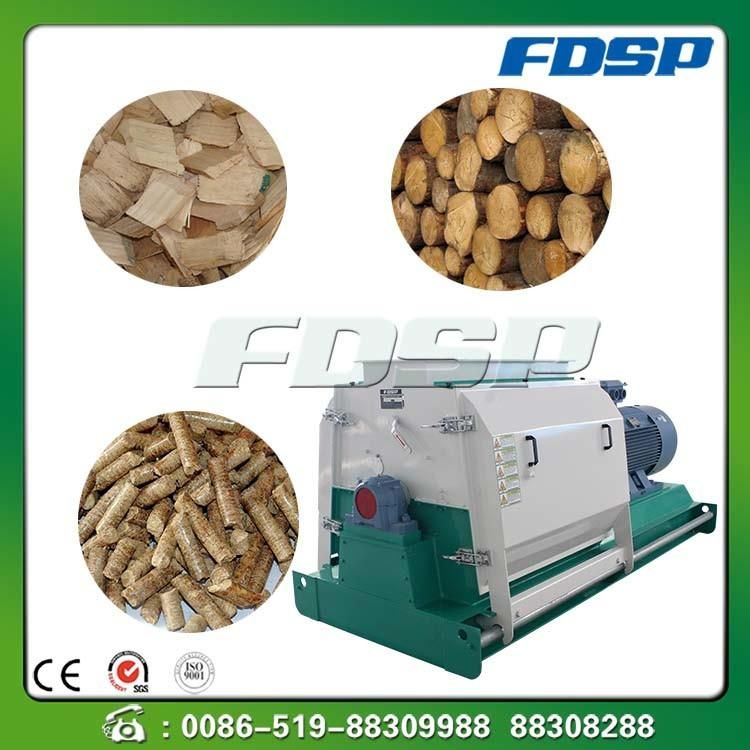

Low Investment Hammer Beater Wood Chips Grinder
Low Investment Hammer Beater Wood Chips GrinderParameters of technical and performance as below:
Rotor diameter(mm)560600600660660660
Grinding chamber width(mm)4004506006008001000
Rotating speed(m/rpm)297029702970297029702980

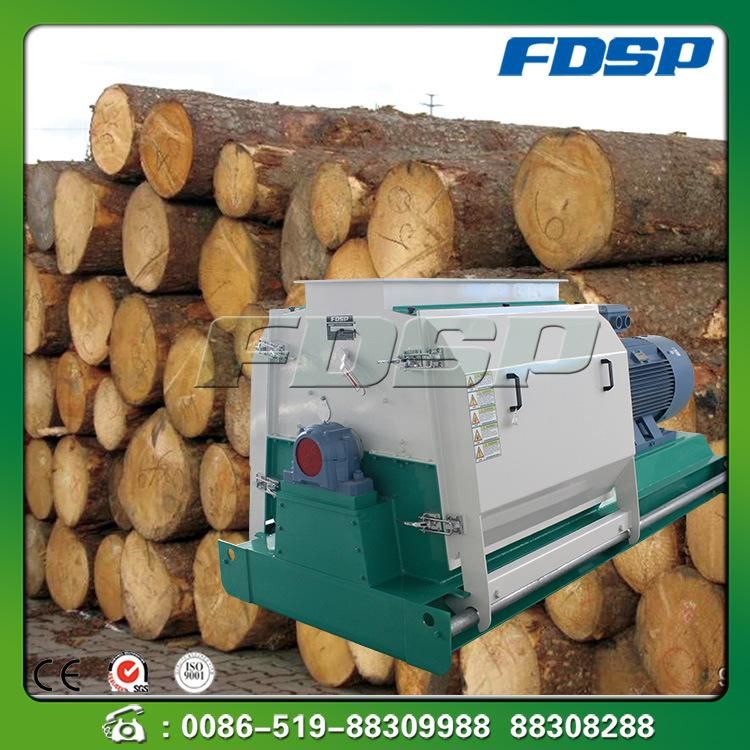

Low Investment Hammer Beater Wood Chips Grinder
Related main machinery during biomass burning pellets production process:
wood chipper-wood hammer mill(pulverizer grinder)-pre-screener-dryer-pellet mill-cooler-vibrating screener-packing machine
Please note the wood pulverizer grinder is used for cutting the wood chips which approximate size 5cm length into sawdust .

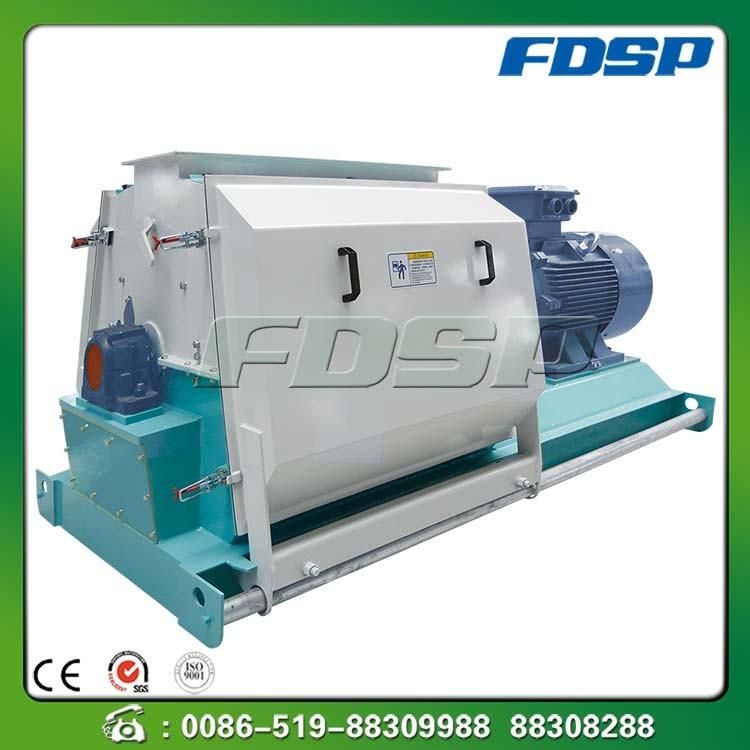

Low Investment Hammer Beater Wood Chips Grinder

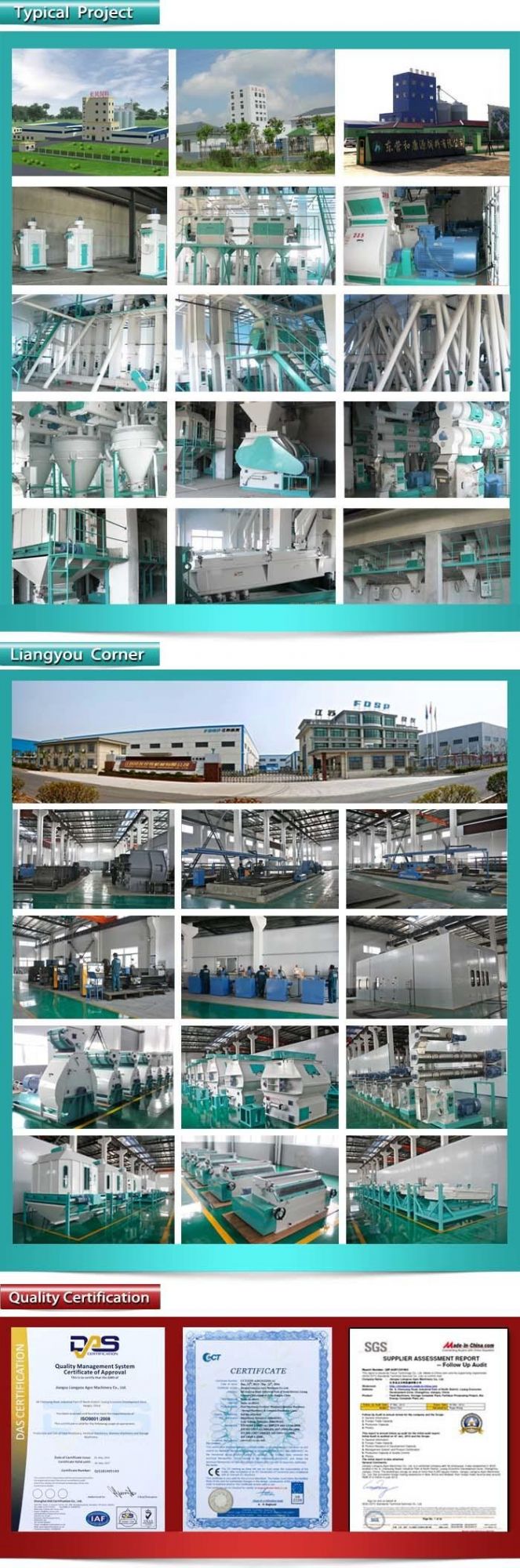

Our products have passed the SGS,ISO9001:2008,CE certifications.Moreover,we own several patents,such as "utility model patents certificate"and "high-tech products certificate",etc.we have a professional technical team,with two departments for developing single machine and customized complete pellet line solution.Most of our engineers are with over 20 year's experience in this field and also have a lot of experience in oversea projects.
Our goods exported to many countries and won the good reputation by the high quality and superior service.
