• Model NO.：WZLH420
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：Provided
• Capacity(T/H)：0.8-1.2
• Main Power(Kw)：75,90
• Pellet Size(mm)：6-8
• Ring Die Inner Diameter (mm)：420
• Ring Die Working Width(mm)：90
• Ring Die Linear Speed (M/S)：3.16
• Number of Clamp：3PCS
• Number of Roller：2PCS
• Number of Cutter：1PCS
• Transport Package：Iron Pallet and Soft Guard
• Specification：1500KG
• Trademark：FDSP
• Origin：Jiangsu, China (Mainland)
• HS Code：8479300000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. WZLH420 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Provided Capacity(T/H) 0.8-1.2 Main Power(Kw) 75/90 Pellet Size(mm) 6-8 Ring Die Inner Diameter (mm) 420 Ring Die Working Width(mm) 90 Ring Die Linear Speed (M/S) 3.16 Number of Clamp 3PCS Number of Roller 2PCS Number of Cutter 1PCS Transport Package Iron Pallet and Soft Guard Specification 1500KG Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8479300000 Production Capacity 5 Sets/Month

Product Description

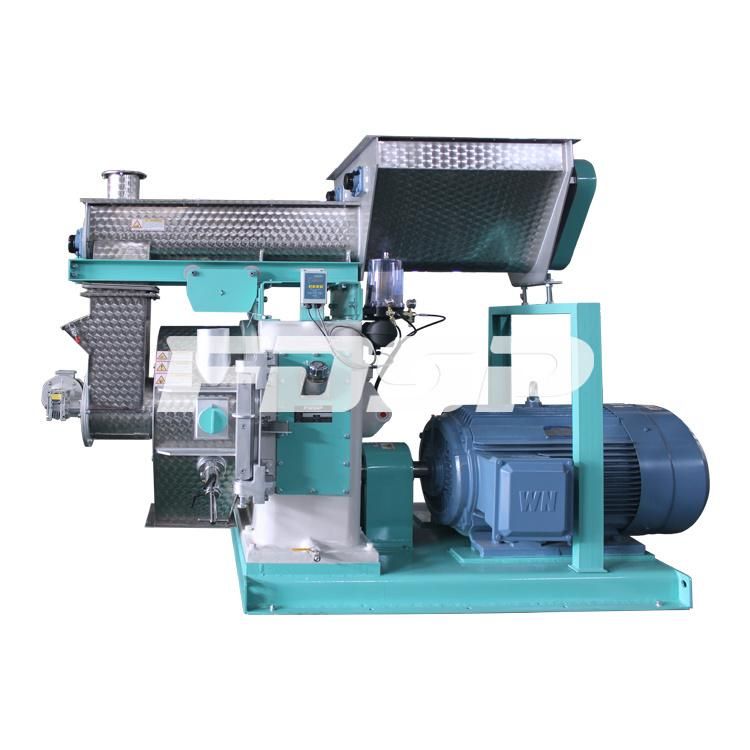

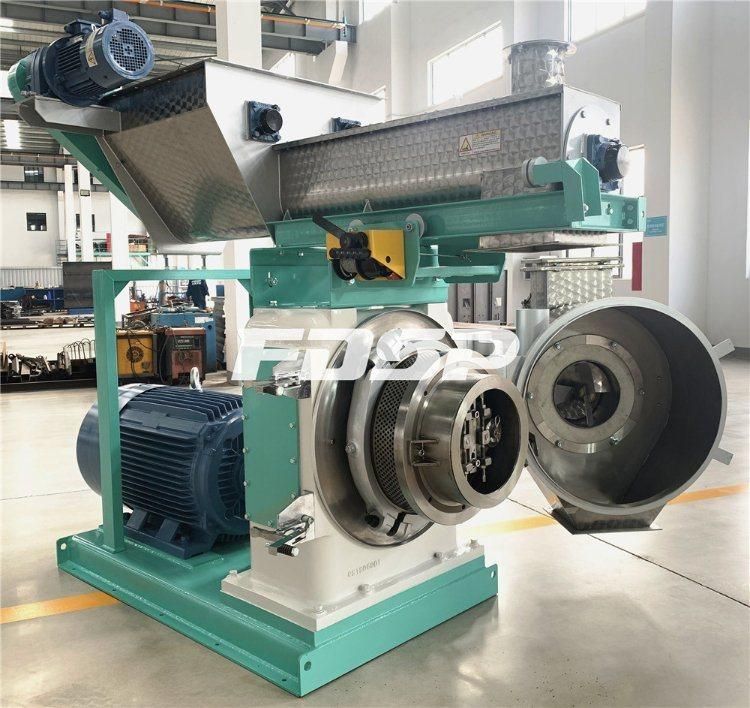

CE ISO Certificated Hot Sale Ring Die Biofuel Pellet Making Machine
Features:

1. It is widely used for pelletizing of light substances, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;

2. The feeder's especial structure makes materials conveyed evenly. It is specially designed for pelletizing of  light substances with the density of 0.15-0.65g/cm3;

3. Feeder,conditioner and chute are made of stainless steel with long service life;

4. It is with magnet and over load protection system which can protect machine well during production;

5. It makes gear directly-connecting as the driver and is with quick-release die fixed by clamps,which can increase the output by 15% more than the same type machine with belt-convey;
6.The bearings and oil seals in the main drivers are imported from Japan to ensure highly-efficient,stability and credibility.

Performance Parameters:

Model	WZLH420	WZLH508	WZLH680
Ring die inner diameter (mm)	420	500	688
Ring die working width(mm)	90	100	110
Ring die linear speed (m/s)	3.16	3.78	3.54
Number of clamp	3 pcs	3 pcs	8 pcs
Number of roller	2 pcs	2 pcs	2 pcs
Number of cutter	1 pcs	1 pcs	1 pcs
Motor power	90+2.2+0.75	90+2.2+1.5	185+3.0+1.5
Motor rotation speed	750	750	595
Ring die hole   diameter(mm)	6/8/10	6/8/10	6/8/10

Pictures:





FAQ:
1.Q:Are you a factory or trading company?
 A:We are a manufacturing and trading company.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai.Our company is located in Nanjing City,Jiangsu Province,China.You can fly to Shanghai
airport directly.All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How does your factory do regarding quality control?
 A:"Quality is our soul. We always attach great importance to quality controlling from the beginning to the end. We have many engineers to R&D our products.

4.why choose our products?
A:Good products! Good reputation! Good service! Good price!
