• Model NO.：MJ6232A
• Certification：ISO
• Customized：Customized
• Condition：New
• Color：Customized
• Model No.：MJ6232A
• Max.incising thickness：92mm
• Total Power：20.18Kw
• Max.incising length：3200mm
• Main blade motor Power：11Kw
• Net weight：about4000Kg
• Size：5878X6500X1620mm
• Transport Package：Wrapping Film
• Specification：5878x6500x1620mm
• Trademark：ZICAR
• Origin：China
• HS Code：8465910000
• Production Capacity：100sets,Month

Basic Info.

Model NO. MJ6232A Certification ISO Customized Customized Condition New Color Customized Model No. MJ6232A Max.incising thickness 92mm Total Power 20.18Kw Max.incising length 3200mm Main blade motor Power 11Kw Net weight about4000Kg Size 5878X6500X1620mm Transport Package Wrapping Film Specification 5878x6500x1620mm Trademark ZICAR Origin China HS Code 8465910000 Production Capacity 100sets/Month

Product Description

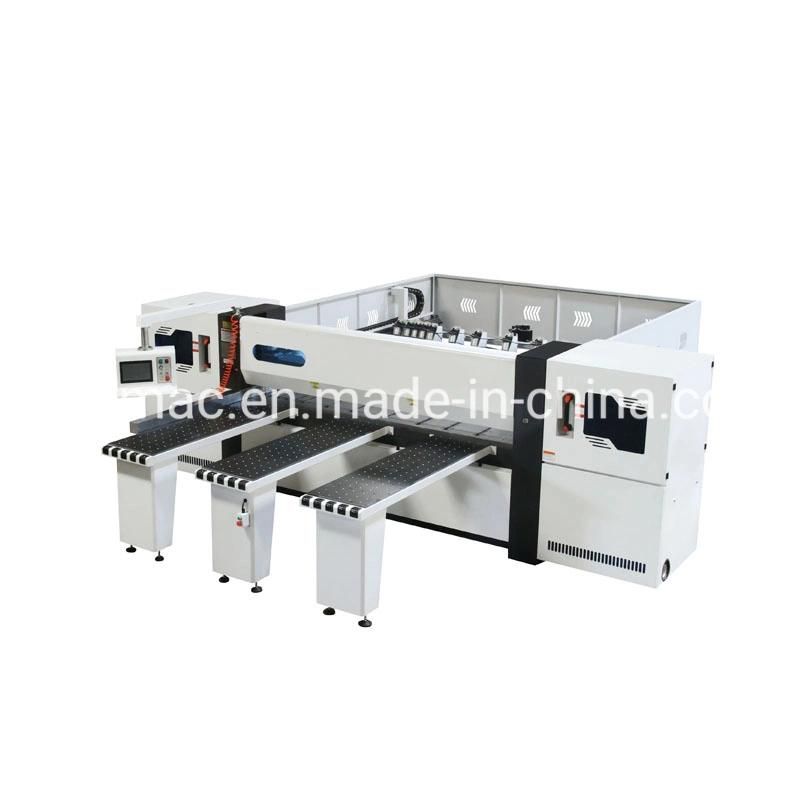

ZICAR woodworking machinery automatic panel saw and panel saw machine MJ6232A

Features
1.Body: square tube reinforced form welding, zero boundary temperature annealing
Ensure the long-term sawing accuracy of the machine, ensure that the body is not deformed, and durable
2.The electrical device uses Taiwan Yonghong PLC programming controller, imported Schneider contactor,
stable quality, and extended machine life.
3.Air pressure: maintain 0.6-0.8kgf / cm2 during use, the pressure is greater, to ensure the cutting accuracy, multiple boards are not easy to fall off
4.Feeding: use INVT 1.5kw servo motor, running more smoothly
Product parameters

Max.incising length	3200mm
Max.incising thickness	92mm
Main blade motor Power	11kw(standard)/15kw(optional)
Outer diameter of main blade	Φ400mm
Inner diameter of main blade	Φ60mm
Revolving speed of main blade	4260rpm
Outer diameter of secondary blade	Φ180mm
Inner diameter of secondary blade	Φ30mm
Revolving speed of secondary blade	7000rpm
Cutting speed	≤35m/min
Returning speed	35m/min
Air pressure	0.6-0.7Mpa
Machine outline size	5878x6500x1620mm
Total Power	20.18kw(standard)/24.18kw(optional)
Net weight	about4000Kg

Show Details



Product packaging


Our Company

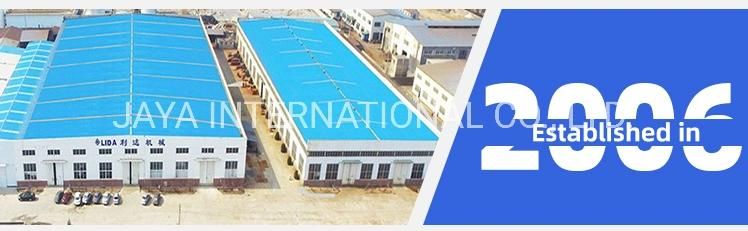

JAYA INTERNATIONAL, has been dealing in woodworking machinery for more than 27 years, started from Jaya Trading at the beginning of 1992. In 2008, we made great investment andbecame the holding company of YanTai Lida woodworking machinery Co.,ltd, which has over59 years' history of manufacturing all kinds of China- ·made woodworking machinery since 1960, especially for the MQ & ML series combined woodworking machine, it has the extremelyimportant guiding function in the circle. During the past few years, with the development of thecompany and the staff, we also expanded our production line to related fields like general machinery, panel furniture making machinery ,CNC router, Laser machinery, Plywood makingmachine and related hardware, ect.

Thanks for our top quality, excellent service and competitive price, thanks for all the supportfrom our customers, now our machine has got great reputation as the brand ZICAR for woodworking machinery, MATIC for general machinery , HARRIER for CNC/ laser Machinery,PLYTEC for plywood making machine all over the world with the following advantages:

* More than 300 employees, 56 technicians, covering an area of 35000 square meters.
* ISO9001:2000, CE certified, 15 national patents.
* One-stop service, meet needs of the customers from individuals to international companies.
* OEM service accepted.
* Separate trading office: Jaya Trading with 35 experienced sales offering full scale service.
* lnquiries are typically answered within 8 hours.
* After sale Service: experienced and knowledgeable team of technical support
* Annual turnover: USD 20 million

We trust that our experience and intimate knowledge of this line will entitle us more confidence to serve our customers.

The more you know us, the more you trust us!


Customer Visit





Exhibition




F&A

1. Our Payment Way?
L/C and T/T or other ways.

2. Delivery Time?
30 days after down payment. We have our own forwarder and we have long term cooperation with each other and have closely relationship with each other, so there is no problem in shipment.

3. Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of one shift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situation during warranty period, and all the round-trip courier transportation cost of damaged/repaired replacement parts in warranty period should be borne by the buyer. Wearing parts are not included.
(3)24 hour technical support by email or calling.
(4)User-friendly English manual for machine using and maintaining.

4. Our services?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support, provide engineer oversea service.
