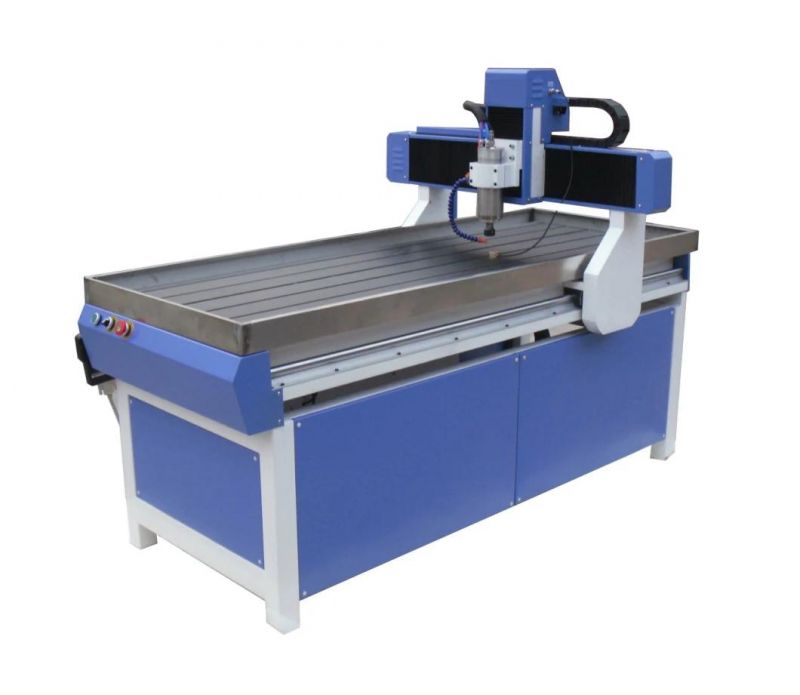

6090 Metal Engraving 2.2kw CNC Router Machine
Jinan Lansen Laser Equipment Co., Ltd.- Condition:New
- Certification:CE
- CNC or Not:CNC
- Voltage:220V
- Drive Type:Stepper
- Table Type:Aluminum Profile T Slot Clamping
Base Info
- Model NO.:LSM6090
- Spindle Power:2.2kw Water Cooling(0-24000rpm)
- Warranty:2 Years
- Gross Weight:350kg
- Transport Package:Wooden Boxes
- Specification:1.35*1.1*1.3m
- Trademark:Lansen
- Origin:China
- HS Code:8465990000
- Production Capacity:500 Sets,Year
Description
Basic Info.
Model NO. LSM6090 Spindle Power 2.2kw Water Cooling(0-24000rpm) Warranty 2 Years Gross Weight 350kg Transport Package Wooden Boxes Specification 1.35*1.1*1.3m Trademark Lansen Origin China HS Code 8465990000 Production Capacity 500 Sets/YearProduct Description
6090 Metal Engraving CNC Router machineFeatures:
- More reasonable equipment structure: gantry movement way.
- Mach3 control system; DSP Controllrt,USB port optional
- Ballscrew Transmit way: High accuracy.
- Linear Guide Rail: Guide rails adopts linear guide rails.
- Aluminium T slot fix way.
Model | LSM6090 |
Spindle power | 2.2KW |
X,Y Worksize | 900*600mm |
Z-axis worksize | 150mm |
Control system | Mach3/DSP offline control |
Cooling way | Water cooling |
Spindle rotating speed | 0-24000rpm |
voltage | 220v/50hz/(110V/60Hz optional) |
Machine power | 450w |
Command | G code |
Max Speed | 12m/min |
Working speed | 3.5m/min |
Motor | Stepper |
Rail guide | Linear Guide rail |
Compatible Software | Type 3 / Artcam / Casmate / Proe / UG / Artgrave etc. |
Transmit way | Ballscrew transmit way |
Holding way | Clamp |
Resolution | ≤±0.05mm |
Repeat precision | 0.005mm |
Dustproof part | dust shield |
Cutter diameter | 3.175-6mm (12mm) |
Package | Wooden box |
N.W | 320kgs |
G.W | 450kgs |

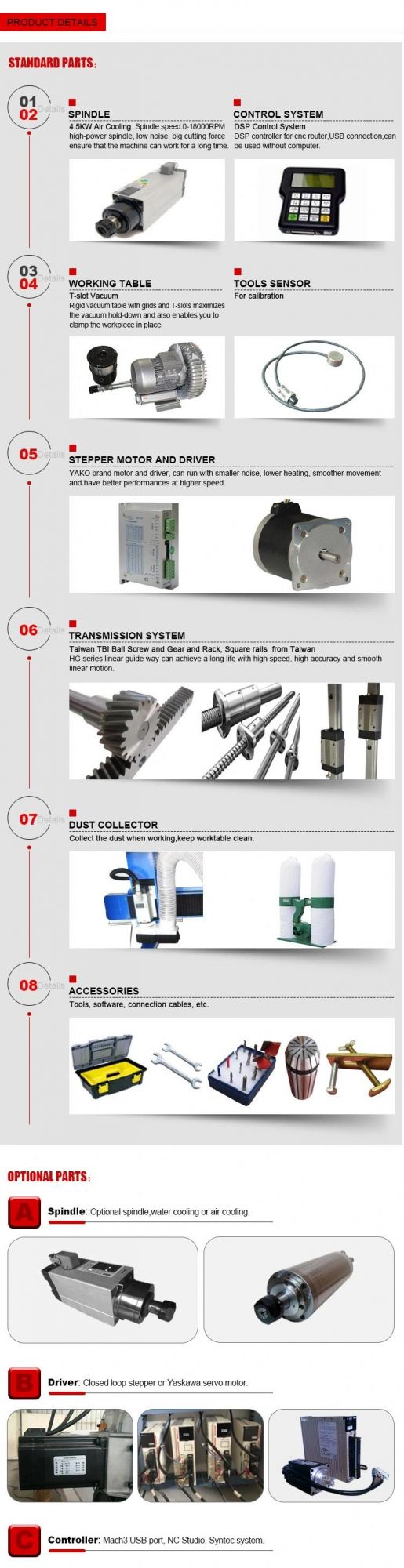

Machine details:
Warranty:
1. 2 year for the whole machine.
2. 6 months for the Plasma generator.
3. Consumable parts are beyond the warranty lines.
4. etailed manual and video to guide the uses how to use the machine and maintenance supplied.
5. Technical support by website and phone.
6. If you meet the problems, we can solve it with pictures, videos ect .

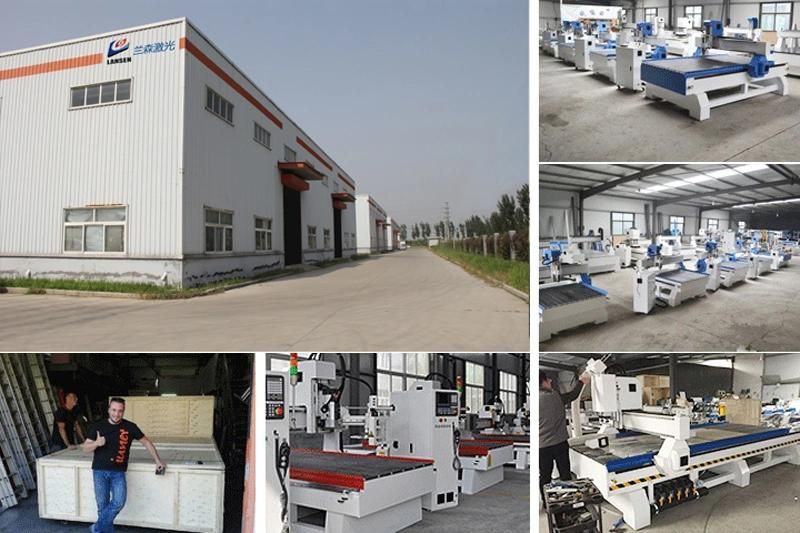

About us:
